StarTech.com Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA~Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI
StarTech.com USB 3.0 Docking Station with HDMI and DVI/VGA – Dual Monitor – Universal Laptop Dock – Mac and Windows Compatible (USB3SDOCKHDV)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio

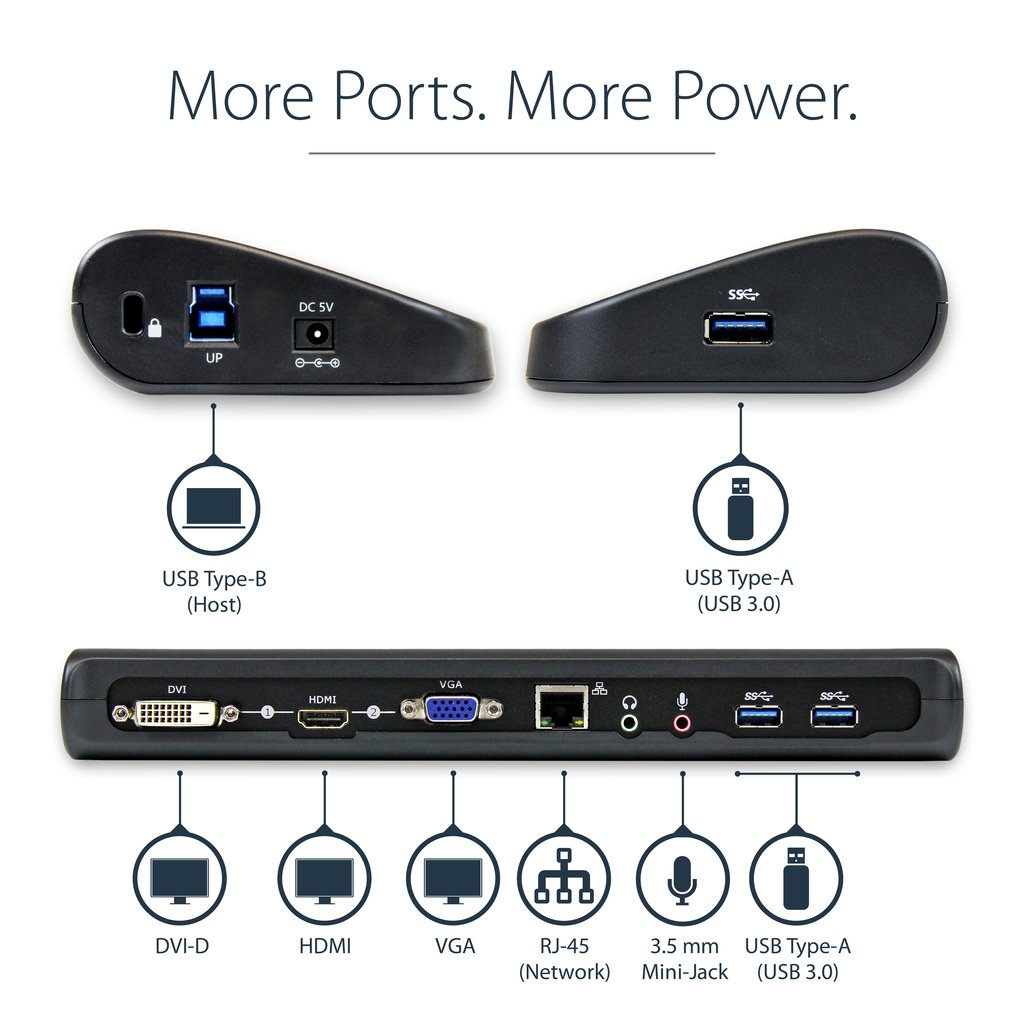

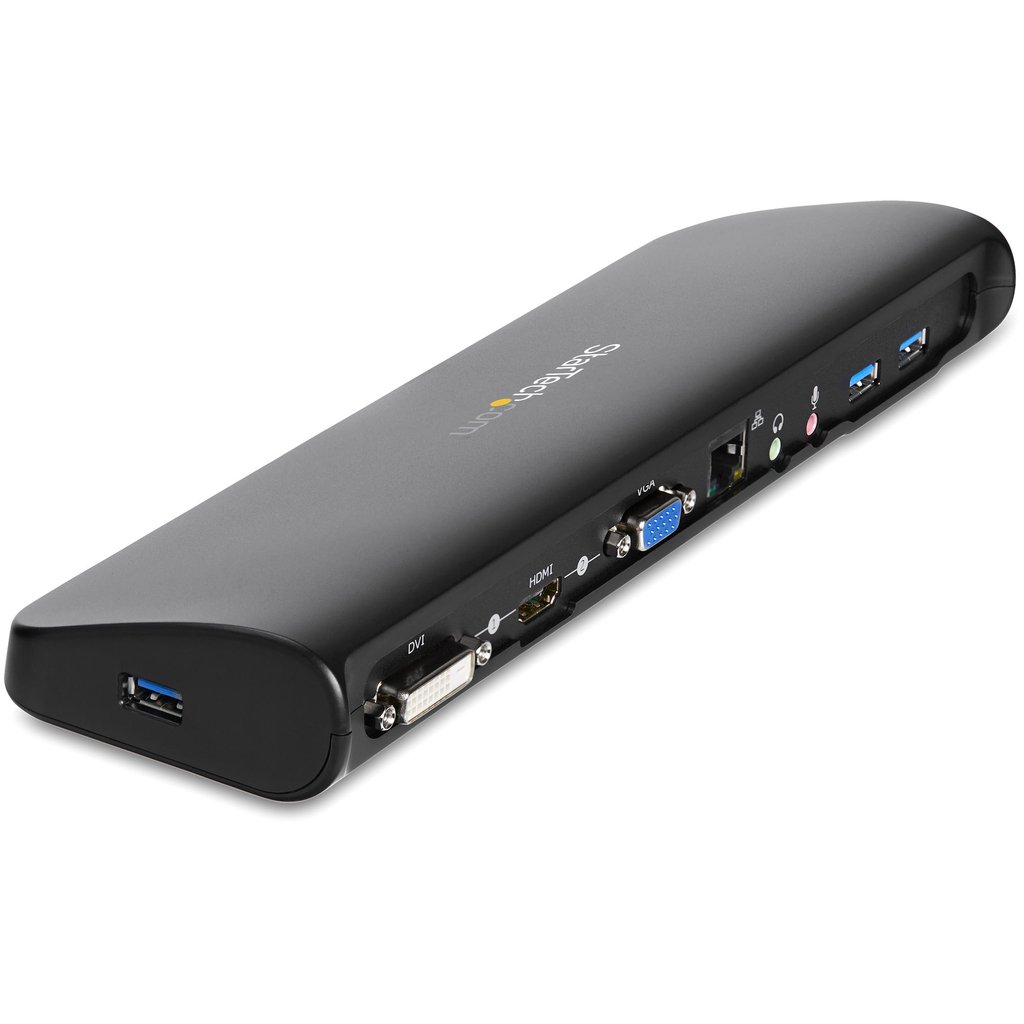

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.
Display Adaptability

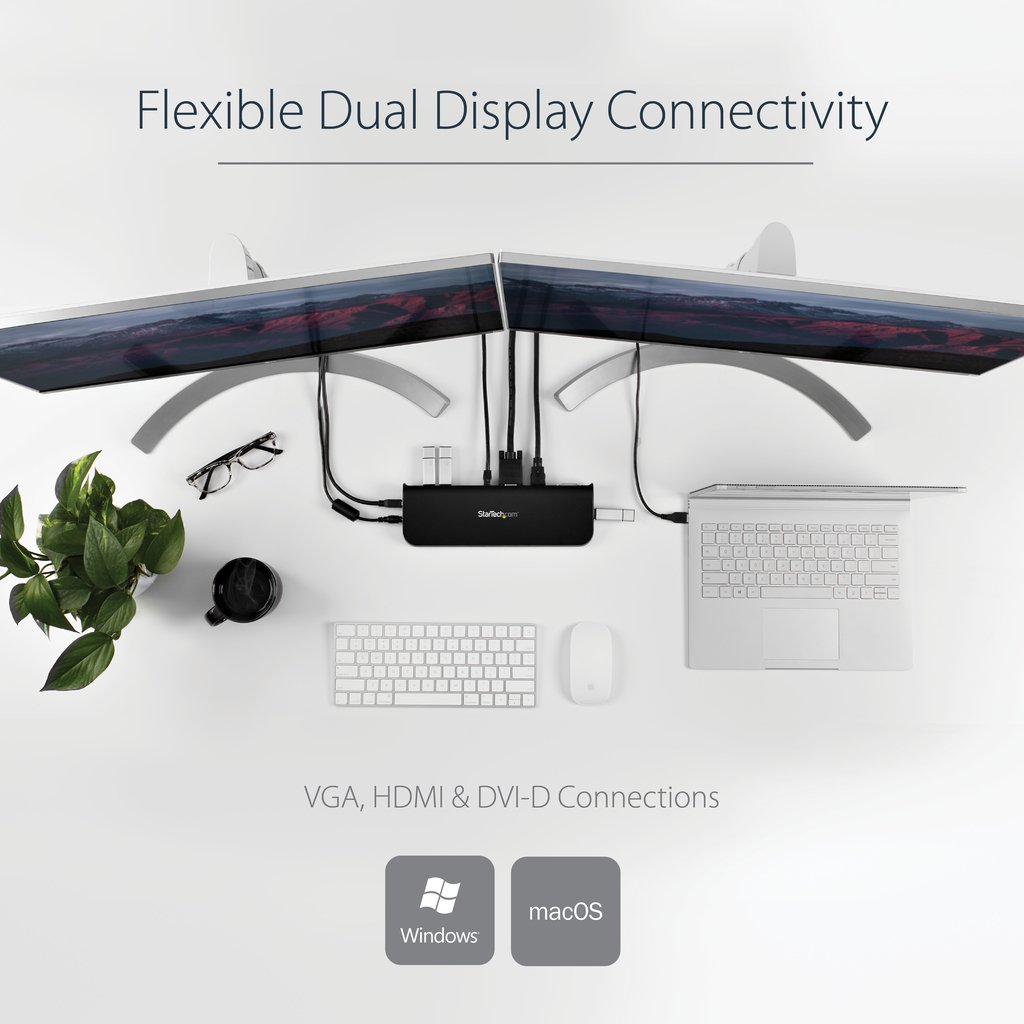

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048×1152 max) and HD video playback for an ideal solution to expanding your notebook’s video capability.

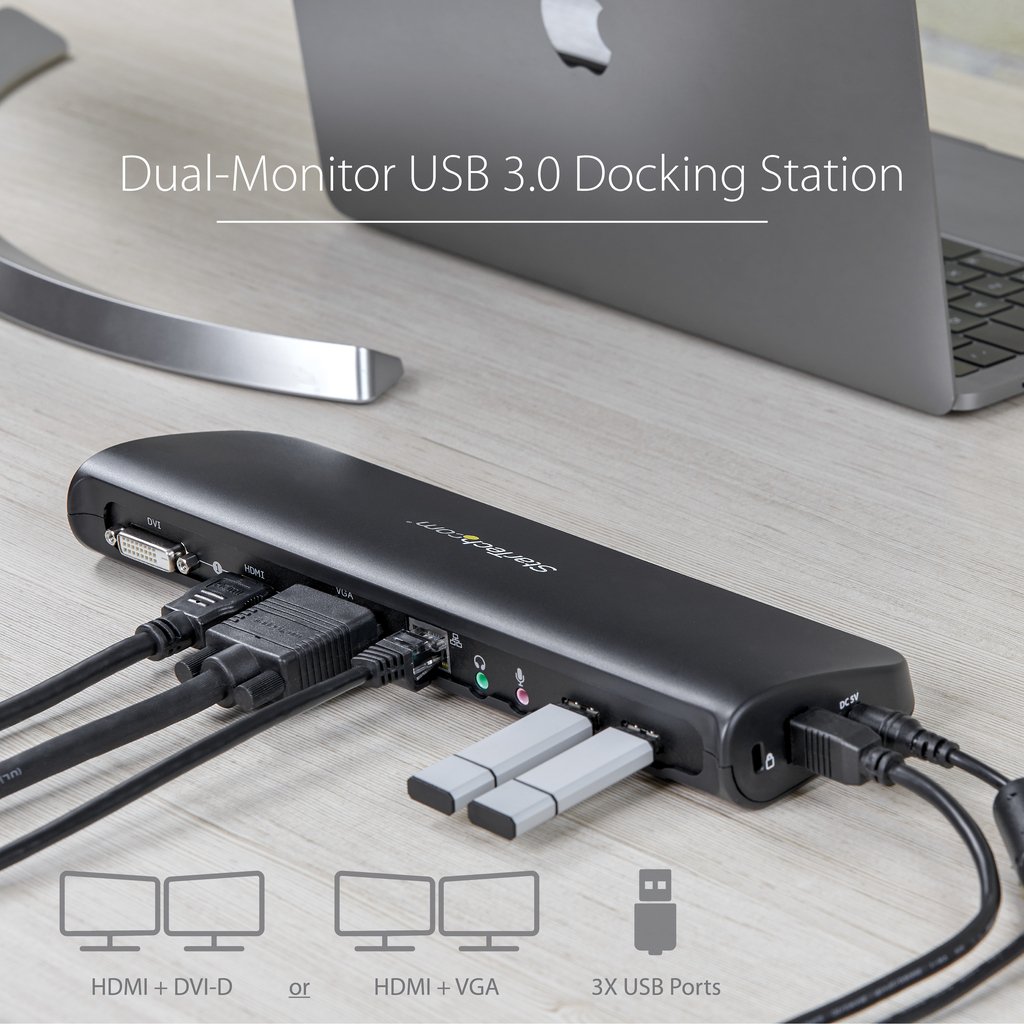

Available display combinations:
• HDMI + VGA
• HDMI + DVI
Integrated USB Hub

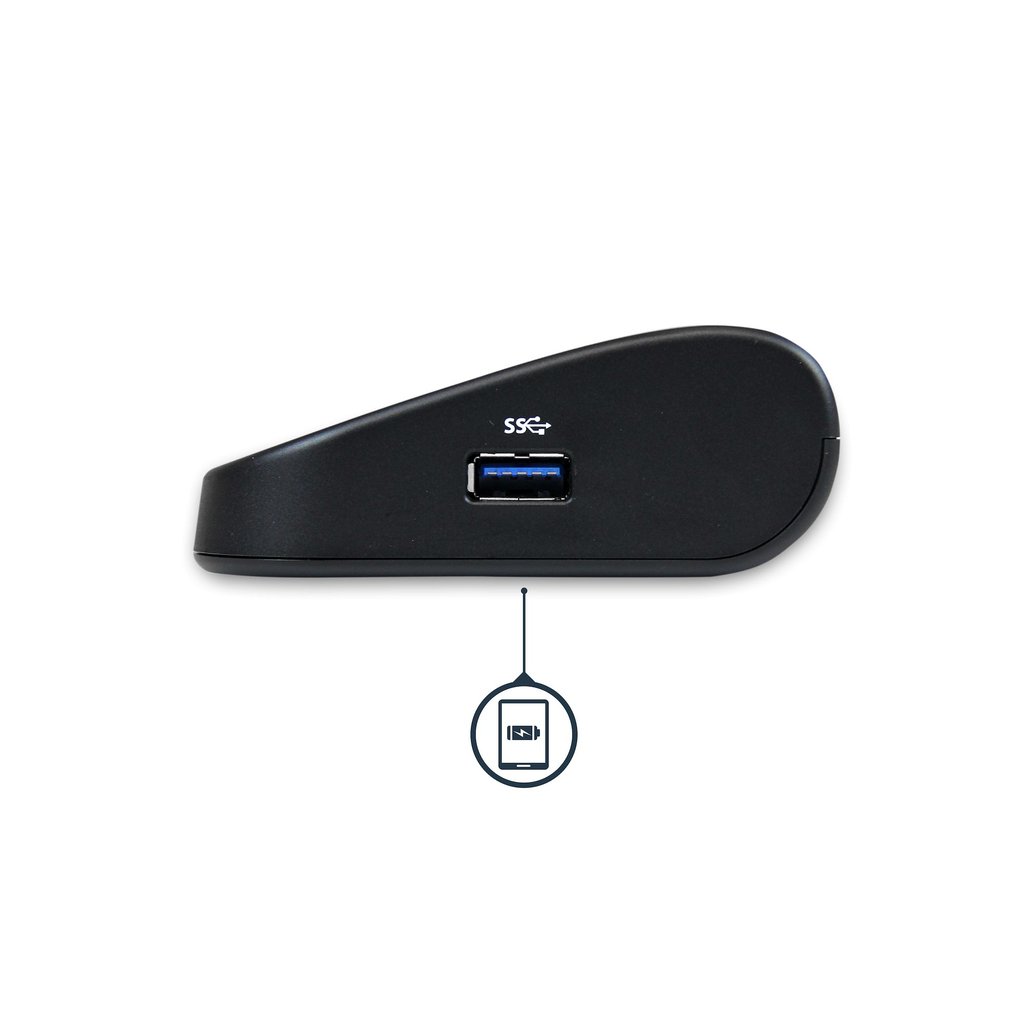

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.
The StarTech.com Advantage
Additional information
| Weight | 0.76 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product colour | Black |
| Card reader integrated | No |
| Power consumption (typical) | 20 W |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 0 – 90% |

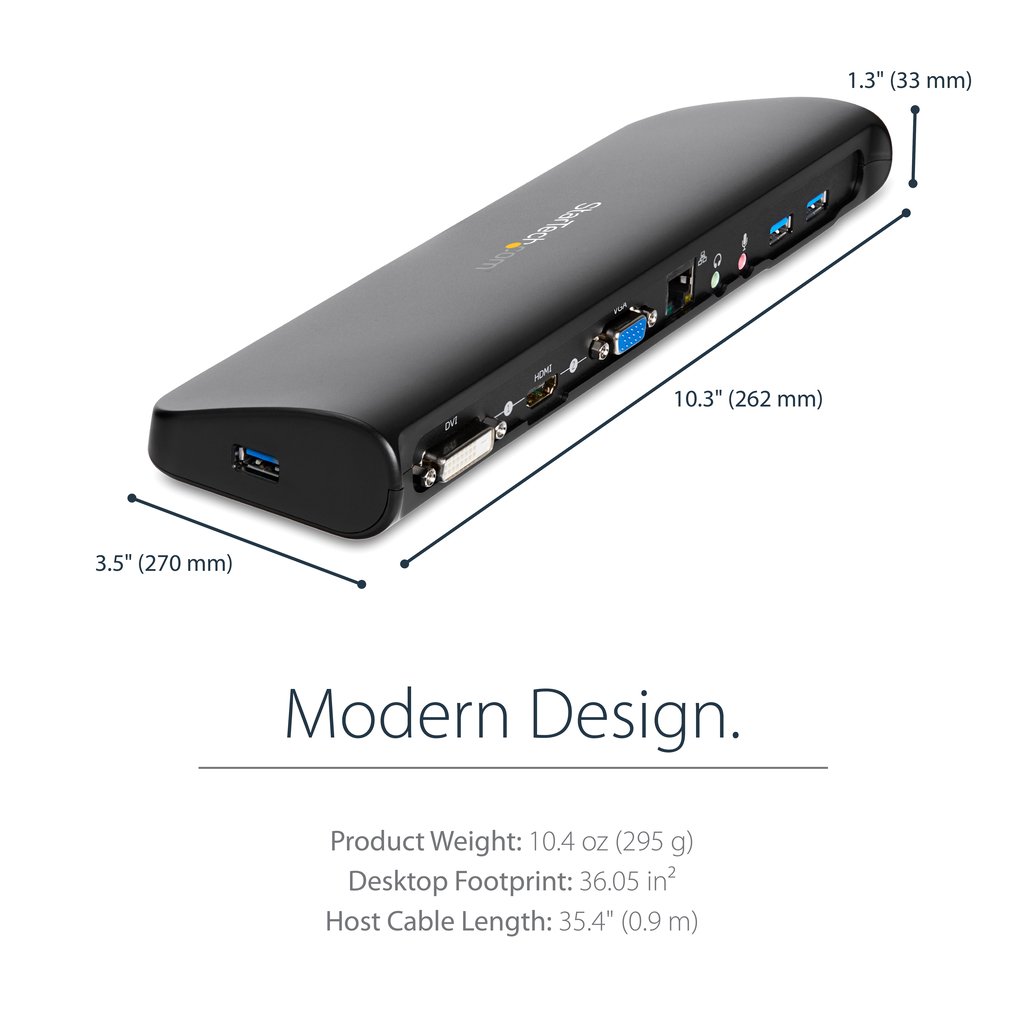

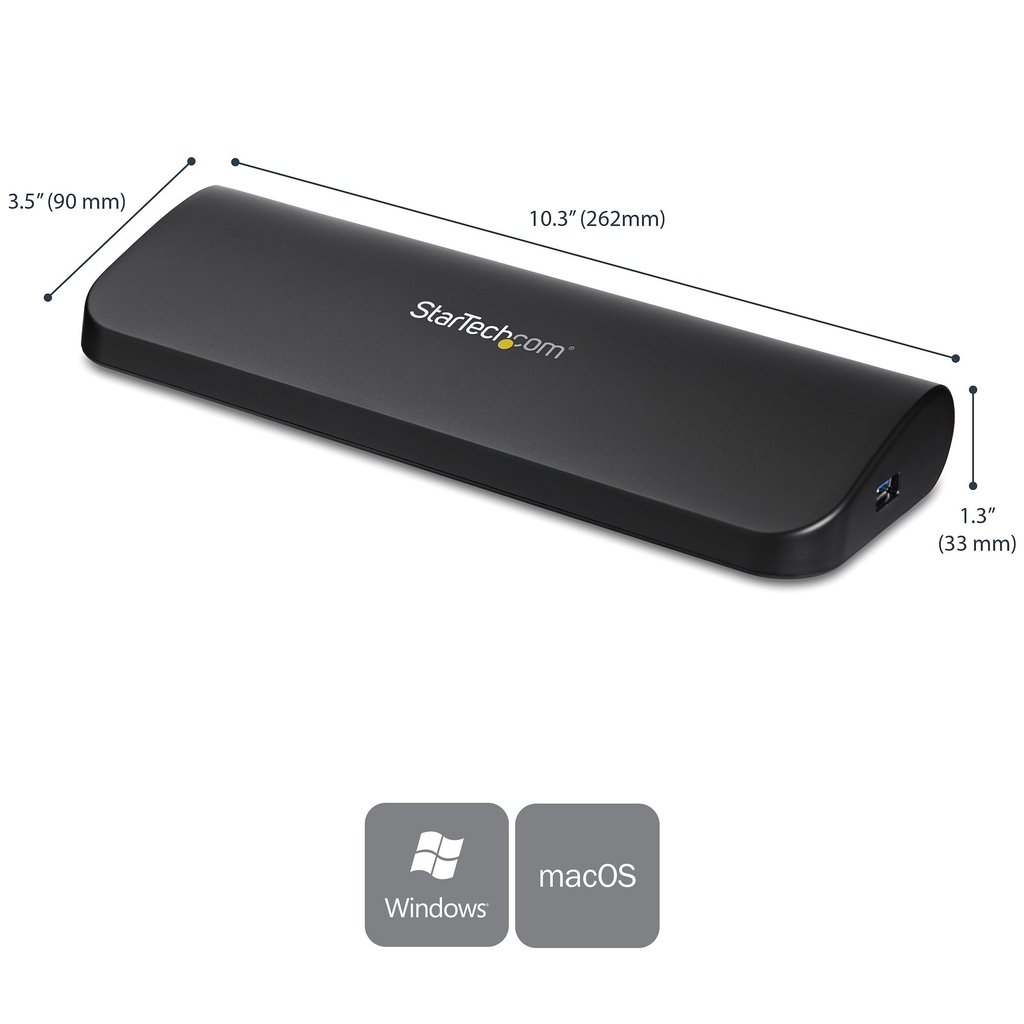

| Width | 178 mm |
| Depth | 304 mm |
| Height | 44 mm |
| Weight | 295 g |
| Package width | 195 mm |
| Package depth | 296 mm |
| Package height | 66 mm |
| Package weight | 878 g |
| Storage temperature (T-T) | -10 – 60 °C |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Maximum digital resolution | 1920 x 1200 pixels |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Housing material | Plastic |
| AC input voltage | 100-240 V |
| Input current | 0.9 A |
| Output voltage | 5 V |
| Output current | 4 A |

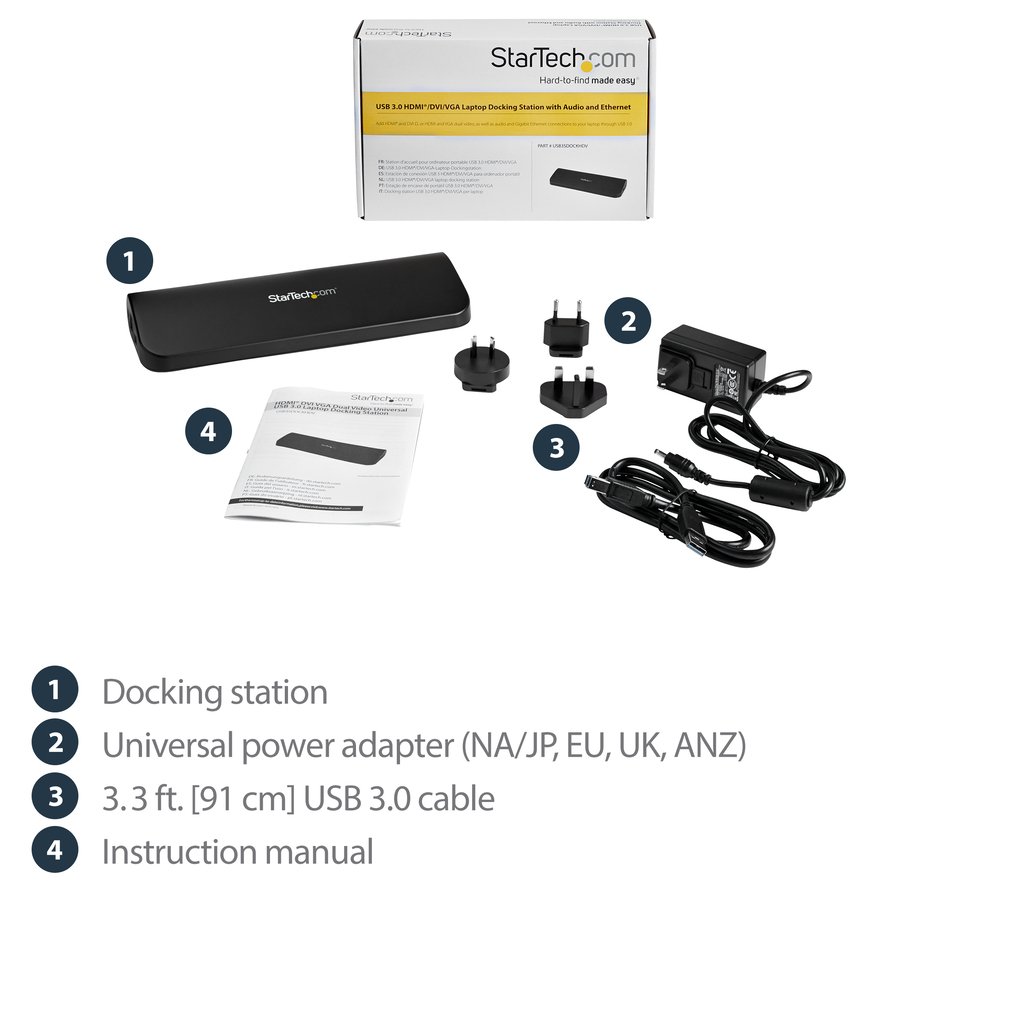

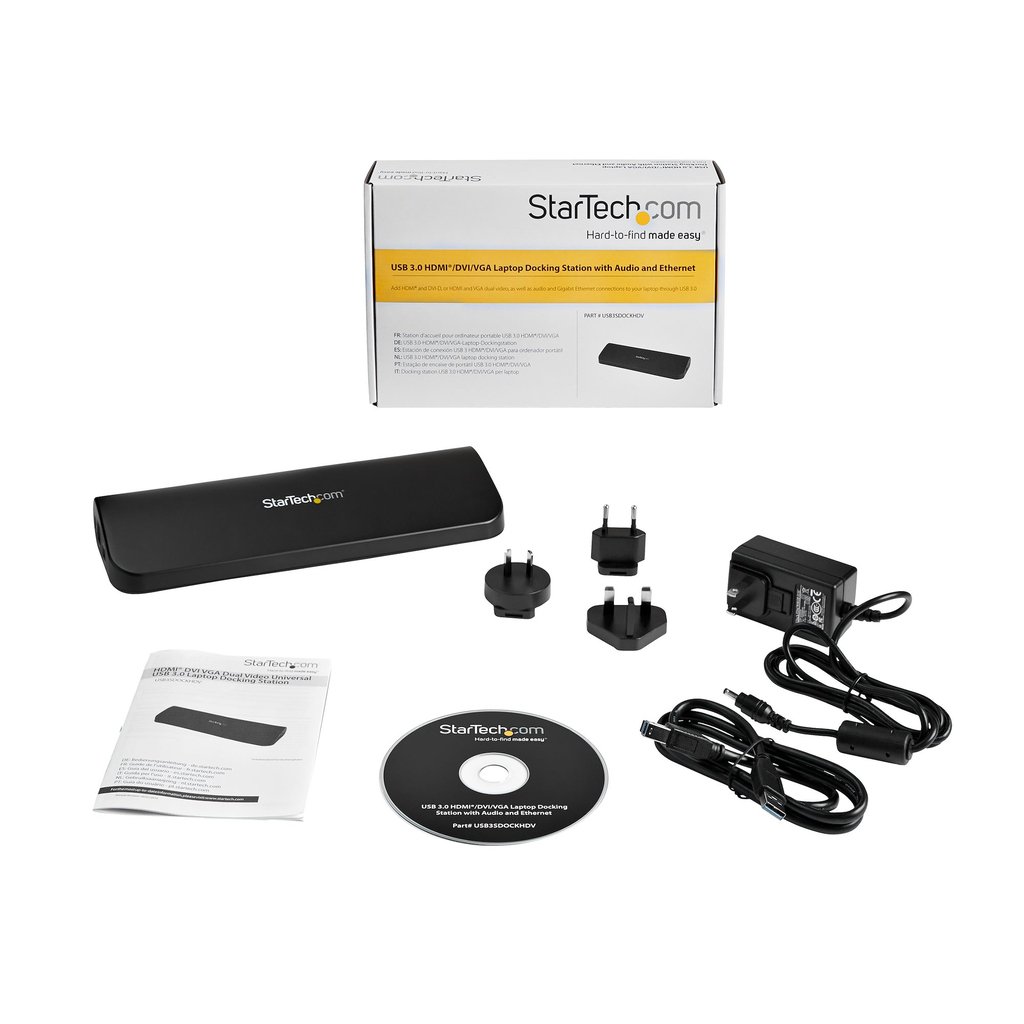

| Cables included | USB |
| AC adapter included | Yes |
| Compliance certificates | RoHS |
| Products per master (outer) case | 6 pc(s) |
| Data transfer rate | 5 Gbit/s |
| Other operating systems supported | ChromeOS |
| Microphone in | Yes |
| Full duplex | Yes |
| Power plug type | Type B |
| Compatible power plug types | AU, EU, UK, US |
| Master (outer) case width | 215 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 345 mm |
| Chipset | DisplayLink – DL-3900, Genesys Logic – GL3520, Realtek – RTL8211E |
| Certification | FCC, CE, TAA, REACH |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Manual | Yes |
| Harmonized System (HS) code | 84733020 |
| VGA (D-Sub) ports quantity | 1 |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Maximum analog resolution | 2048 x 1152 pixels |
| Mac compatibility | Yes |
| Drivers included | Yes |
| USB data transfer rates | 12,480,5000 Mbit/s |
| DVI-D ports quantity | 1 |
