StarTech.com Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5″ SATA I

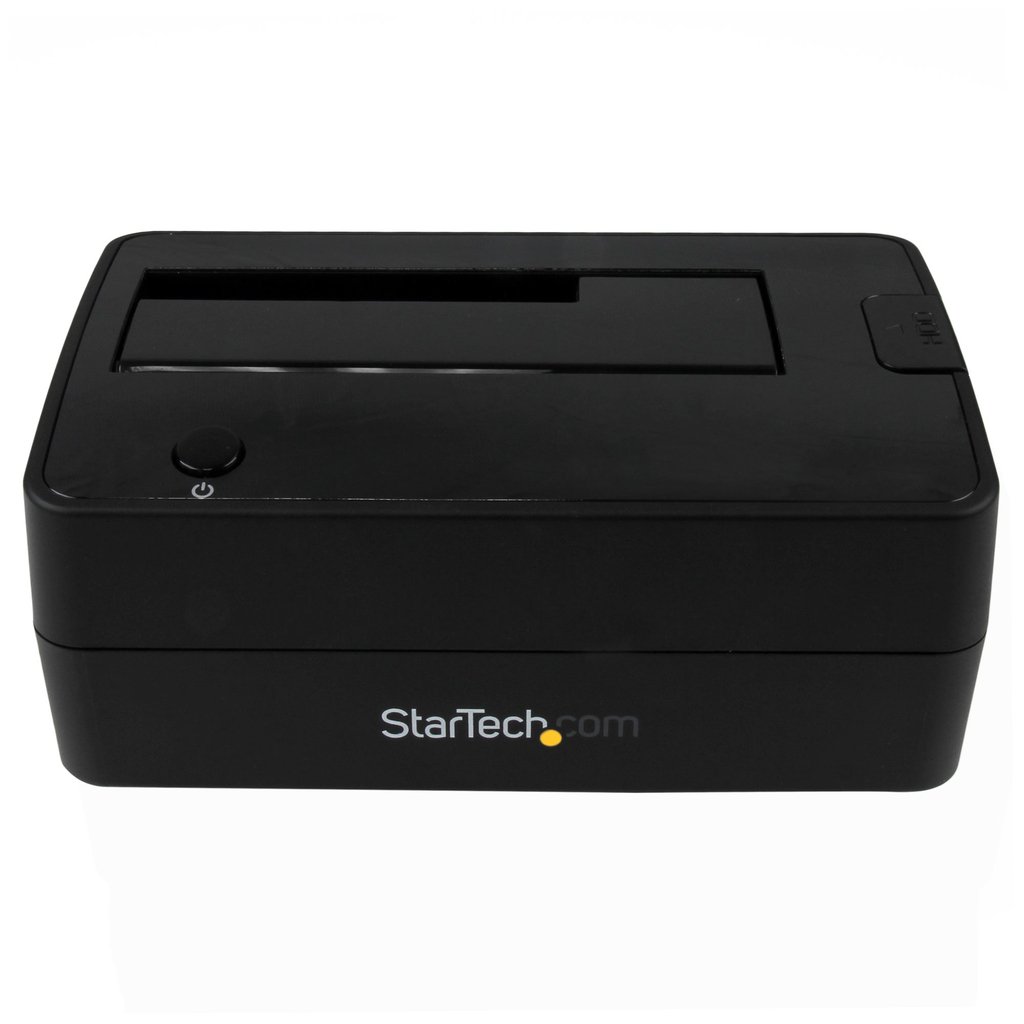

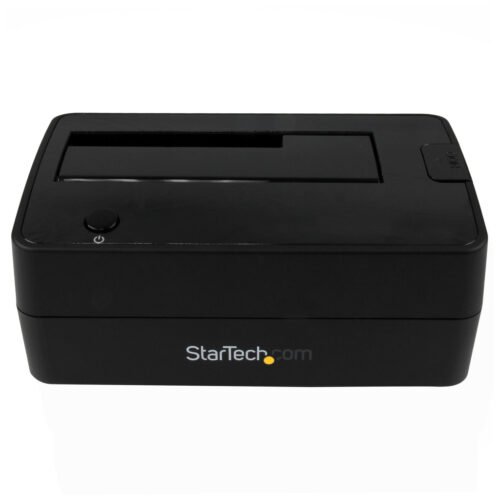

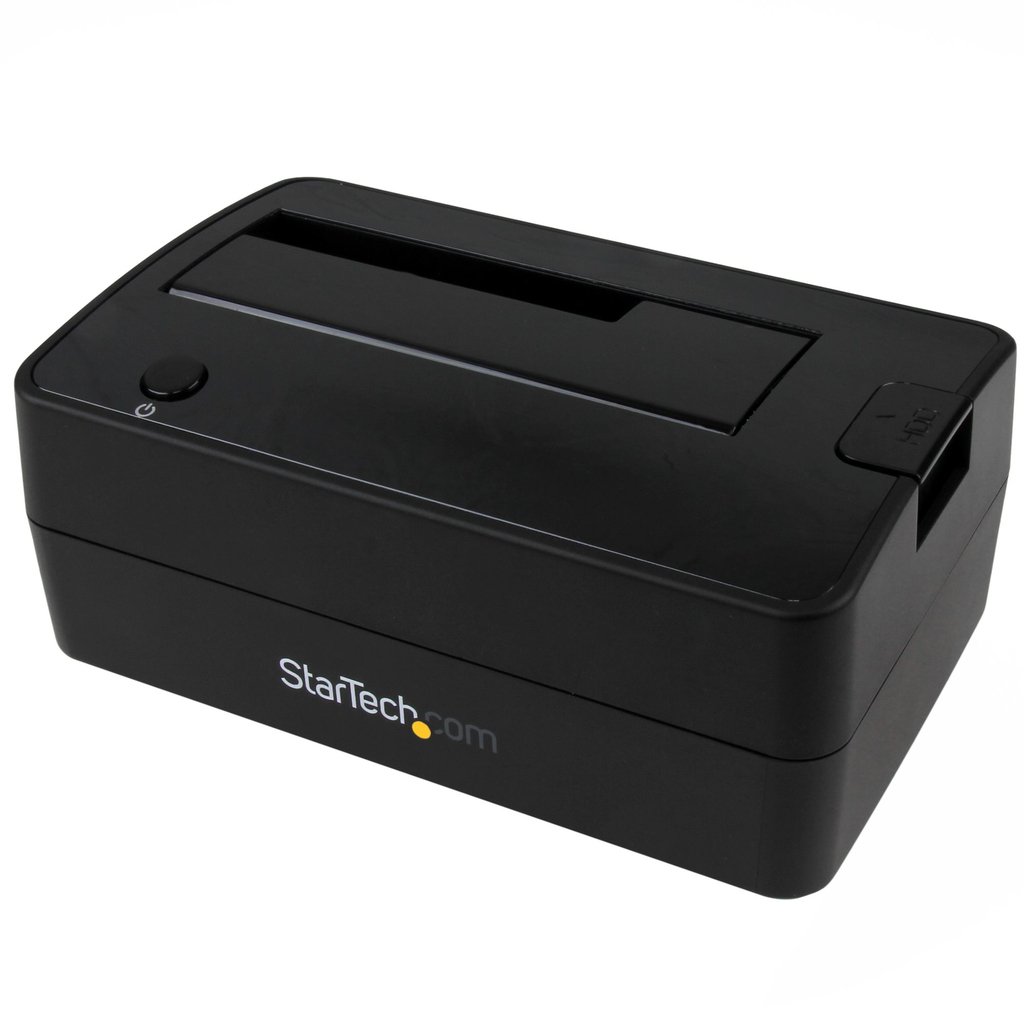

StarTech.com Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5″ SATA III HDD/SSD Docking Station, Top-Loading Hard Drive Bay (SDOCKU313)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA
Unleash the power of USB 3.1 Gen 2 (10 Gbps) with this single-drive docking station. It supports both 2.5” and 3.5” form factors for solid-state and hard drives, with a high drive capacity of 6TB.
Harness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps – twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Top-loading design for easy drive access
It’s never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility

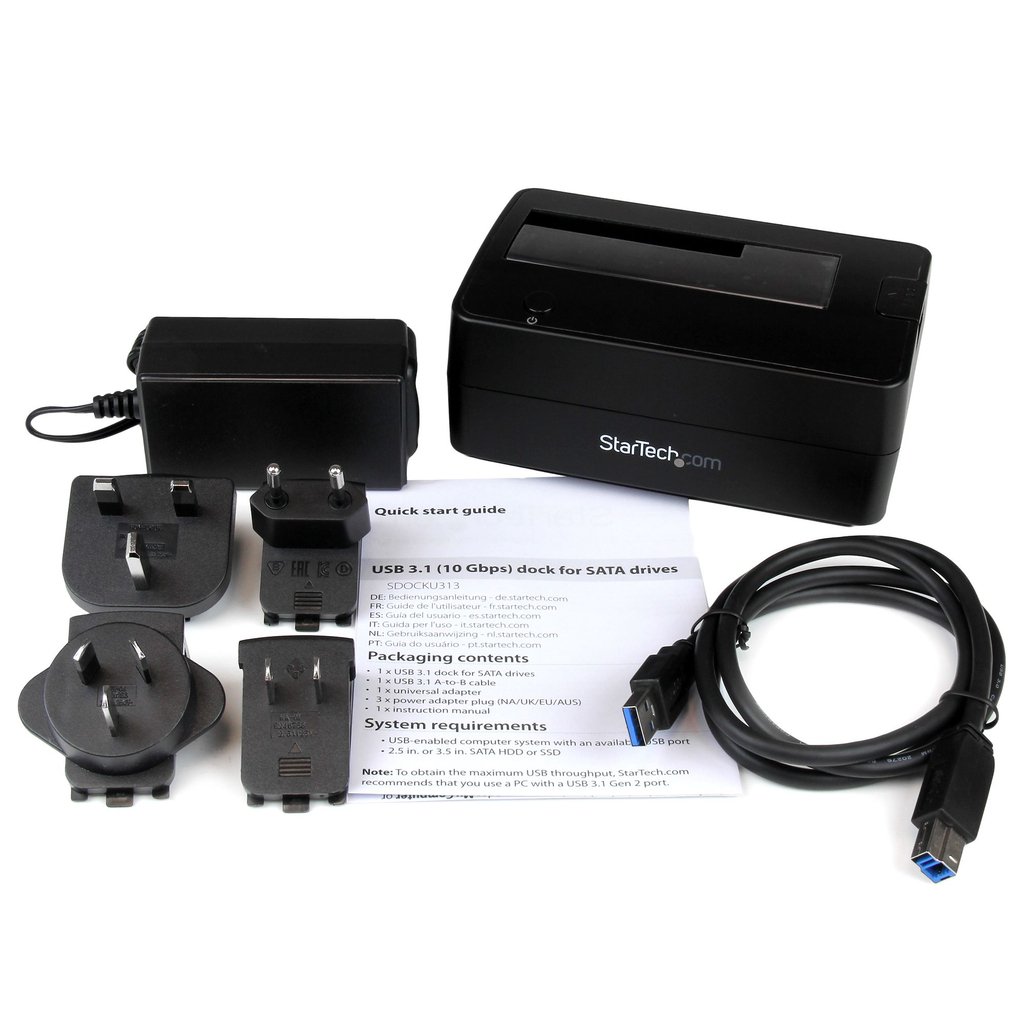

The docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.
The SDOCKU313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.7 lbs |
|---|---|
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 1 |
| Maximum storage capacity | 6 TB |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B |
| USB 3.2 Gen 2 (3.1 Gen 2) ports quantity | 1 |
| Product colour | Black |
| Material | Plastic |
| Maximum data transfer rate | 10 Gbit/s |
| LED indicators | Activity, Power |
| UASP support | Yes |
| Built-in fan | No |
| AC input voltage | 110 – 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 2 A |
| Width | 92.7 mm |
| Depth | 145 mm |
| Height | 64 mm |
| Weight | 392 g |
| Package width | 163 mm |
| Package depth | 91 mm |
| Package height | 171 mm |
| Package weight | 758 g |
| AC adapter included | Yes |
| Cables included | USB |
| Included power plug types | AU, EU, NA, UK |
| Quick installation guide | Yes |
| Operating temperature (T-T) | 5 – 35 °C |
| Storage temperature (T-T) | -20 – 50 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Chipset | ASMedia – ASM1351 |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 475 mm |
| Master (outer) case height | 185 mm |
| Products per master (outer) case | 10 pc(s) |

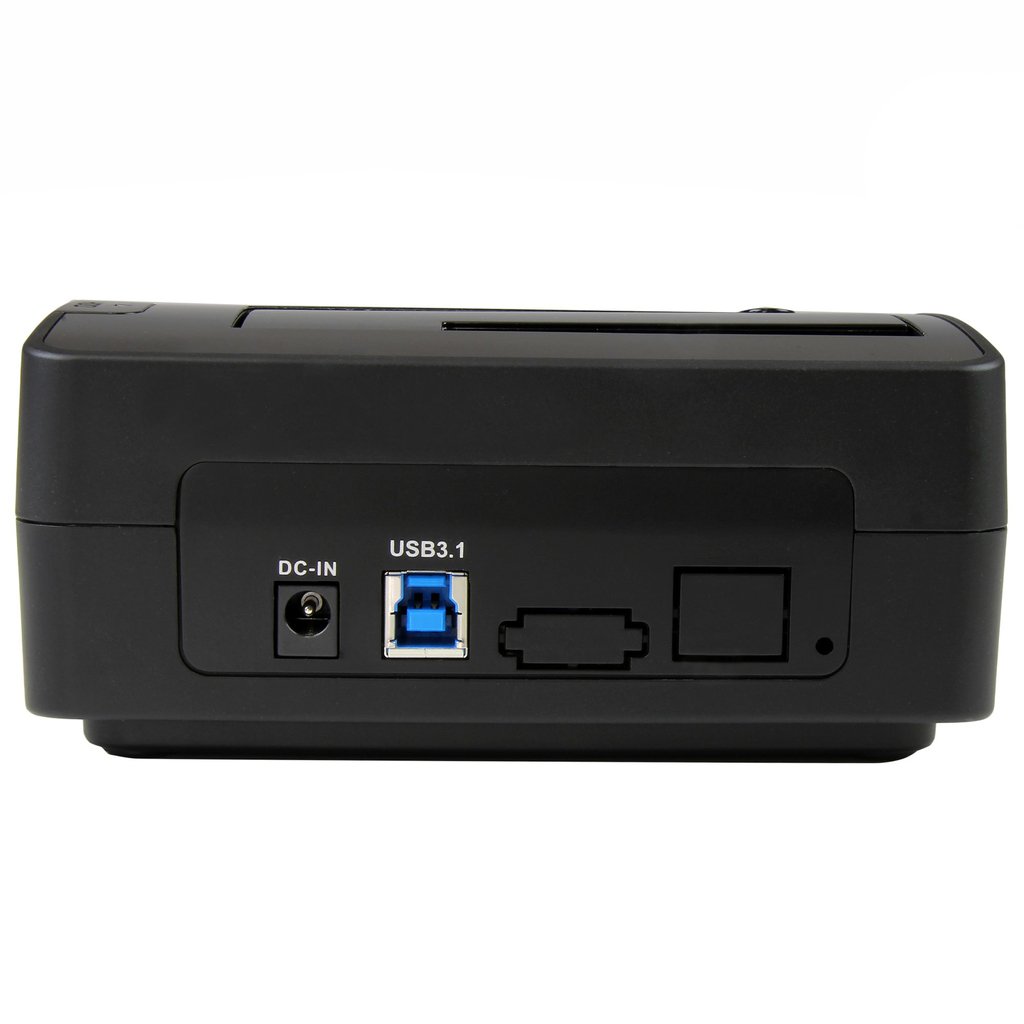

| DC-in jack | Yes |
| Certification | CE, FCC, REACH |
| Power plug type | Type M |
