StarTech.com Single Bay USB 3.1 / eSATA to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5
StarTech.com Single Bay USB 3.1 / eSATA to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5″ SATA III HDD/SSD Top-Loading Hard Drive Bay (SDOCKU313E)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) / eSATA to SATA
Connect and access any 2.5″ or 3.5″ SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.
Supports USB 3.1 Gen 2 and eSATA for flexible use
Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups.
You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.

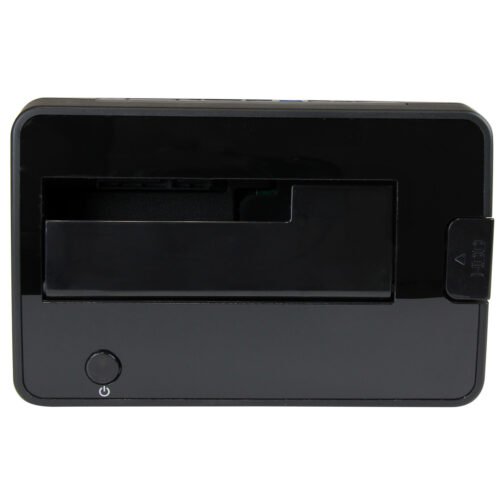

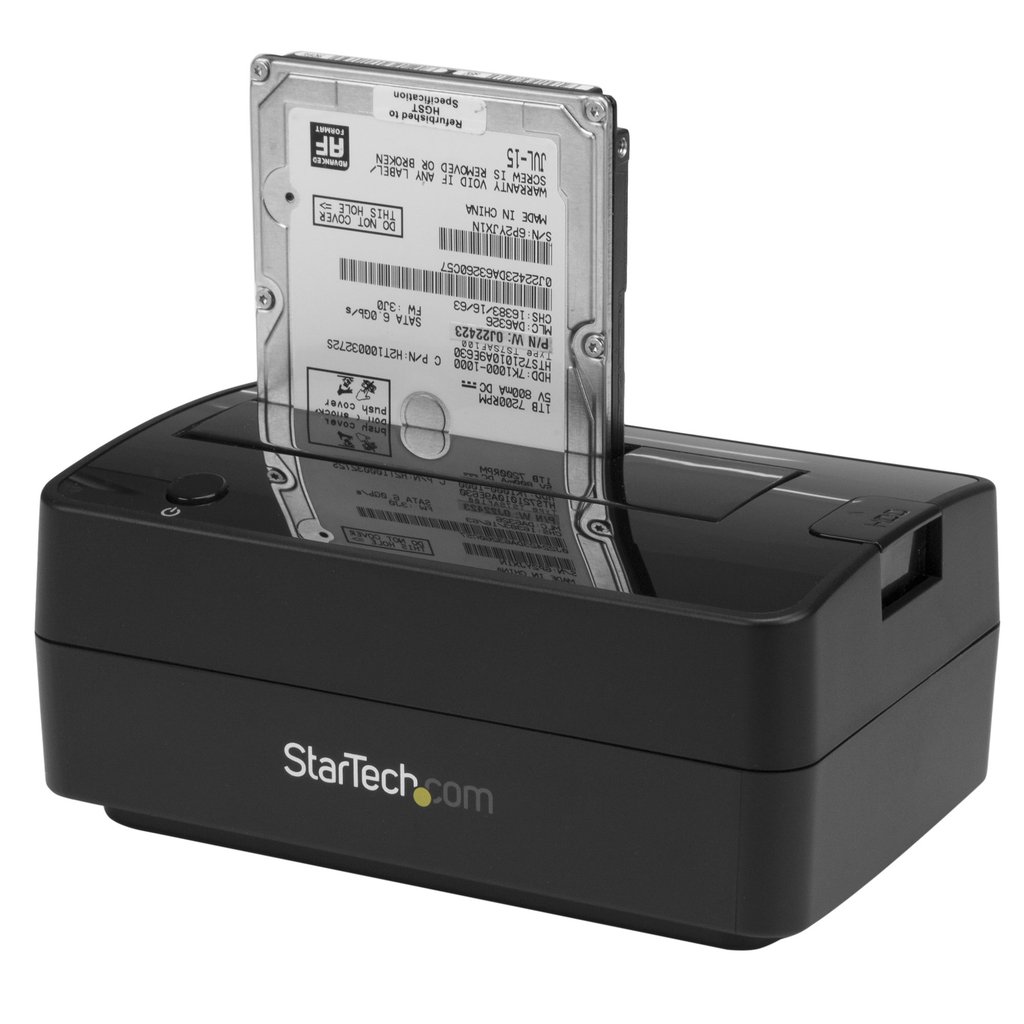

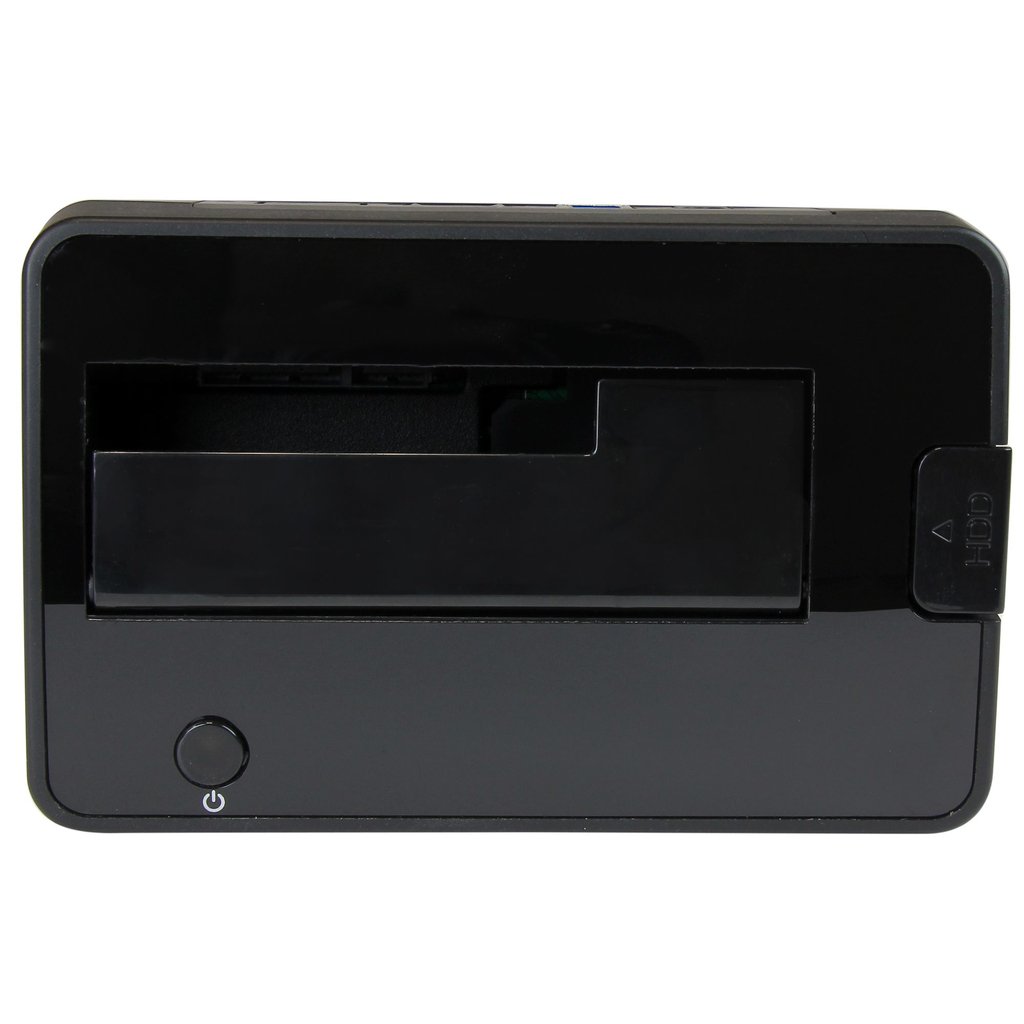

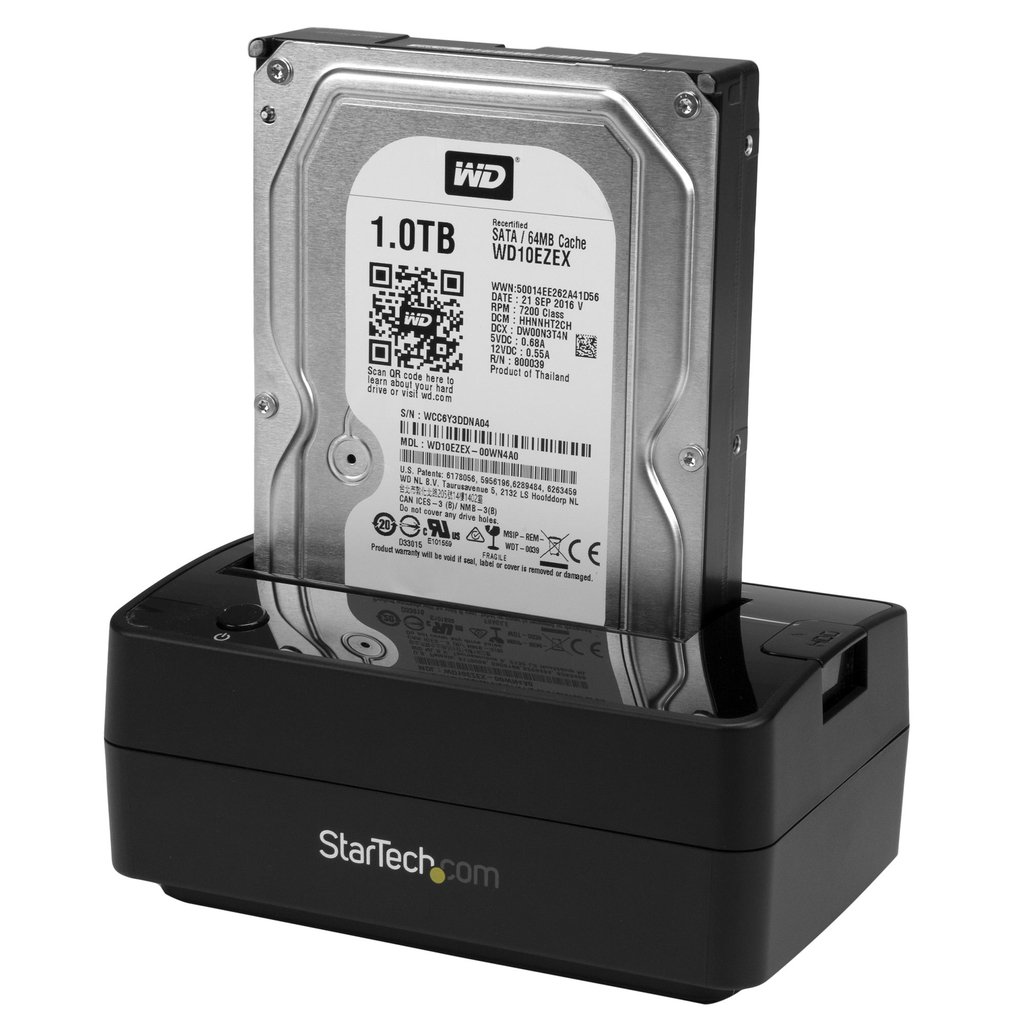

Top-loading design for easy drive access
The dock’s vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility

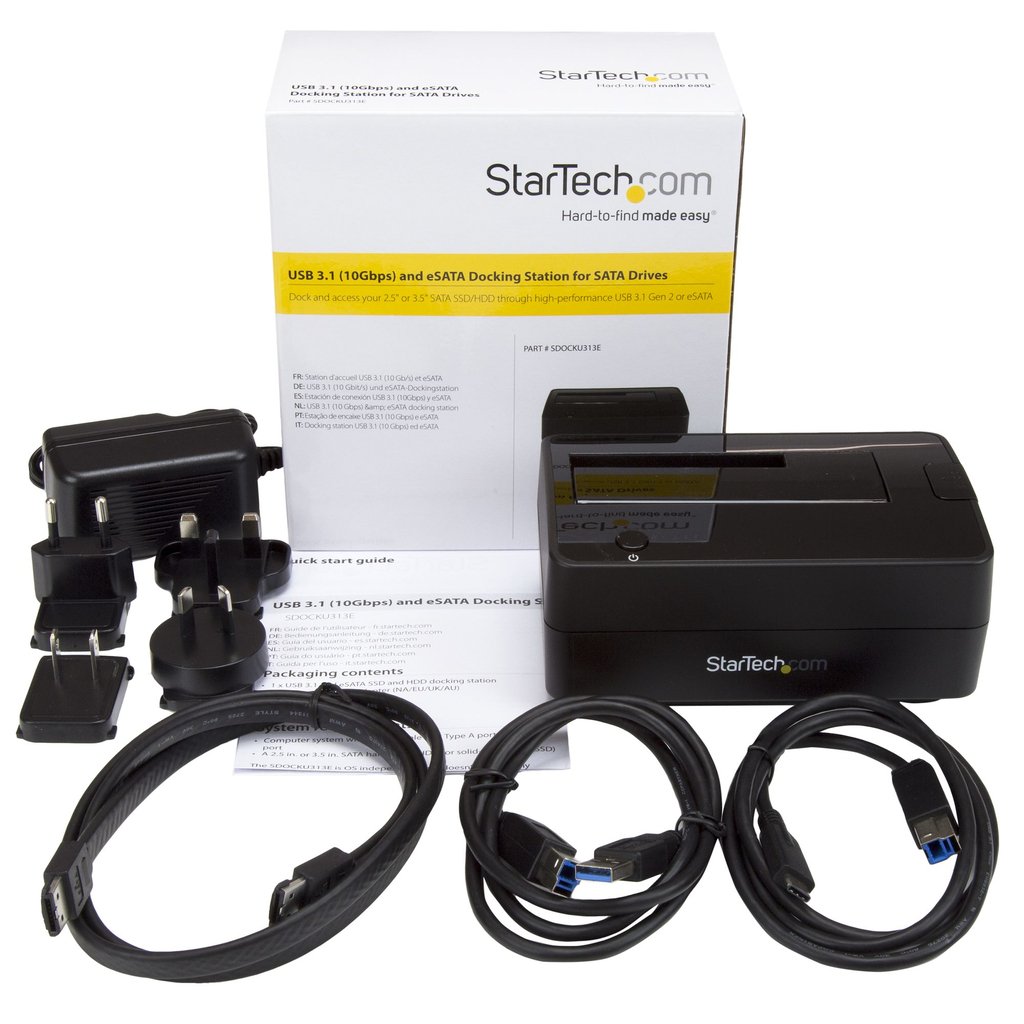

The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.
The docking station is also UASP compatible, for enhanced performance.
The SDOCKU313E is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.82 lbs |
|---|---|
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 1 |
| Maximum storage capacity | 6 TB |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-B |
| Product colour | Black |
| Material | Plastic |
| Maximum data transfer rate | 10 Gbit/s |
| Hot-swap | Yes |
| Plug and Play | Yes |
| LED indicators | Activity, Power |
| UASP support | Yes |
| Built-in fan | No |
| AC input voltage | 110-240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 2 A |
| Width | 93 mm |
| Depth | 145 mm |
| Height | 63 mm |
| Weight | 410 g |
| Package width | 161 mm |
| Package depth | 171 mm |
| Package height | 91 mm |
| Package weight | 862 g |
| AC adapter included | Yes |
| Cables included | USB, eSATA |
| Included power plug types | AU, EU, NA, UK |
| Quick installation guide | Yes |
| Operating temperature (T-T) | 5 – 35 °C |
| Storage temperature (T-T) | -20 – 50 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Chipset | ASMedia – ASM1351 |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 382 mm |
| Master (outer) case length | 484 mm |
| Master (outer) case height | 184 mm |
| Products per master (outer) case | 10 pc(s) |
| DC-in jack | Yes |
| Certification | CE, FCC, REACH |
| Power plug type | Type M |
| eSATA ports quantity | 1 |
