StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-
StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, 240W PD EPR, Cable/Port Tester
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

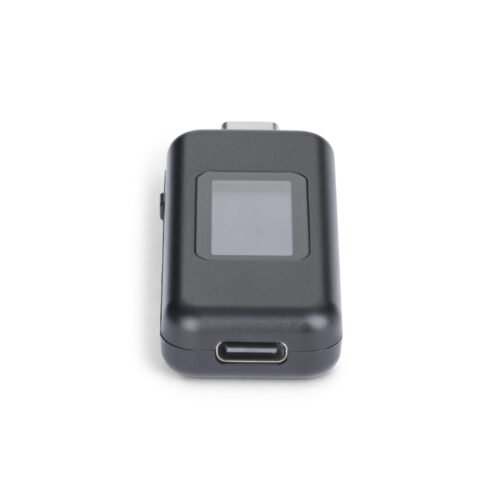

Test and verify USB-C power connections with this compact bi-directional USB-C Power Tester
This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.
Compact Form Factor
The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential additional to any IT Pro’s toolkit.
Streamline Power Diagnostics

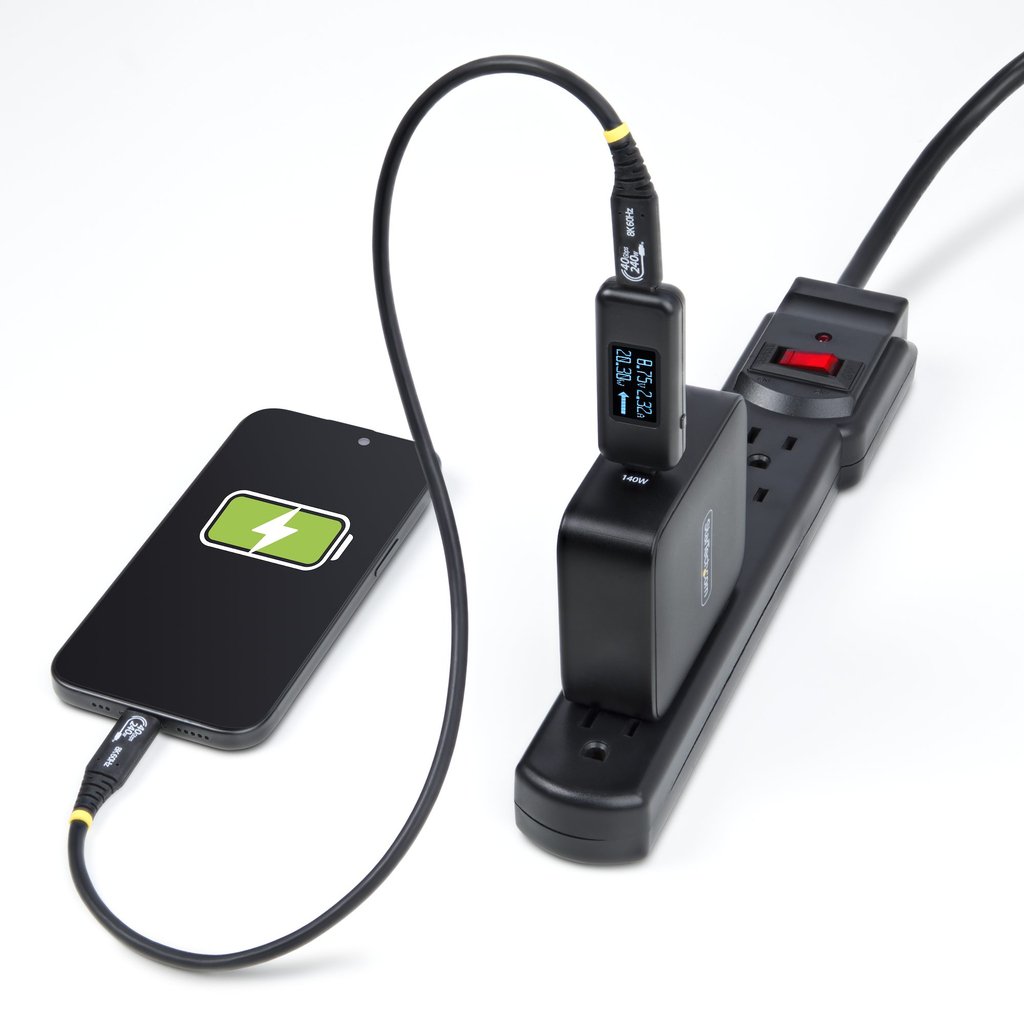

This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.
Versatile USB-C Compatibility
Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.
The StarTech.com Advantage
Additional information
| Weight | 0.027 lbs |
|---|---|
| Testing type | Amperage, Voltage, Wattage |
| DC output voltage test | 4.5V-50V |
| Power connectors supported | USB Type-C |
| Built-in display | Yes |
| Output current | 6.5 A |
| DC input voltage test | 4.5V-50V |
| Input current | 0.05 – 6.5 A |
| Backlight display | Yes |
| Backlight colour | Blue |
| Host interface | USB 3.2 USB Type C |
| Output interface | USB 3.2 USB Type C |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Maximum charging test | 240 W |
| Compliance certificates | RoHS |
| Product colour | Black |
| Housing material | Polycarbonate (PC) |
| Width | 57 mm |
| Depth | 23 mm |
| Height | 10 mm |
| Weight | 12 g |
| Package width | 80 mm |
| Package depth | 84 mm |
| Package height | 15 mm |
| Package weight | 28 g |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 180 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 150 pc(s) |
