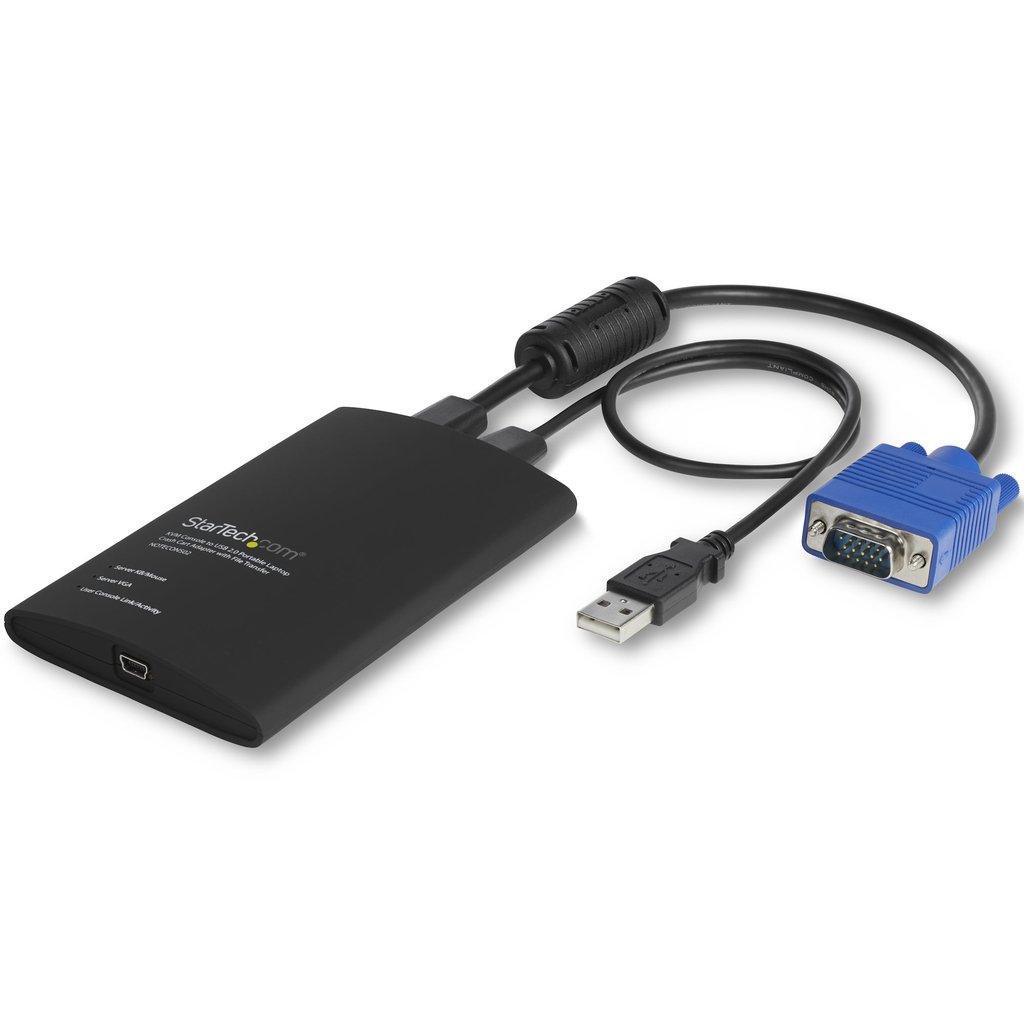

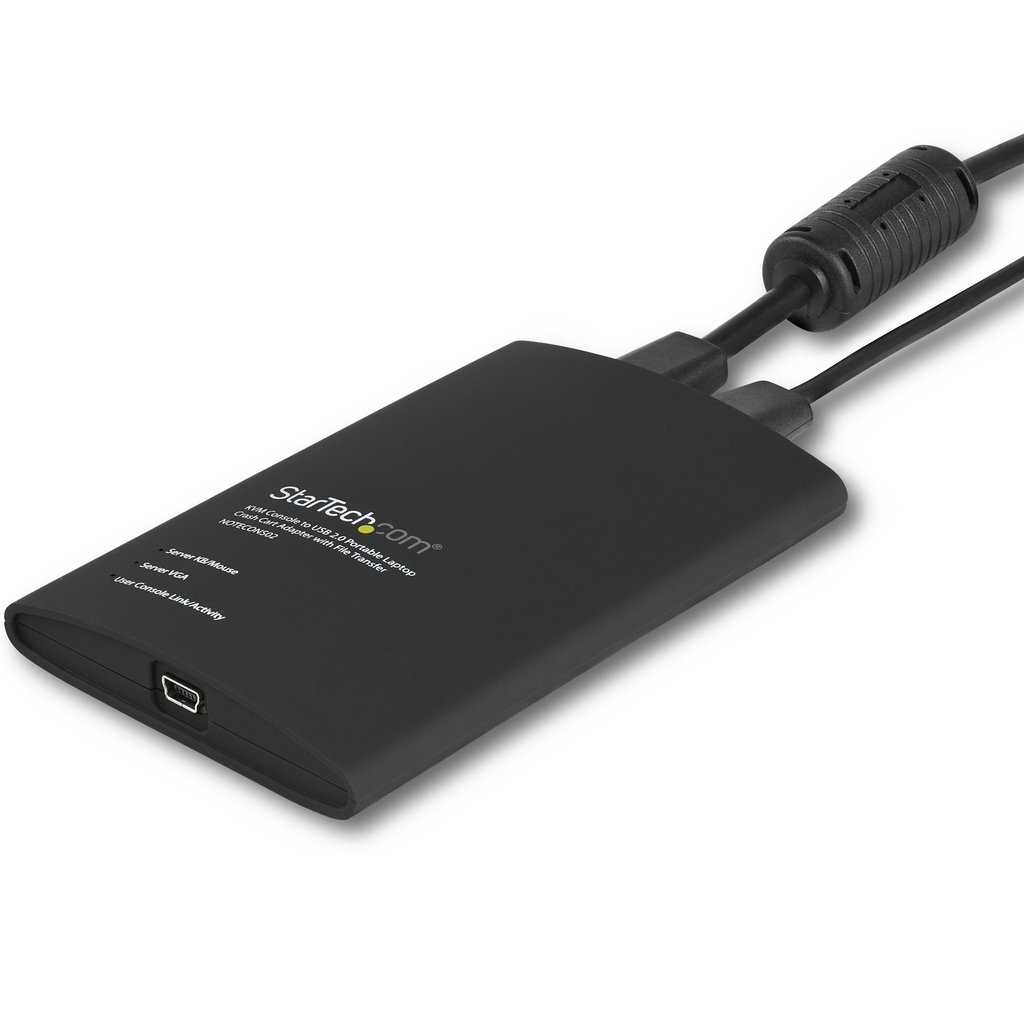

StarTech.com USB Crash Cart Adapter with File Transfer & Video Capture

Description

Portable KVM Console | VGA Video | 1920 x 1200 60Hz | Cables Included

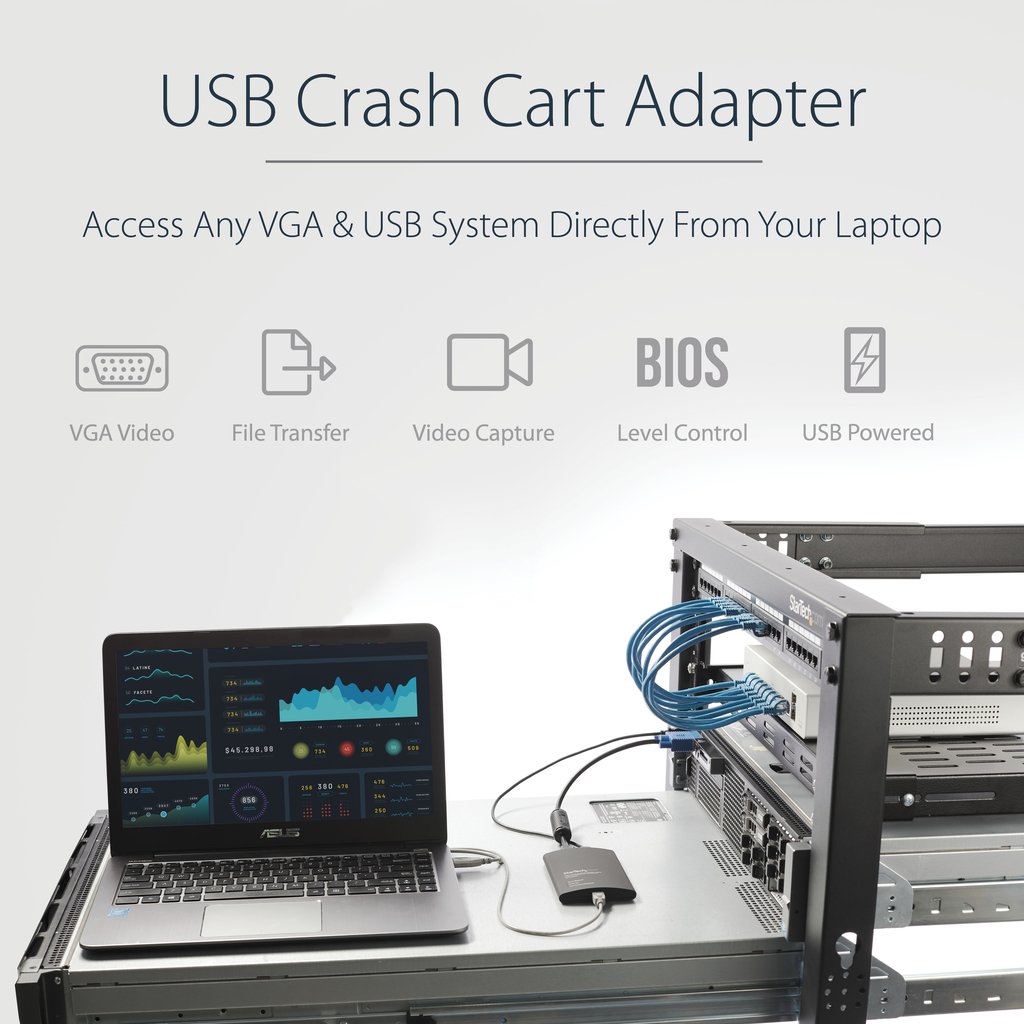

The USB crash cart adapter gives you control of a headless system, turning your laptop into a portable crash cart for rack servers, PCs, ATMs, kiosks, and more.

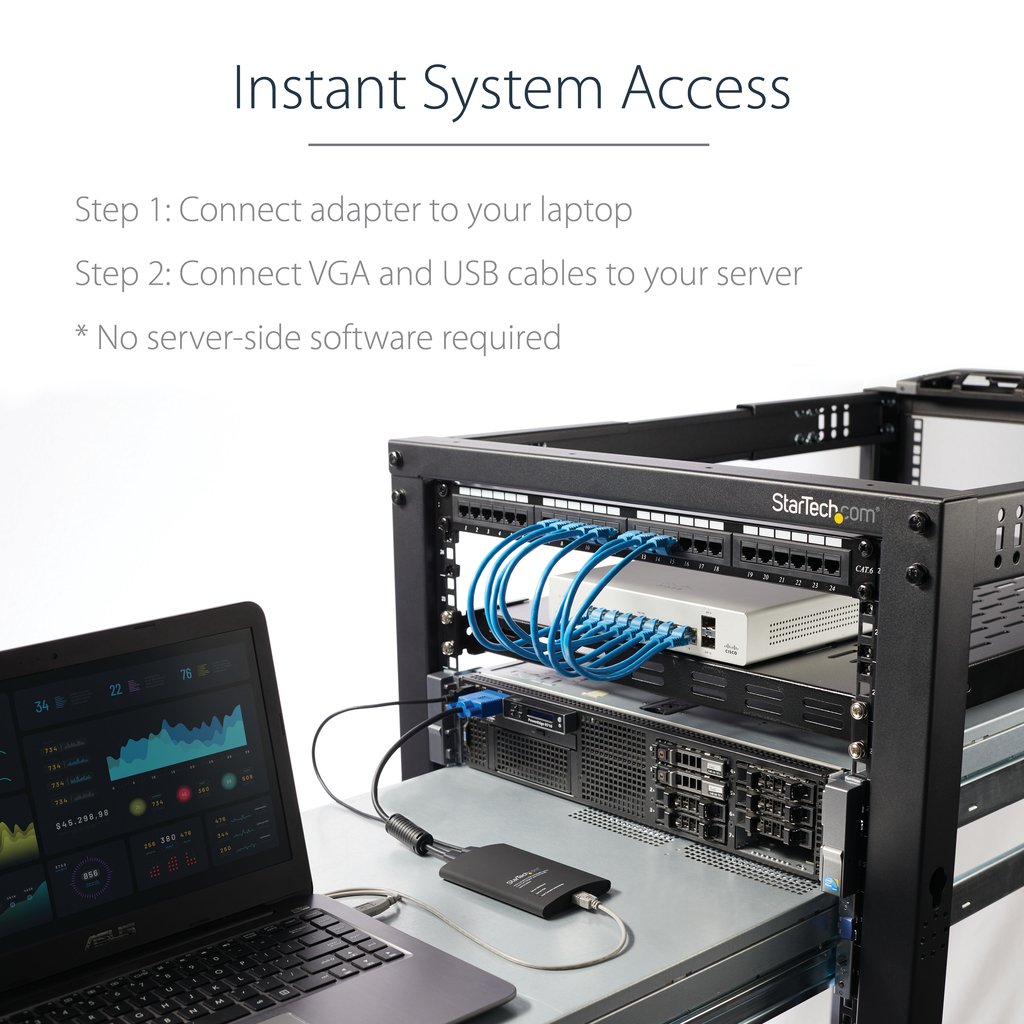

Instant System Access

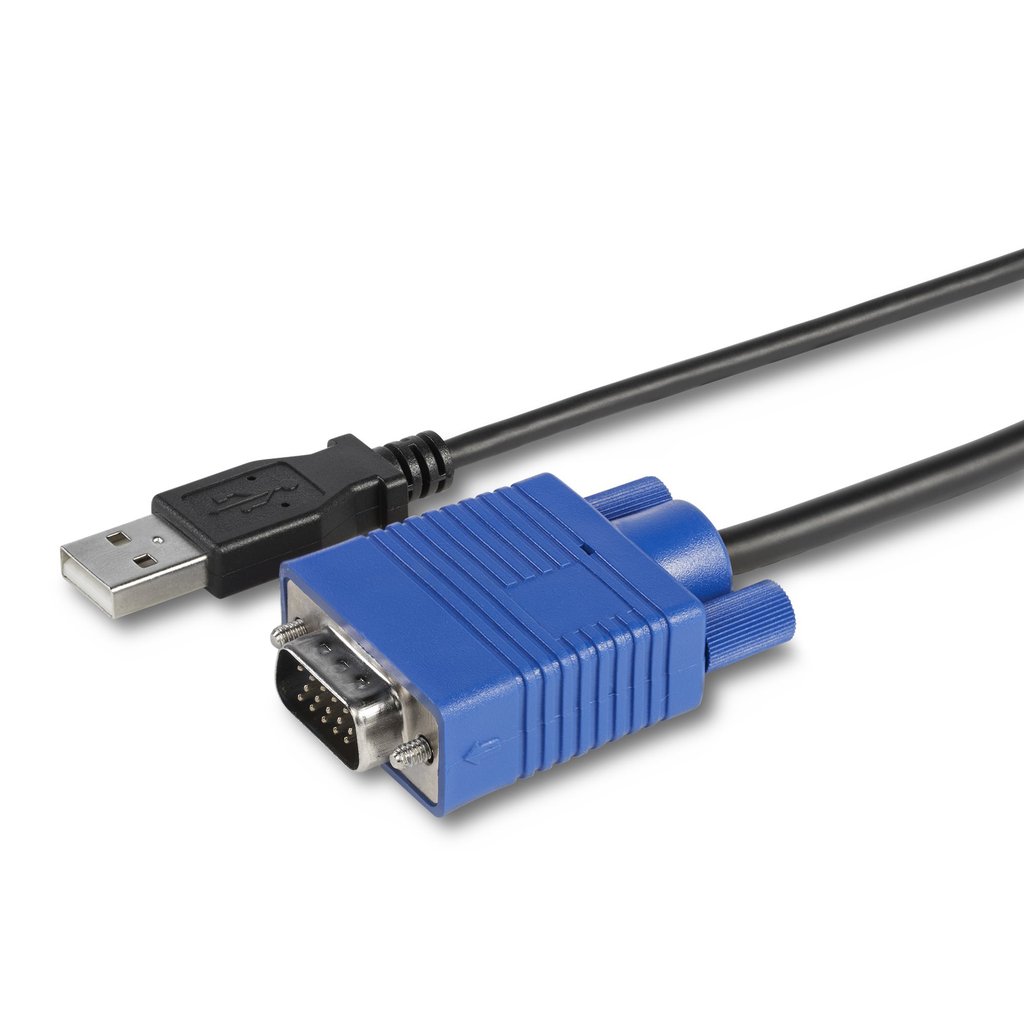

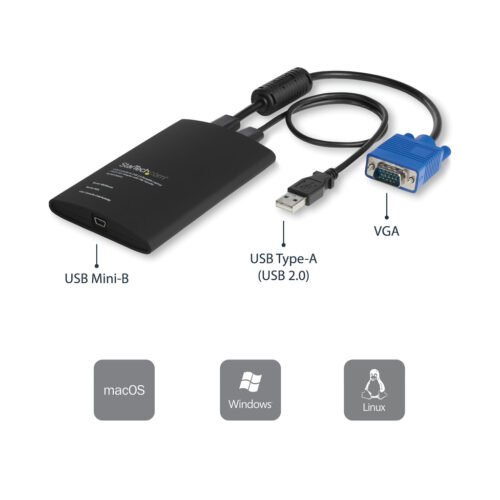

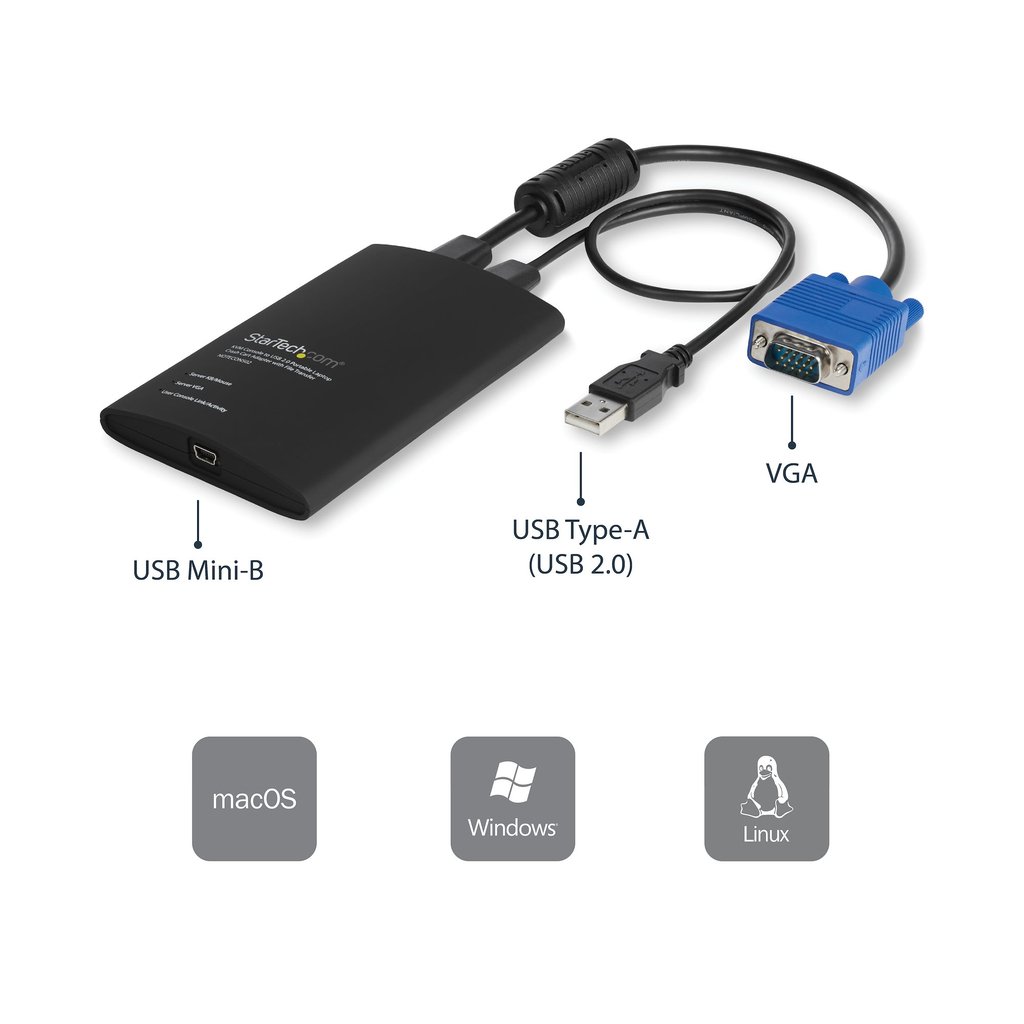

Simply connect the laptop crash cart adapter to your computer using the included USB cable, then connect the integrated USB and VGA cables to your server for instant BIOS-level control. With no server-side software required, you can be up and running instantly.

Troubleshoot More Efficiently

With the flexible software interface, you can transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars helping you to troubleshoot faster.

Self-Powered Reliability

Powered from the server-side USB connection, the KVM adapter doesn’t require an AC outlet so you can connect to any PC or device that has a VGA and USB port, even if there’s no power outlet available.

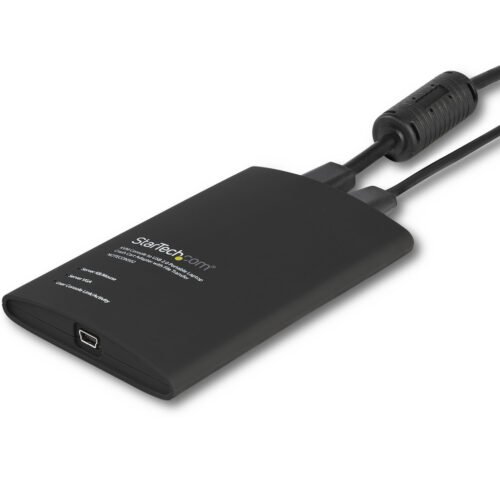

Take It Anywhere

This pocket-sized adapter features a compact design that easily fits inside your laptop bag and requires no additional accessories to connect, eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems.

StarTech.com offers a wide selection of high-quality KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM crash cart adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Additional information

Weight	0.36 lbs
Number of computers controlled	1
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Console USB ports quantity	1
Audio connections	No
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Plug and Play	Yes
Rack mounting	No
Product colour	Black
Housing material	Plastic
LED indicators	Yes
Mean time between failures (MTBF)	909000 h
Built-in display	No
On Screen Display (OSD)	No
Power source	USB
Compliance certificates	RoHS
Operating temperature (T-T)	0 – 40 °C
Storage temperature (T-T)	-40 – 70 °C
Operating relative humidity (H-H)	0 – 80%
Width	74 mm
Depth	115 mm
Height	15 mm
Weight	170 g
Package width	166 mm
Package depth	303 mm
Package height	46 mm
Package weight	363 g
Master (outer) case width	320 mm
Master (outer) case length	520 mm
Master (outer) case height	525 mm
Products per master (outer) case	30 pc(s)
Daisy chain	No
Number of users	1 user(s)
Harmonized System (HS) code	85176200
Video bandwidth	60 Hz

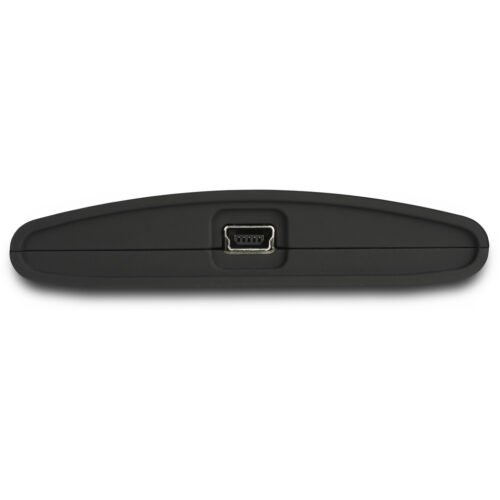

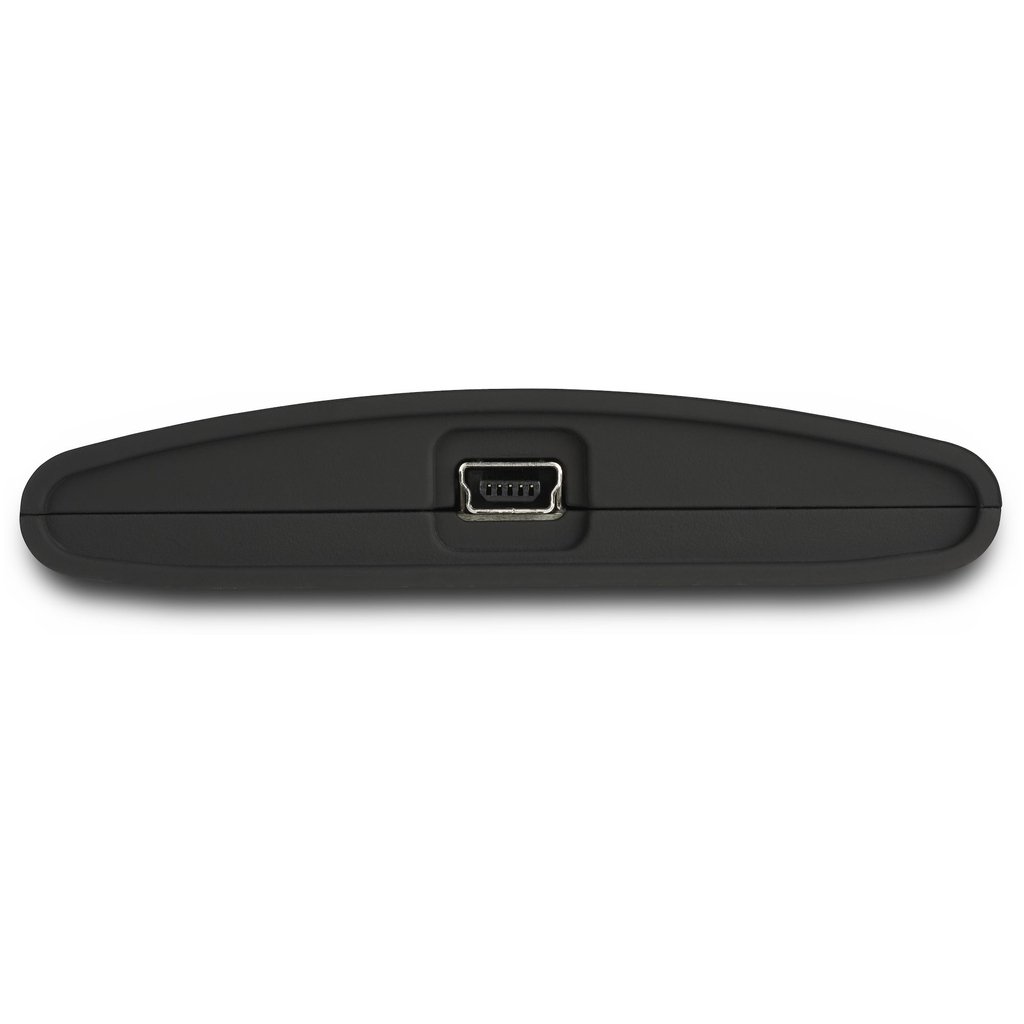

USB connector type	Mini-USB B

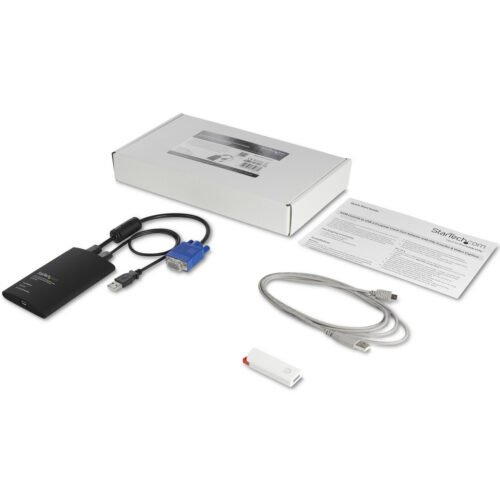

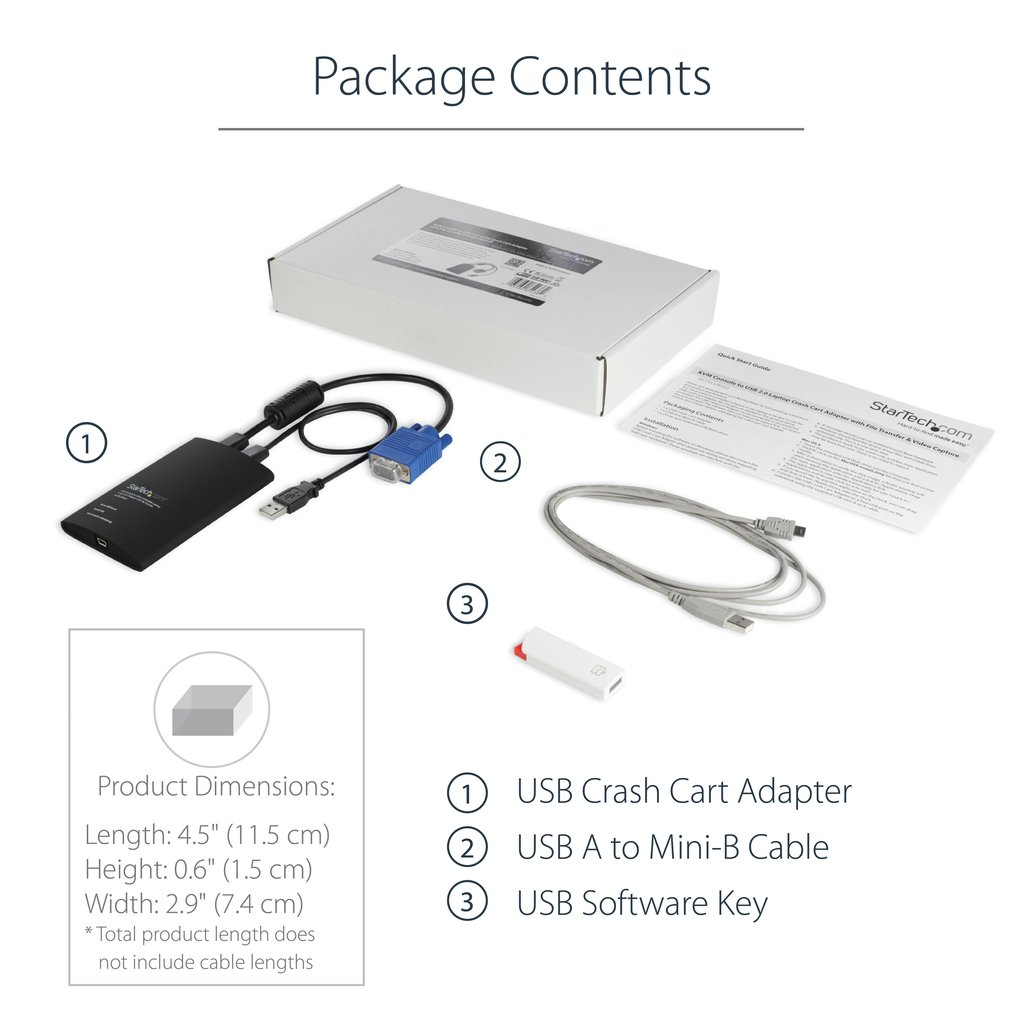

Cables included	USB

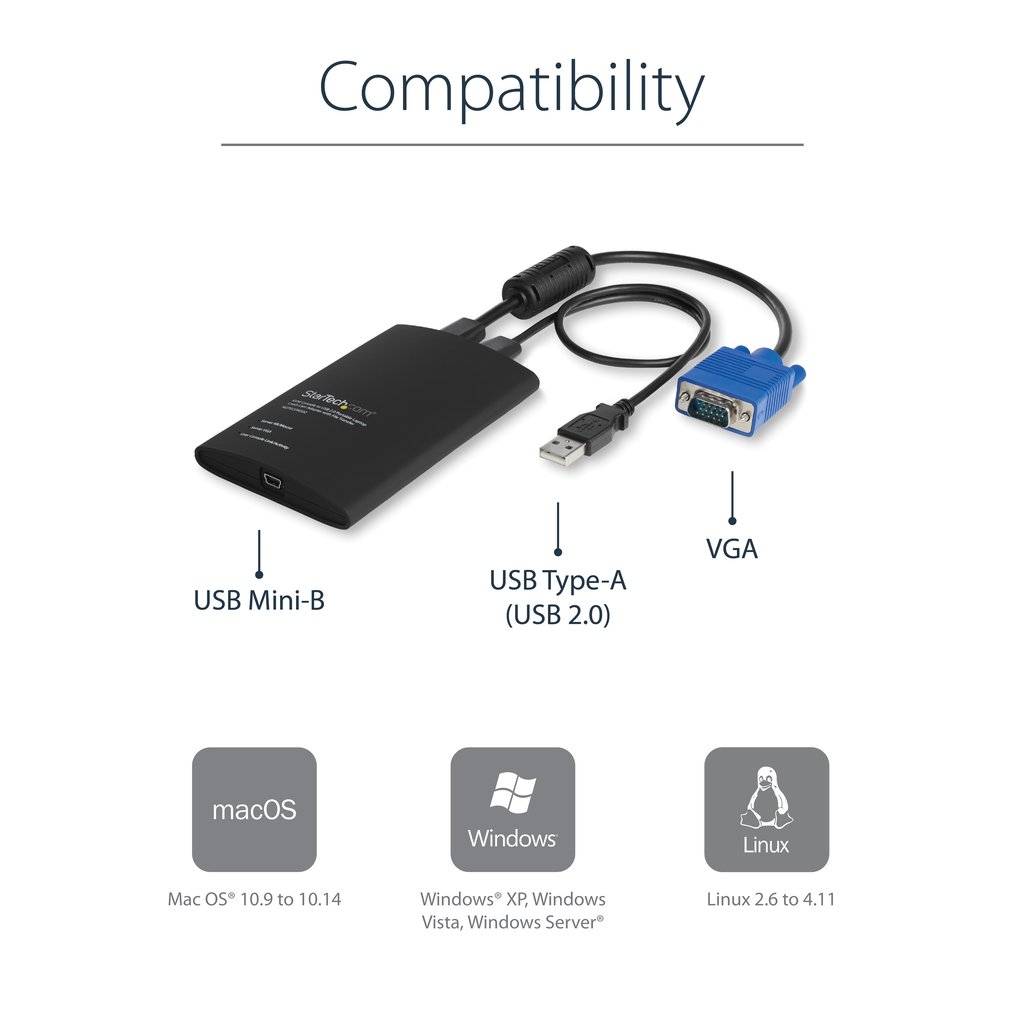

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, M
Cable length	0.416 m
Certification	CE, FCC, TAA, UL
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Software included	Yes
Compatible operating systems	Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64)Windows Server 2012, 2008 R2Mac OS 10.x (Tested up to 10.9)Linux 2.6.x – 3.5.x (32/64bit)
