StarTech.com 2 Port Industrial Wall Mountable USB to Serial Adapter Hub with DIN Rail Clips
StarTech.com USB to Serial Adapter – 2 Port – Wall Mount – Din Rail Clips – Industrial – COM Port Retention – FTDI – DB9
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Add 2 DIN Rail-mountable RS232 Serial ports to any system through USB

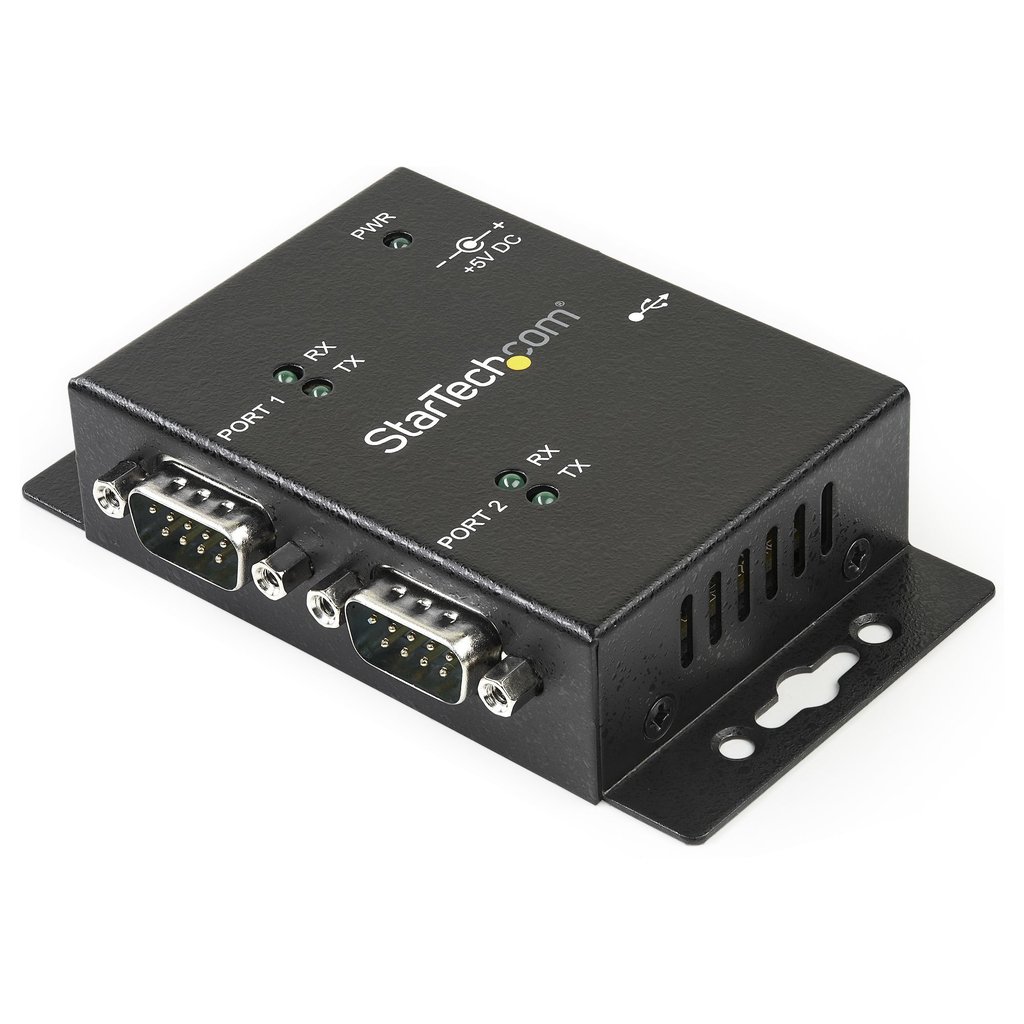

The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Additional information
| Weight | 0.36 lbs |
|---|---|
| Ports quantity | 2 |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | Serial |
| Product colour | Black |
| Housing material | Steel |
| Width | 66 mm |
| Depth | 104 mm |
| Height | 24 mm |
| Weight | 162 g |
| Quantity per pack | 1 pc(s) |
| Package width | 145 mm |
| Package depth | 214 mm |
| Package height | 41 mm |
| Package weight | 400 g |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -20 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Compliance certificates | CE, RoHS |
| Chipset | FTDI – FT232RL |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, M |
| Harmonized System (HS) code | 84719000 |
| Linux operating systems supported | Yes |
| Other operating systems supported | Windows XP Embedded |
| LED indicators | Activity |
| Cables included | USB |
| Manual | Yes |
| Master (outer) case width | 444 mm |
| Master (outer) case length | 525 mm |
| Master (outer) case height | 364 mm |
| Products per master (outer) case | 45 pc(s) |
| DIN rail kit included | Yes |
| Sustainability compliance | Yes |
| Compatible operating systems | Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x |
| RS-232 ports | 2 |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Drivers included | Yes |
