TP-Link AX1800 Whole Home Mesh WiFi System
2.4 GHz (574 Mbps), 5 GHz (1201 Mbps), 802.11a/b/g/n/ac/ax, 3× Gigabit Ports, 100 x 100 x 89.5 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Fast. Stable. Everywhere.
AX1800 Whole Home Mesh WiFi System
Advanced Mesh Powered by WiFi 6
Armed with WiFi 6 technology, HX220 provides faster speeds up to 1.8 Gbps for buffer-free 8K/4K streaming and gaming even with all smart home, mobile, and other electronic devices connected.
Extensive WiFi Coverage
Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.
Whole Home Coverage
Empowered by EasyMesh technology, HX220 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HX220 whenever you want.
Seamless Roaming with One WiFi Name
All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.
Stable Connections, No More Buffering
Enhanced by WiFi 6, featuring with OFDMA and MU-MIMO technology**, HX220 allows you to connect over 250+ devices. Enjoy a more efficient network that loads faster without dragging down performance.
2-in-1 Router and Access Point
Flexible and multifunctional, HX220 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.
More Ethernet Ports for More Options

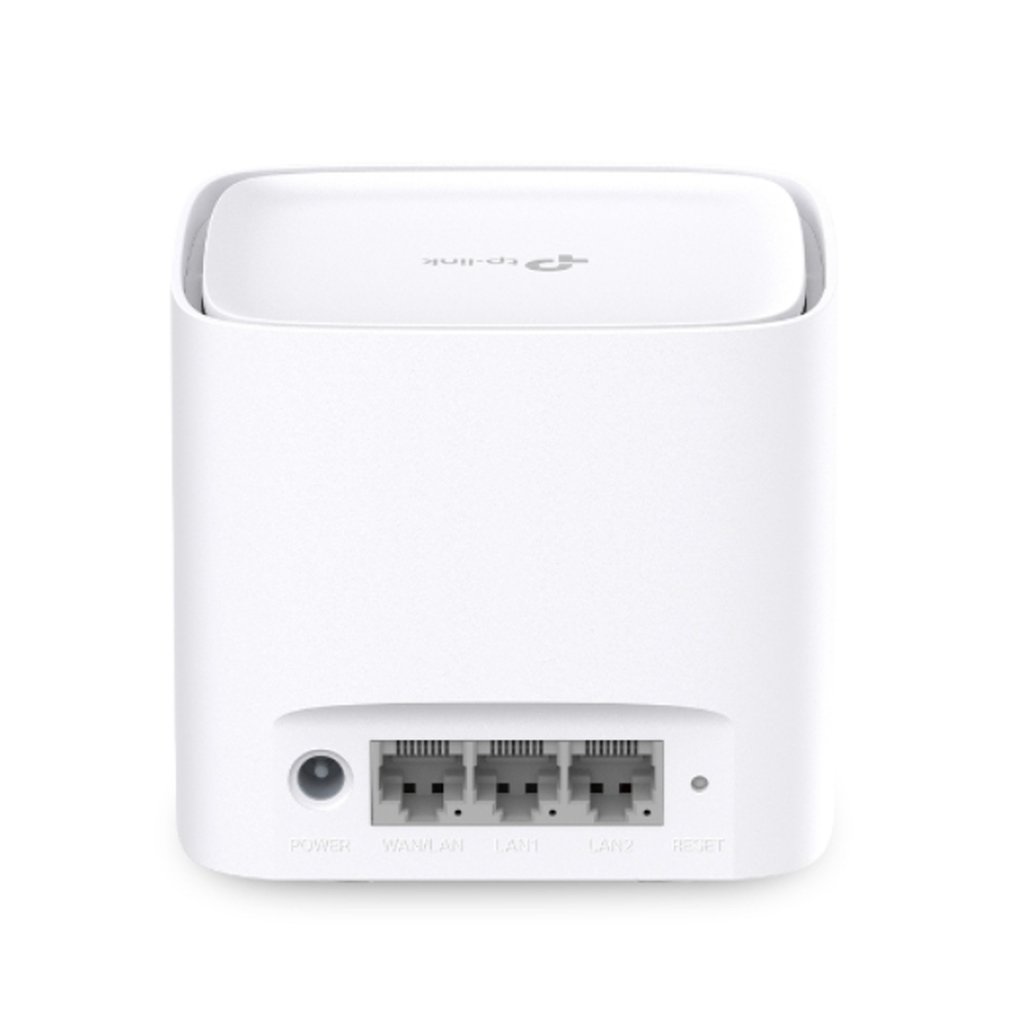

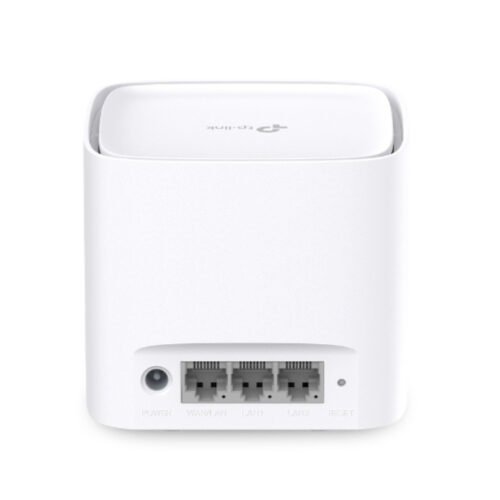

Each unit has 3 Gigabit Ethernet ports for fast and reliable wired connections. Supports wired Ethernet Backhaul for more stable speeds.
Easy to Set Up and Use
You can set up your device in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage network settings from your smart phone or tablet.
Support TR-069 Remote Management
ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.
Aginet Solution: End-to-End Management System for ISPs
The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.
Additional information
| Weight | 1.233 lbs |
|---|---|
| Product colour | White |
| Product type | Mesh router |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Security algorithms | WMM, WPA, WPA2, WPA3 |
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| Width | 100 mm |
| Depth | 100 mm |
| Height | 89.5 mm |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Compliance certificates | CE |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Number of products included | 1 pc(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| Firewall security | SPI Firewall |
| Parental control | Yes |
| Certification | CE, FCC |
| LED indicators | Yes |
| AC input voltage | 12 V |
| AC adapter input current | 1 A |
| Transmitting power (CE) | 20 – 23 dBm |
| Transmitting power (FCC) | 30 dBm |
| Mobile operating systems supported | Android 4.4, iOS 9.0 |
| SSID Broadcast | Yes |
| Supported WAN type | Dynamic IP, Static IP, PPPoE |
