TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
AC1200 Wireless MU-MIMO, 4 x Gigabit Ethernet, WLAN 802.11a/b/g/n/ac, 143 × 86 × 20mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

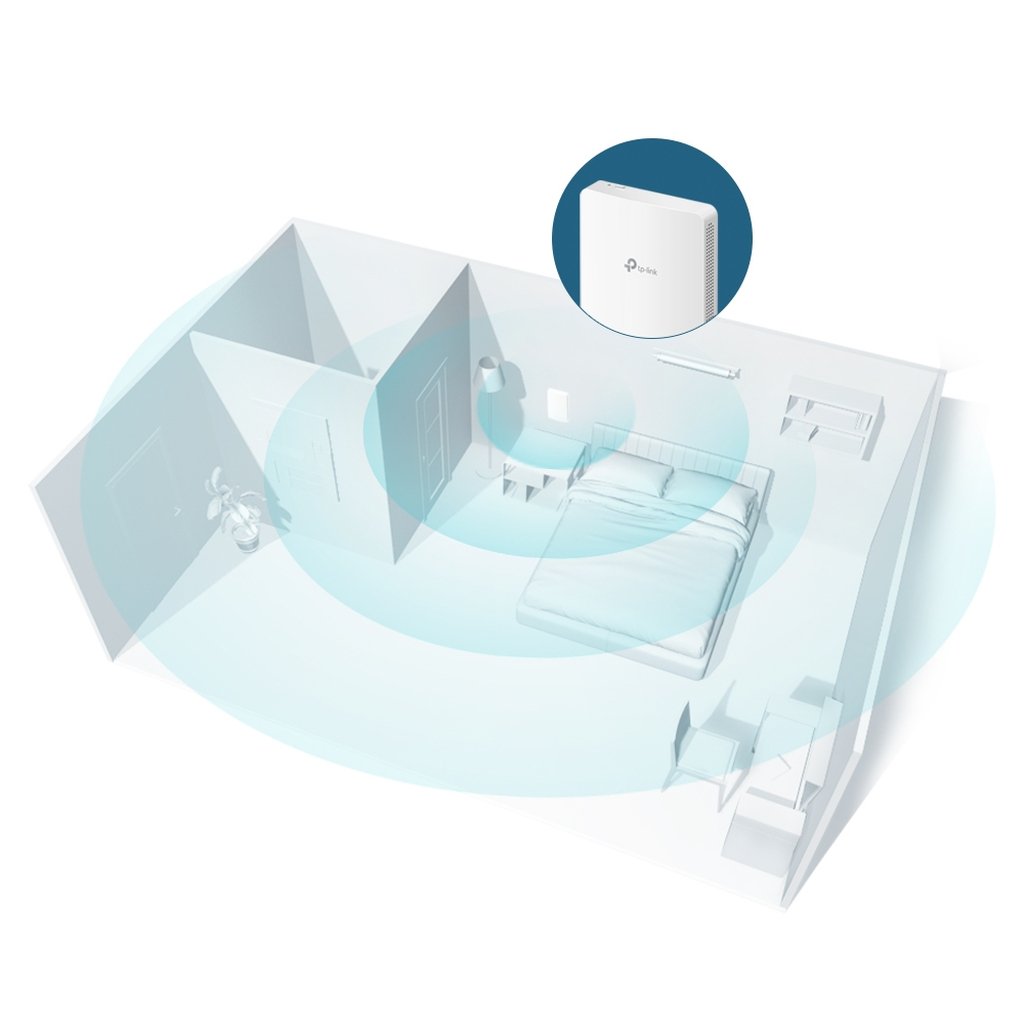

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.

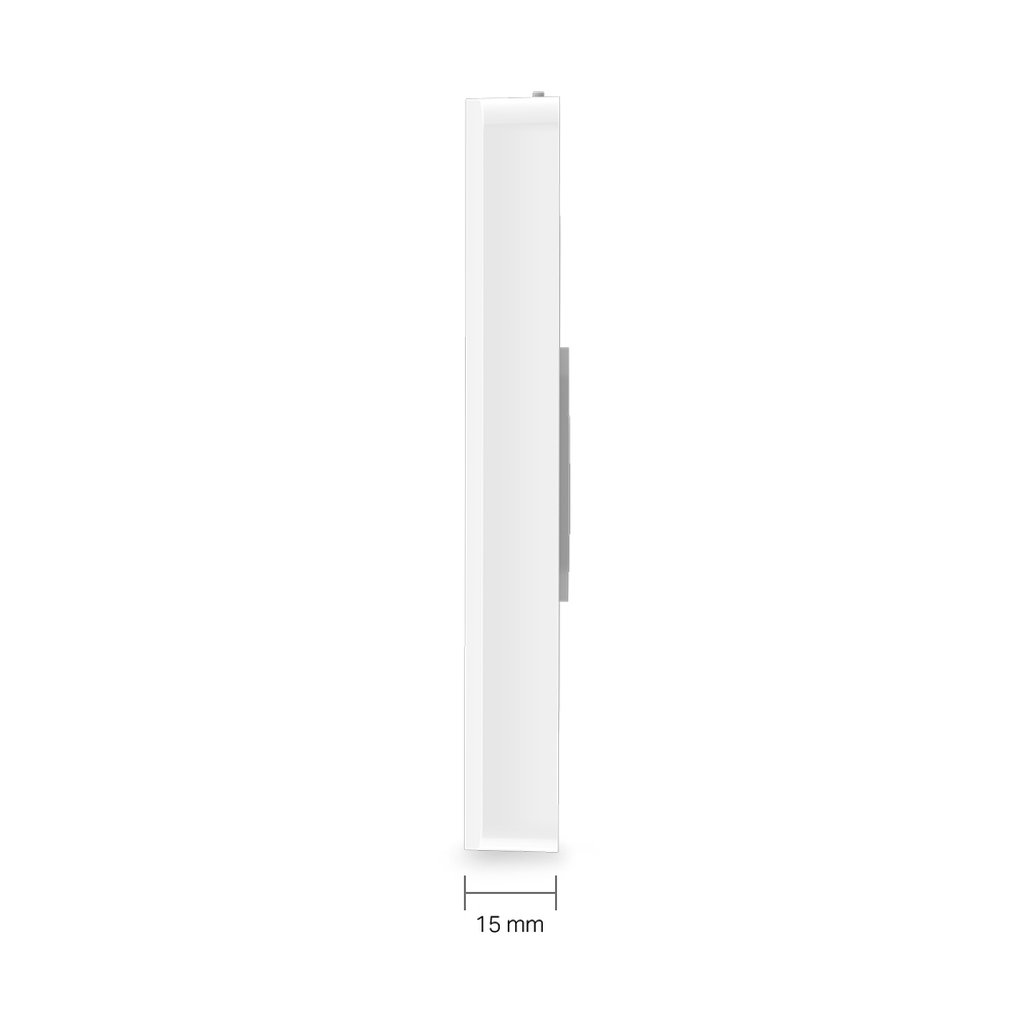

Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

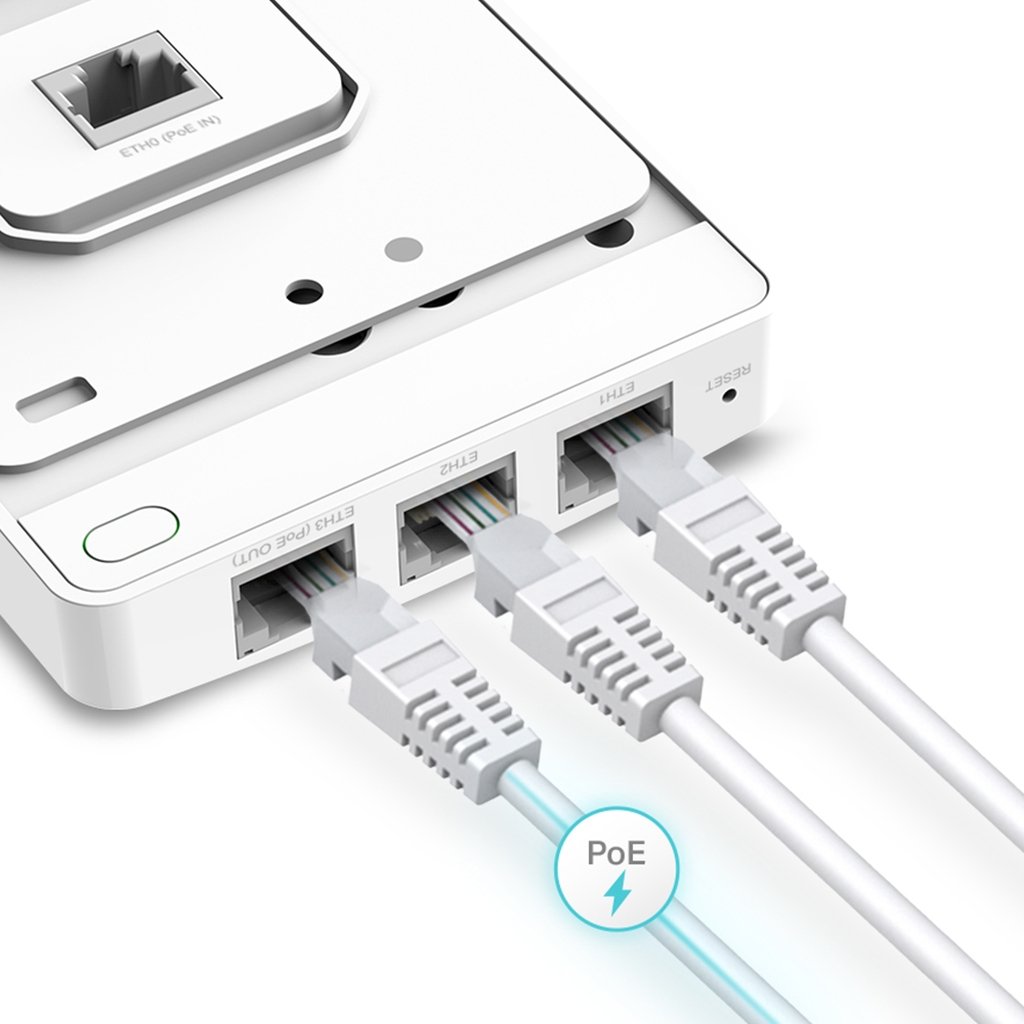

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Additional information
| Weight | 0.32 lbs |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Frequency band | 2.4 – 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Rate limiting | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Web-based management | Yes |
| Syslog | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Power over Ethernet (PoE) | Yes |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | LAN, Power, Status, WAN, WLAN |
| Antenna type | Internal |
| Antenna gain level (max) | 4 dBi |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Width | 143 mm |
| Depth | 86 mm |
| Height | 20 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 90% |
| Antennas quantity | 2 |
| Cable lock slot | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel scanning | Yes |
| Transmitting power (CE) | 20 – 23 dBm |
| Transmitting power (FCC) | 21 dBm |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| WAN connection | Ethernet (RJ-45) |
| Power consumption (typical) | 24.4 W |
| Package width | 117 mm |
| Package depth | 184 mm |
| Package height | 33 mm |
| Package weight | 300 g |
| Wireless isolation | Yes |
| Sustainability compliance | Yes |
| Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
| Antenna features | Integrated antenna |
| Harmonized System (HS) code | 85176990 |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Virtual LAN features | Port-based VLAN, VLAN mapping |
| Universal Plug and Play (UPnP) | Yes |
