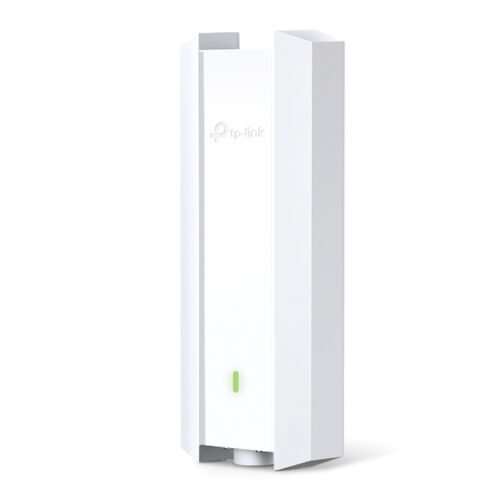

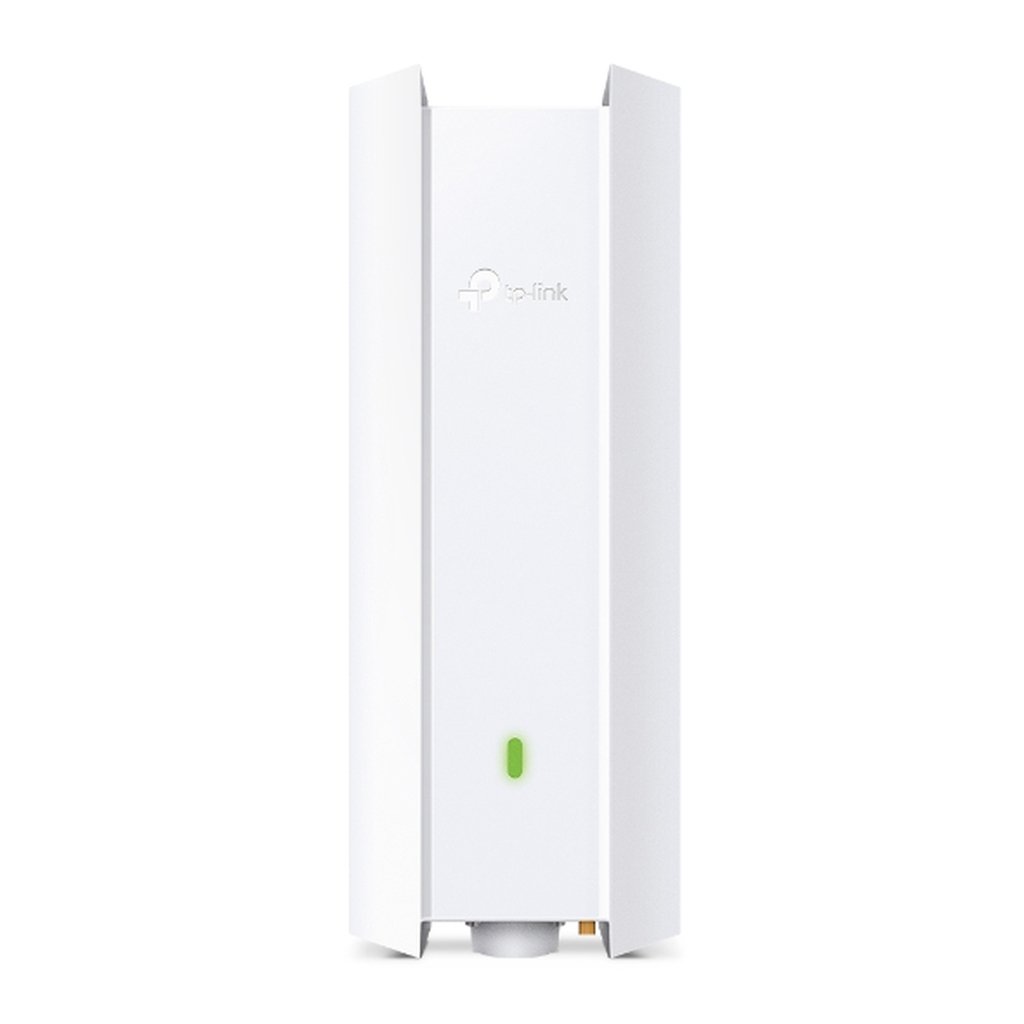

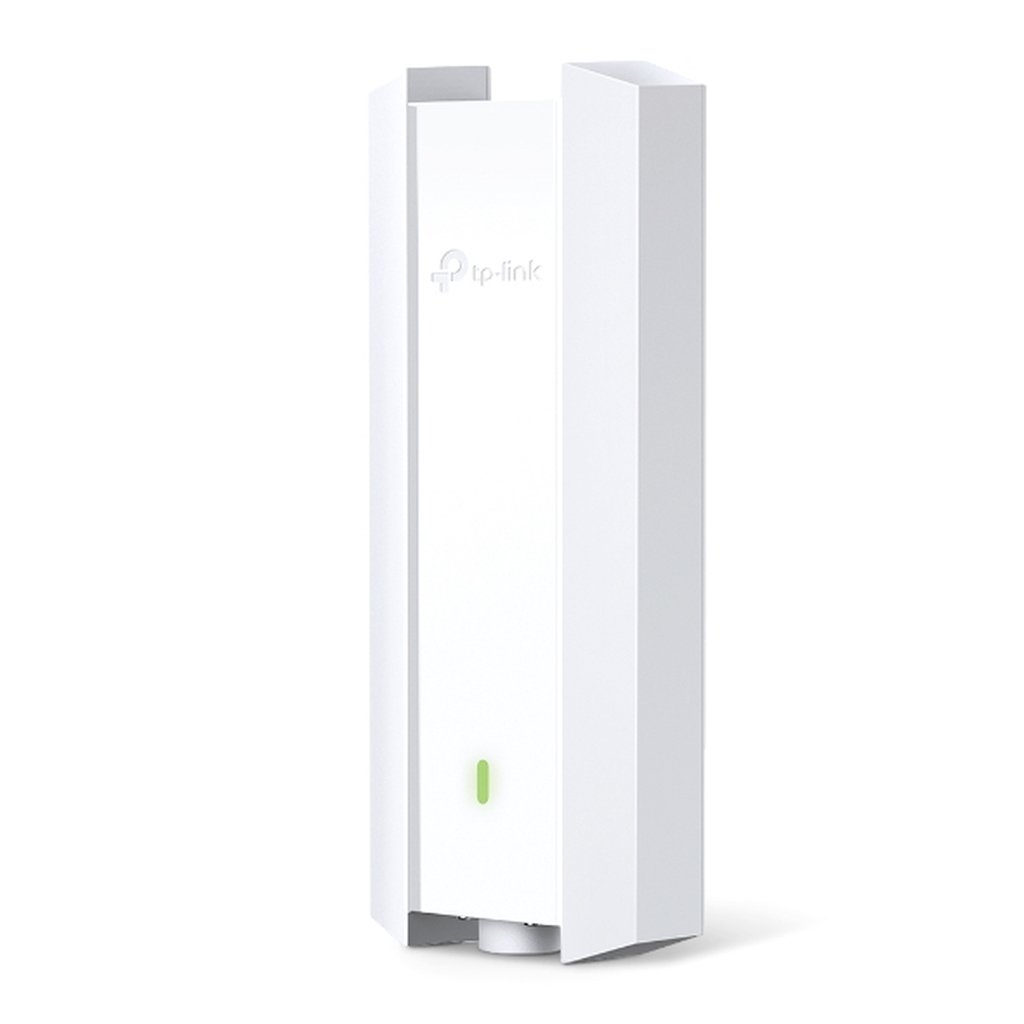

TP-Link Omada EAP610-Outdoor 1800 Mbit/s White Power over Ethernet (PoE)
2.4 GHz (574 Mbps), 5 GHz (1201 Mbps), 802.11ax/ac/n/g/b/a, 1x Gigabit Ethernet (RJ-45), 280.4 x 106.5 x 56.9 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Performance-Driven WiFi 6 for Demanding Outdoor Environments
Dual-Band WiFi 6 Connectivity
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps, providing higher data rates on both 5 GHz and 2.4 GHz bands for demanding multi-user scenarios, such as outdoor swimming pools, cafés, and amusement parks.
Long-Range Coverage
Professional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.
Connect Numerous Devices
OFDMA and MU-MIMO greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas.
Seamless Integration into Omada SDN Platform
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
IP67 Weatherproof Enclosure for Outdoor Environments
EAP610-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.

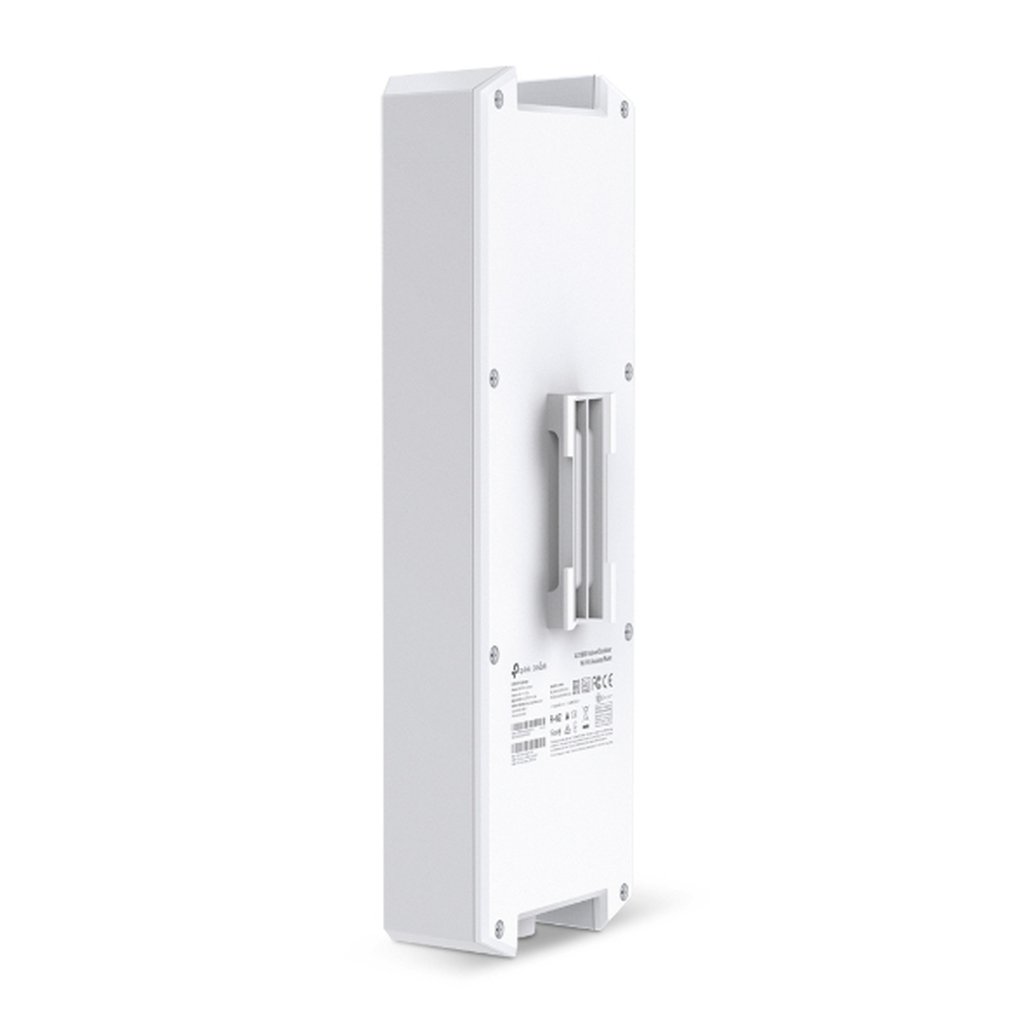

Versatile Mounting Solutions
Our mounting kits provide flexible installation, whether inside or outside.
Multiple PoE Options for Easy Installation
The AP supports both 802.3at PoE+ and Passive PoE power supply. It can be either powered by a PoE switch or the provided PoE adapter for convenient deployment.
Easy Management with the Omada App
Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Additional information
| Weight | 1.42 lbs |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Frequency band | 2.4 – 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Rate limiting | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Security algorithms | WEP, WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Web-based management | Yes |
| Syslog | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| Placement | Pole, Wall |
| Product colour | White |
| LED indicators | Yes |
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
| Width | 280.4 mm |
| Depth | 106.5 mm |
| Height | 56.9 mm |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of users | 250 user(s) |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | -30 – 70 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 90% |
| Automatic channel scanning | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Package width | 241 mm |
| Package depth | 325 mm |
| Package height | 67 mm |
| Package weight | 1.29 kg |
| PoE adapter included | Yes |
| Wireless isolation | Yes |
| Antenna features | Integrated antenna |
| International Protection (IP) code | IP67 |
| Management protocols | SNMP v1/v2c |
| Harmonized System (HS) code | 85176990 |
| Management platform | Omada |
