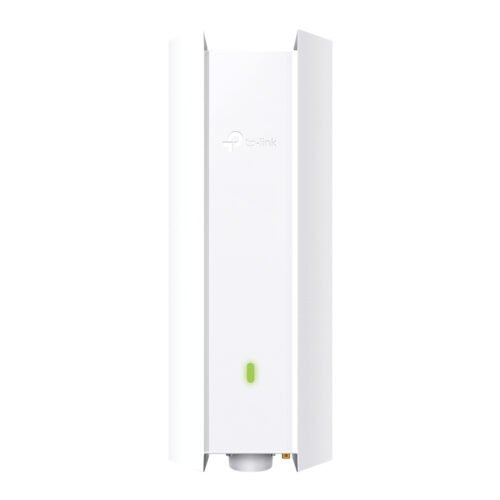

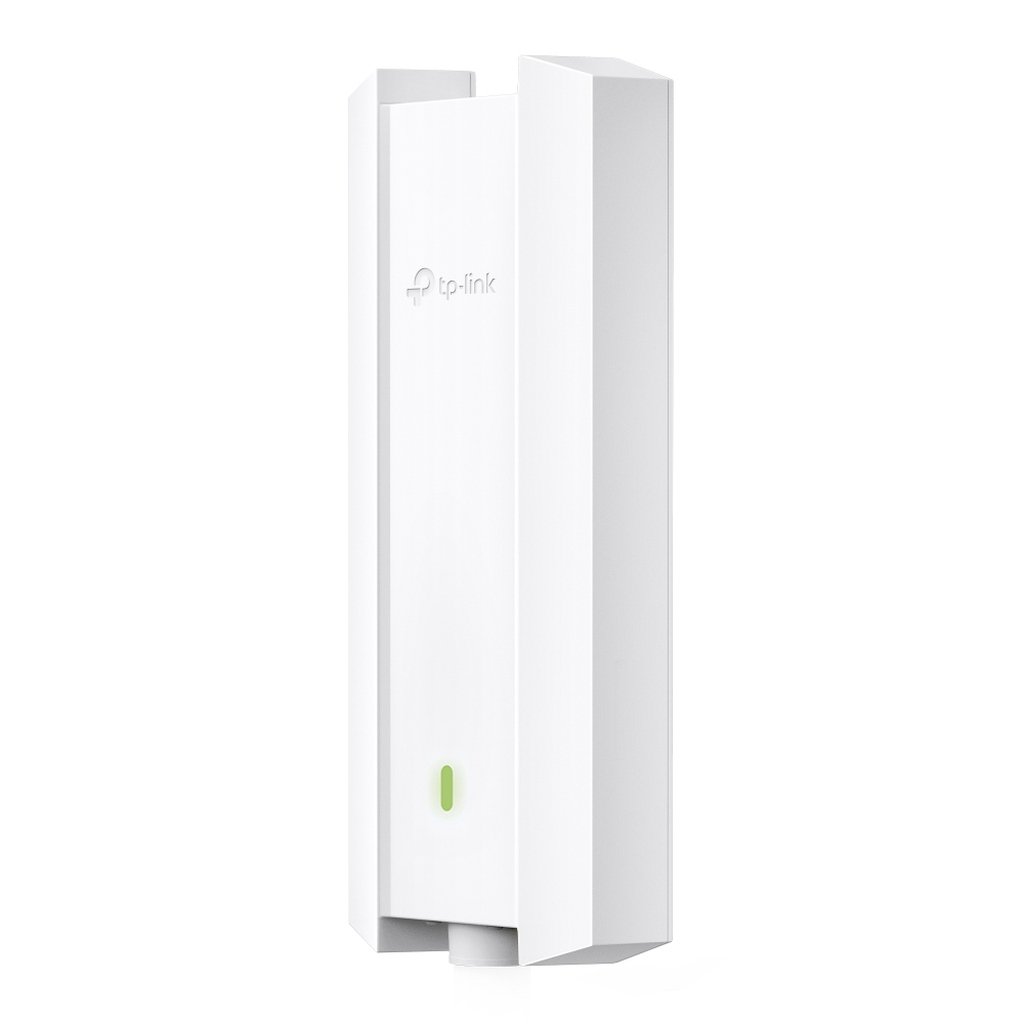

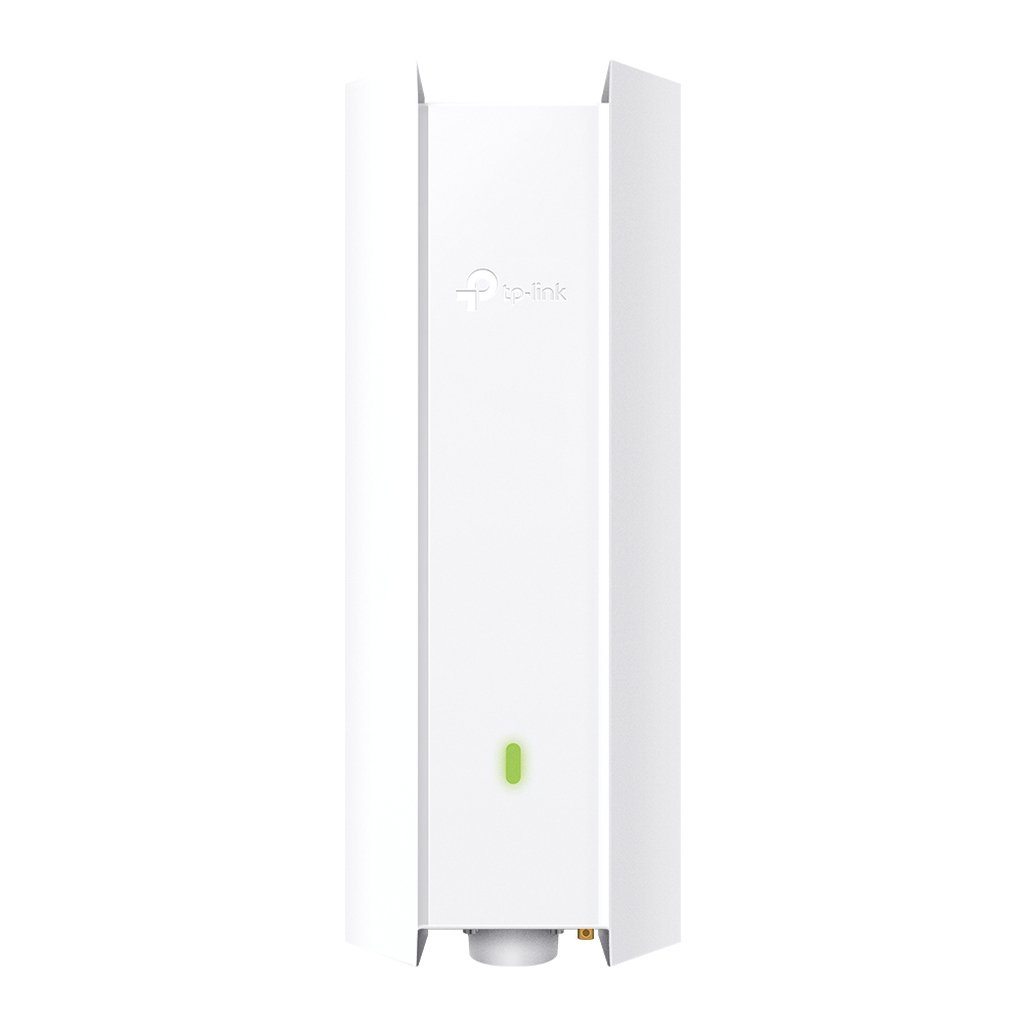

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
2.4 GHz (574 Mbps), 5 GHz (1201 Mbps), 1x Gigabit LAN, 48V Passive PoE, 280.4 x 106.5 x 56.8 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Long-Range, High-Speed WiFi 6
Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.
Explore More with Smart Antennas
Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD’s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.
Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.
Flexible Deployment with Omada Mesh and PoE Support
Seamless Integration into Omada SDN
Additional information
| Weight | 1.16 lbs |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Frequency band | 2.4 – 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Rate limiting | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Web-based management | Yes |
| Syslog | Yes |

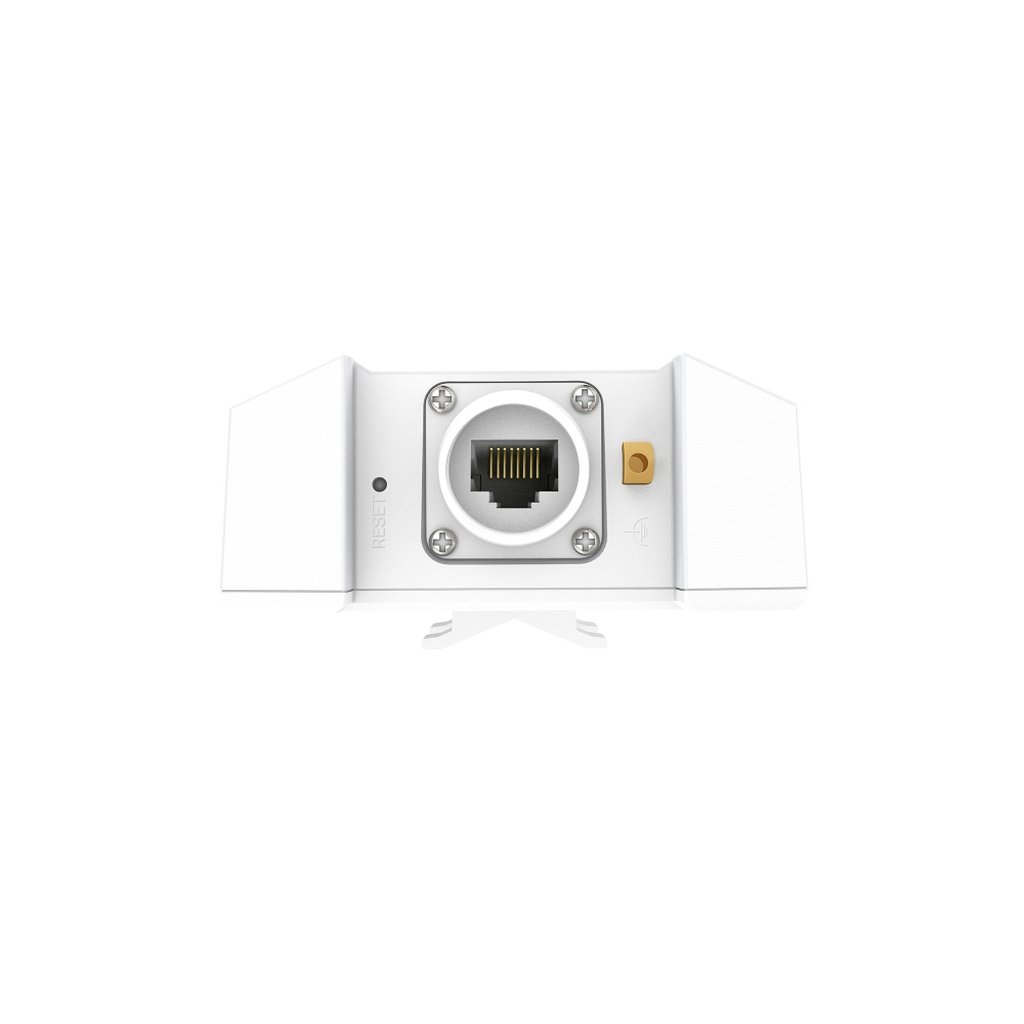

| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |

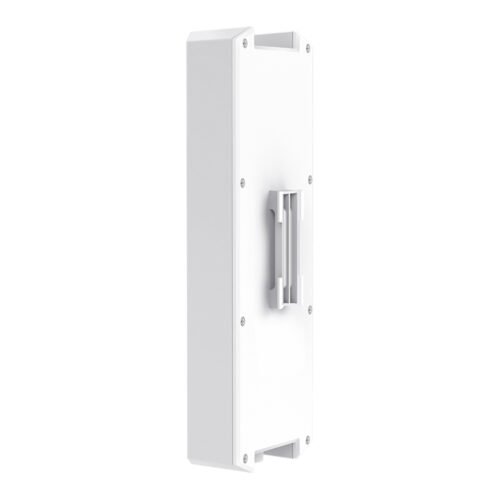

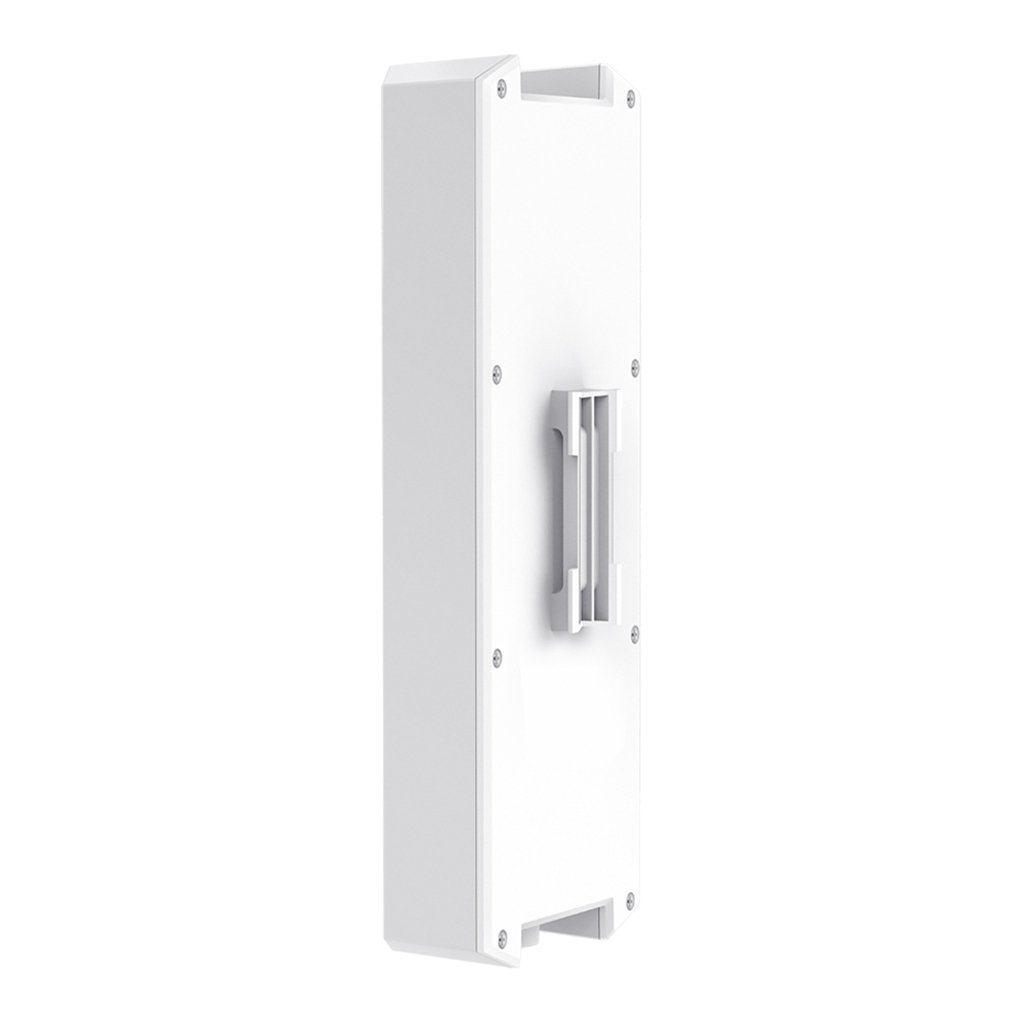

| Placement | Pole |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna type | Internal |
| Width | 280.4 mm |
| Depth | 106.5 mm |
| Height | 56.8 mm |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of users | 1020 user(s) |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Certification | CE, FCC, RoHS |
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | -30 – 70 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 90% |
| Antennas quantity | 2 |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel scanning | Yes |
| Transmitting power (CE) | < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); |
| Transmitting power (FCC) | < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
| Antenna direction type | Omni-directional |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Antenna features | Integrated antenna |
