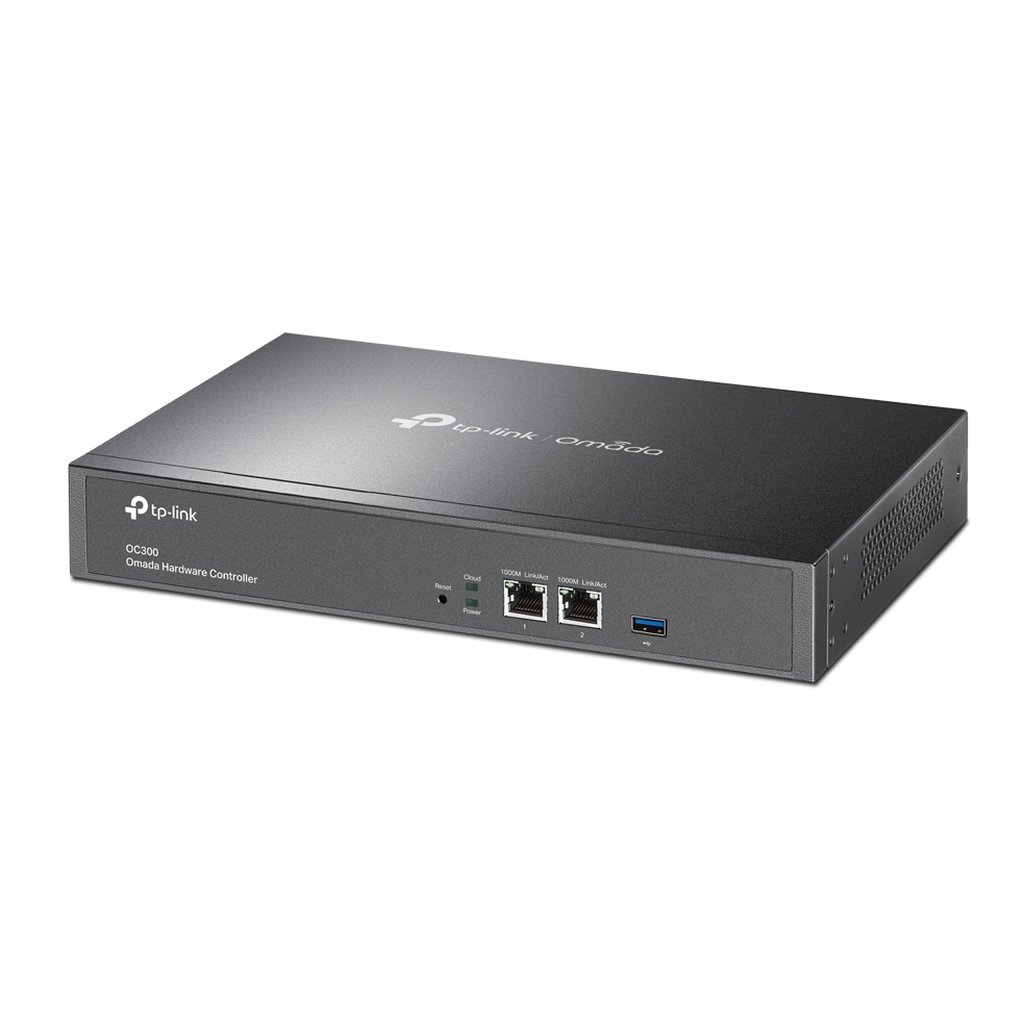

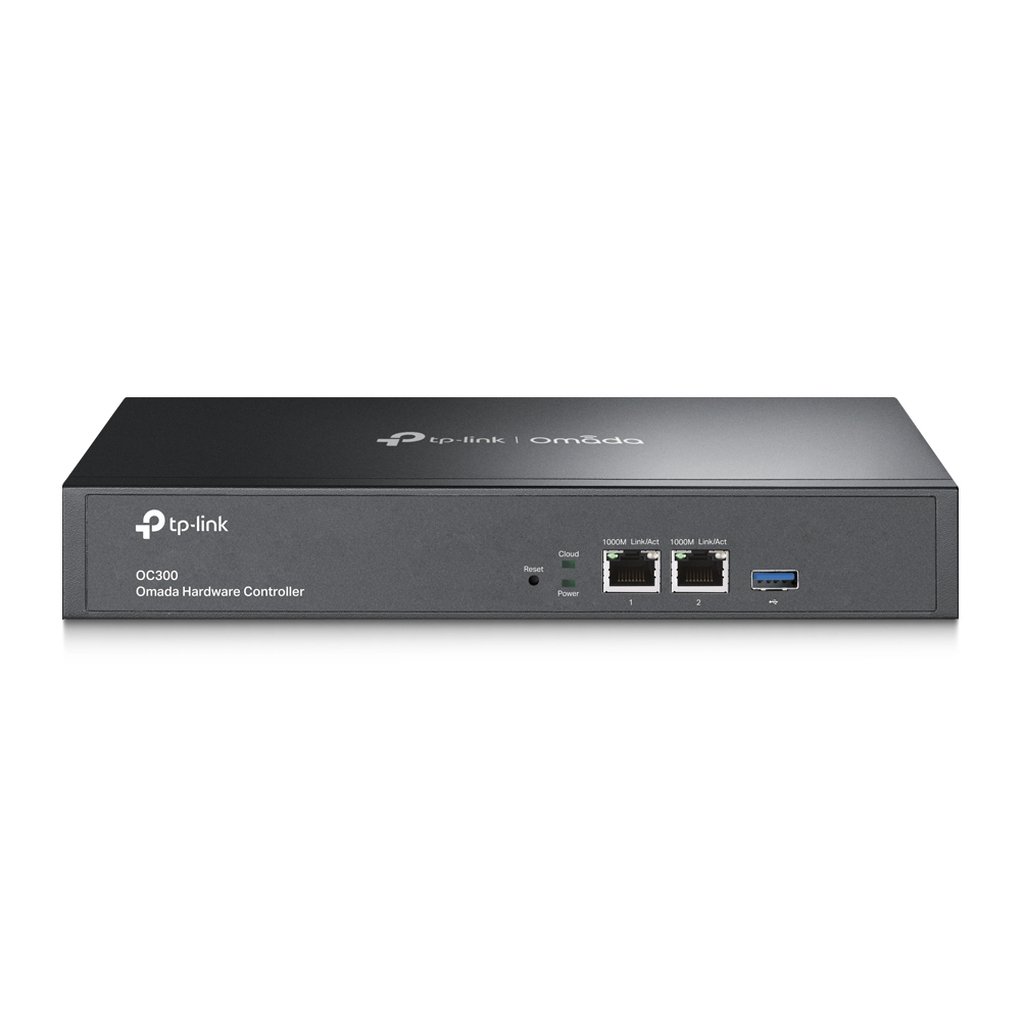

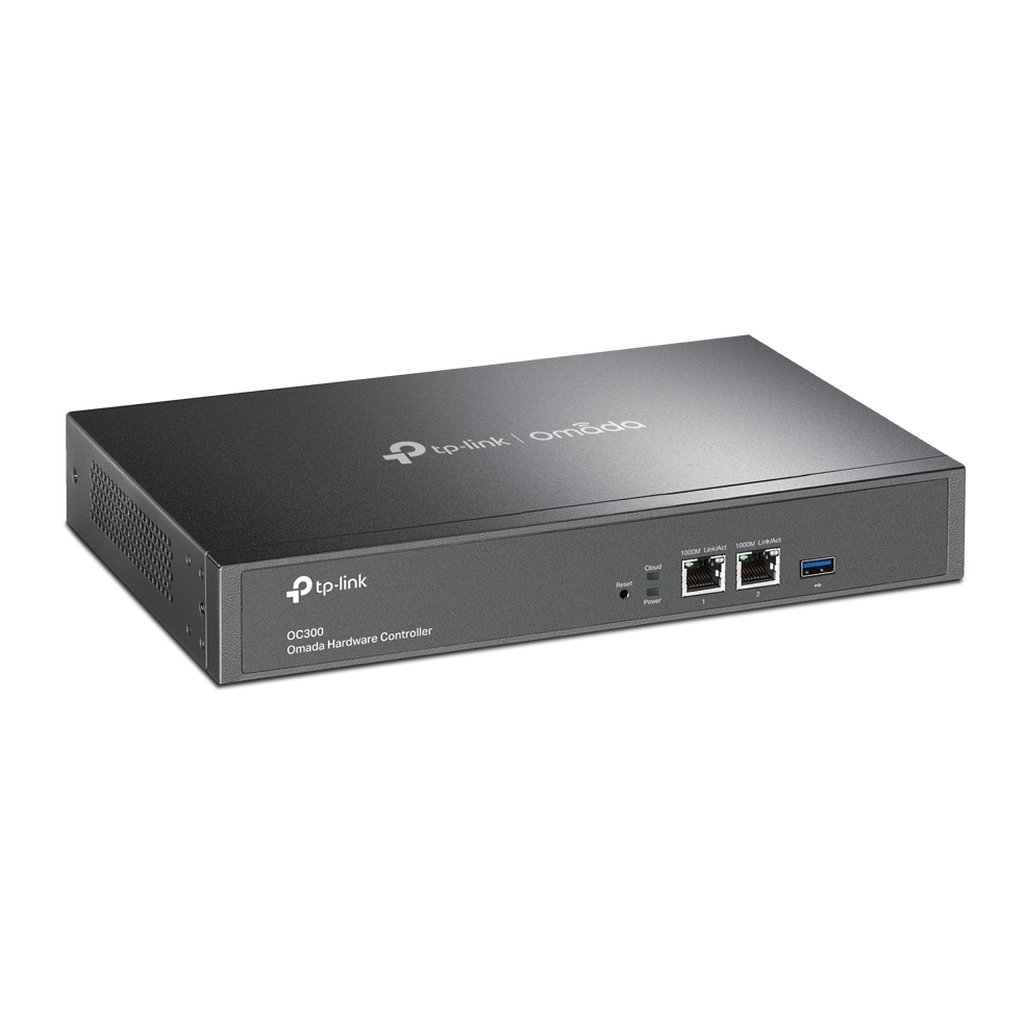

TP-Link Omada Hardware Controller
10/100/1000 Mbps, Ethernet Ports, USB 3.0, Omada App, Cloud Access, CE, FCC, RoHS, Black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

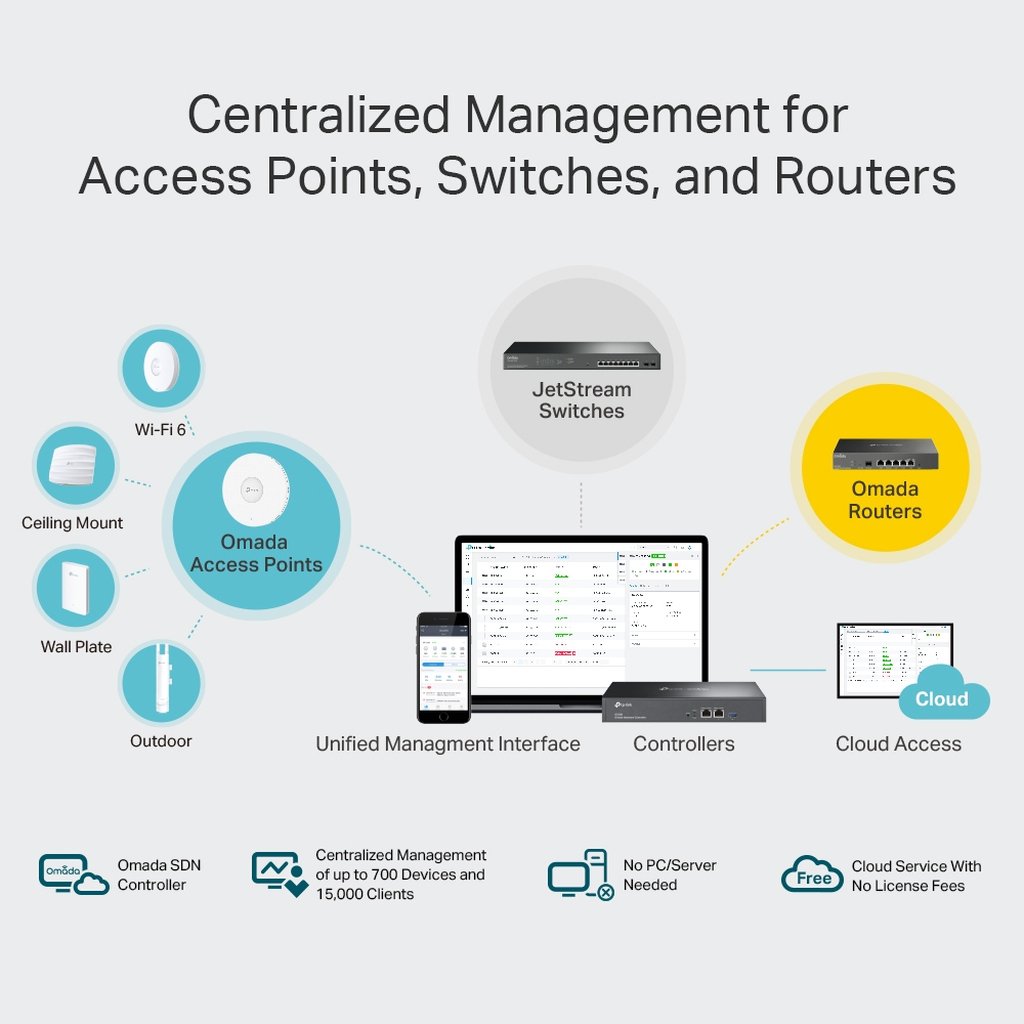

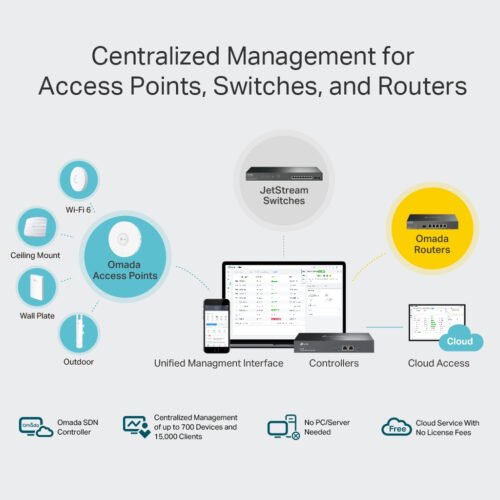

Centralized Management for
Access Points, Switches, and Routers
OC300, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, Omada switches, and Omada routers—all controlled from a single interface.

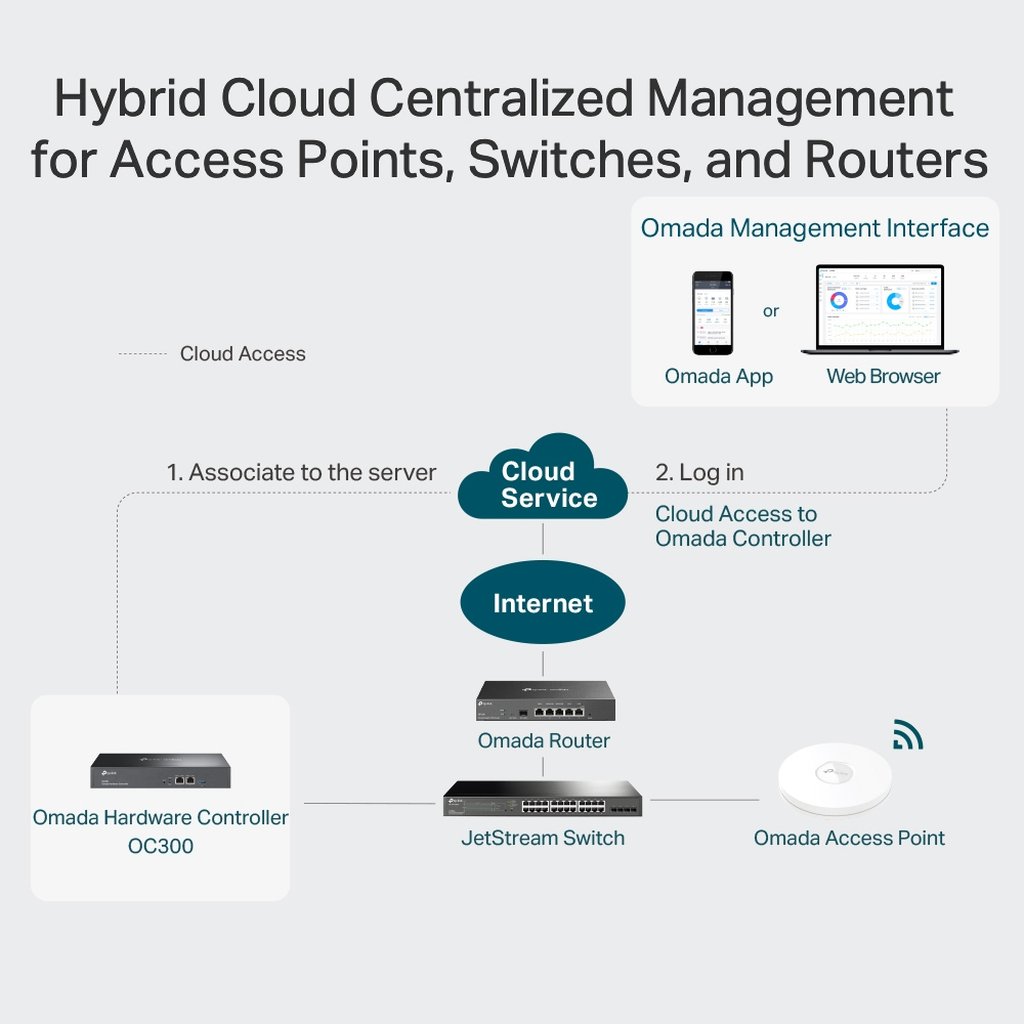

Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC300 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.

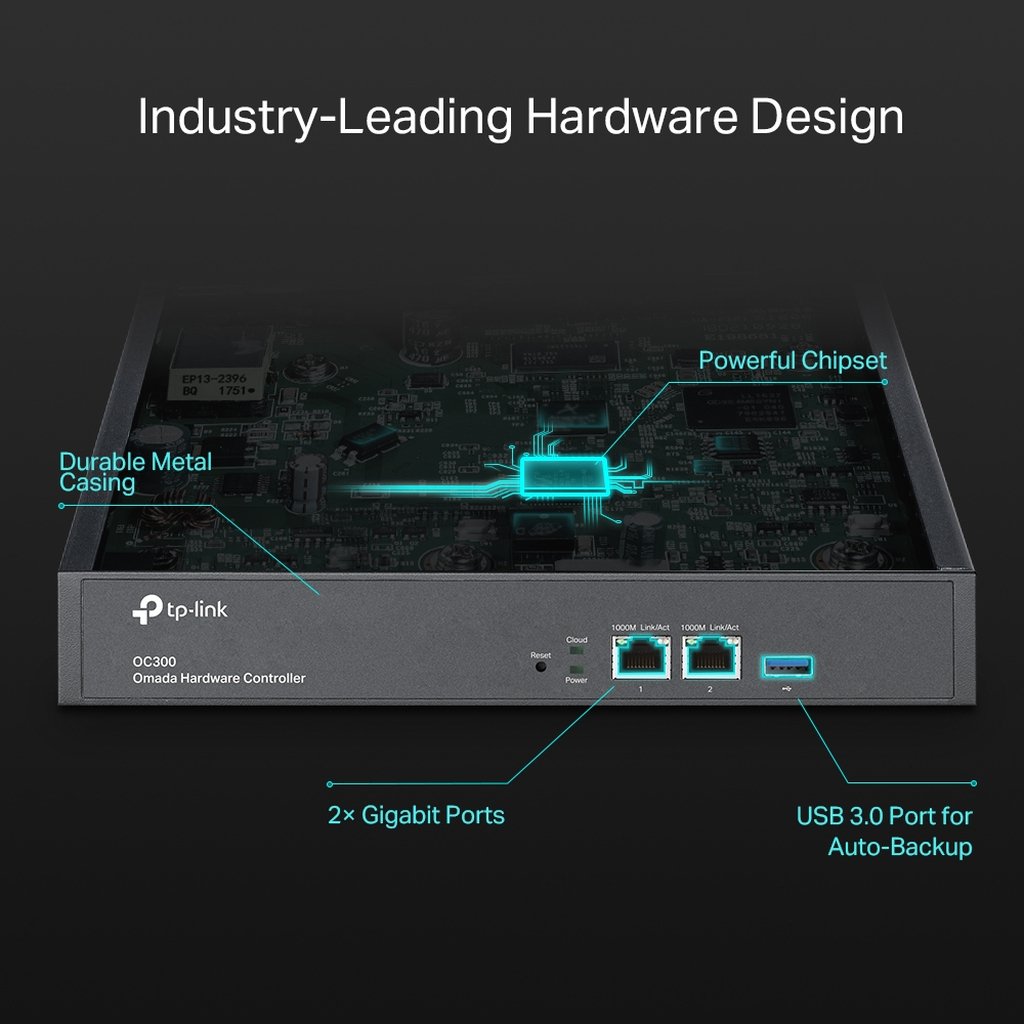

Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, OC300 has enough processing power to support the massive management of your business network. Rackmount/desktop design benefits easier and flexible installation.
Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.
Multiple Factors Guarantee Easier Network Maintenance
WiFi Heatmap Simulator
Generate a Wi-Fi solution by simulating the wireless coverage effect of APs in the actual site. Determine the appropriate number and location of APs according to the coverage requirements.
Visualizable Network Report for Conveniently Summary
Help service providers easily report network service quality to their customers through reports. IT administrators also easily report network operation status through reports.
Batch Management, Multi-Site Management, and Remote Firmware Updates
Improve network maintenance without needing to configure on-site or manage devices one by one.
Powerful Scheduling
Maintain your network easily with more agile and effective processing. No manual tasks required.
Greater Convenience with the Omada App
Remotely access and configure your whole network with a tap of your phone from anywhere in the world.
Additional information
| Weight | 1.86 lbs |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Control display unit | No |
| Built-in processor | Yes |
| Internal memory | 2000 MB |
| Internal memory type | DDR4 |
| Flash memory | 2 MB |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Input voltage | 100 – 240 V |
| Input frequency | 50/60 Hz |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Security algorithms | SNMP, SSH |
| Rack capacity | 1U |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Number of processors installed | 1 |
| Supported protocols | Routing/NAT/Session Limit/Bandwidth ControlVPN (IPSec/L2TP/PPTP/OpenVPN)RADIUS (Authentication/MAC Auth/Accounting)802.1x |
| VPN support | VPN (IPSec/L2TP/PPTP/OpenVPN) |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Network address translation (NAT) | Yes |
| Web-based management | Yes |
| Syslog | Yes |
| Traffic statistics | Yes |
| Power consumption (typical) | 9 W |
| Power consumption (max) | 14.8 W |
| Package width | 250 mm |
| Package depth | 400 mm |
| Package height | 80 mm |
| Package weight | 1.91 kg |
| Certification | CE, FCC, RoHS |
