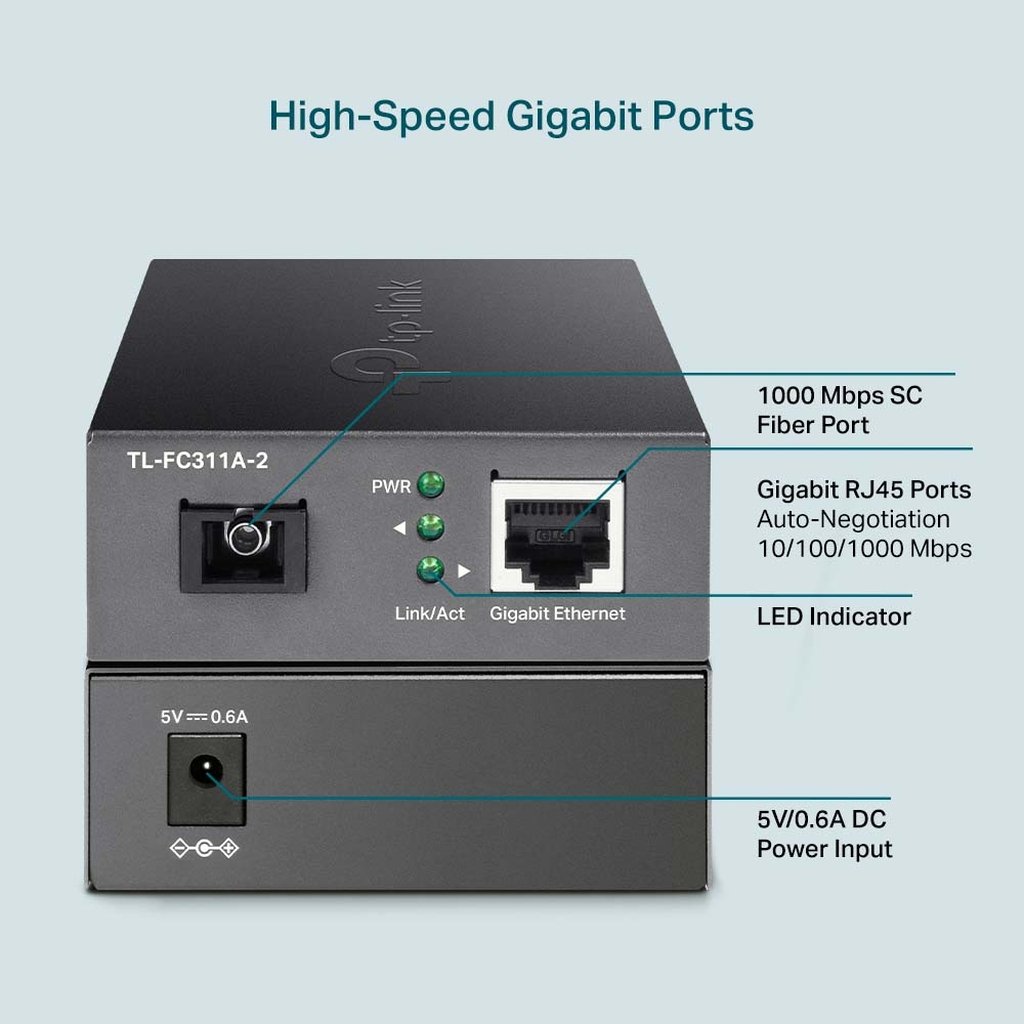

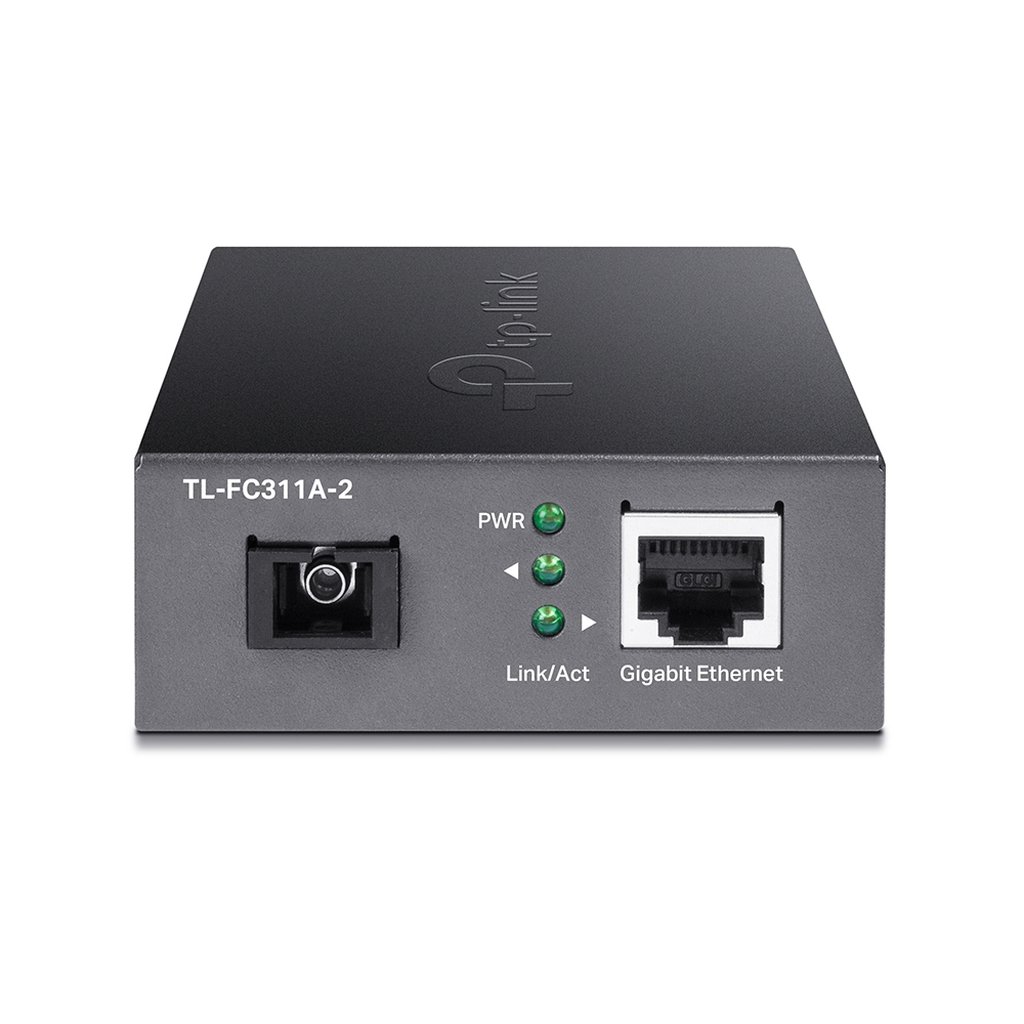

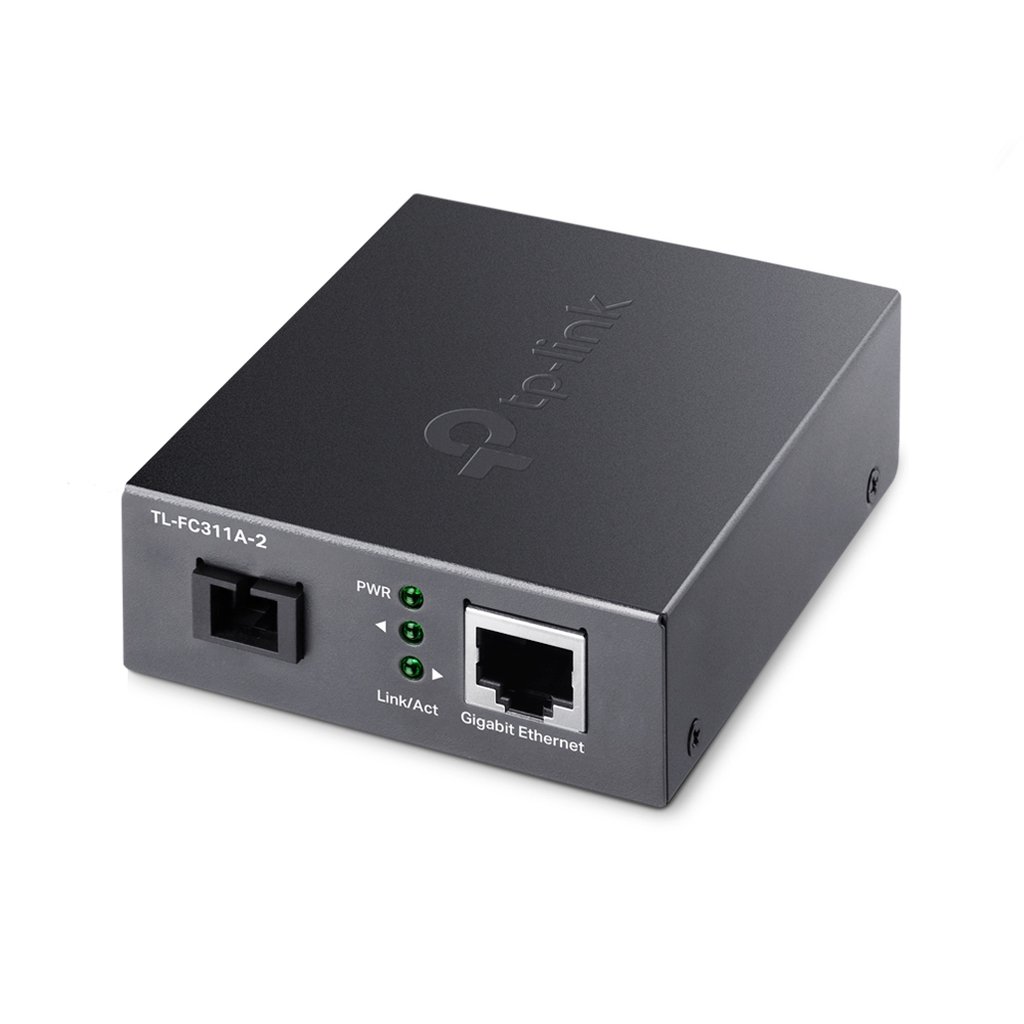

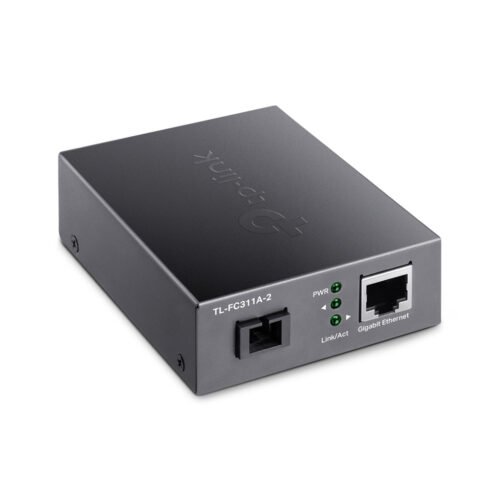

TP-Link Gigabit WDM Media Converter
1× 10/100/1000 Mbps RJ45, 1× Gigabit SC Fiber Port, IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 94.5×73.0×27.0 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
What This Product Does

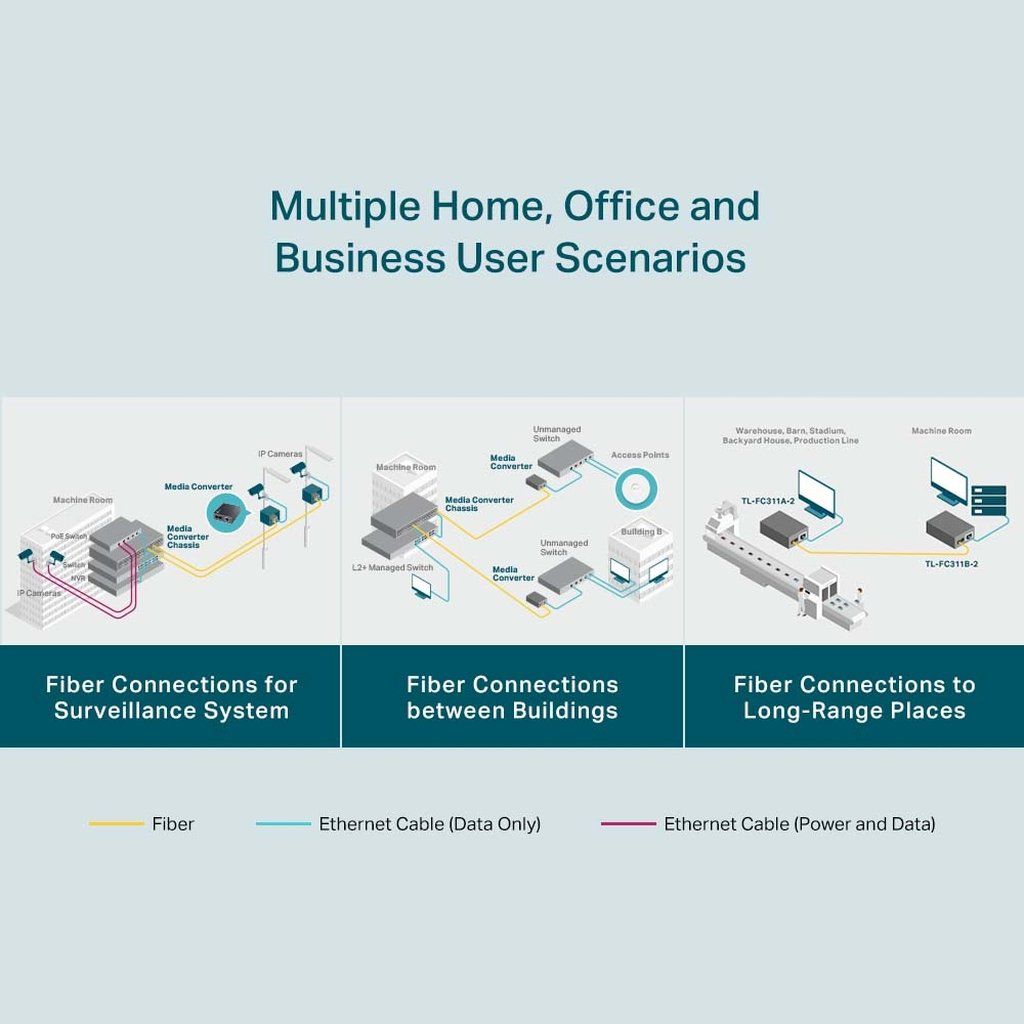

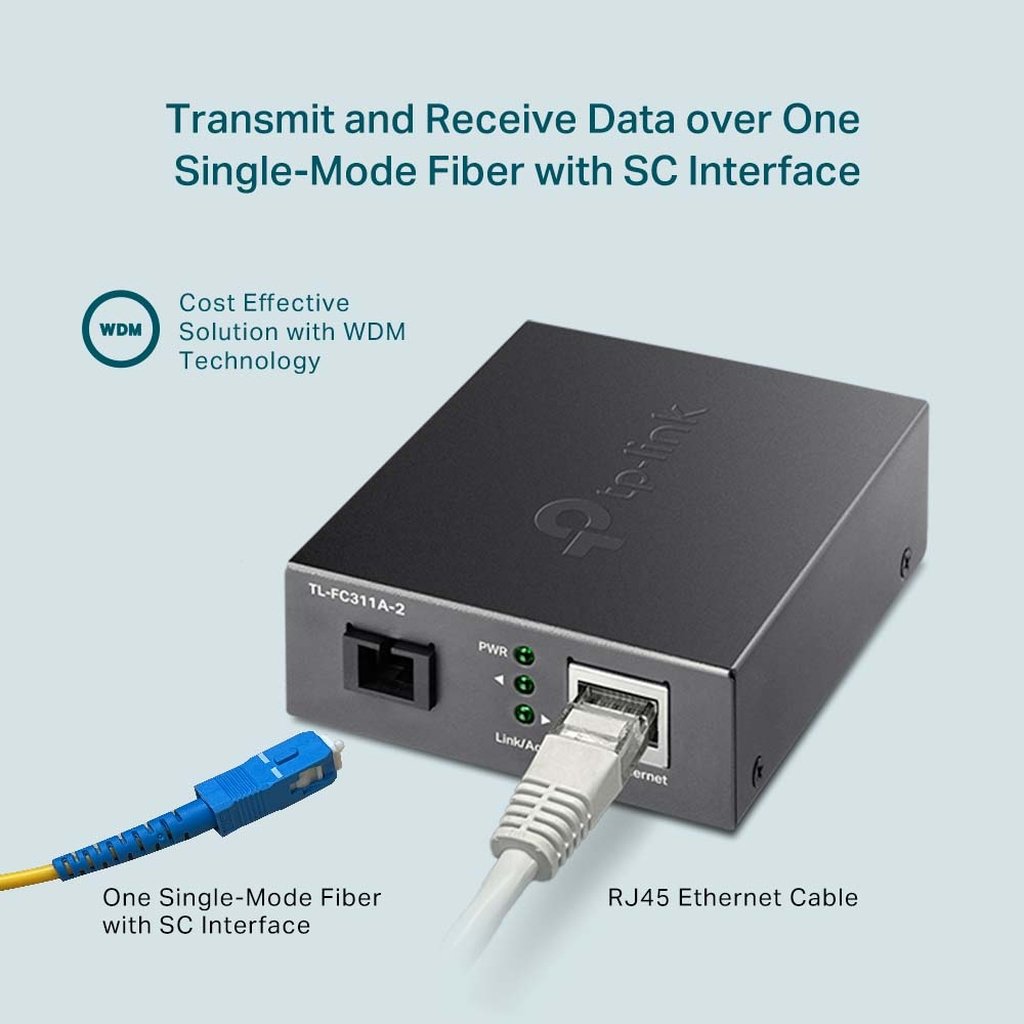

TL-FC311A-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works

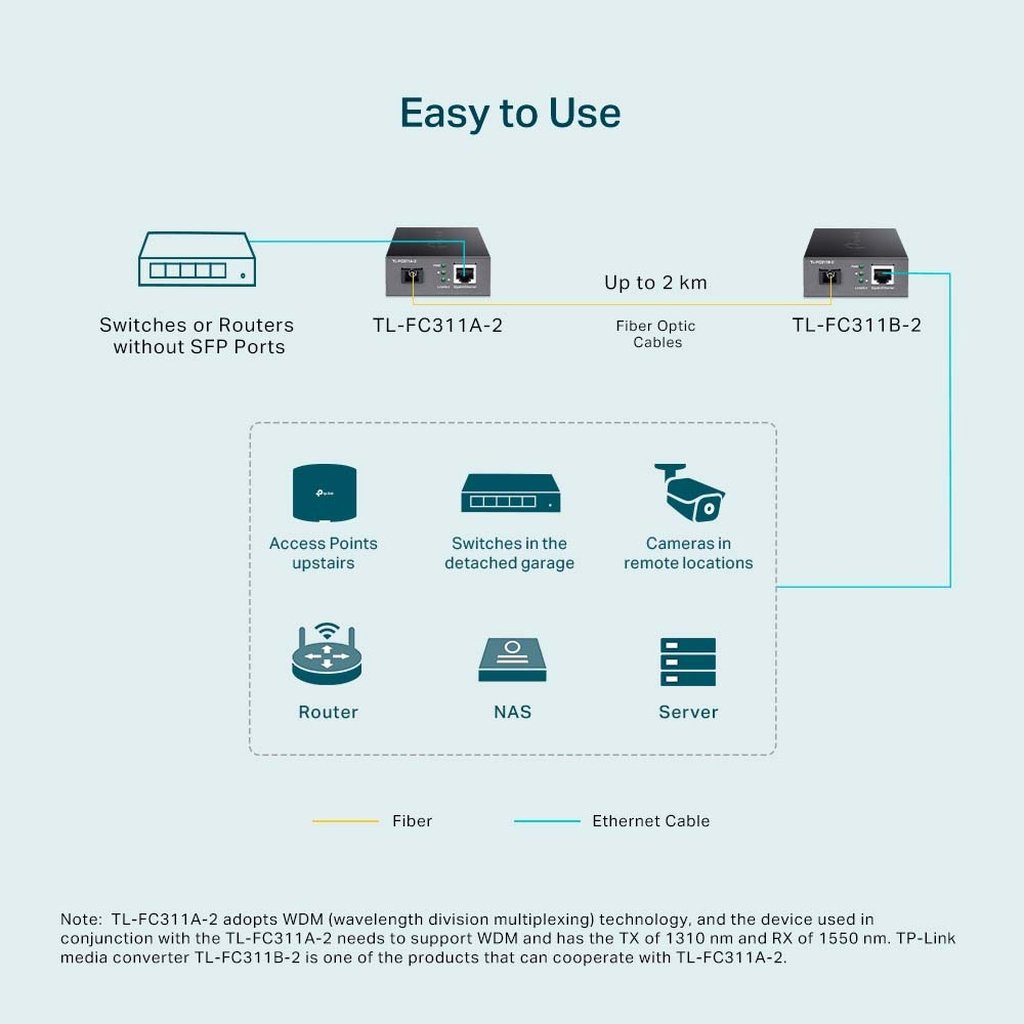

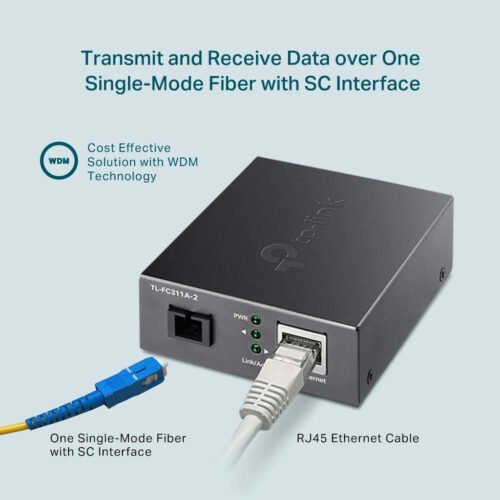

TL-FC311A-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-2 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-2 is one of the products that can cooperate with TL-FC311A-2.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Additional information
| Weight | 0.36 lbs |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Maximum transfer distance | 2000 m |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Internal | No |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Fiber optic connector | SC |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Harmonized System (HS) code | 85176990 |
| Wavelength-division multiplexing (WDM) | Yes |
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 350 g |
| Auto-negotiation | Yes |
| Data transfer rate | 1000 Mbit/s |

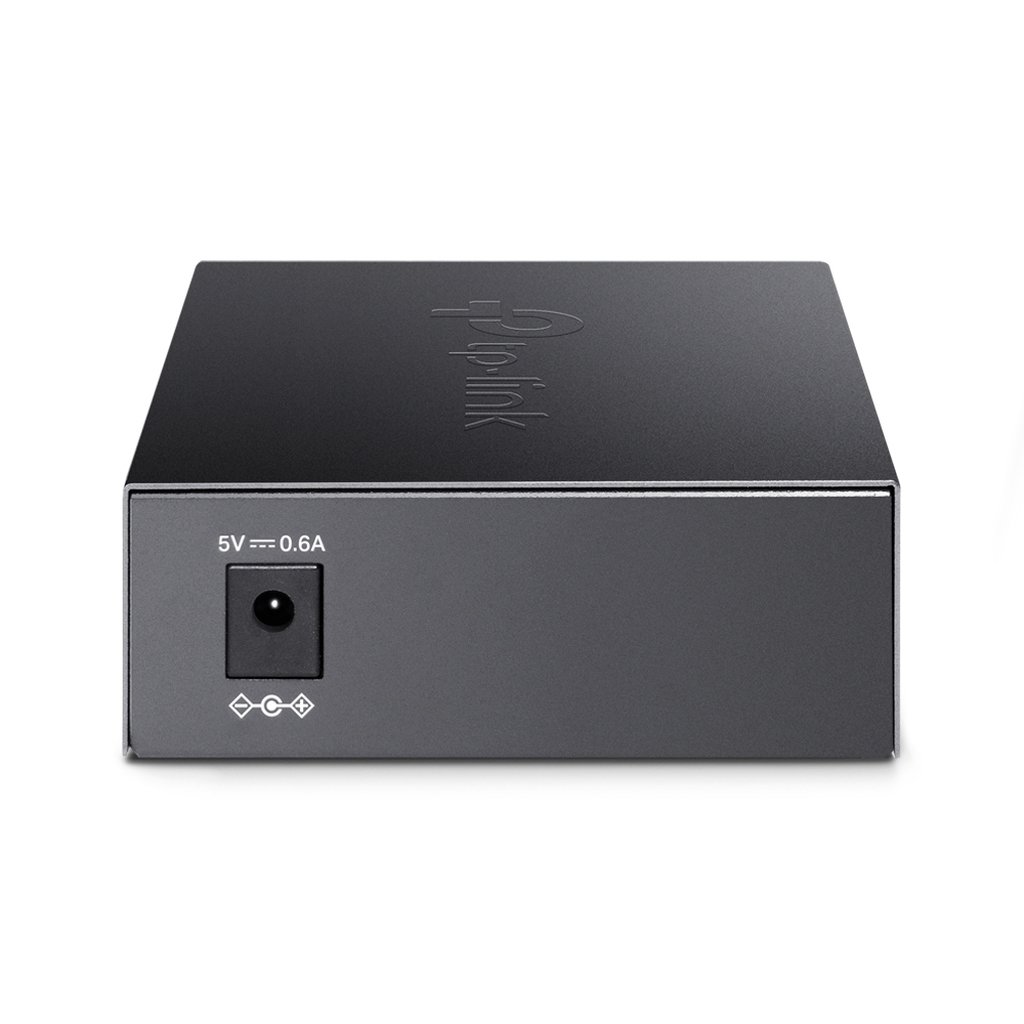

| AC adapter included | Yes |
| DC-in jack | Yes |
| Output voltage | 5 V |
| Output current | 0.6 A |
| Quick installation guide | Yes |
| External power adapter | Yes |
