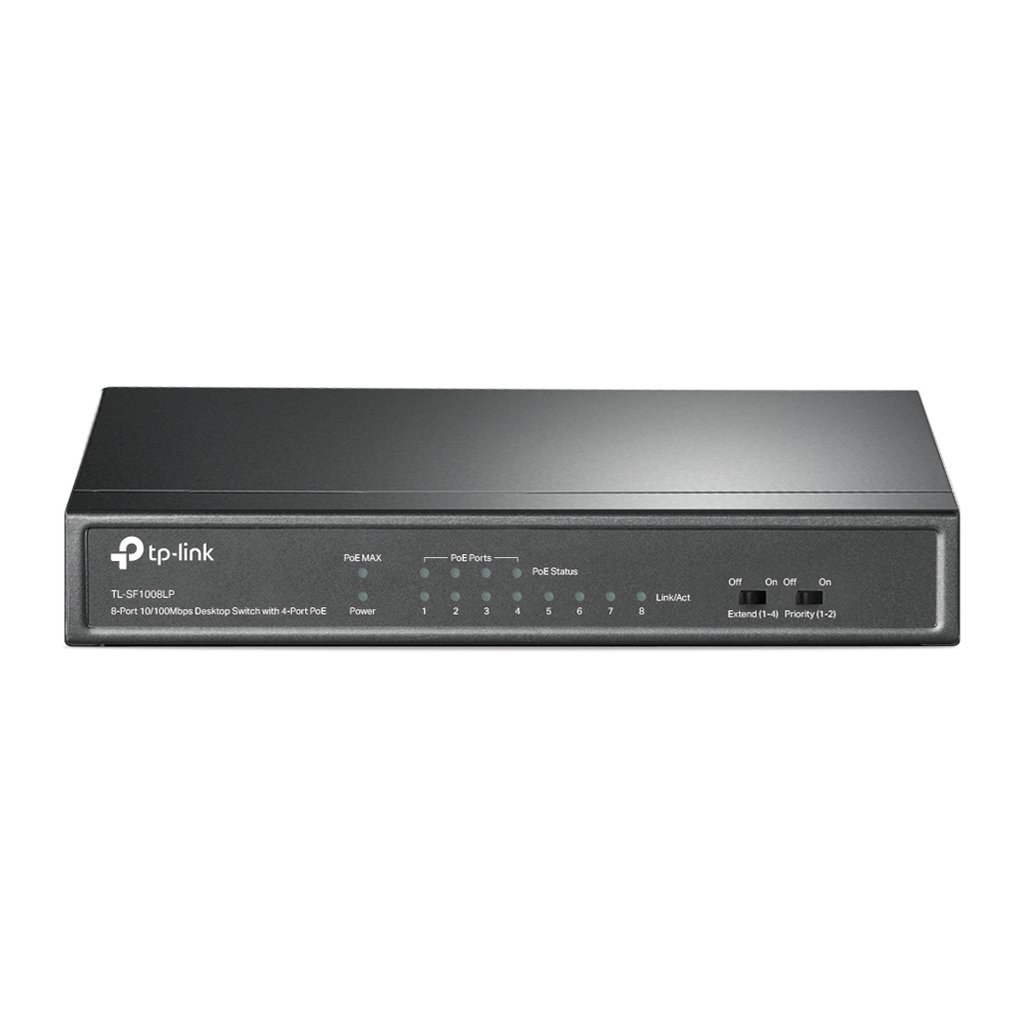

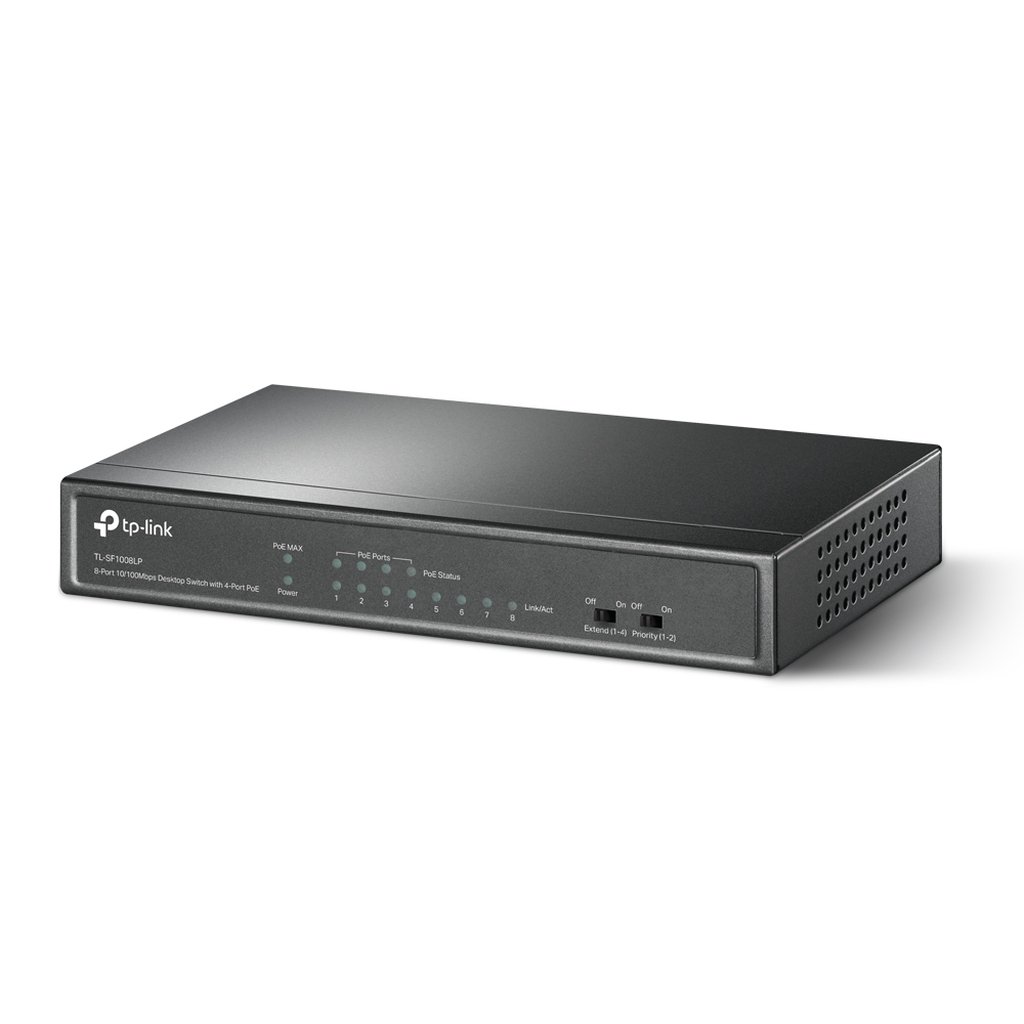

TP-Link TL-SF1008LP network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
8-Port 10/100Mbps Desktop Switch with 4-Port PoE
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
Additional information
Weight | 0.94 lbs |
---|---|
Switch type | Unmanaged |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Networking standards | IEEE 802.3af, IEEE 802.3x |
10G support | No |
Full duplex | Yes |
Auto MDI/MDI-X | Yes |
MAC address auto-learning supported | Yes |
MAC address table | 2000 entries |
Switching capacity | 1.6 Gbit/s |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Jumbo frames | 2000 |
Rack mounting | No |
Product colour | Black |
Housing material | Metal |
LED indicators | Yes |
DC input voltage | 53.5 V |
Input current | 0.81 A |
Power consumption (max) | 47.1 W |
Power over Ethernet (PoE) | Yes |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -40 – 70 °C |
Operating relative humidity (H-H) | 10 – 90% |
Storage relative humidity (H-H) | 5 – 90% |
Width | 171 mm |
Depth | 98 mm |
Height | 27 mm |
Harmonized System (HS) code | 85176990 |
Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX |
Flow control support | Yes |
Auto-negotiation | Yes |
DHCP features | DHCPv6 relay |
Number of fans | 0 fan(s) |
Power source | DC/PoE |
Power supply included | No |
Cables included | AC |
AC adapter included | Yes |
Package weight | 750 g |
Stackable | No |
AC input voltage | 220 V |
AC input frequency | 50 Hz |
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Sustainability compliance | Yes |
Total Power over Ethernet (PoE) budget | 41 W |
Power connector | DC-in jack |
Forwarding rate | 1.1904 Mpps |
Power over Ethernet (PoE) ports quantity | 4 |
Wall mountable | Yes |
Fanless | Yes |
User guide | Yes |
Half duplex | Yes |
Heat dissipation | 160.61 BTU/h |
Package width | 223 mm |
Package depth | 280 mm |
Package height | 68 mm |
IPv4 & IPv6 features | IPv6 portal |
Fast Ethernet (copper) ports quantity | 8 |
MAC address auto-aging supported | Yes |
Routing protocols | OSPF |
Bandwidth | 1.6 Gbit/s |
