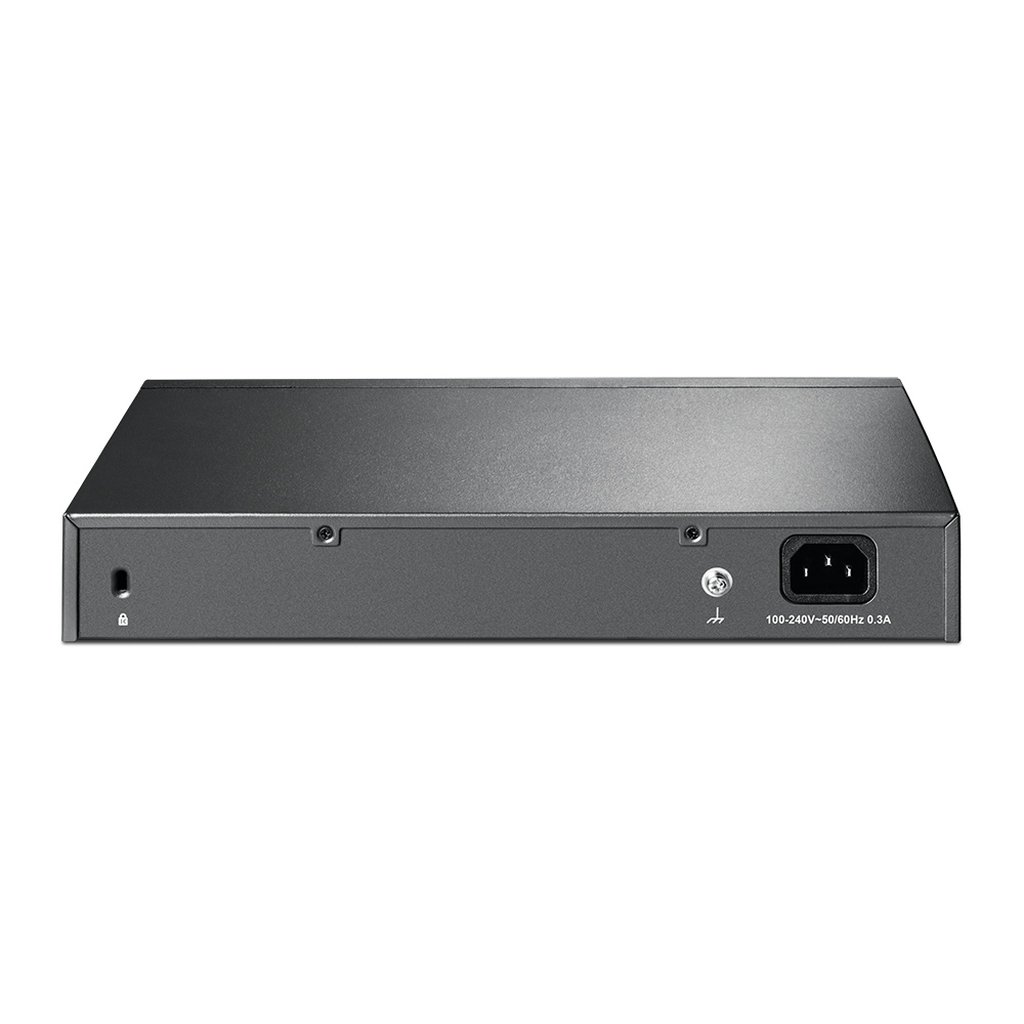

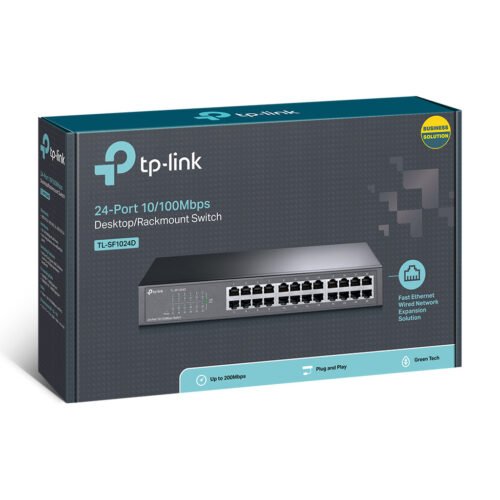

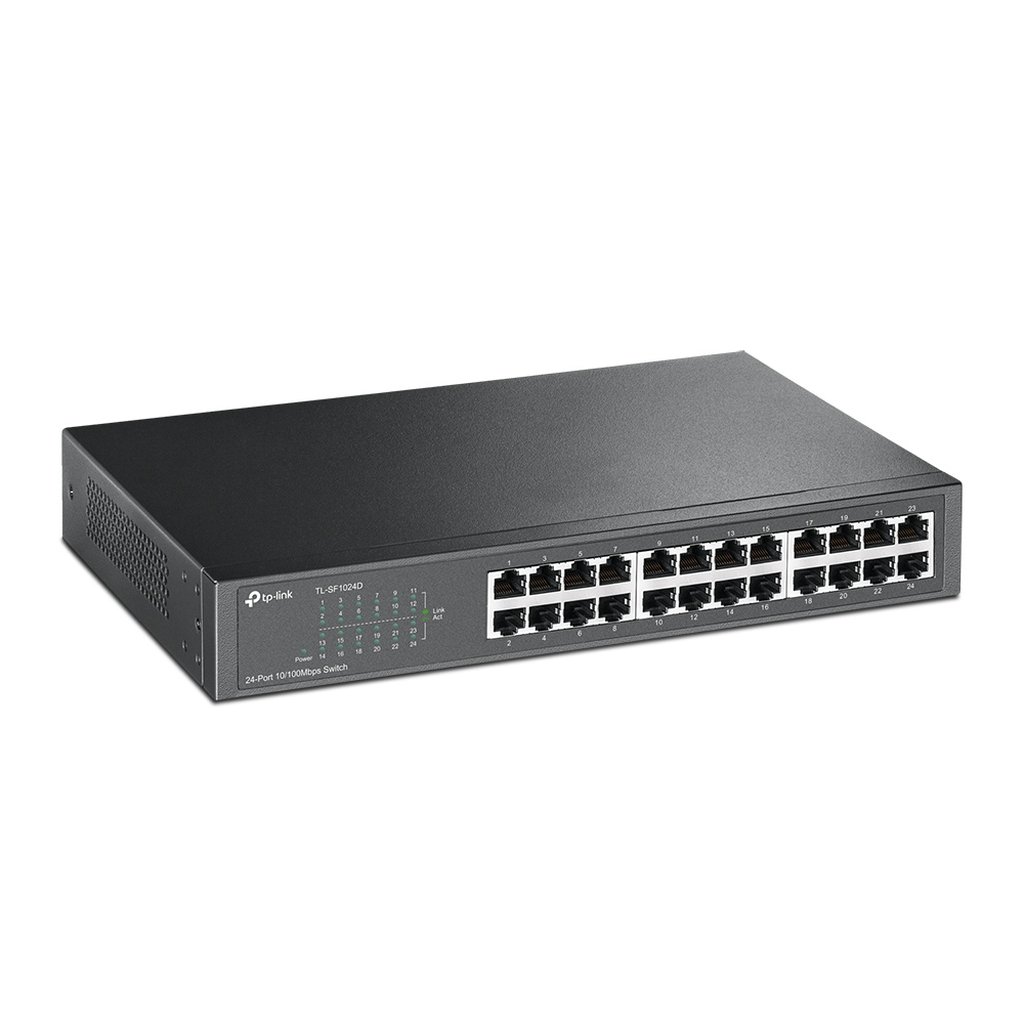

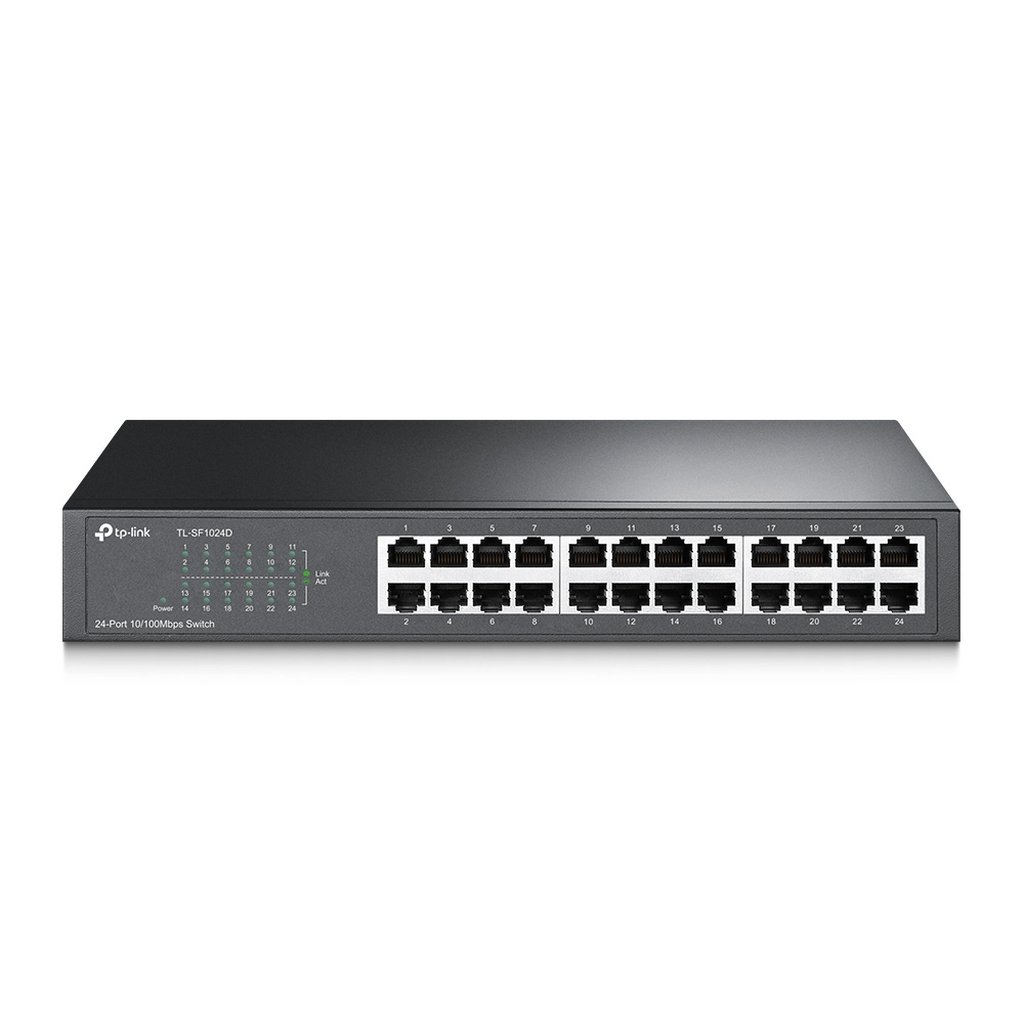

TP-Link TL-SF1024D network switch Unmanaged Fast Ethernet (10/100) Grey

In Stock

24-Port 10/100Mbps, Desktop, Rackmount Switch, 4.8 Gbps, Black

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: TL-SF1024D
Brand:

Description

What This Product Does
The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save the power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

What This Product Does
The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

– Innovative energy-efficient technology saves power up to 75%
– Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
– Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
– 4.8 Gbps Switching Capacity
– Store and forward Switching scheme
– Auto-MDI/MDIX eliminates the need for crossover cables
– Supports MAC address auto-learning and auto-aging
– Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
– Plug and Play design simplifies installation
– Fanless design to make sure it works quietly

Additional information

Weight 2.04 lbs
Brand compatibility

3.57 Mpps

Switch type

Unmanaged

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Networking standards

IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support

No

Auto MDI/MDI-X

Yes

Ethernet LAN data rates

10,100 Mbit/s

MAC address table

8000 entries

Switching capacity

4.8 Gbit/s

Store-and-forward

Yes

Packet buffer memory

2 MB

Rack mounting

Yes

Product colour

Grey

Housing material

Metal

LED indicators

Yes

Power over Ethernet (PoE)

No

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-40 – 70 °C

Operating relative humidity (H-H)

10 – 90%

Storage relative humidity (H-H)

5 – 90%

Width

294 mm

Depth

180 mm

Height

44 mm

Harmonized System (HS) code

85176990

Power consumption (typical)

3.53 W

Copper ethernet cabling technology

10GBASE-T, 100BASE-TX

Power source

AC

Power supply included

Yes

Cables included

AC

Package weight

2 kg

Stackable

No

AC input voltage

100 – 240 V

AC input frequency

50/60 Hz

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Sustainability compliance

Yes

Power connector

AC-in jack

Forwarding rate

3.57 Mpps

Fanless

Yes

User guide

Yes

Package type

Box

Heat dissipation

10.88 BTU/h

Package width

250 mm

Package depth

400 mm

Package height

80 mm

Supported network protocols

CSMA/CD, TCP/IP

Cable types supported

Cat3, Cat5e, Cat4, Cat5

Rack mount kit

Yes

Fast Ethernet (copper) ports quantity

24
