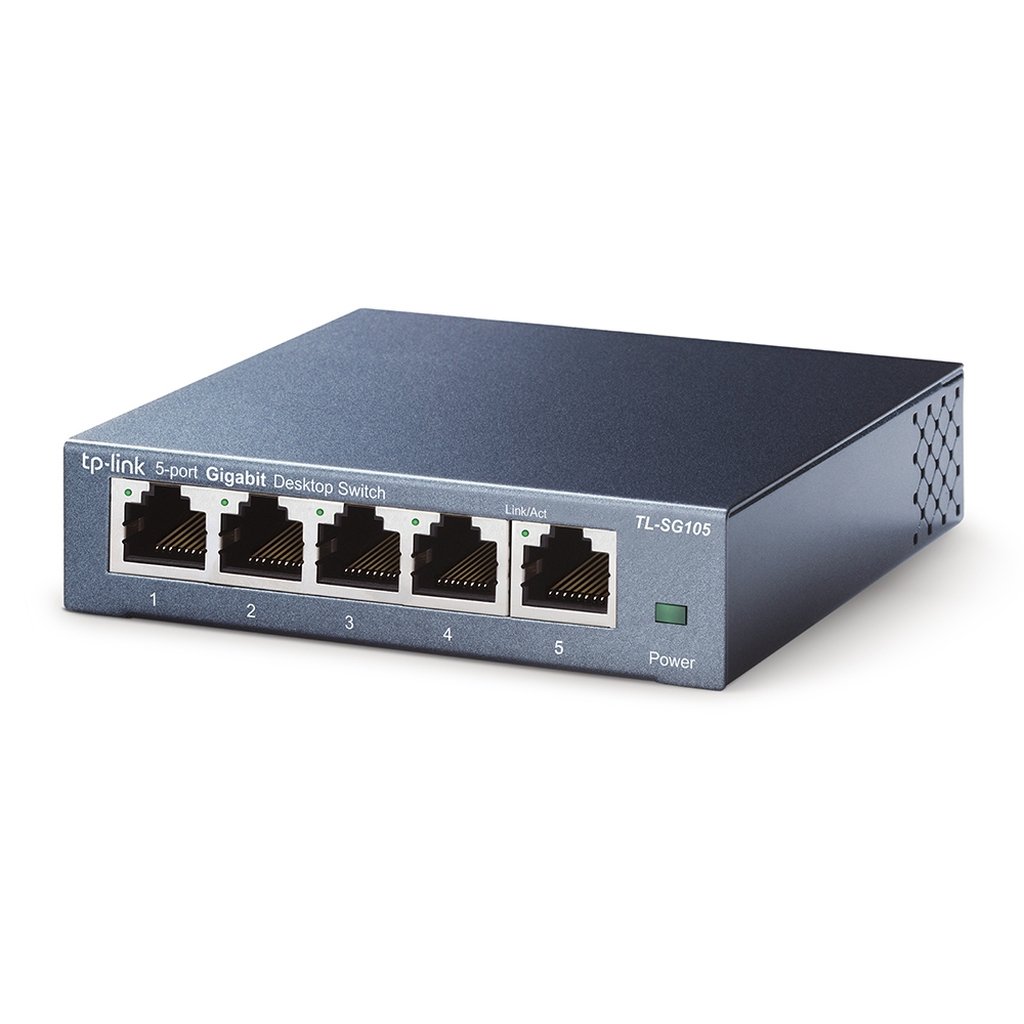

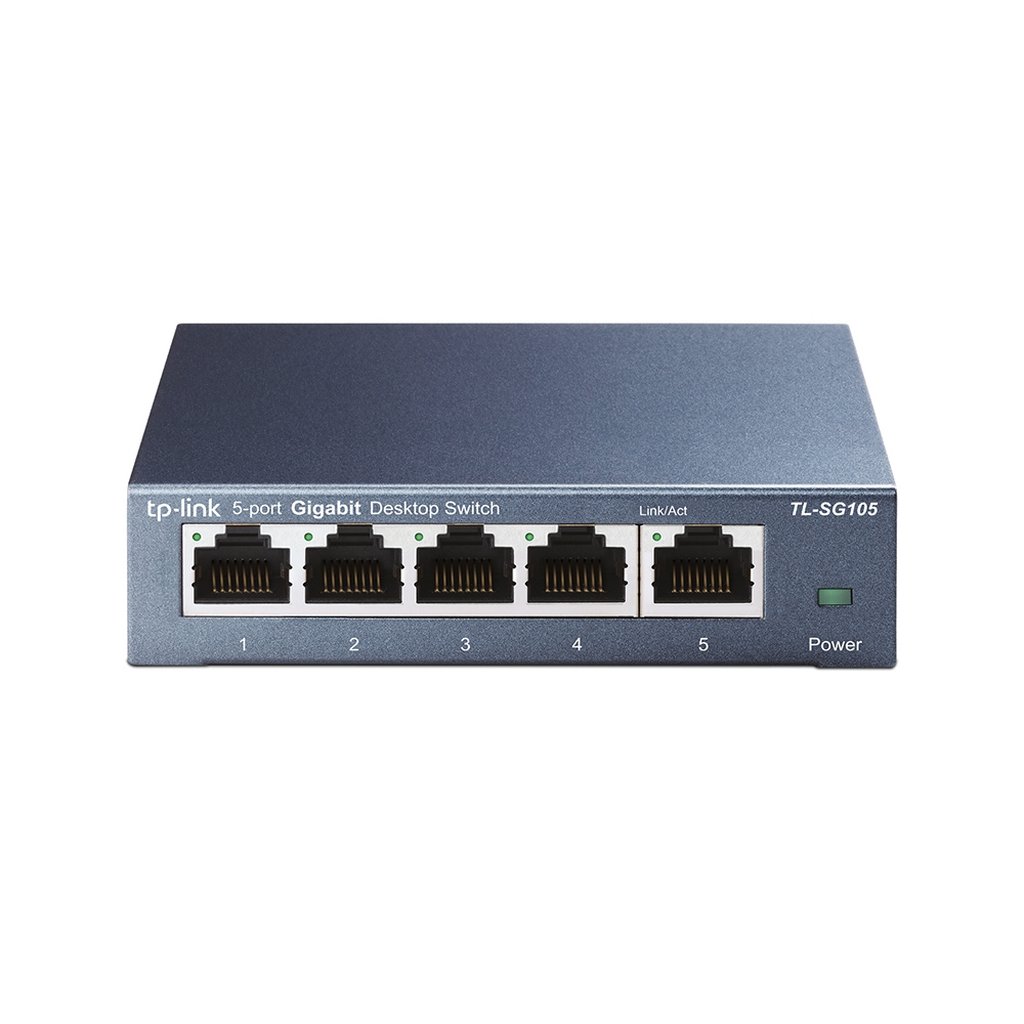

TP-Link TL-SG105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
5-Port 10/100/1000Mbps Desktop Switch
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
What This Product Does
The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
Additional information
Weight | 0.4 lbs |
---|---|
Switch type | Unmanaged |
Quality of Service (QoS) support | Yes |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
10G support | No |
Full duplex | Yes |
Auto MDI/MDI-X | Yes |
MAC address auto-learning supported | Yes |
MAC address table | 2048 entries |
Switching capacity | 10 Gbit/s |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Jumbo frames | 16000 |
Packet buffer memory | 1 MB |
Rack mounting | No |
Product colour | Black |
Housing material | Steel |
LED indicators | Yes |
Input current | 0.6 A |
Power consumption (max) | 2.3 W |
Power over Ethernet (PoE) | No |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -40 – 70 °C |
Operating relative humidity (H-H) | 10 – 90% |
Storage relative humidity (H-H) | 5 – 90% |
Width | 100 mm |
Depth | 98 mm |
Height | 25 mm |
Harmonized System (HS) code | 85176990 |
Switch layer | L2 |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
Flow control support | Yes |
Auto-negotiation | Yes |
IGMP snooping | Yes |
Power supply included | Yes |
Cables included | AC |
Certification | CE, FCC, RoHS |
AC input voltage | 220 V |
AC input frequency | 50 Hz |
Power connector | DC-in jack |
Forwarding rate | 7.4 Mpps |
Wall mountable | Yes |
User guide | Yes |
Package type | Box |
Heat dissipation | 7.83 BTU/h |
Gigabit Ethernet (copper) ports quantity | 5 |
Multicast support | Yes |
Cable types supported | Cat3, Cat4, Cat5, Cat5e |
MAC address auto-aging supported | Yes |
