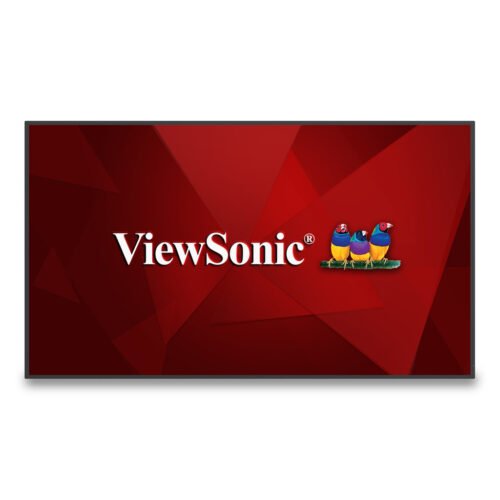

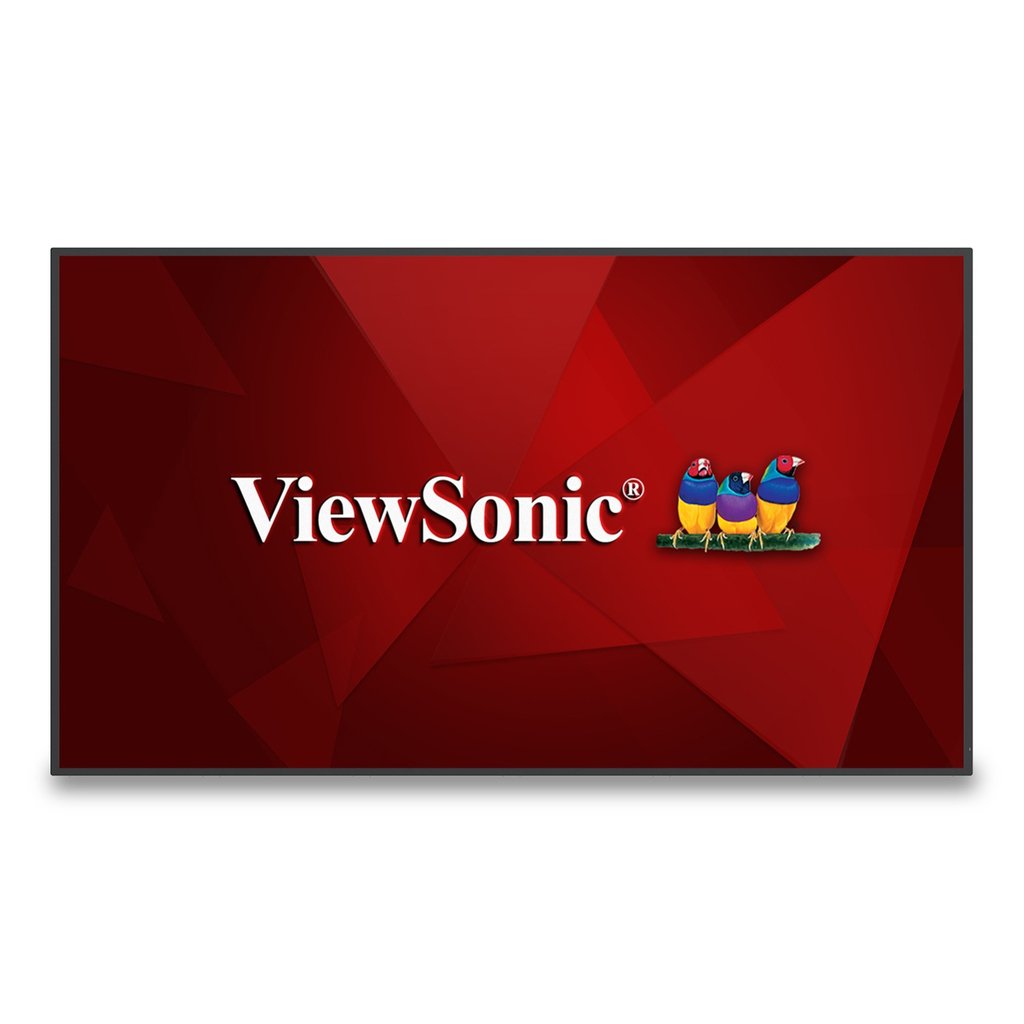

Viewsonic CDE5530 Signage Display Digital signage flat panel 139.7 cm (55″) LCD 450 cd/m² 4K Ultra HD Black Built-in processor
55″ ADS DLED, 4K, 60Hz, 16:9, 1.07B, 450 cd/m², 1200:1, 8 ms, 178/178, 20W, RJ45, HDMI, RS-232, SPDIF, USB, 100-240 VAC, 24/7, VESA, 13.4 kg
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ViewSonic® CDE5520 is a 55” premium 4K large format presentation display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the display transforms meeting rooms into dynamic communications hubs. The built-in ViewBoard® screen sharing software*, ViewBoard® Cast (along with the optional ViewSonic® vCastSender app), enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE5520 can play multimedia from internal storage or a USB flash drive. And with remote configuration and content management system support, the ViewSonic® CDE5520 is also suitable for a wide array of diverse signage applications. *Chrome, Android, Windows, Mac OS, and iOS compliant
Multiple Ways to Connect and Share
Connect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, Chrome OS, Android, iOS). In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.
AV Control System Interoperability
These displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.
Centralized Device Control Manager
For IT admins, it’s tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.
Reliable 24/7 Operation Rating
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.
Superb and Stunning Picture Quality
With 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.
Powerful Secured Embedded Platform
This display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.
Additional information
Weight | 19.5 lbs |
---|---|
Display diagonal | 139.7 cm (55") |
Display technology | LCD |
Display resolution | 3840 x 2160 pixels |
Display brightness | 450 cd/m² |
LED backlighting type | Direct-LED |
Contrast ratio (typical) | 1200:1 |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Panel life | 50000 h |
HDMI ports quantity | 3 |
USB port | Yes |
Ethernet LAN | Yes |
Wi-Fi | No |
HDMI version | 2.1 |
HDMI input ports quantity | 2 |
HDMI output ports quantity | 1 |
USB ports quantity | 3 |
USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
USB connector type | USB Type-A, USB Type-C |
Ethernet LAN (RJ-45) ports | 1 |
RS-232 interface | Yes |
Built-in speaker(s) | Yes |
Number of built-in speakers | 2 |
RMS rated power | 20 W |
Product design | Digital signage flat panel |
Product colour | Black |
Mounting type | Wall |
Purpose | Universal |
Power consumption (typical) | 155 W |
Power consumption (max) | 250 W |
AC input voltage | 100 – 240 V |
AC input frequency | 50 – 60 Hz |
Internal storage capacity | 32 GB |
Operating system installed | Android 11 |
Display width | 1233 mm |

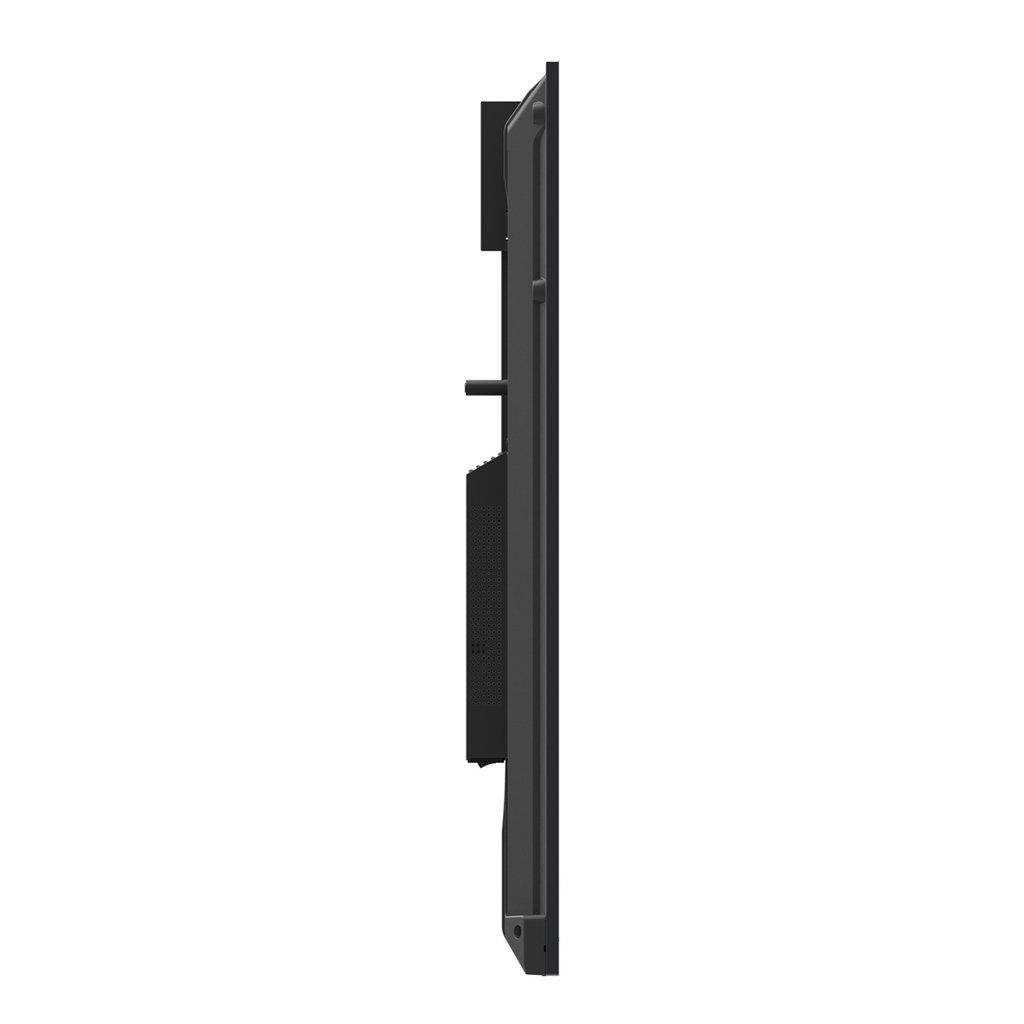

Display depth | 71.5 mm |
Display height | 703.5 mm |
Package width | 1332 mm |
Package weight | 19.5 kg |
Remote control included | Yes |
Cables included | AC, HDMI, RS-232, USB Type-C |
Mounting kit | Yes |
HD type | 4K Ultra HD |
Touchscreen | No |
Native aspect ratio | 16:9 |
Native refresh rate | 60 Hz |
DVI port | No |
Placement supported | Indoor |
Orientation | Horizontal/Vertical |
HDCP | Yes |
HDCP version | 2.2 |
Power consumption (standby) | 0.5 W |
Internal memory | 4 GB |
Display weight | 13.4 kg |
Operating temperature (T-T) | 0 – 40 °C |
Screen shape | Flat |
Package depth | 156 mm |
Package height | 819 mm |
Panel type | ADS |
Response time | 8 ms |
VESA mounting | Yes |
Panel mounting interface | 400 x 200 mm |
Operating hours (hours/days) | 24/7 |
Operating relative humidity (H-H) | 20 – 80% |
Contrast ratio (dynamic) | 5000:1 |
Surface hardness | 3H |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
OPS module slot | Yes |
Anti-glare screen | Yes |
Computer system | Yes |
Built-in processor | Yes |
Processor cores | 4 |
On-board graphics card model | ARM Mali-G52 |
Display number of colours | 1.07 billion colours |
Display diagonal (metric) | 139 cm |
Processor frequency | 1.9 GHz |
Certification | cTUus, FCC, Energy Star 8.0, RoHS, Mexico NOM, Mexico Energy |
Processor model | Amlogic T982 |
Haze rate | 25% |
Quick start guide | Yes |
Batteries included | Yes |
OPS slot | 1 |
Bezel width (bottom) | 1.5 cm |
Bezel width (side) | 1.5 cm |
Bezel width (top) | 1.5 cm |
Computer system type | System on Chip (SoC) |
