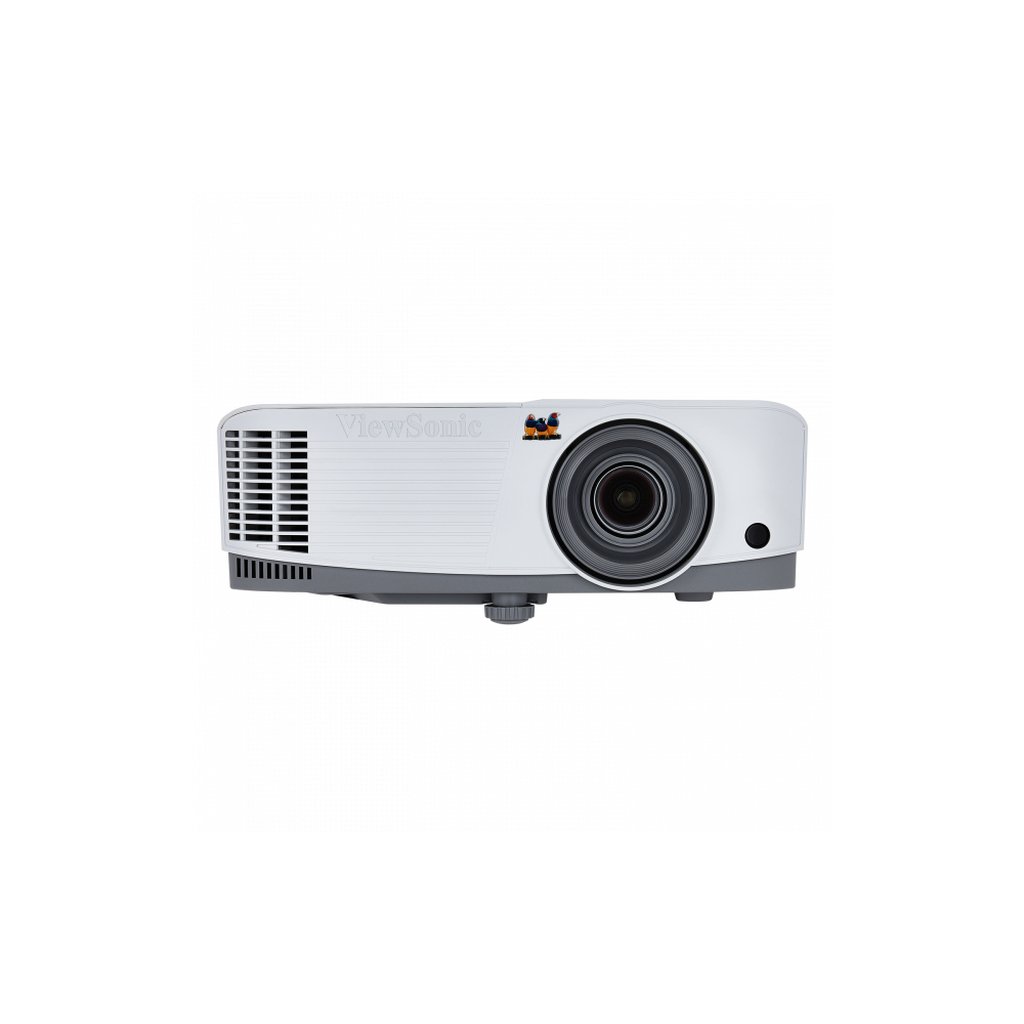

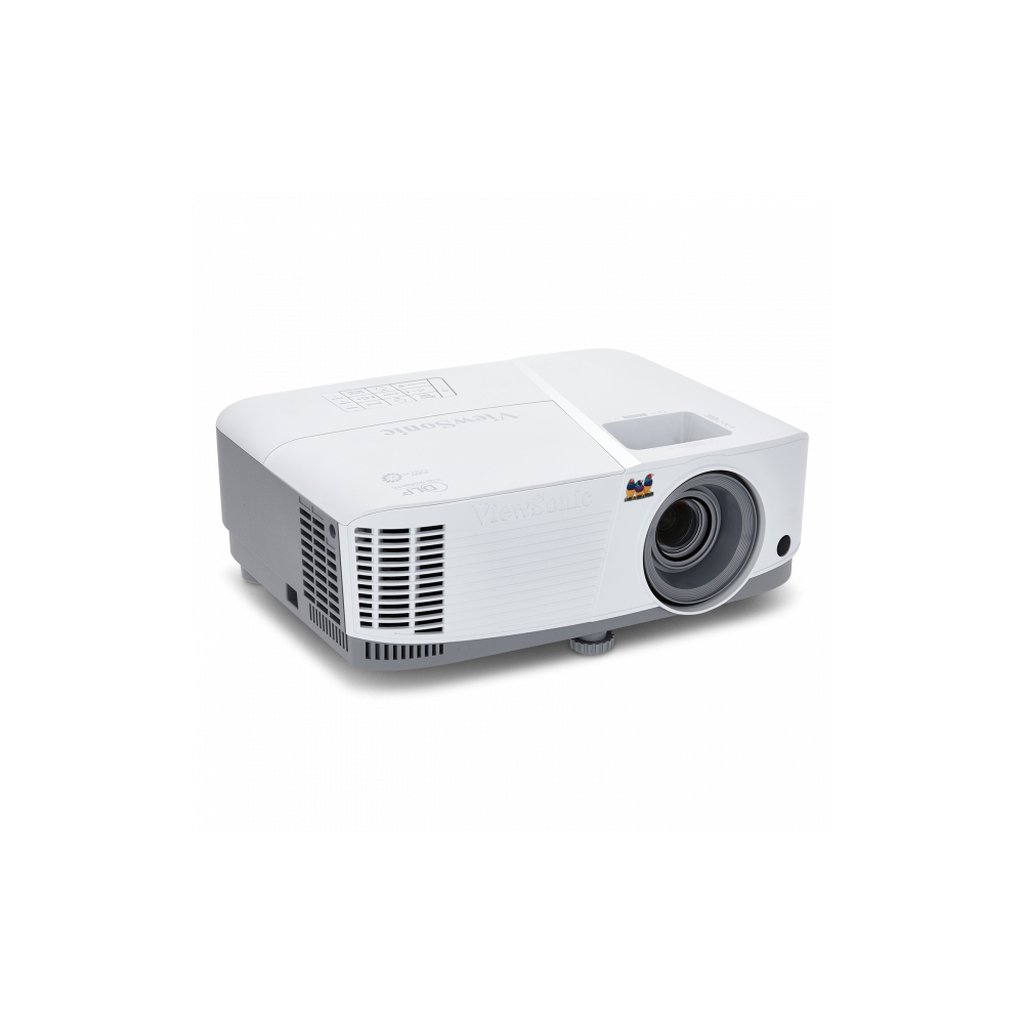

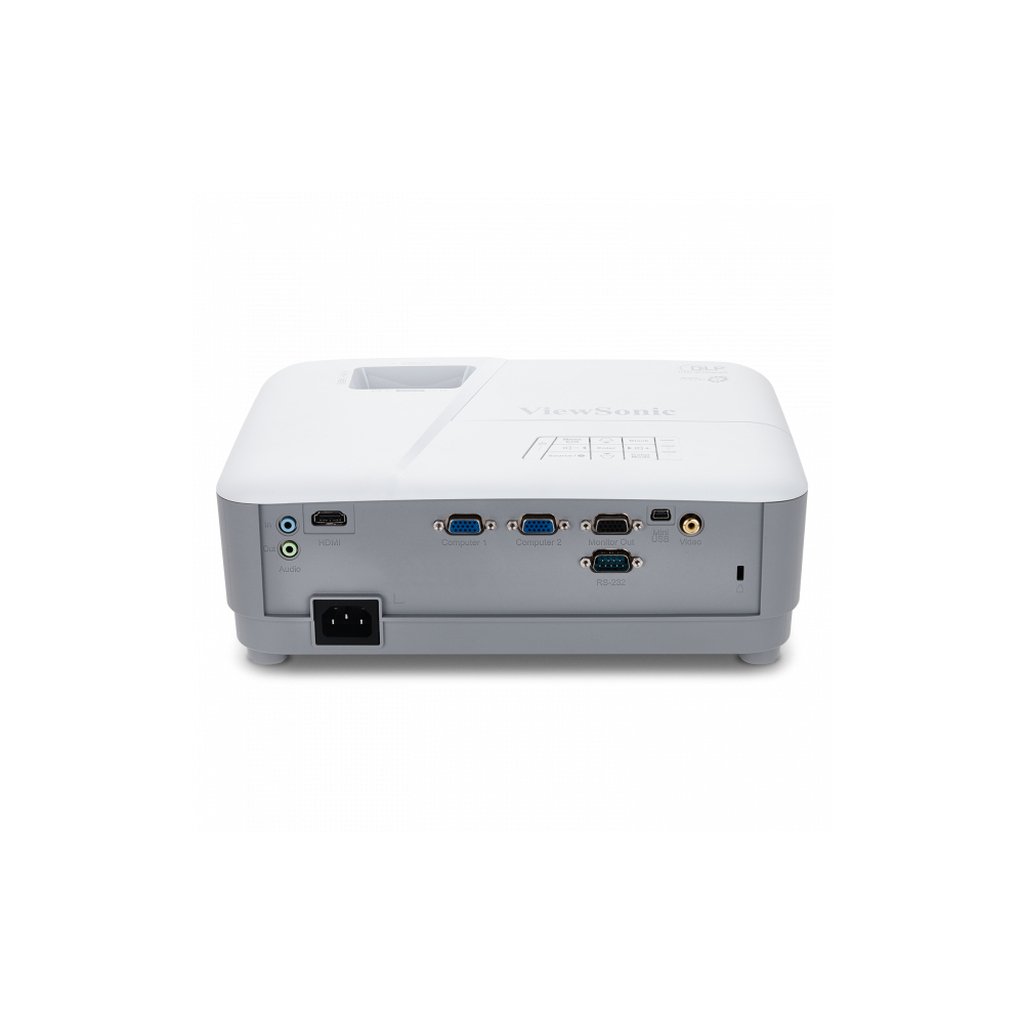

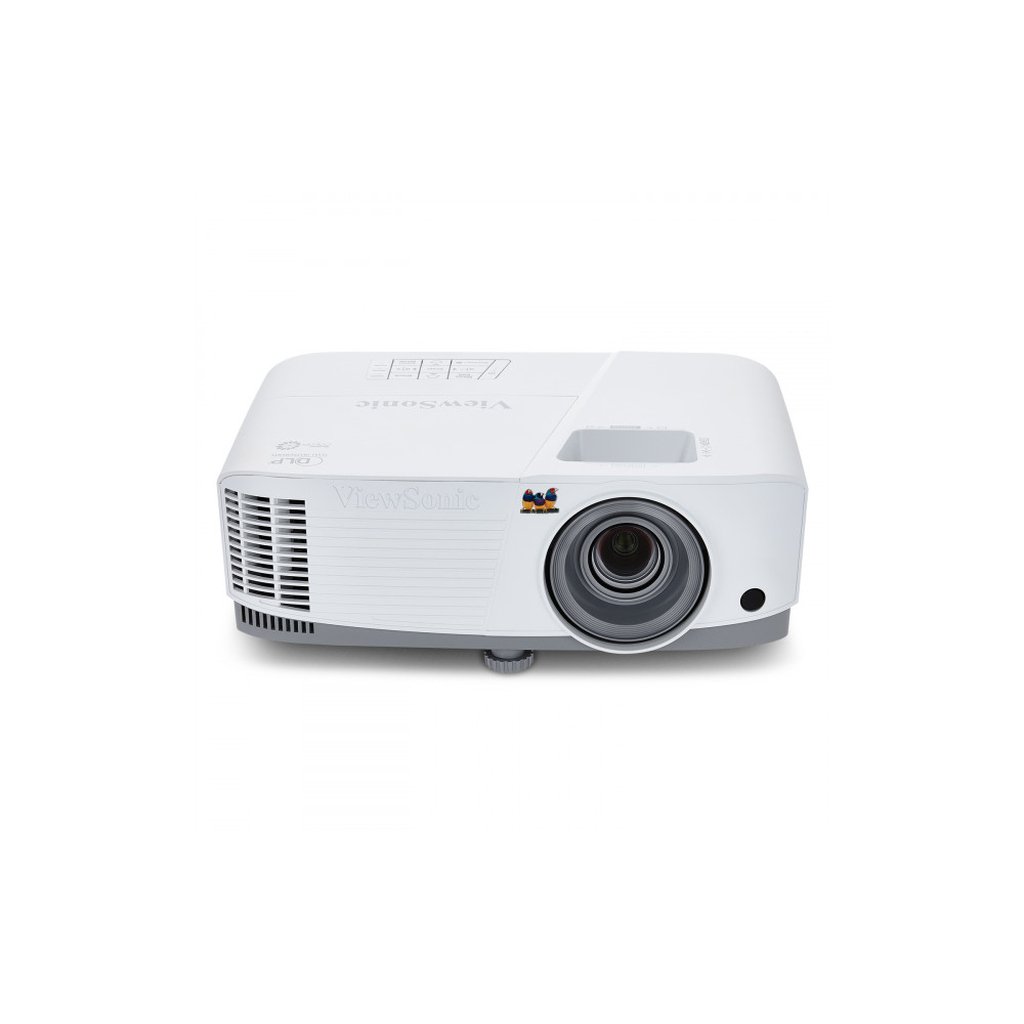

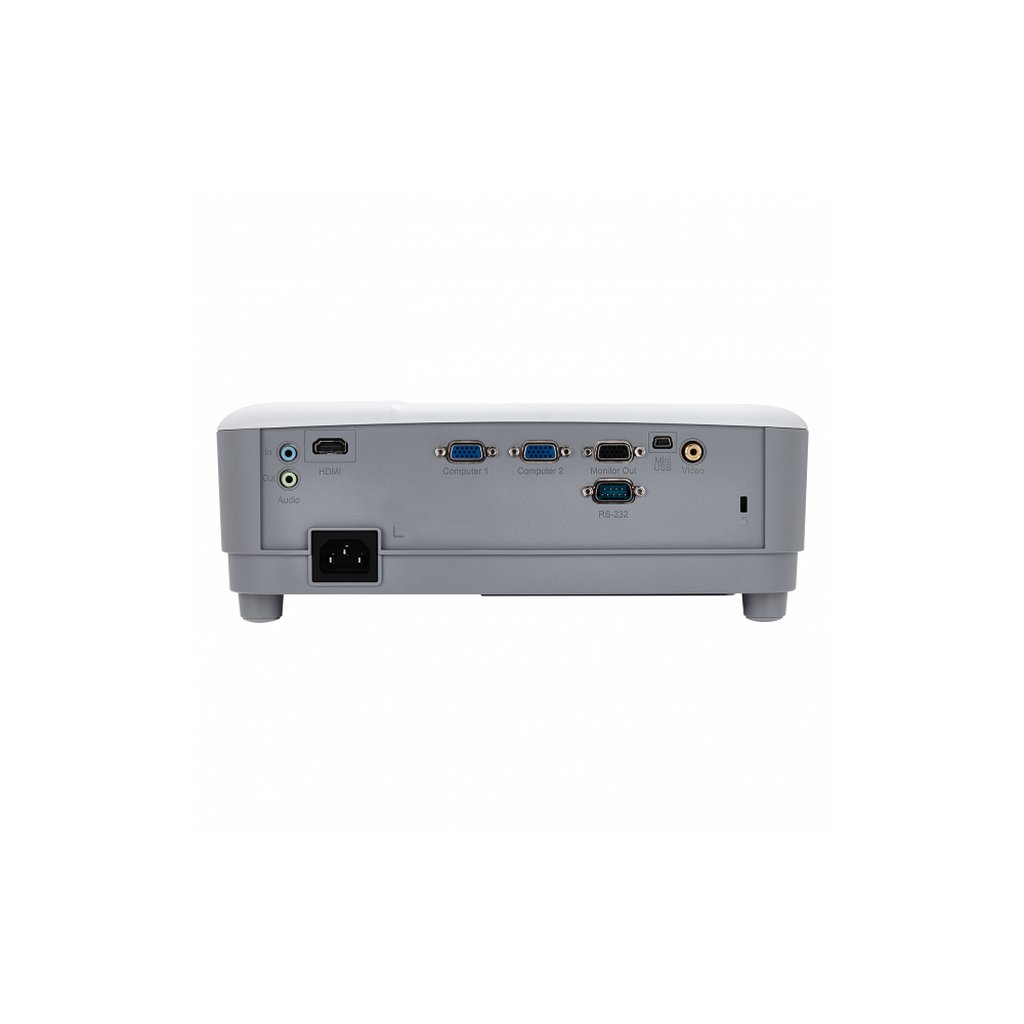

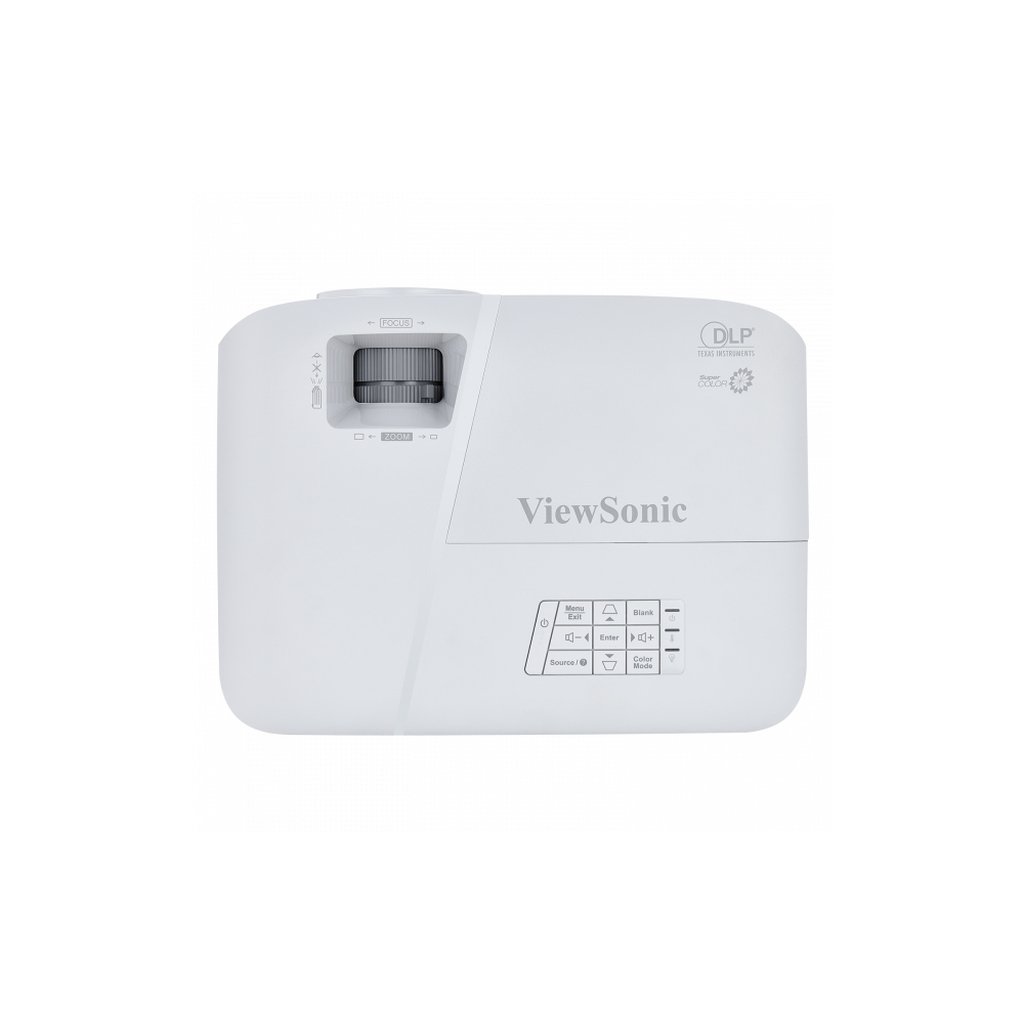

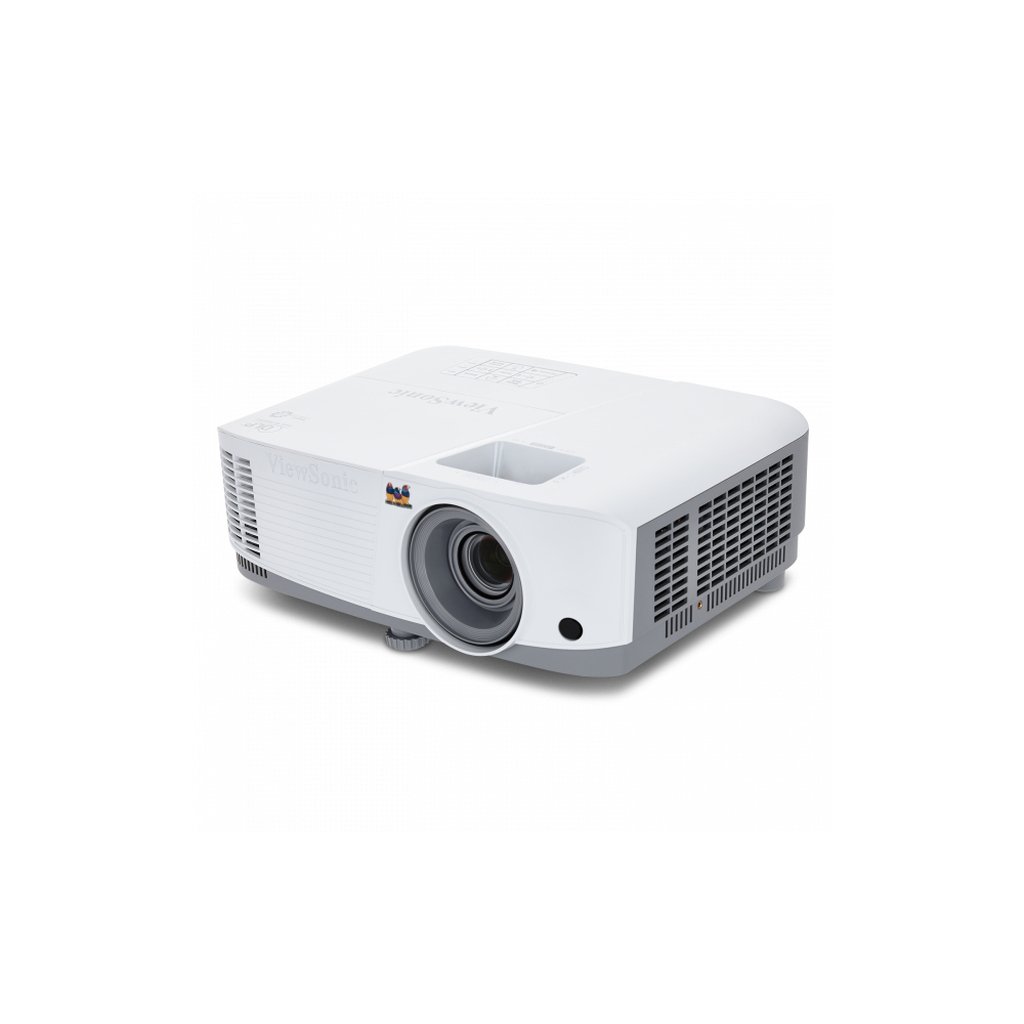

Viewsonic PA503X data projector Standard throw projector 3600 ANSI lumens DLP XGA (1024×768) Grey, White
1024 x 768, DLP, 3600 ANSI lum, 30-300″, 190 W, 4:3, Mini USB B, RS-232, RCA, 3.5mm, HDMI 1.4, VGA, 2x RGB, 2 W RMS, 294x218x110 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The ViewSonic PA503X price-performance projector features 3,600 lumens, native XGA 1024 x 768 resolution, and intuitive, user-friendly design. Exclusive SuperColor technology offers a wide color gamut for beautiful image production in nearly any environment. The PA503X also features extensive connectivity including HDMI, 2 x VGA, VGA out, Composite Video and audio in/out. An energy-saving SuperEco feature reduces power consumption and extends the lamp life by up to 15,000 hours. With advanced audio-visual features, flexible connectivity options, and an affordable price, the PA503X is ideal for use in education and small business environments.
SuperColor: Amazing Color Accuracy
ViewSonic’s proprietary SuperColor Technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range and stunningly beautiful images.
3D Blu-ray Ready
HDMI Input
Equipped with the latest HDMI, this projector is perfect for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.
Quick Power Off
With the Quick Power Off feature enabled, the projector can be quickly powered off in seconds rather than waiting for a cool-down cycle to complete. This lets users pack the projector away without having to worry about the internal fan still running.
Industry-leading Warranty
ViewSonic offers one of the industry’s best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service for an added value worth up to $150.
Additional information
| Weight | 3.54 lbs |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024×768) |
| Native aspect ratio | 4:3 |
| Screen size compatibility | 762 – 7620 mm (30 – 300") |
| Projection distance | 1.1 – 13 m |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 – 102 kHz |
| Vertical scan range | 23 – 120 Hz |
| Keystone correction, vertical | -40 – 40° |
| Light source type | Lamp |
| Service life of light source | 4500 h |
| Service life of light source (economic mode) | 15000 h |
| Lamps quantity | 1 lamp(s) |
| Focus | Manual |
| Zoom capability | Yes |
| Zoom type | Manual |
| Throw ratio | 1.96 – 2.15:1 |
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Composite video in | 1 |
| DVI port | No |
| HDMI version | 1.4 |
| Ethernet LAN | No |
| Wi-Fi | No |
| Card reader integrated | No |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Number of built-in speakers | 1 |
| Product colour | Grey, White |
| Built-in display | No |
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight | 2.2 kg |
| Width | 294 mm |
| Depth | 218 mm |
| Height | 110 mm |
| Remote control included | Yes |
| Cables included | AC, VGA |
| PC Audio out | Yes |
| Product type | Standard throw projector |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Serial interface type | RS-232 |
| HDMI connector type | Full-size |
| Placement | Desktop |
| AC (power) in | Yes |
| Harmonized System (HS) code | 85286200 |
| Operating relative humidity (H-H) | 10 – 90% |
| Matrix size | 1.4 cm (0.55") |
| Matrix type | DMD |
| Analog signal format system | NTSC, PAL, PAL 60, SECAM |
| PC Audio in | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (W |
| Package width | 365 mm |
| Package depth | 188 mm |
| Package height | 300 mm |
| Package weight | 6.24 kg |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Contrast ratio (dynamic) | 22000:1 |
| Lamp power | 190 W |
| Quick start guide | Yes |
| RS-232 ports | 1 |
| Optical zoom | 1.1x |
| Operating altitude | 0 – 1499 m |
| 3D Ready | Yes |
| Certification | FCC (ICES-003), cTUVus |
