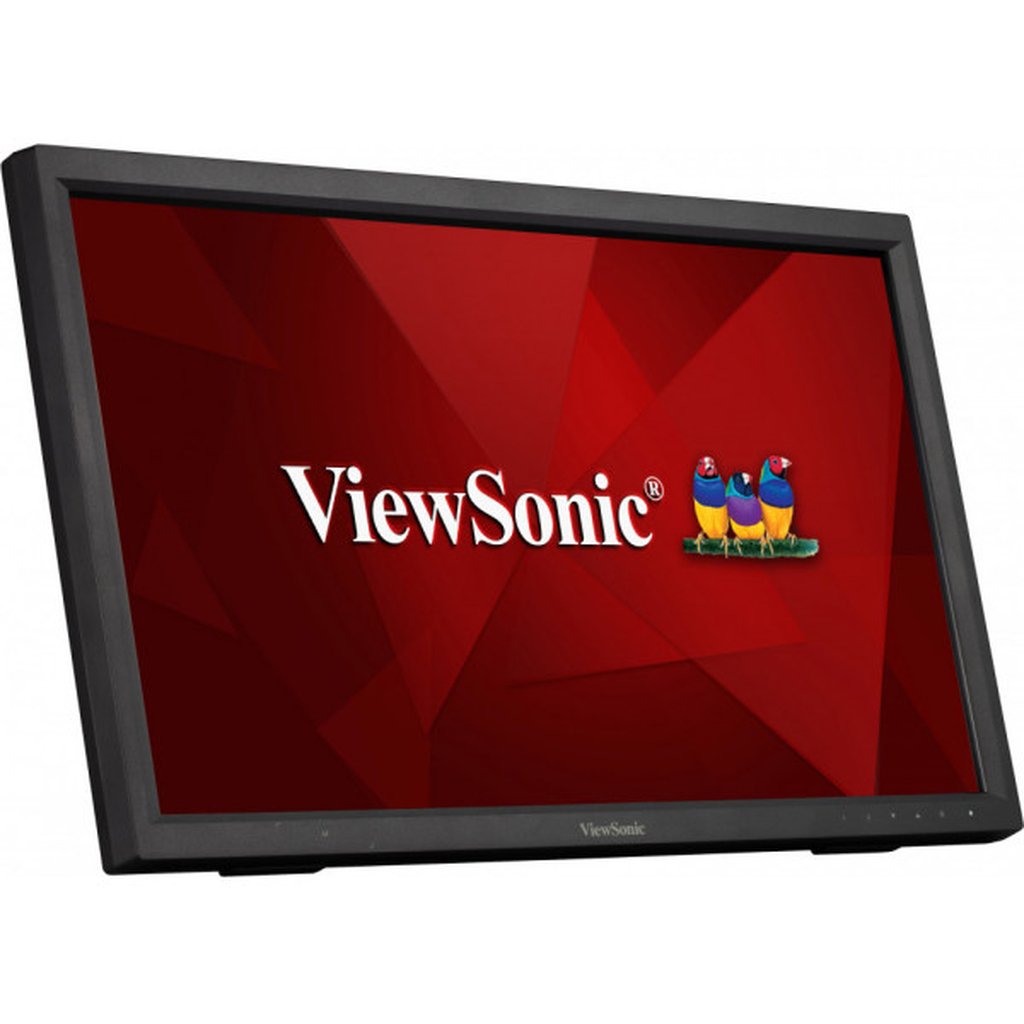

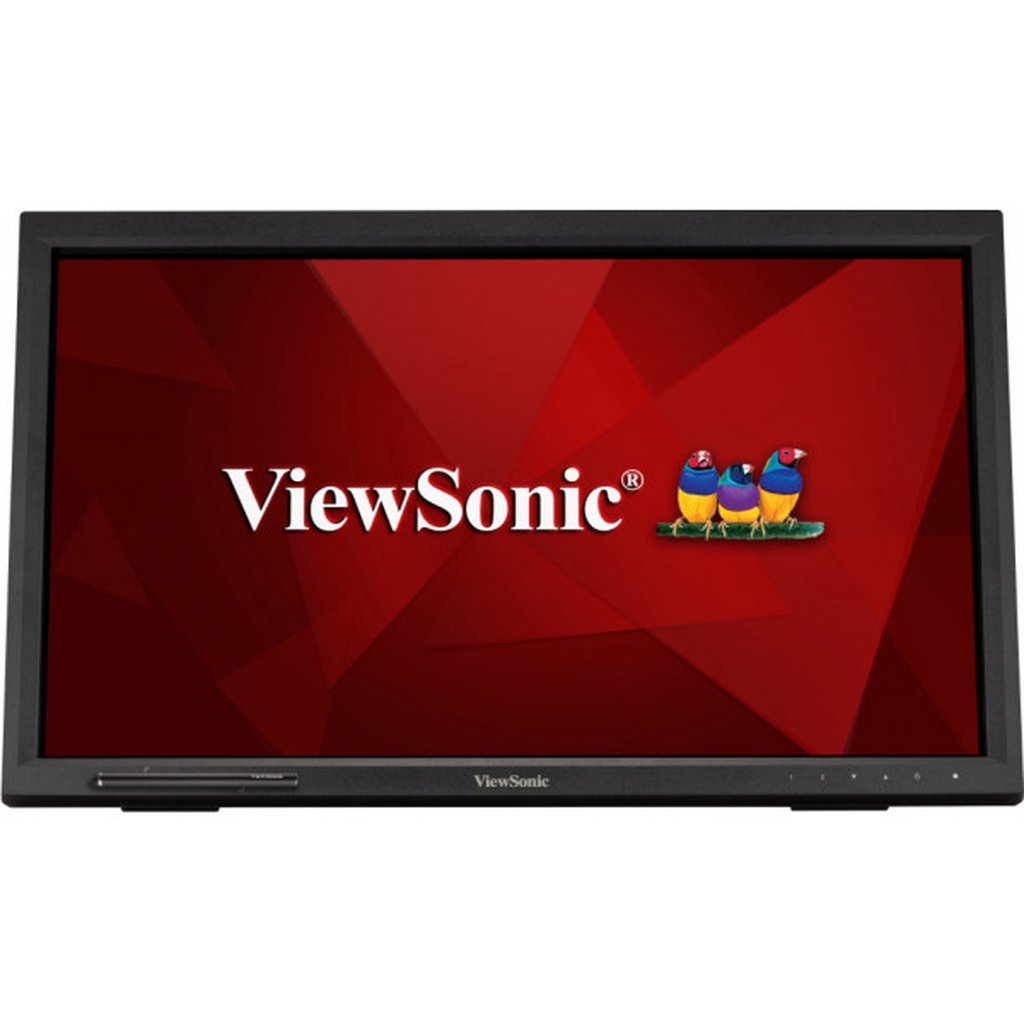

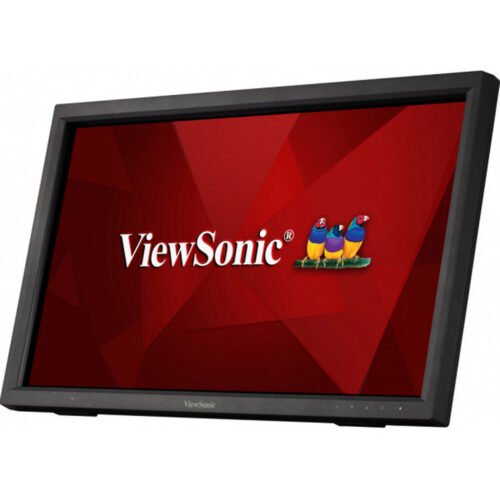

Viewsonic TD2223 computer monitor 54.6 cm (21.5″) 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
21.5″, 1920×1080, 16:9, TN, VGA, USB, HDMI, DVI-D, 521x334x101 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

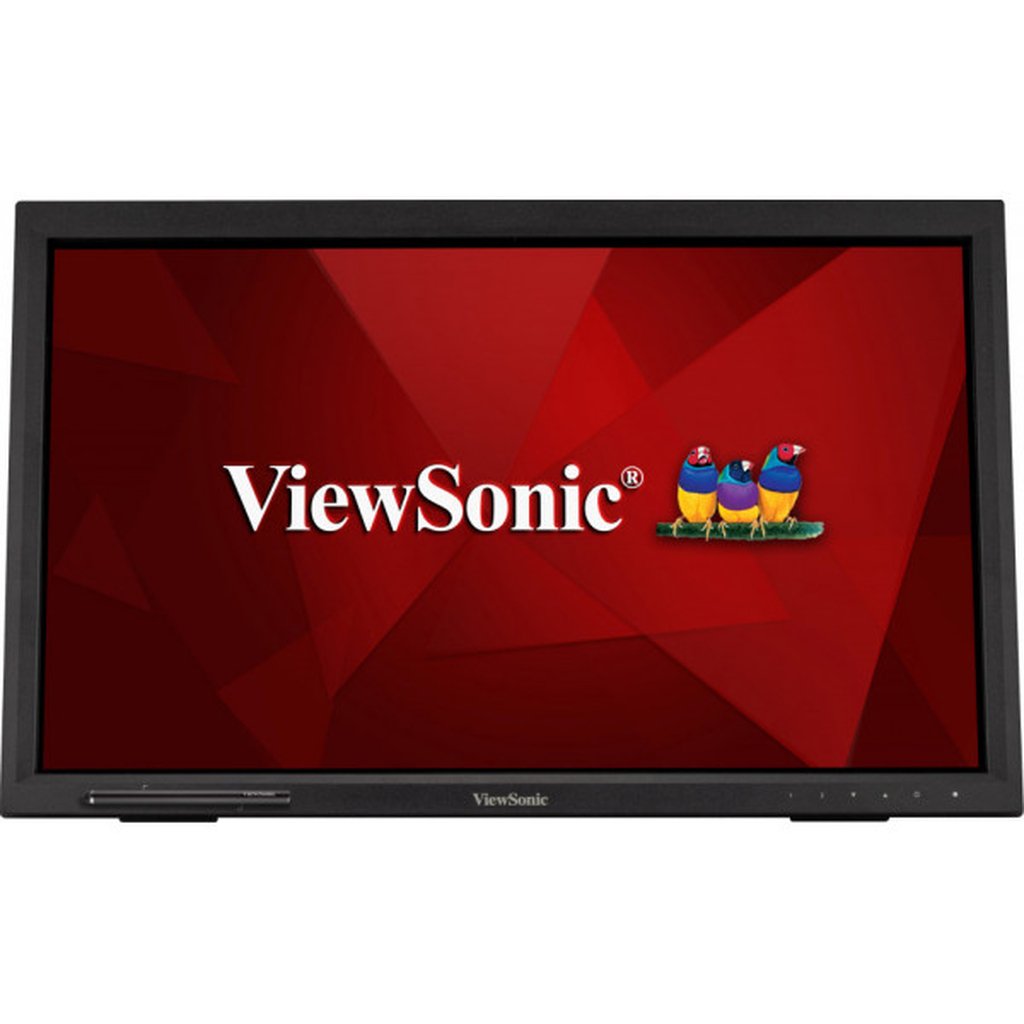

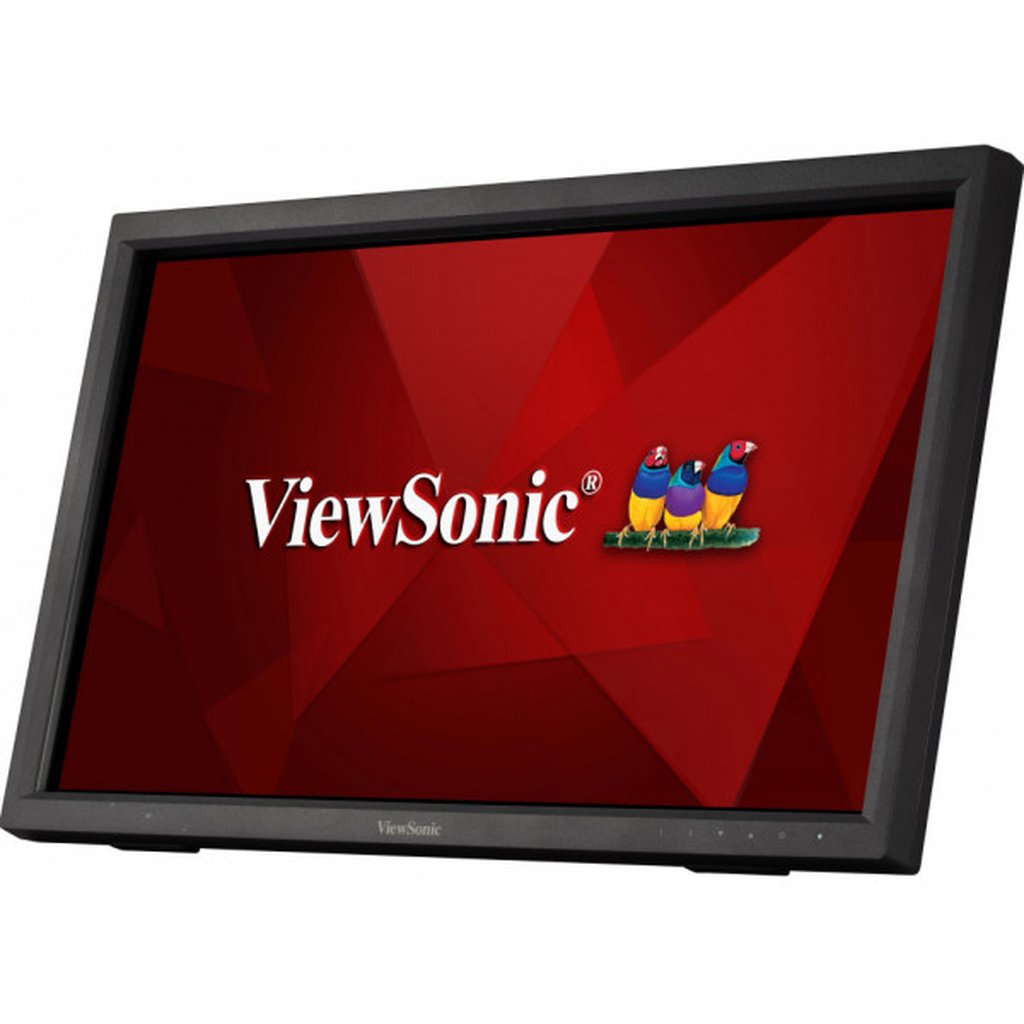

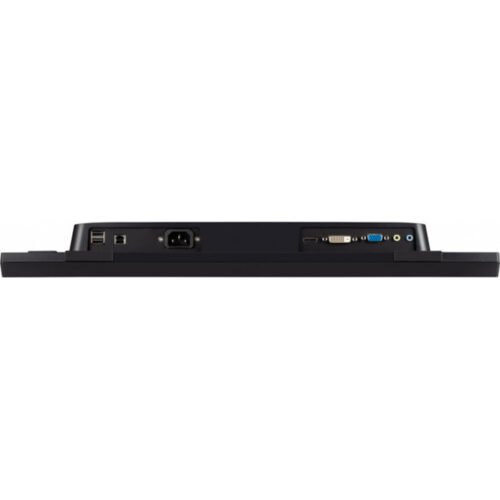

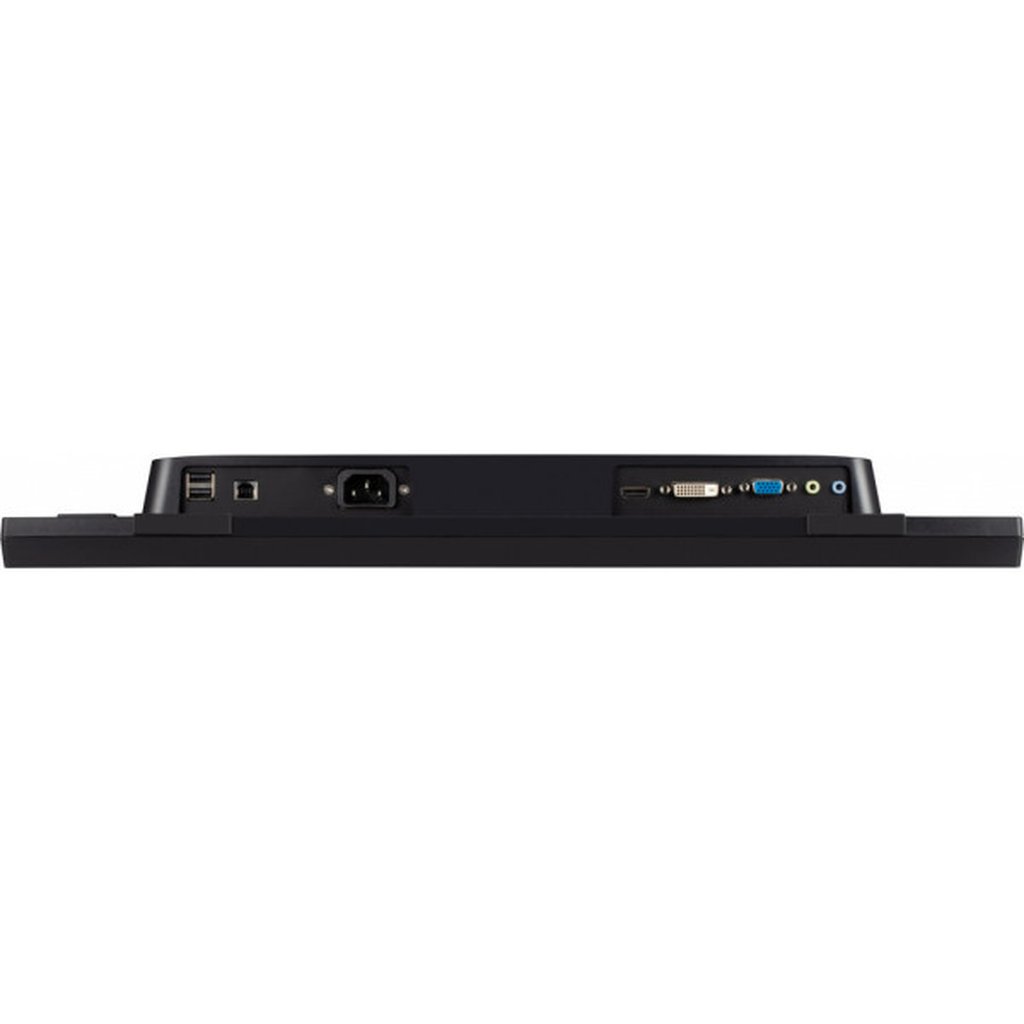

The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

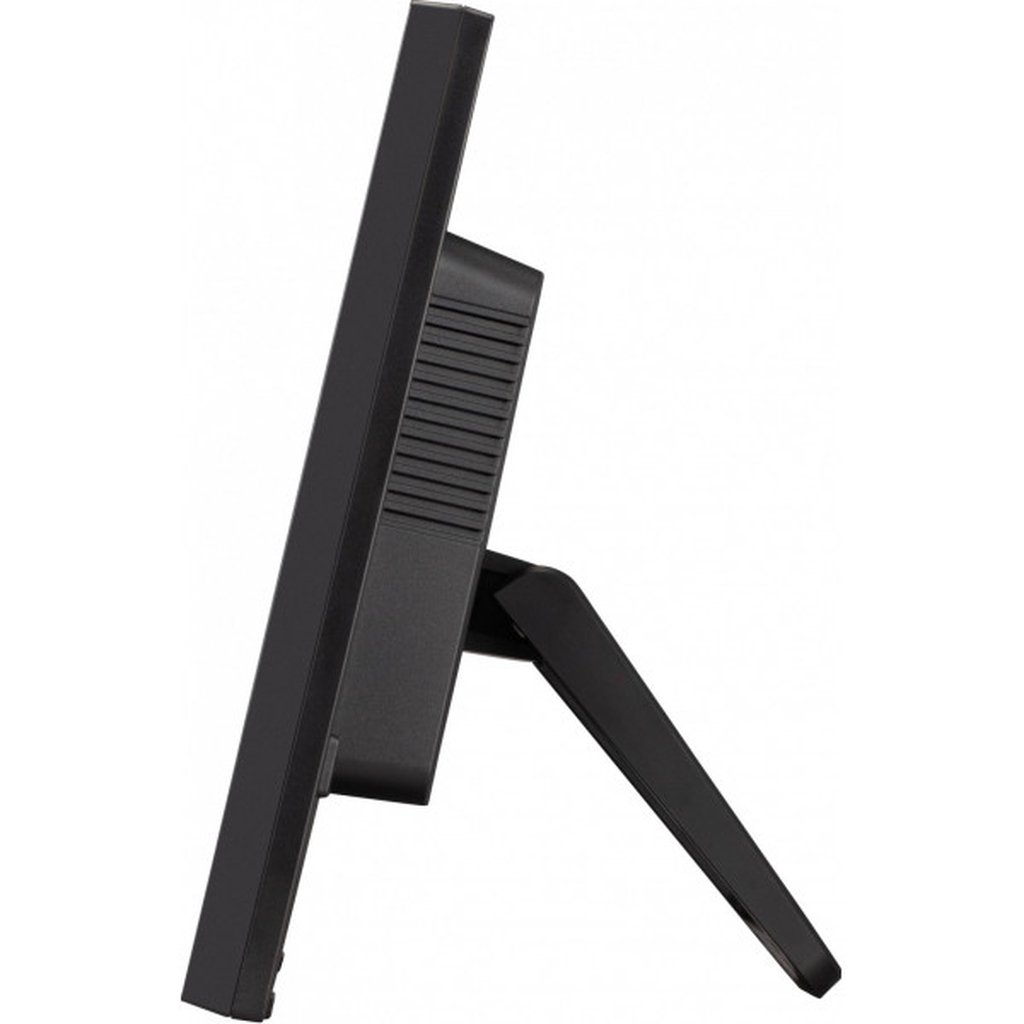

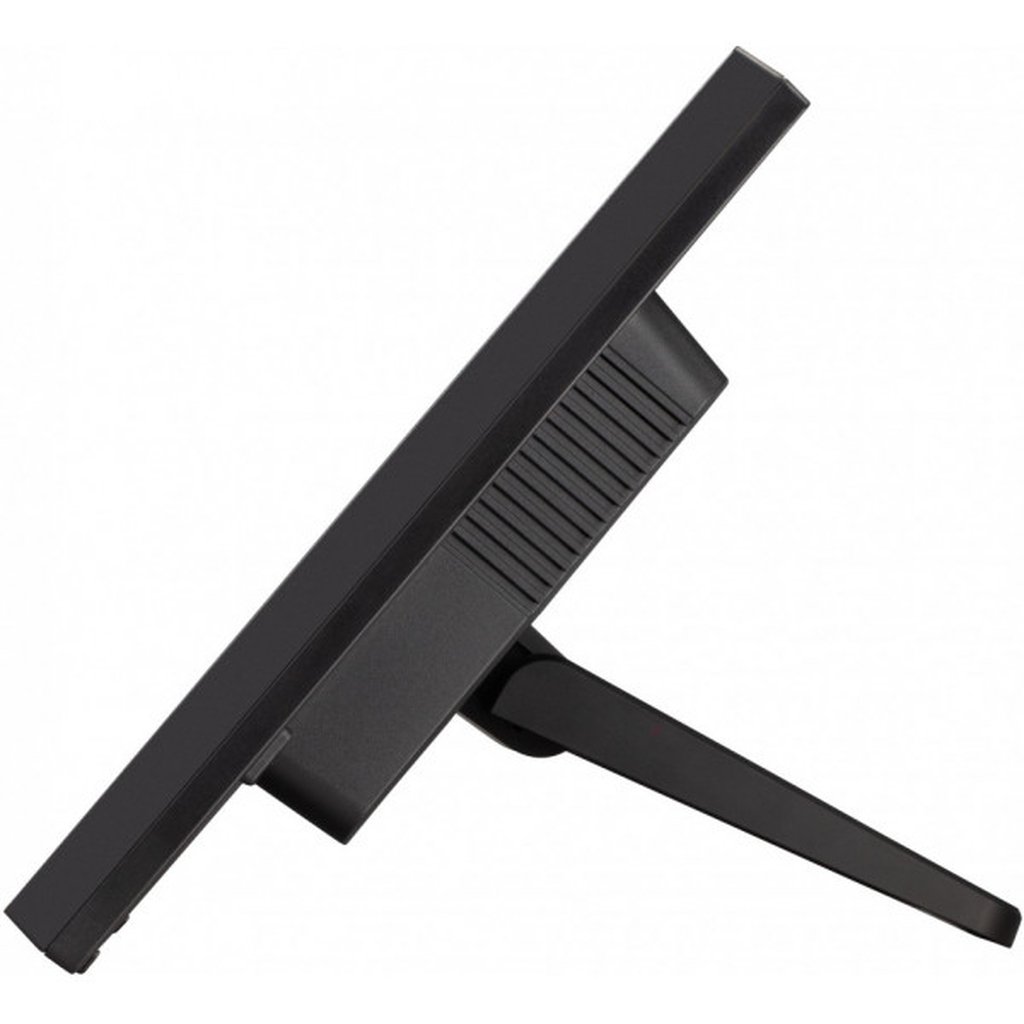

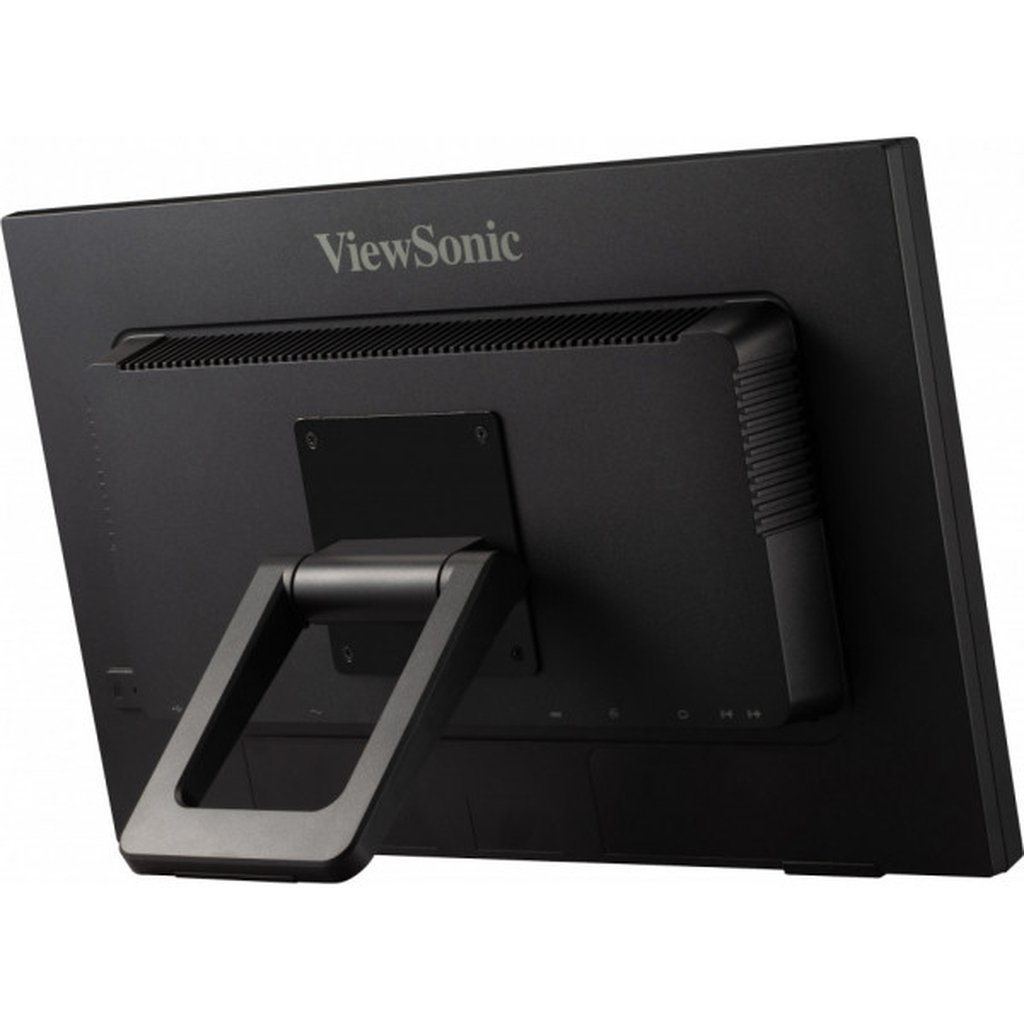

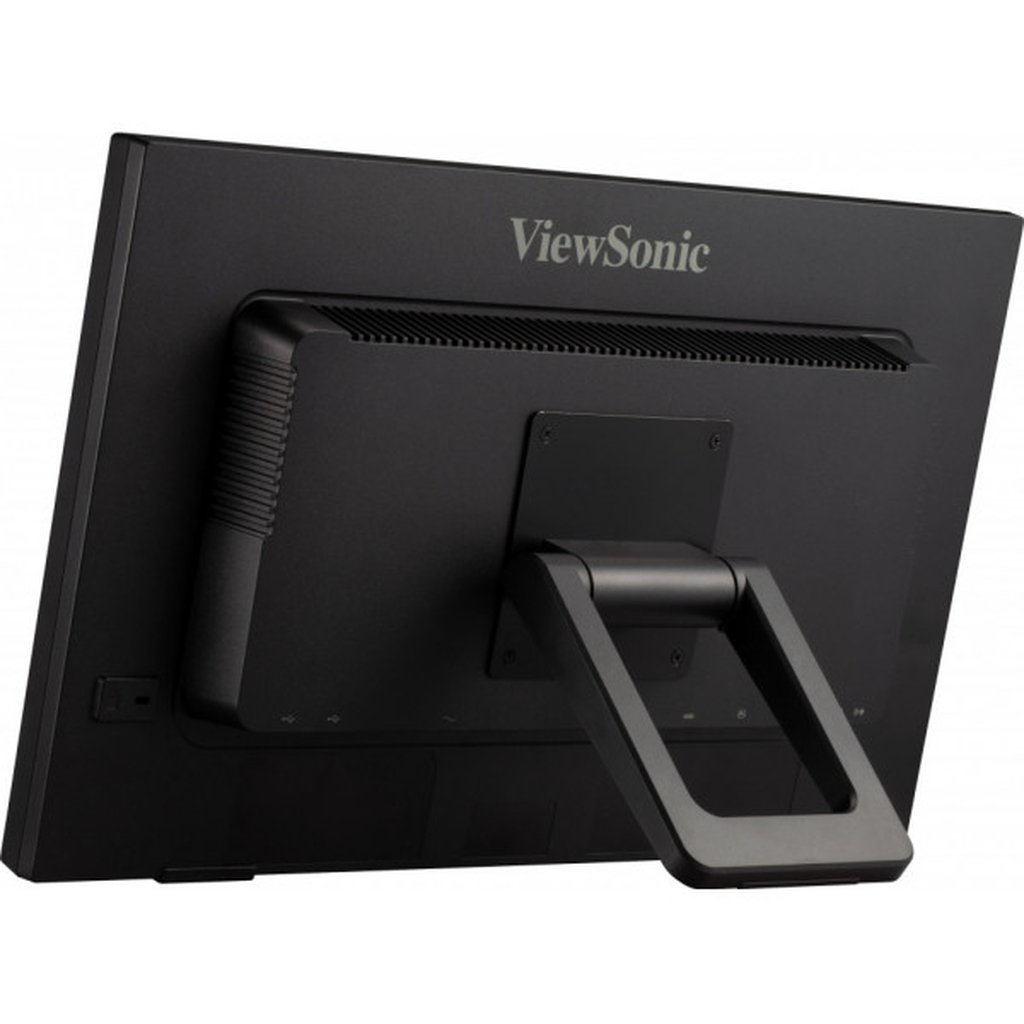

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920×1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Additional information
| Weight | 6.04 lbs |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | TN |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 75 Hz |
| Display number of colours | 16.78 million colours |
| Contrast ratio (dynamic) | 20000000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.248 x 0.248 mm |
| Horizontal scan range | 24 – 82 kHz |
| Vertical scan range | 50 – 75 Hz |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Product colour | Black |
| Built-in USB hub | Yes |
| HDMI | Yes |
| Headphone out | Yes |
| USB upstream port type | USB Type-B |
| USB Type-A downstream ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 22 – 38° |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Power consumption (typical) | 12.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 14 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 – 60 Hz |
| Power supply type | AC |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 20 – 90% |
| Width (with stand) | 521 mm |
| Depth (with stand) | 101 mm |
| Height (with stand) | 334 mm |
| Weight (with stand) | 4.5 kg |
| Width (without stand) | 521 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 318 mm |
| Weight (without stand) | 3.9 kg |
| Package width | 580 mm |
| Package depth | 164 mm |
| Package height | 405 mm |
| Package weight | 6 kg |
| Cables included | AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | REACH, RoHS |
| Certification | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Wall mountable | Yes |
| Cable lock slot type | Kensington |
| European Product Registry for Energy Labelling (EPREL) code | 368718 |
| VGA (D-Sub) ports quantity | 1 |
| Stand included | Yes |
| Headphone outputs | 1 |
| Number of upstream ports | 1 |
| Built-in microphone | No |
| DVI port | Yes |
| Harmonized System (HS) code | 85285210 |
| Microphone in | Yes |
| Touchscreen technology | Infrared |
| Touch technology | Multi-touch |
| Display brightness | 250 cd/m² |
| Touchscreen type | Multi-user |
| Number of simultaneous touchpoints | 10 |
| Glass thickness | 2 mm |
| DVI-D ports quantity | 1 |
