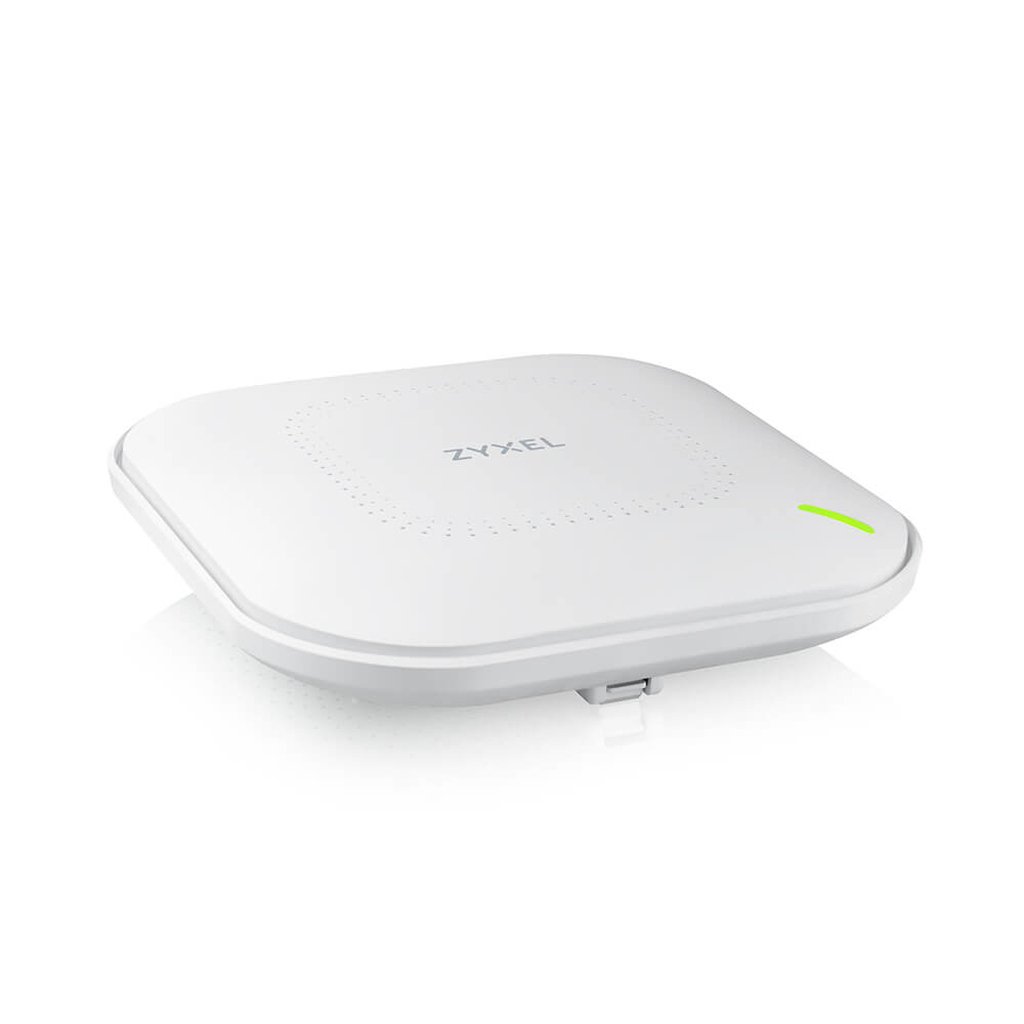

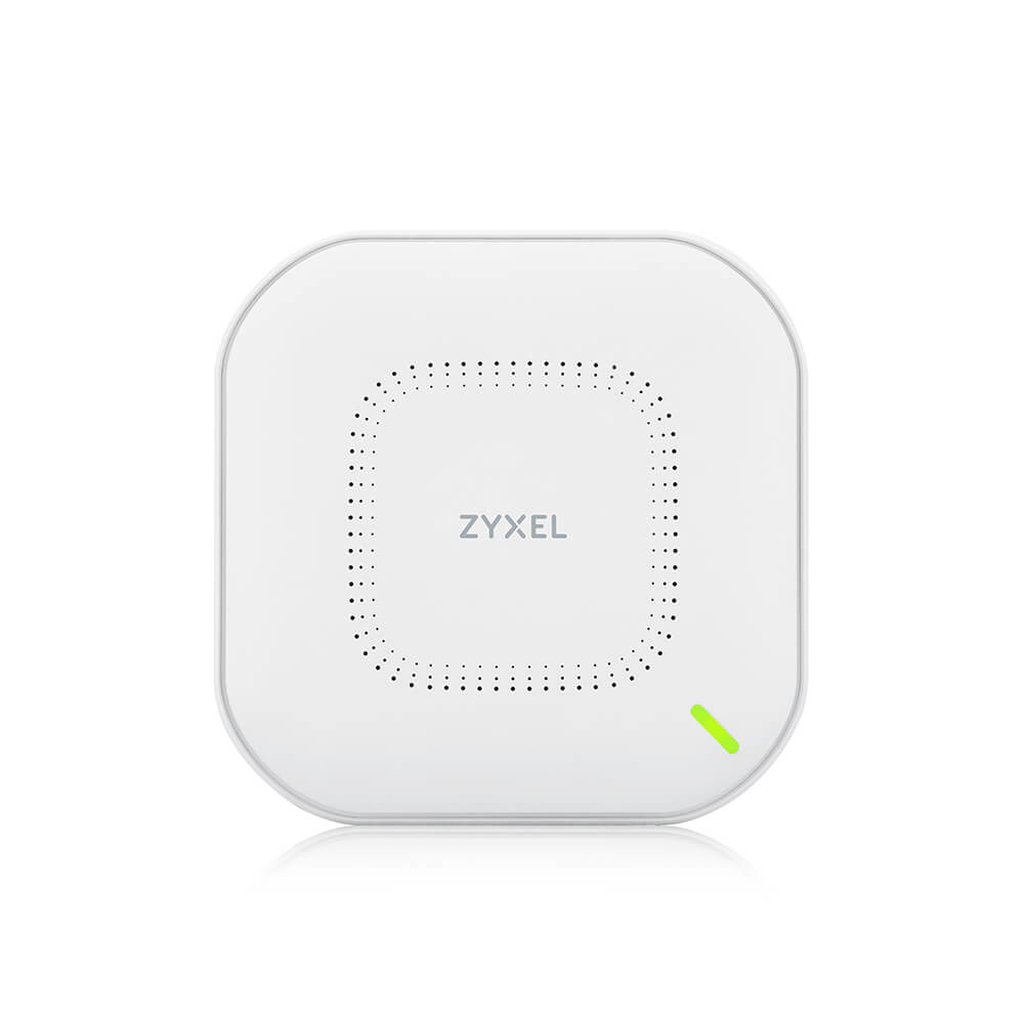

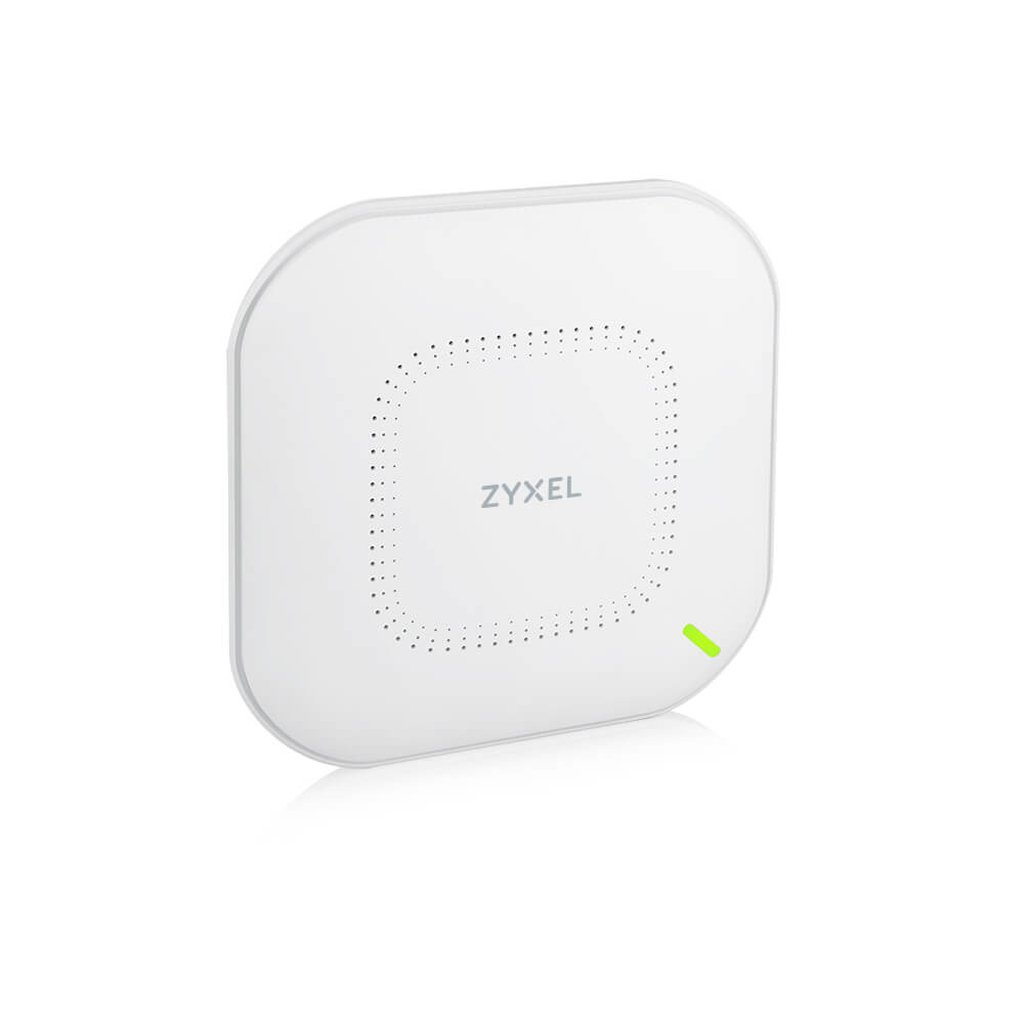

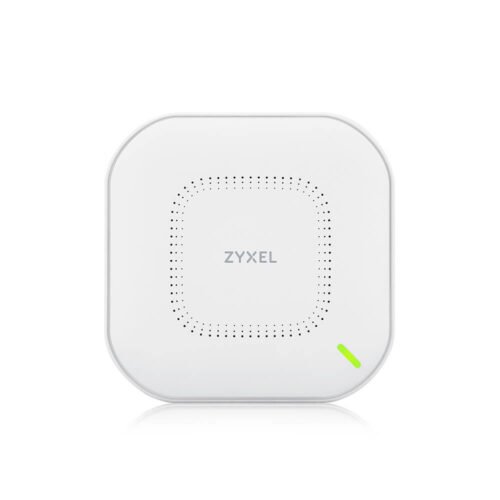

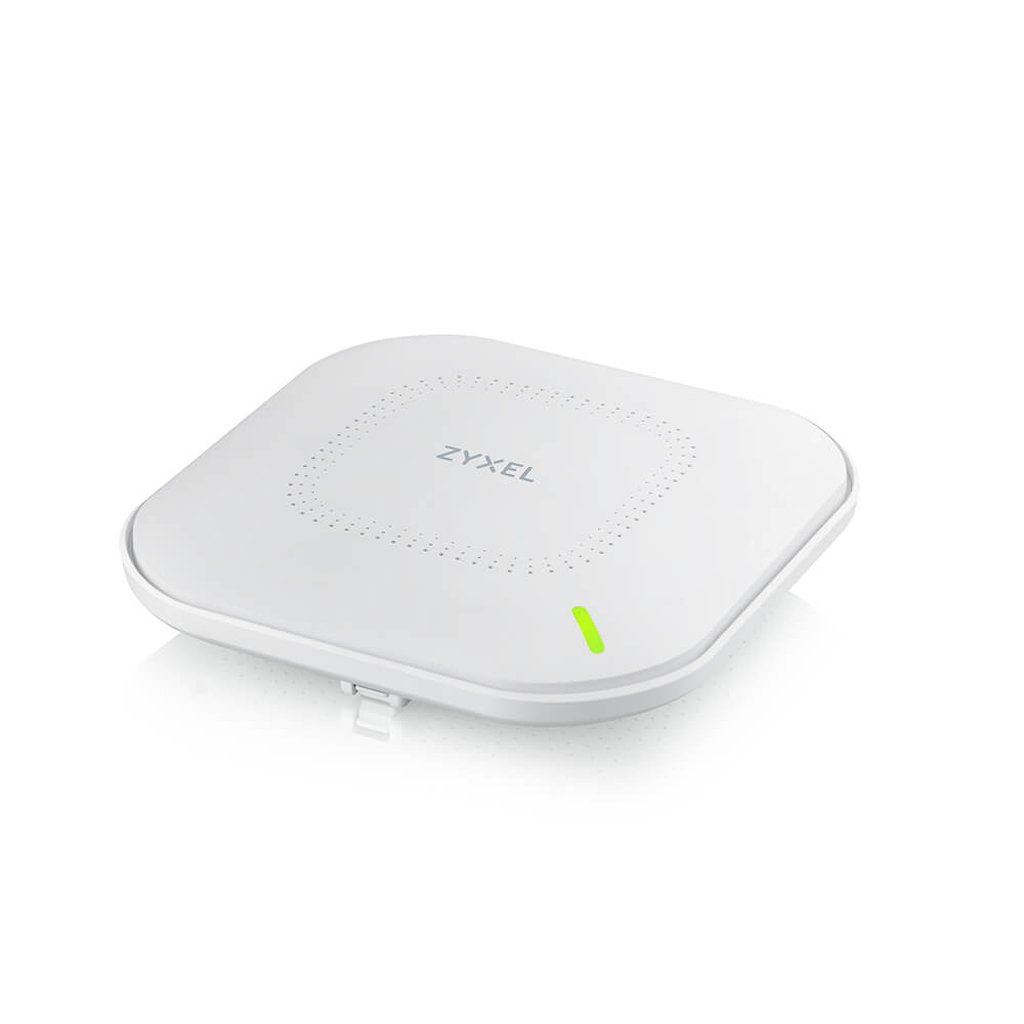

Zyxel NWA110AX 1000 Mbit/s White Power over Ethernet (PoE)
NWA110AX, Single Pack 802.11ax AP, incl Power Adaptor, EU and UK, Unified AP, ROHS, WIFI 6
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
WiFi 6, Wait No More
NWA110AX The Best Deal of 11ax Access Point
True WiFi 6
The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.
Simpler upgrade path
The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches
Manage it your way!
As it comes with support for NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.
Additional information
| Weight | 1 lbs |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Frequency band | 2.412 – 2.472, 5.470 – 5.725 GHz |
| Bandwidth | 0.08 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Band steering | Yes |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3 |
| Web-based management | Yes |

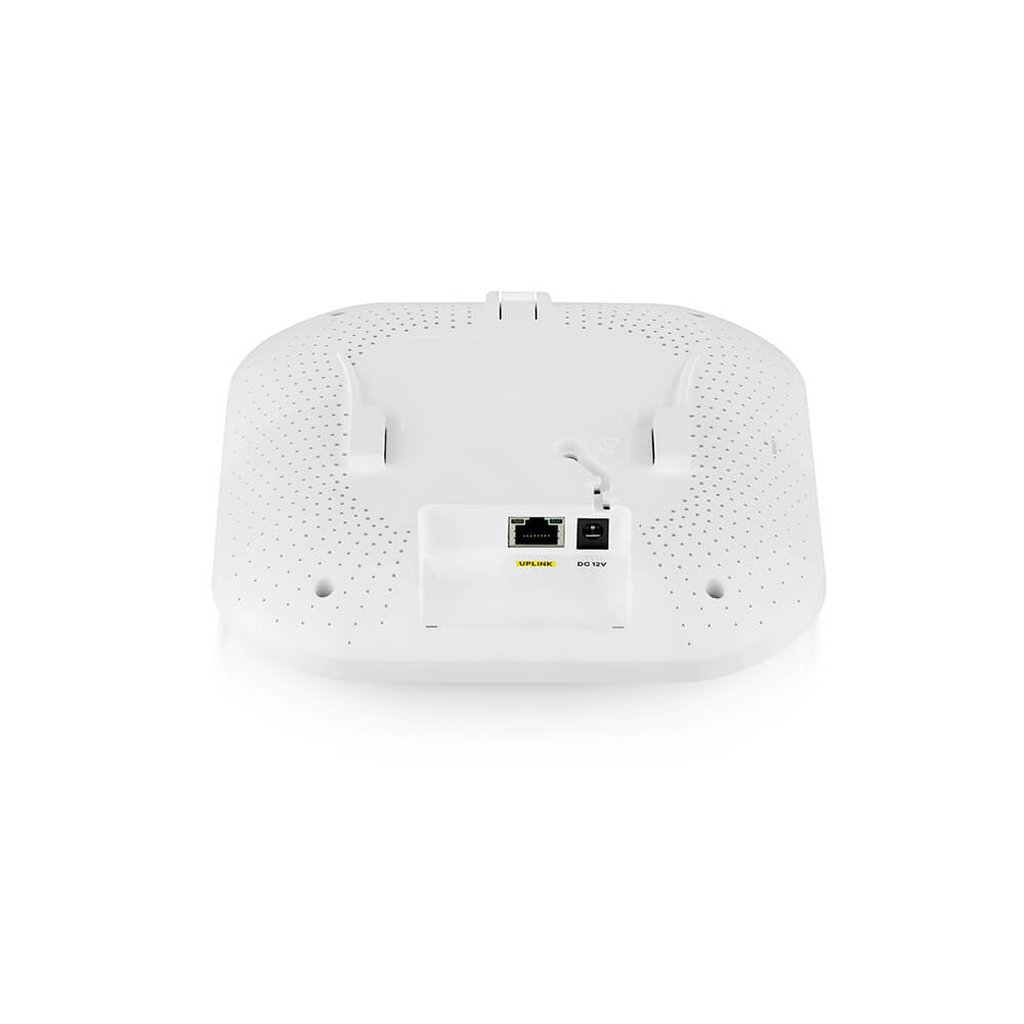

| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.5 A |

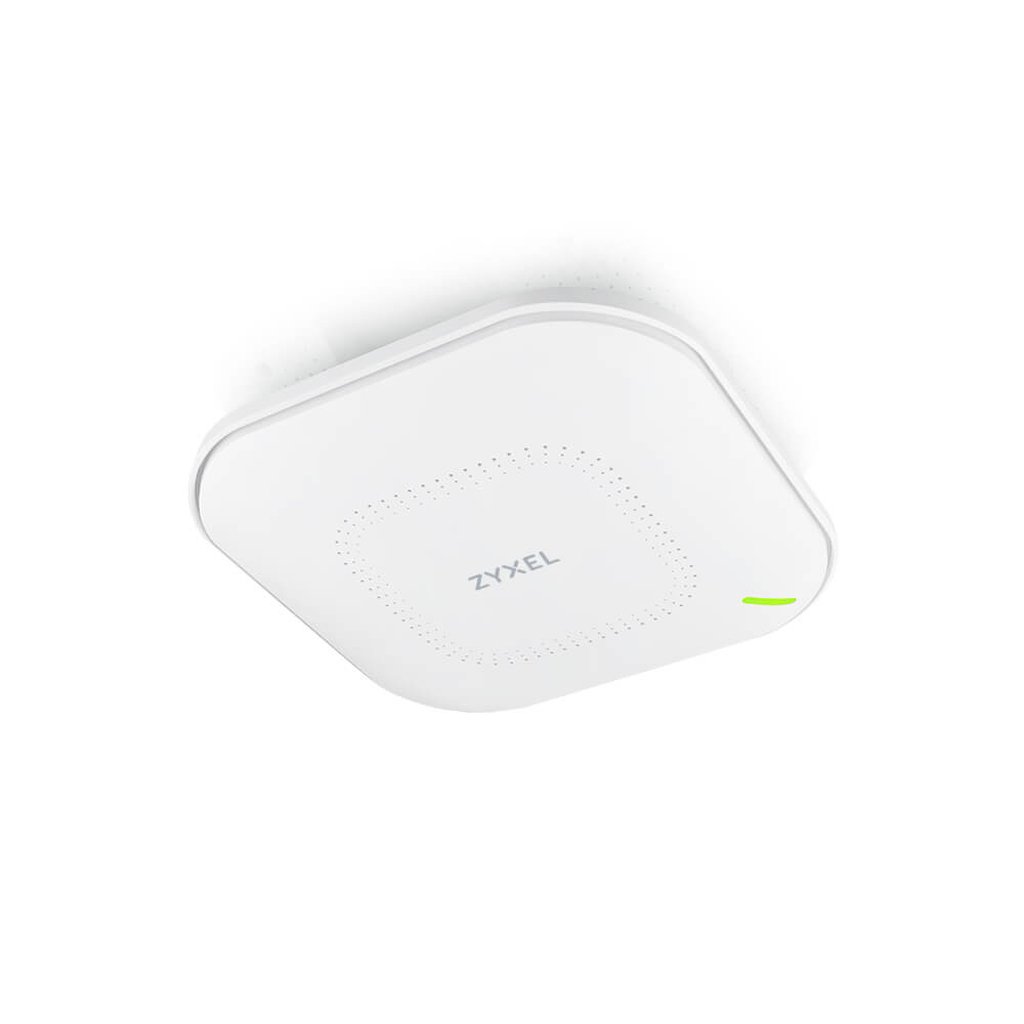

| Placement | Ceiling, Table, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Width | 180 mm |
| Depth | 180 mm |
| Height | 39 mm |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | FCC Part 15CFCC Part 15EETSI EN 300 328EN 301 893LP0002EMCFCC Part 15BEN 301 489-1EN 301 489-17EN55022EN55024EN61000-3-2/-3EN60601-1-2BSMI CNS13438SafetySafety EN 60950-1IEC 60950-1BSMI CNS14336-1 |
| AC adapter included | Yes |
| Operating relative humidity (H-H) | 10 – 95% |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -30 – 70 °C |
| Storage relative humidity (H-H) | 10 – 90% |
| Fast roaming | Yes |
| Antennas quantity | 2 |
| Weight | 453 g |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel scanning | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Power consumption (typical) | 17 W |
| Package width | 229 mm |
| Package depth | 216 mm |
| Package height | 64 mm |
| Package weight | 770 g |
| AC input voltage | 5 – 12 V |
| Antenna features | Integrated antenna |
| Polarization | Dual polarization |
| On/off switch | Yes |
| WPS push button | Yes |
| Harmonized System (HS) code | 85176990 |
| Transmitting power | 22 dBmW |
| Receiver sensitivity | Min. Rx sensitivity up to -101 dBm |
| Virtual LAN features | SSID-based VLAN assignment |
| Command-line interface (CLI) | Yes |
| Routing protocols | IP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
