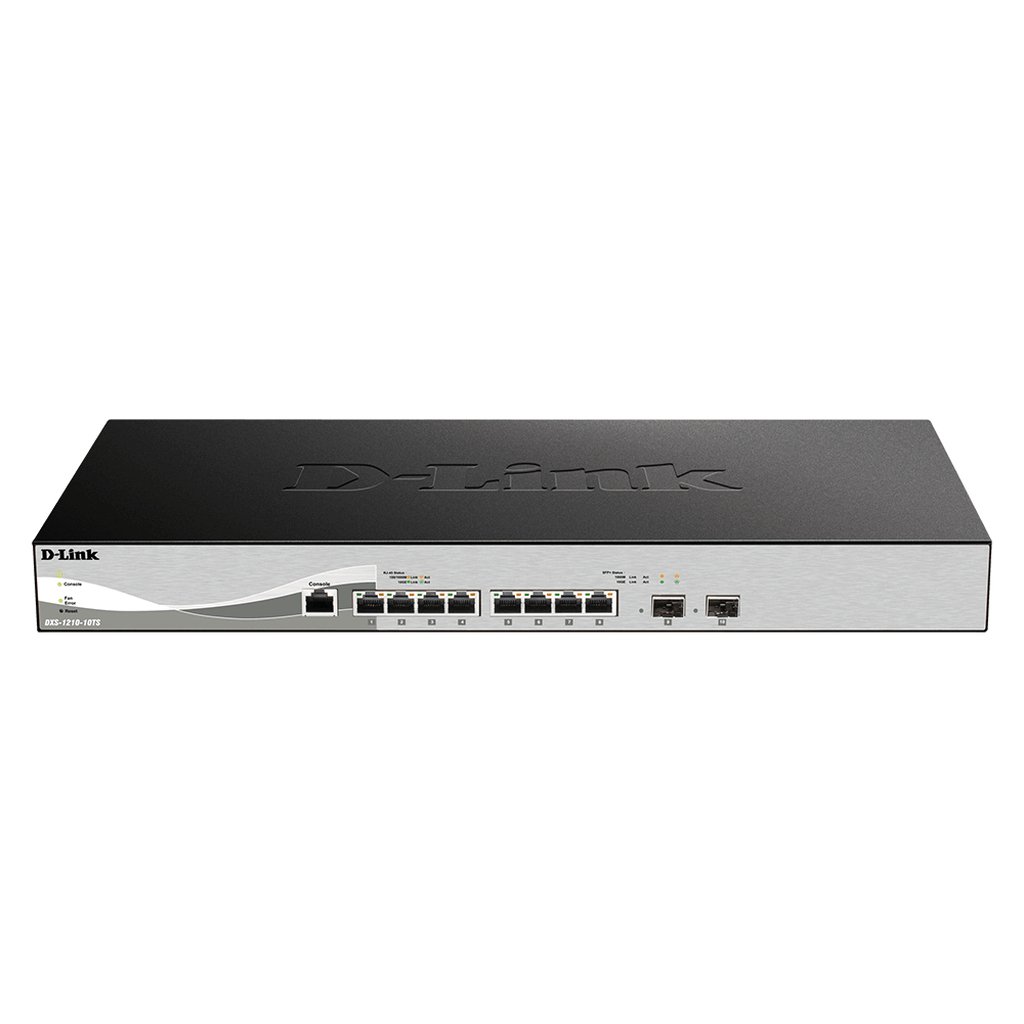

D-Link 8-port 10GBASE-T and 2-port SFP+ Multi-Gigabit Smart Managed Switch

In Stock

8 x 100M/1G/2.5G/5G/10G, 2 x 10G SFP+, 200 Gbps, 148.8 Mpps, 32K MAC, 330 x 200 x 44 mm

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: DXS-1210-10TS
Brand:

Description

10 Gigabit Ethernet Smart Managed Switches

The D-Link DXS-1210 Series conveniently offers a range of 10-Gigabit copper and fiber port combinations to cost-effectively alleviate network congestion. Select models are equipped with SFP+ or SFP28 ports for 10G/25G expandable network designed for scalability and can auto-detect surveillance and voice data to ensure uninterrupted video footage and jitter-free VoIP calls.

Alleviate Network Congestion
Add 10‑Gigabit Ethernet connectivity with these affordable high-performance switches. Designed for deployment in small to medium-sized business (SMB) core networks and powerful enough for enterprise aggregation applications.

Convenient Layer 2 & Layer 3 Lite Configurability
The DXS-1210 Series can be deployed as a Layer 2 aggregation switch with features such as port mirroring, STP, and LACP. When implemented as a Layer 3 Lite core switch, IP interfaces, ARP, IPv6 ND, Default Routing, and Static Routing can be applied for efficient routing applications.

An Added Line of Defense Against Attacks
The DXS-1210 Series defends your network with D-Link’s innovative Safeguard Engine™ to neutralize threats such as malicious network flooding attacks, ARP spoofing, and bogus DHCP IP addressing. The DXS-1210 Series supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers.

Unhindered Surveillance & VoIP with a Simple Click
If you need surveillance or VoIP, there is no need to build a dedicated network. With the DXS-1210 Series, expediting latency-intolerant services such as surveillance and VoIP through the existing network can’t be any easier. Simply enable the Auto Surveillance VLAN & Auto Voice VLAN features. Your surveillance videos will always run smoothly and your VoIP calls will be crystal-clear from beginning to end, even during peak working hours.

Better for Your Budget, Better for the Planet
When low-traffic or idle interface ports are detected, the DXS-1210 Series automatically transitions them into a low-power state, substantially reducing overall device power consumption. Furthermore, the DXS-1210 Series can determine the approximate length of cables attached to each port to apply just enough power for data transmission on that link, saving even more power while lowering total cost of ownership (TCO).

Additional information

Weight 4.34 lbs
Switch type

Managed

Quality of Service (QoS) support

Yes

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Networking standards

IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z

10G support

Yes

Auto MDI/MDI-X

Yes

Ethernet LAN data rates

100,1000,2500,5000,10000 Mbit/s

MAC address table

32000 entries

Switching capacity

200 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

10000

Rack mounting

Yes

Product colour

Black, Silver

LED indicators

Yes

Power consumption (max)

43.26 W

Power over Ethernet (PoE)

No

Operating temperature (T-T)

-5 – 50 °C

Storage temperature (T-T)

-40 – 70 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Width

330 mm

Depth

200 mm

Height

44 mm

Weight

2.17 kg

Switch layer

L2/L3

Web-based management

Yes

Console port

RJ-45

Flow control support

Yes

Spanning tree protocol

Yes

VLAN support

Yes

DHCP features

DHCP server, DHCP client

Access Control List (ACL)

Yes

IGMP snooping

Yes

Number of fans

1 fan(s)

Power source

AC

Quick start guide

Yes

Certification

CE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB

Stackable

Yes

Form factor

1U

AC input voltage

100 – 240 V

AC input frequency

50/60 Hz

Loop protection

Yes

ARP inspection

Yes

MIB support

Y

Port mirroring

Yes

Broadcast storm control

Yes

Number of VLANs

4094

Forwarding rate

148.8 Mpps

Password protection

Yes

Head-of-line (HOL) blocking

Yes

Noise level

46.6 dB

SFP+ module slots quantity

2

Multicast support

Yes

Number of queues

8

Cable types supported

Cat6

Fiber optic connector

SFP+
