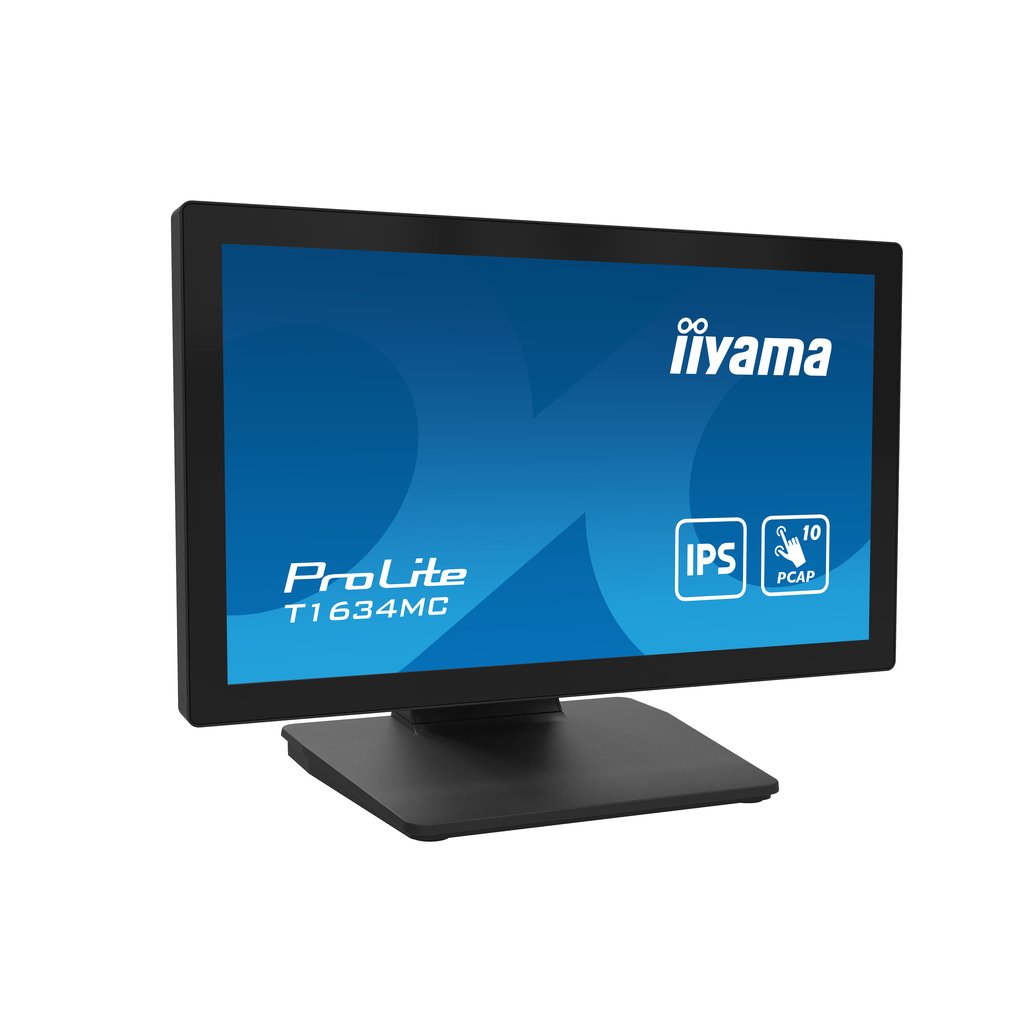

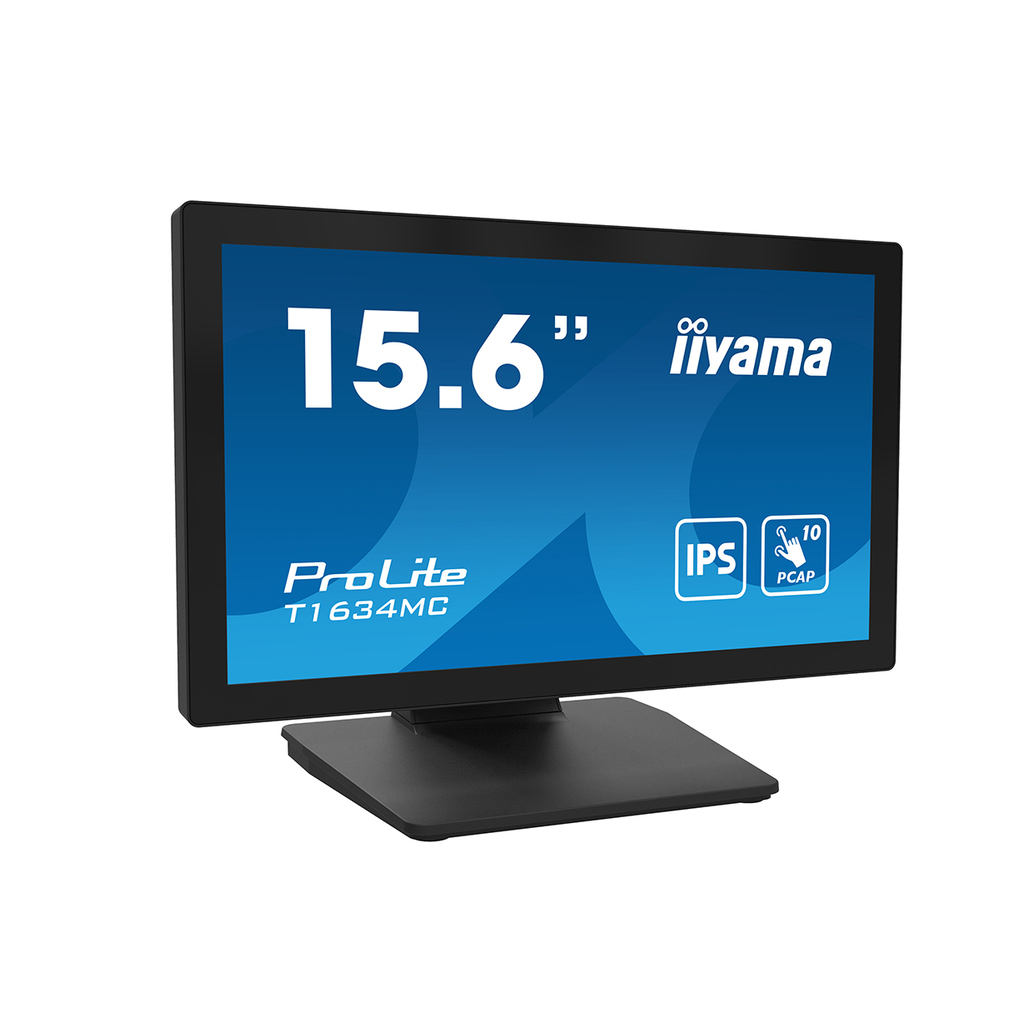

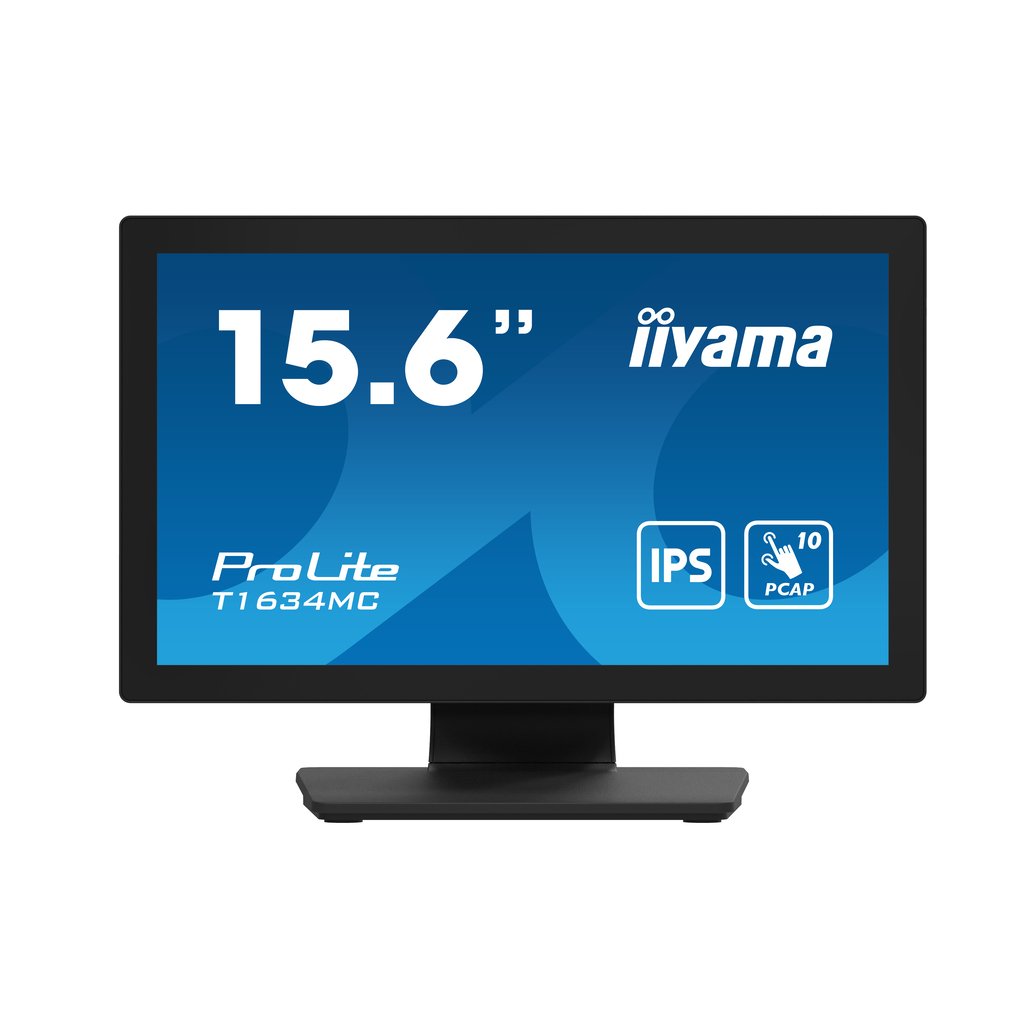

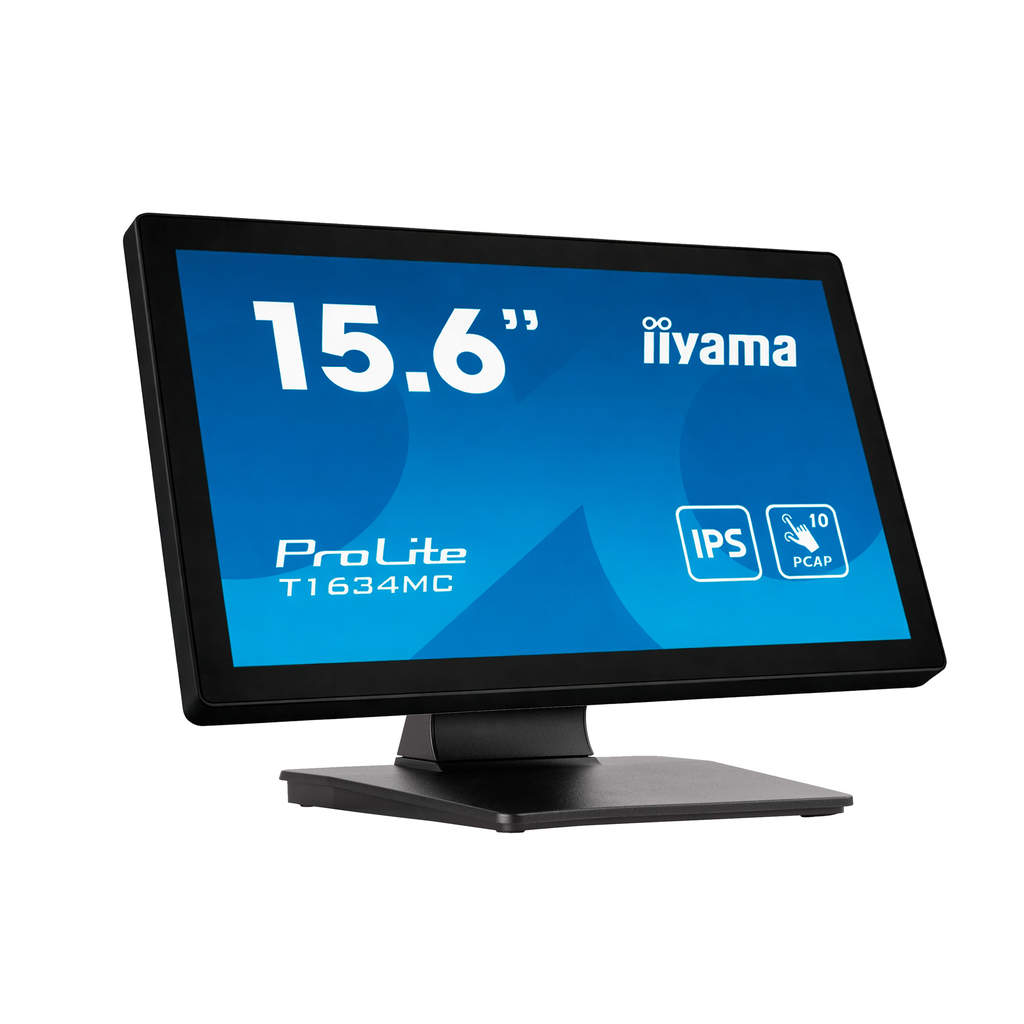

iiyama ProLite 15.6″ Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass
15.6″ Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

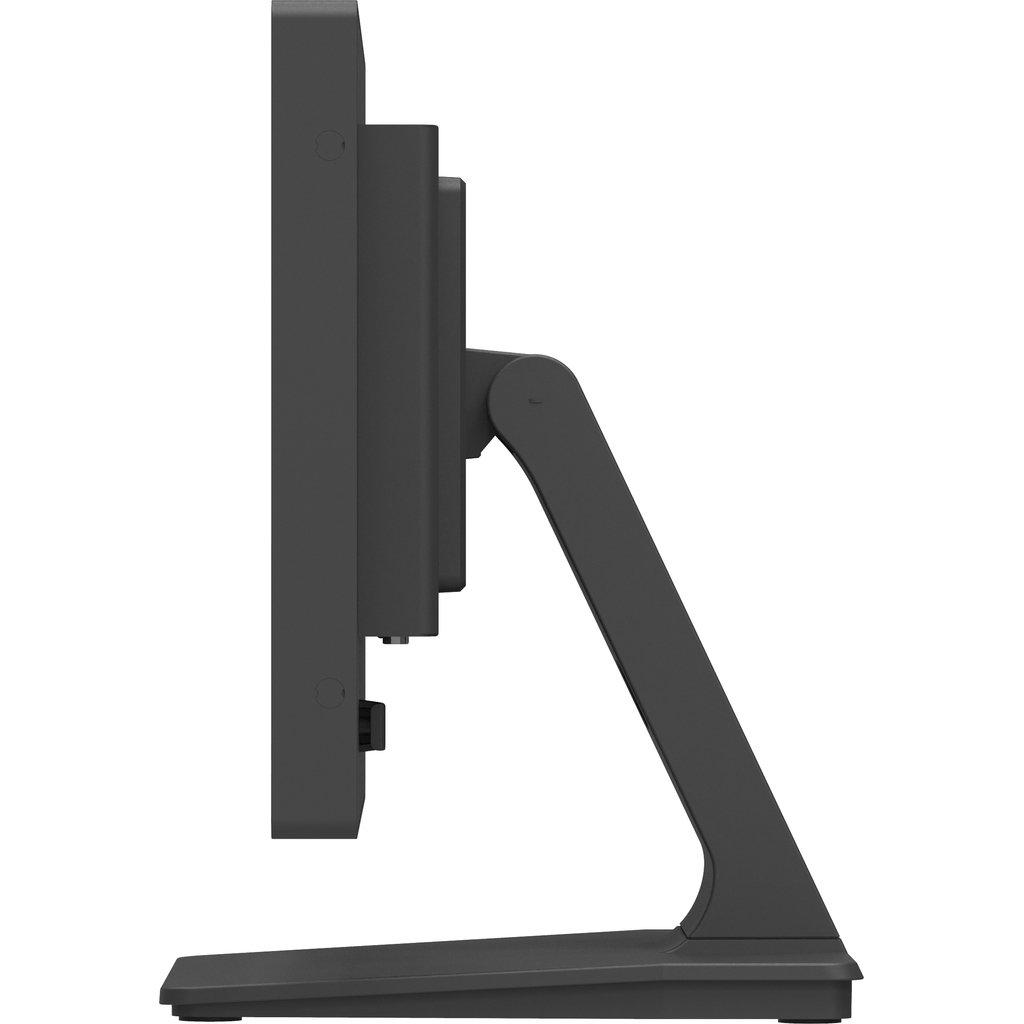

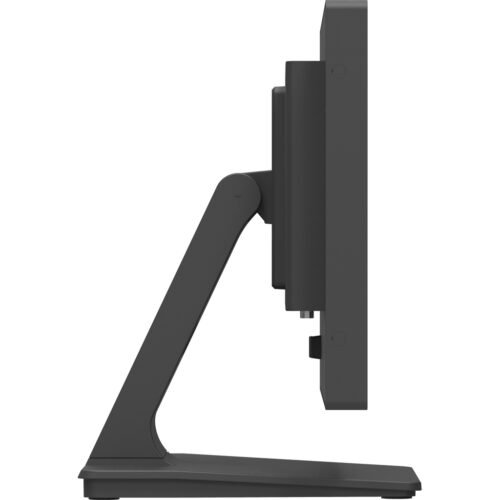

The ProLite T1634MC-B1S uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920×1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.
Additional information
| Weight | 5.17 lbs |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| Response time | 25 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 700:1 |
| Maximum refresh rate | 60 Hz |
| Display number of colours | 16.2 million colours |
| Display brightness (typical) | 450 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 30 – 84 kHz |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Digital horizontal frequency | 30 – 84 kHz |
| Display diagonal (metric) | 39.5 cm |
| Surface hardness | 7H |
| Colour depth | 6 bit |
| Colour gamut | 90% |
| Market positioning | Office |
| Product colour | Black |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 90 – 5° |
| On Screen Display (OSD) | Yes |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Width (with stand) | 381 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 285.5 mm |
| Weight (with stand) | 3.4 kg |
| Package width | 445 mm |
| Package depth | 445 mm |
| Package height | 355 mm |
| Package weight | 5.18 kg |

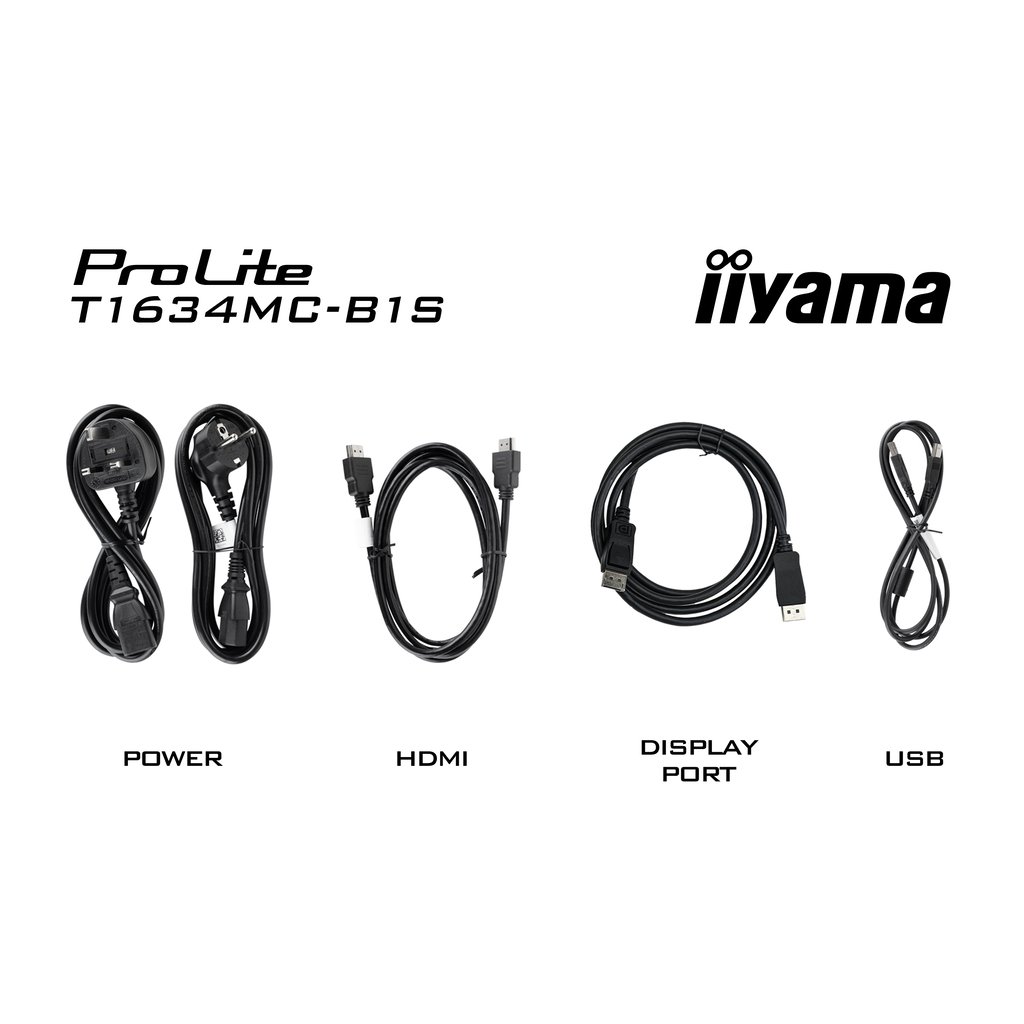

| Cables included | AC, DisplayPort, HDMI, USB |
| Quick start guide | Yes |
| European Product Registry for Energy Labelling (EPREL) code | 1530736 |
| Front bezel colour | Black |
| VGA (D-Sub) ports quantity | 1 |
| Response time (fast) | 25 ms |
| Display brightness (peak) | 450 cd/m² |
| AC adapter output voltage | 12 V |
| Touchscreen technology | Projected capacitive system |
| USB Touch port | Yes |
| Number of simultaneous touchpoints | 10 |
| Glass thickness | 2.4 mm |
| International Protection (IP) code | IP65 |
| Second display effective viewing area | 344.2 x 193.6 mm |
