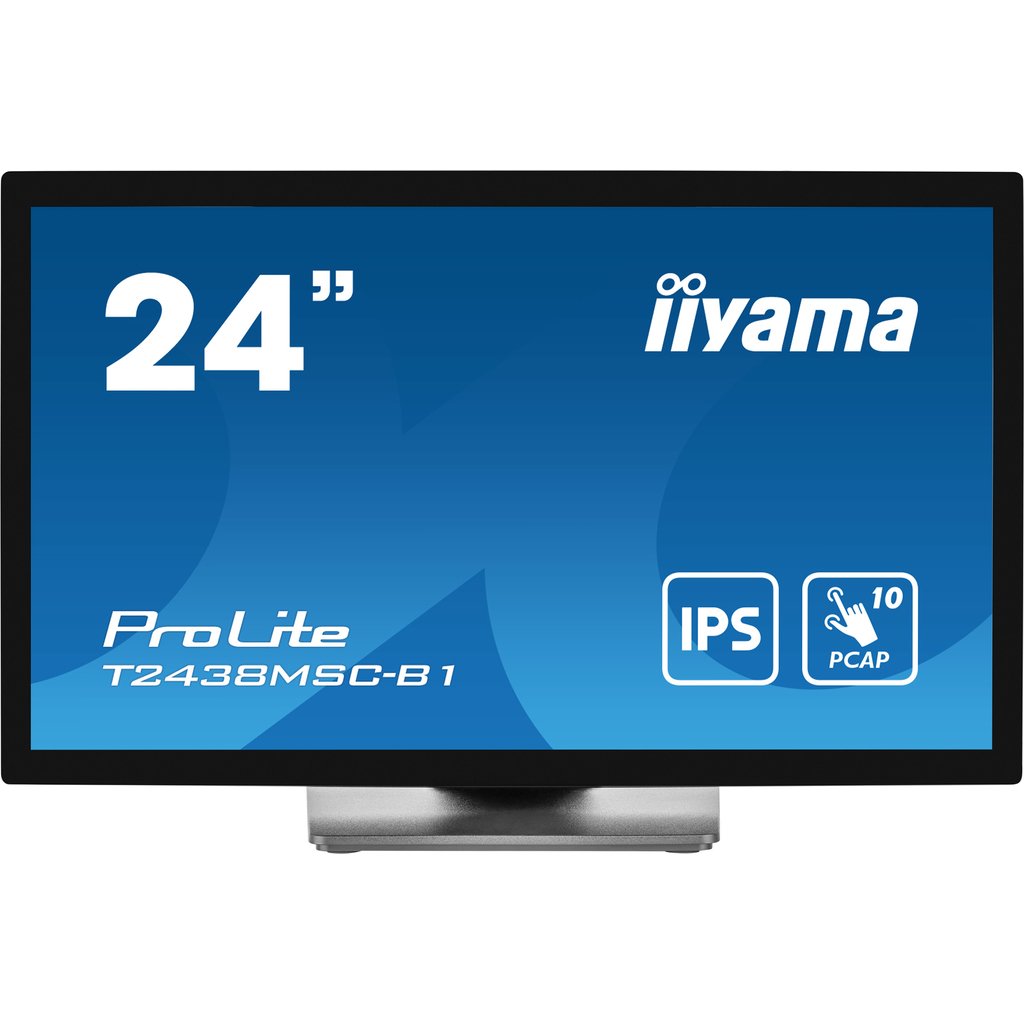

iiyama ProLite 23.8” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-
23.8” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

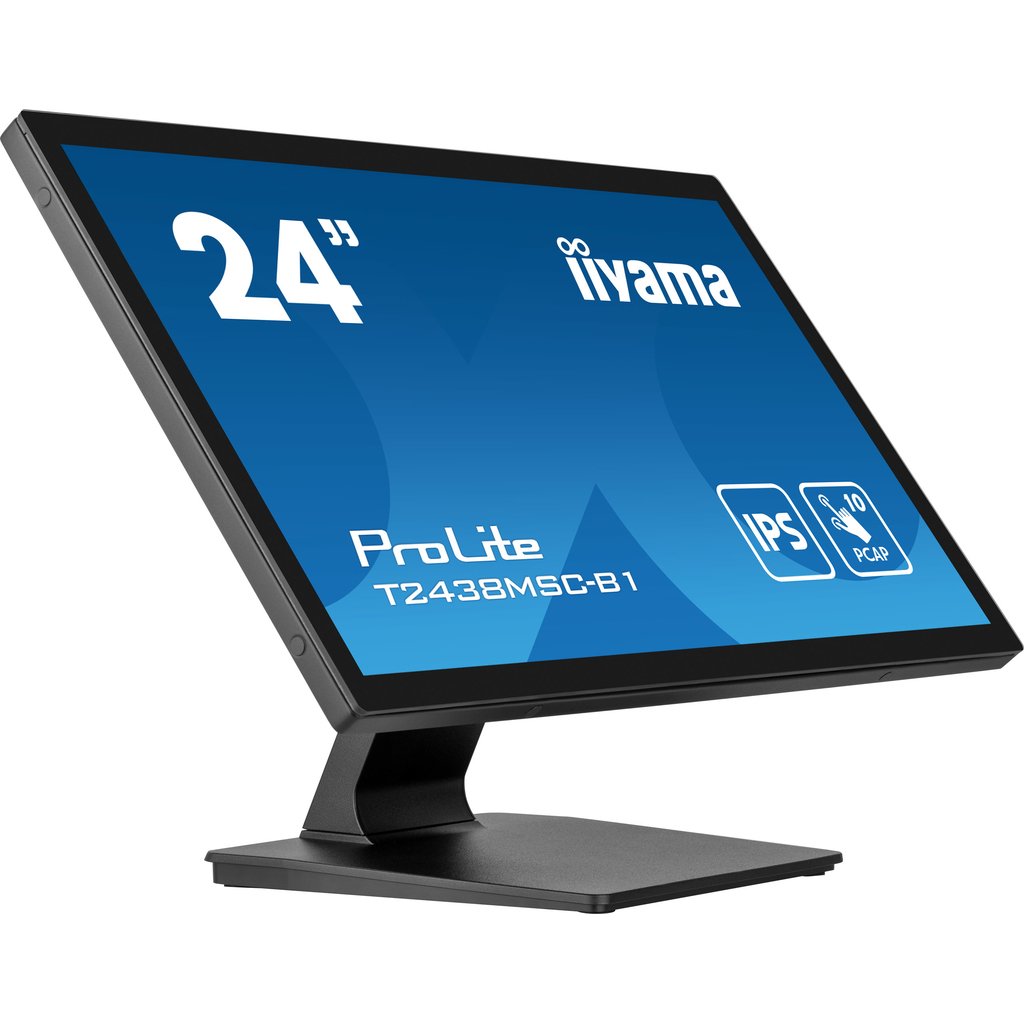

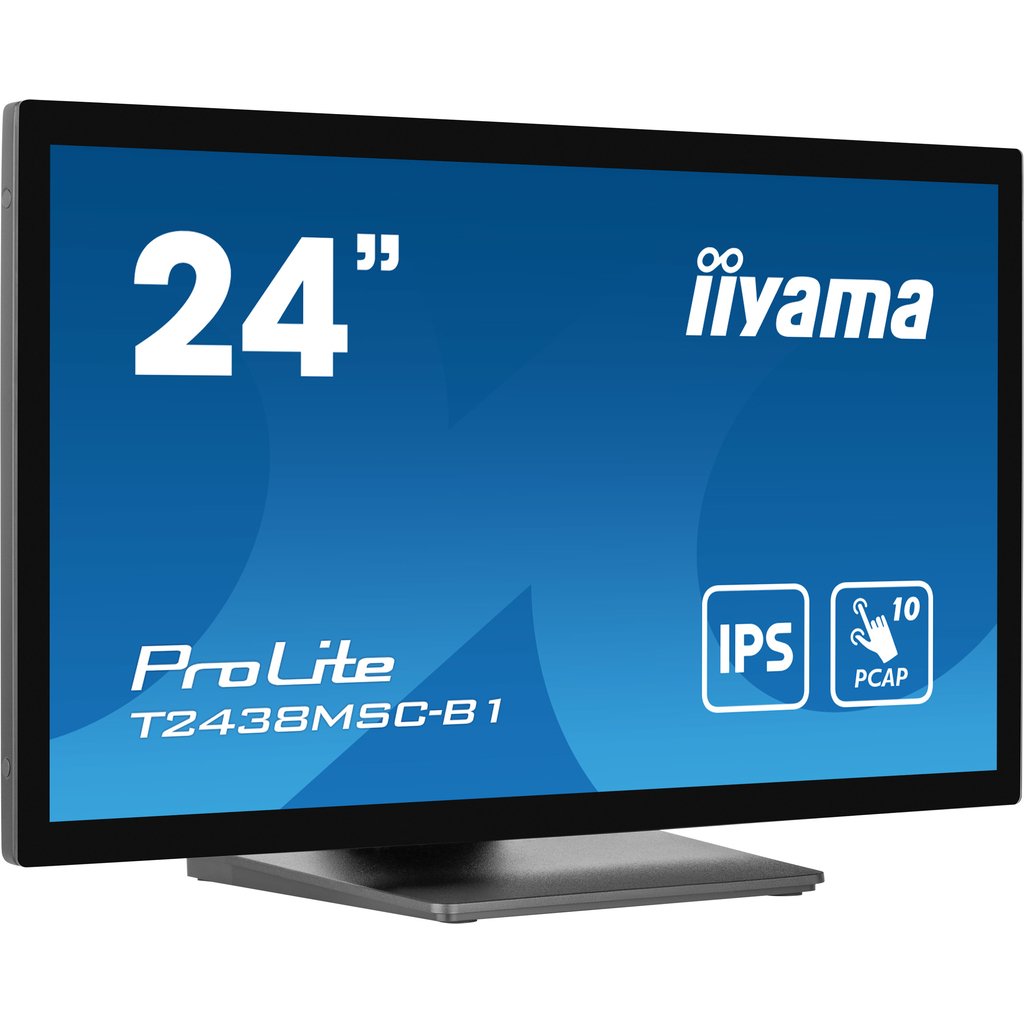

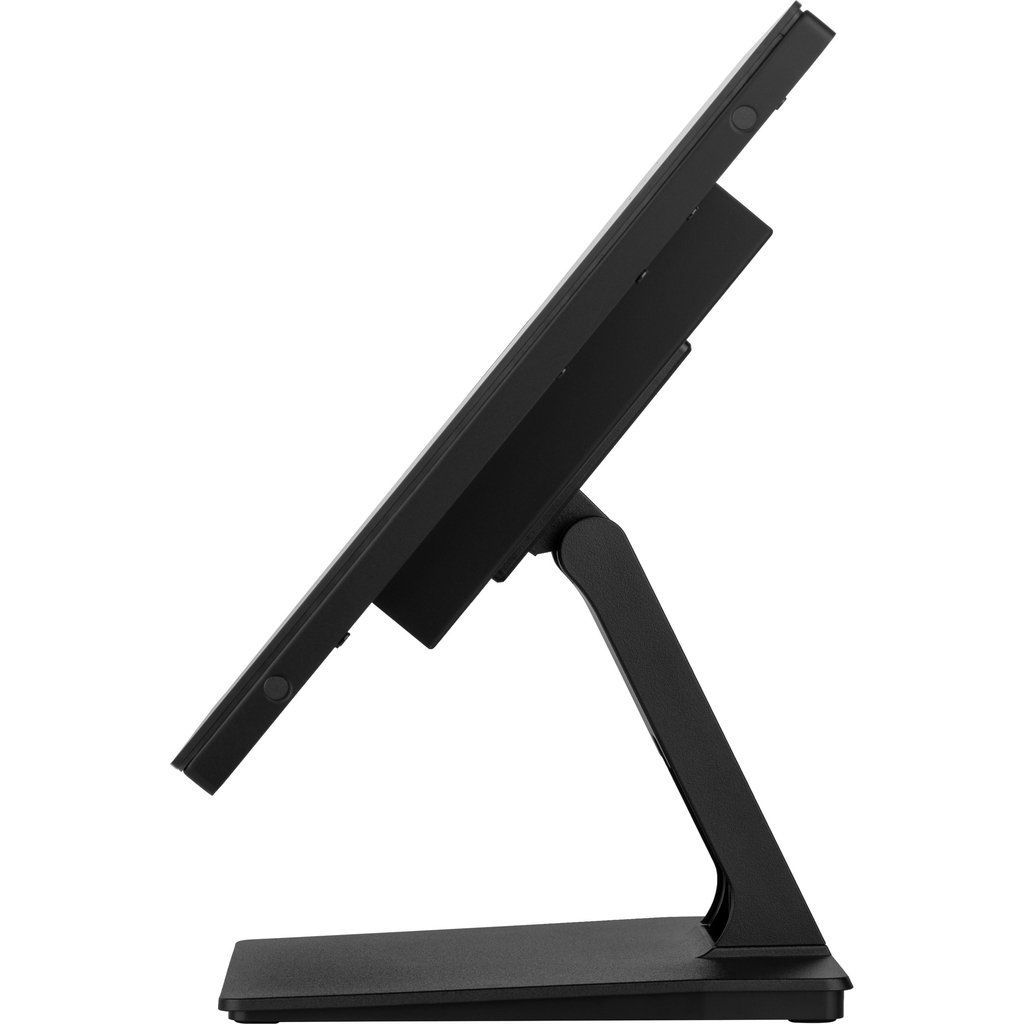

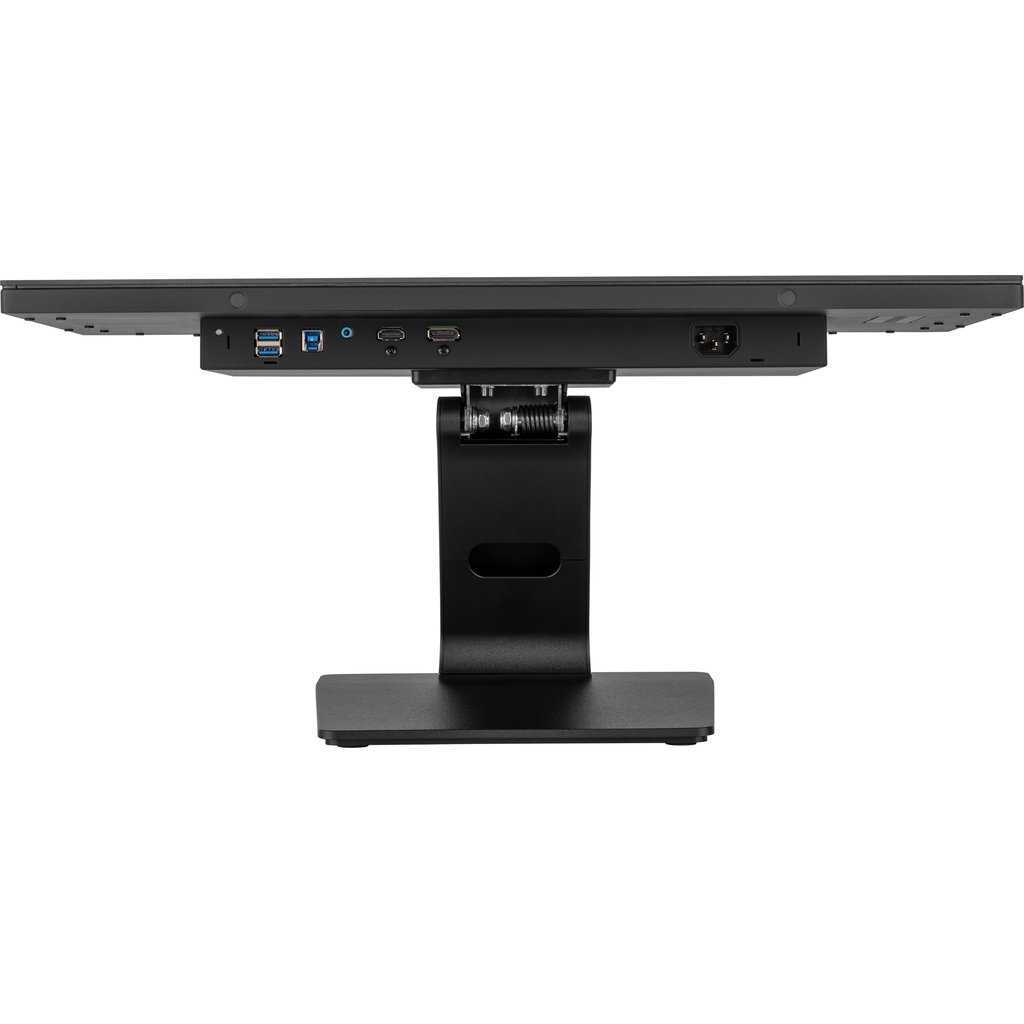

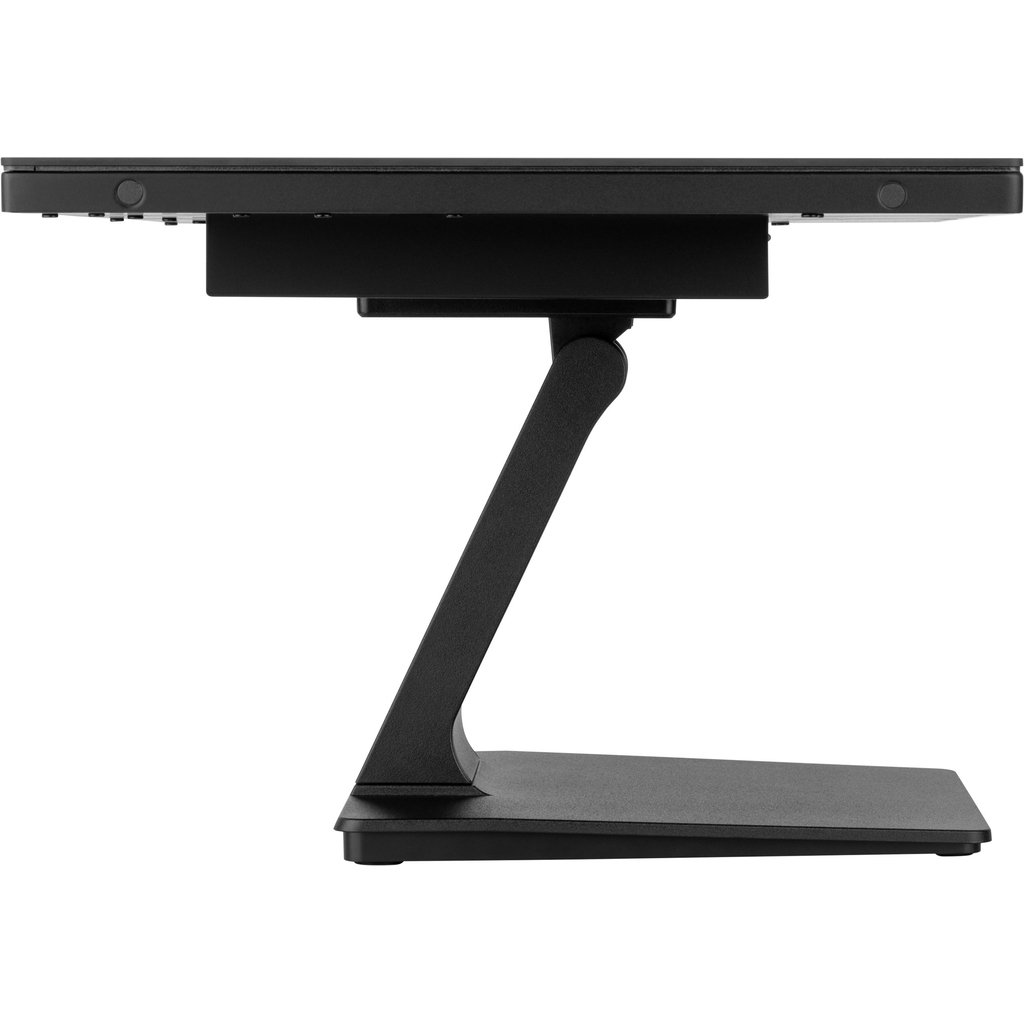

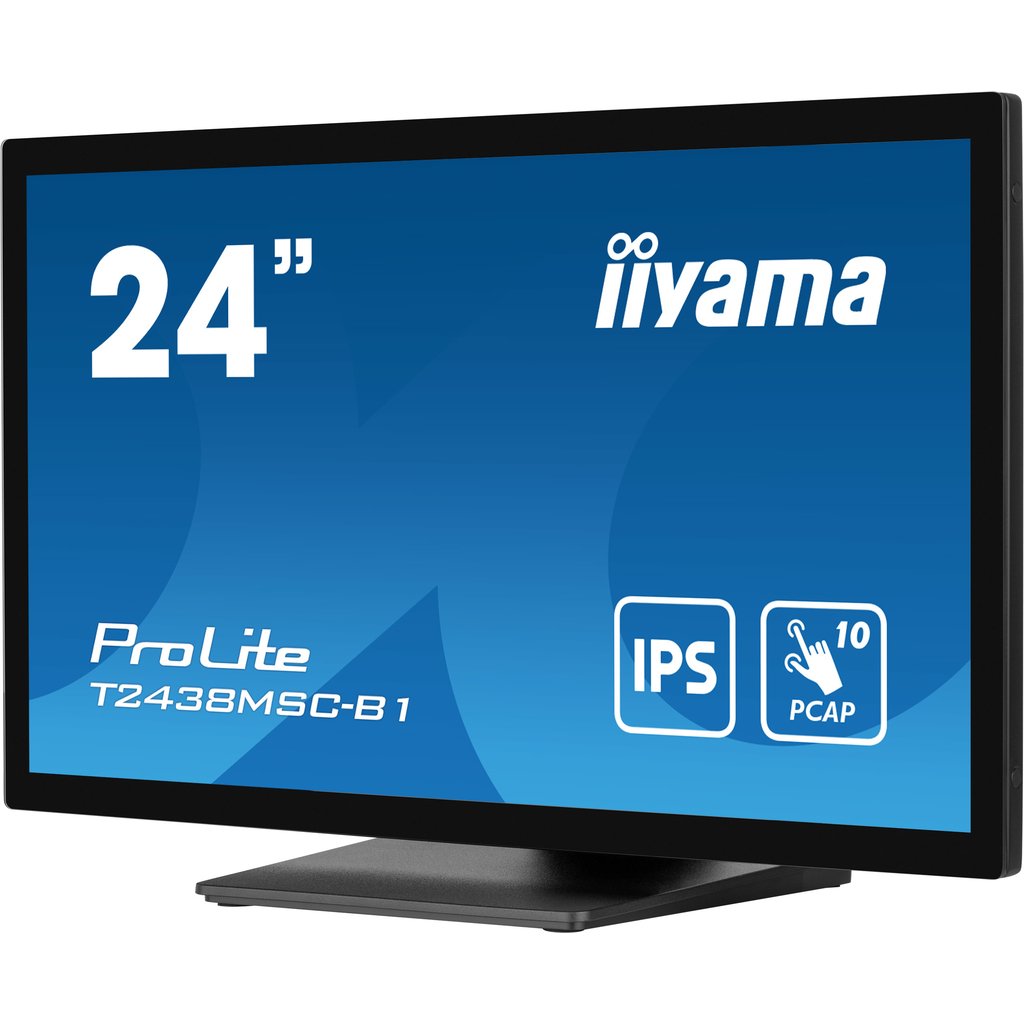

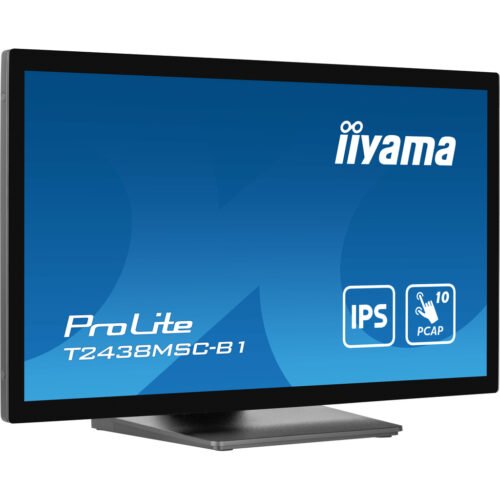

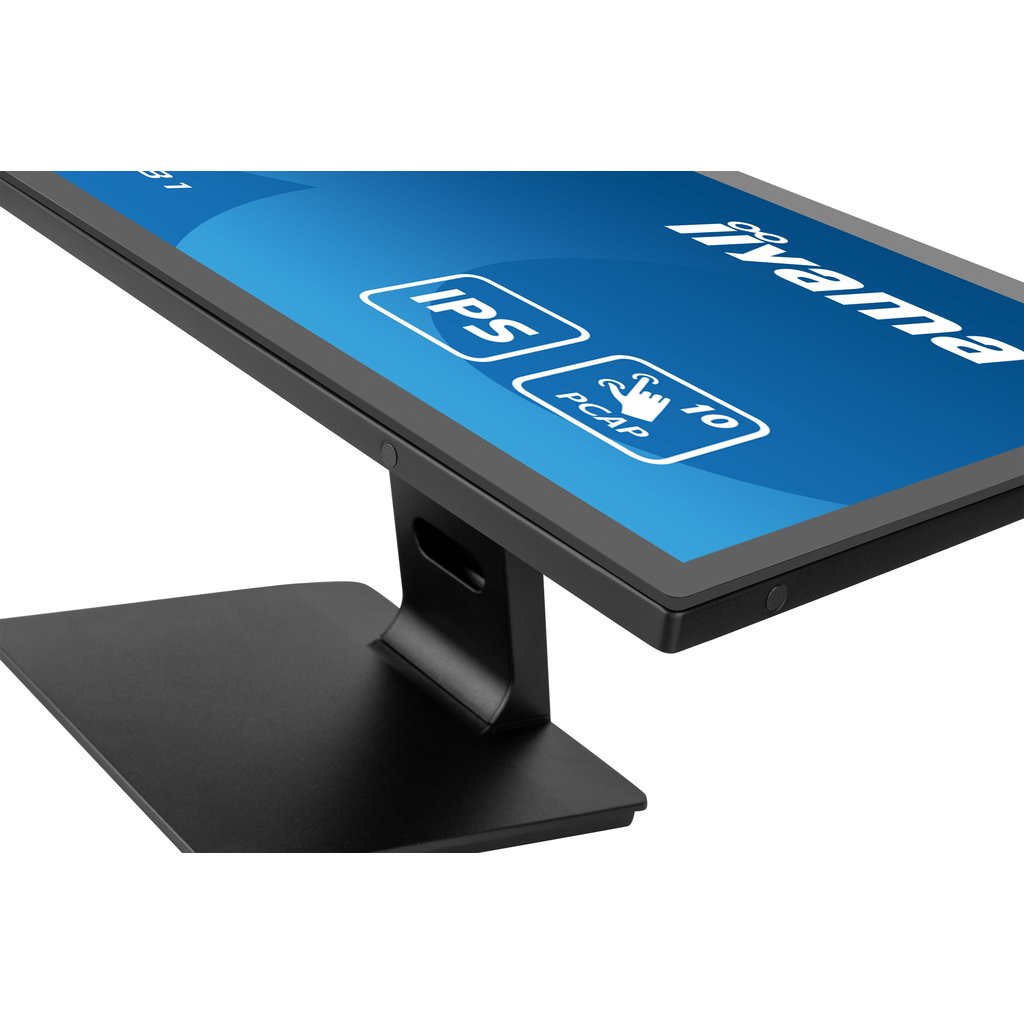

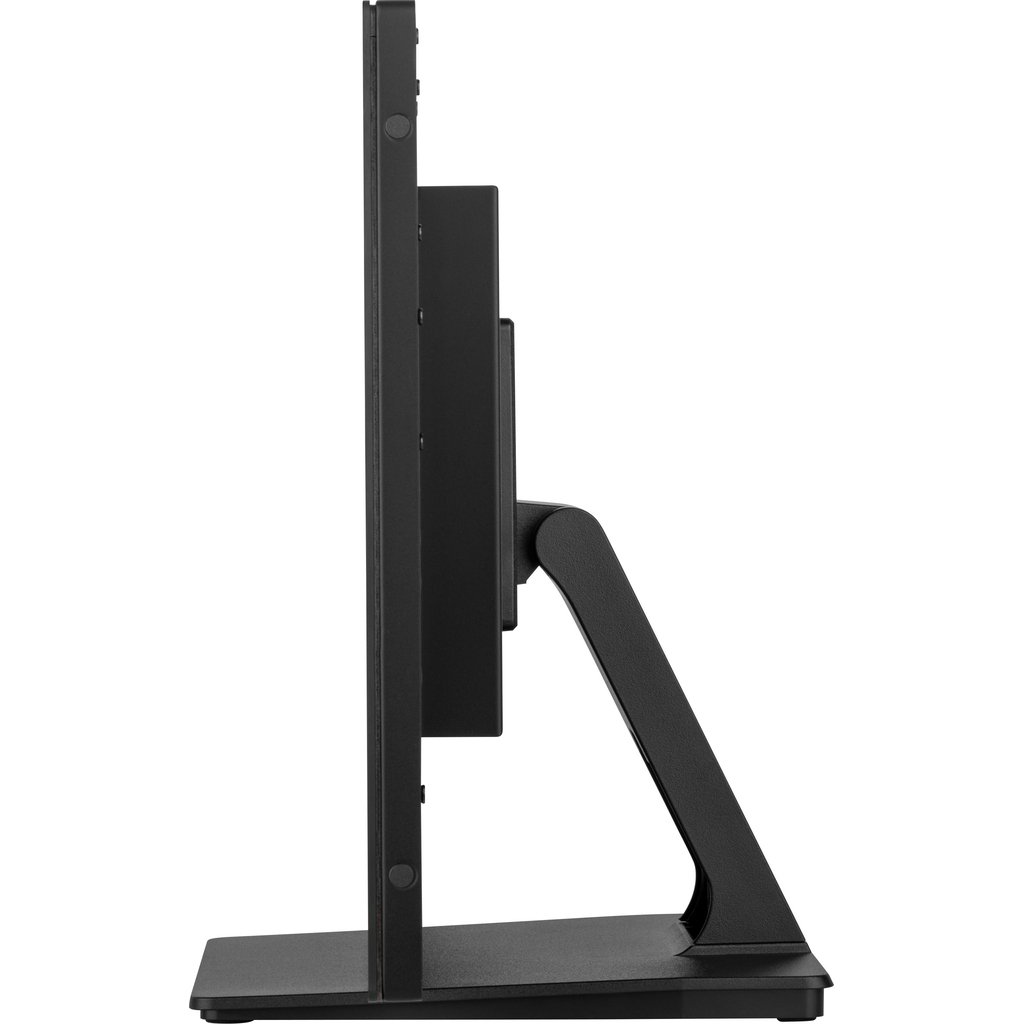

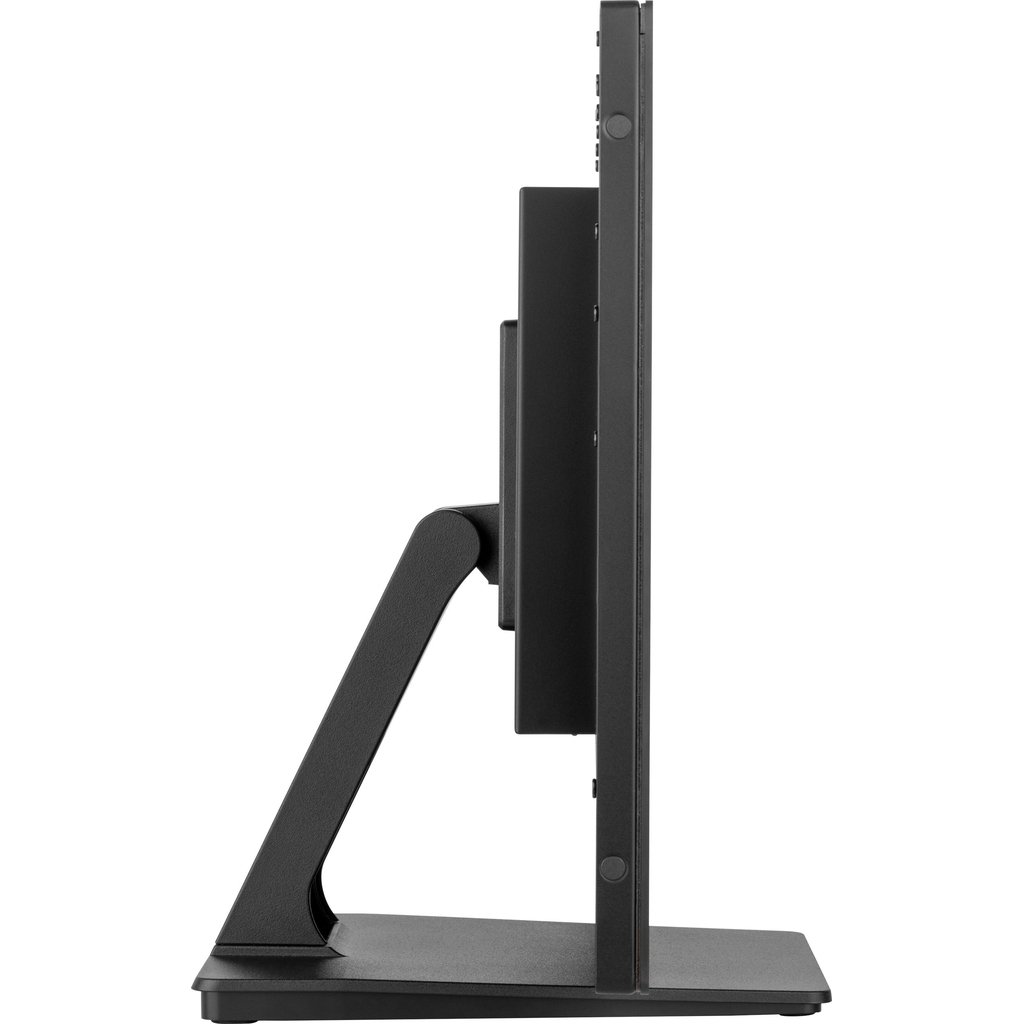

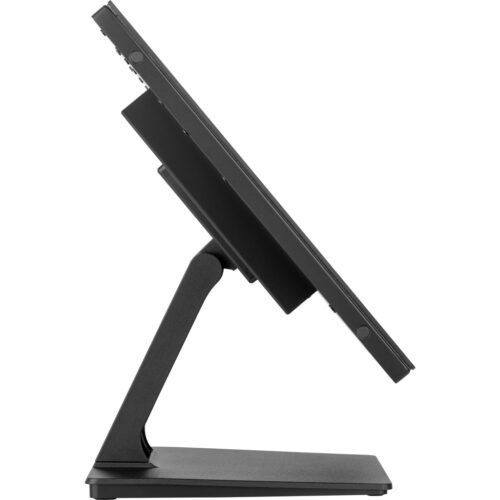

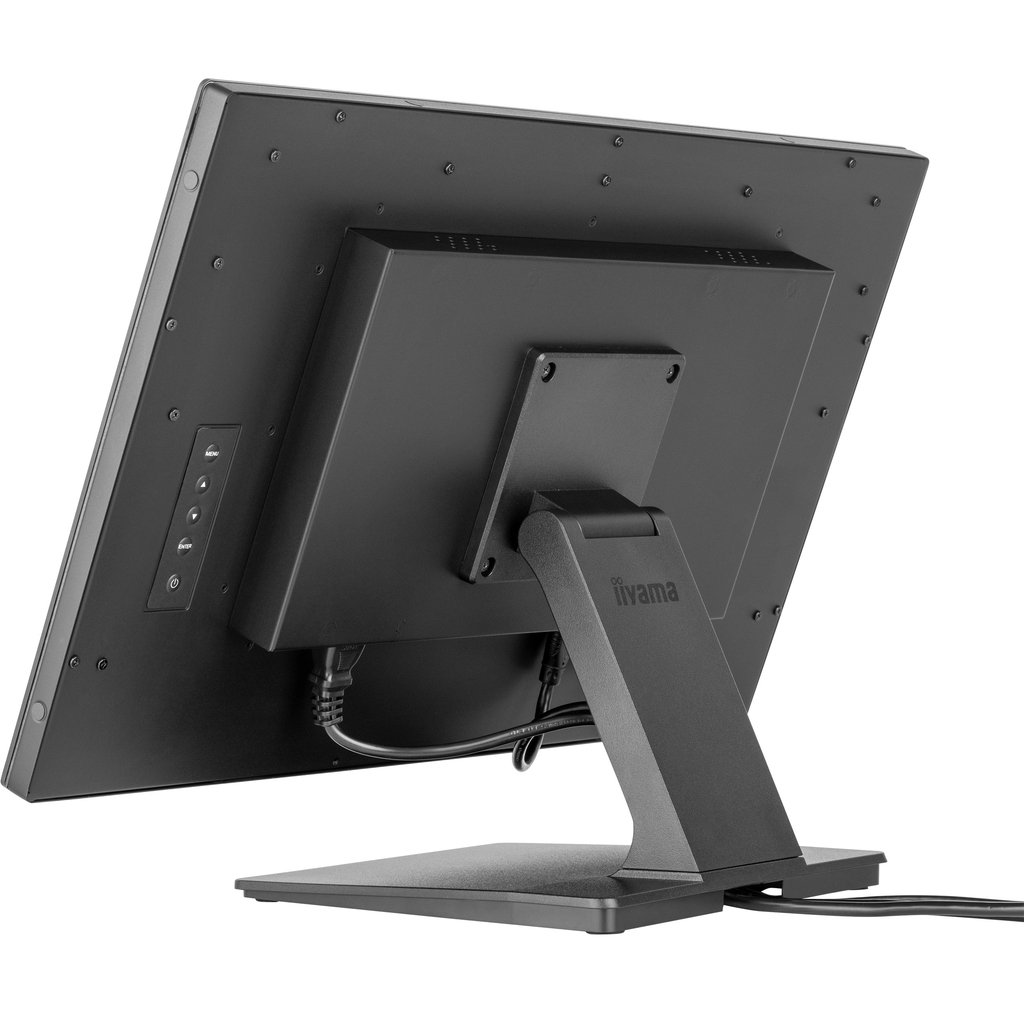

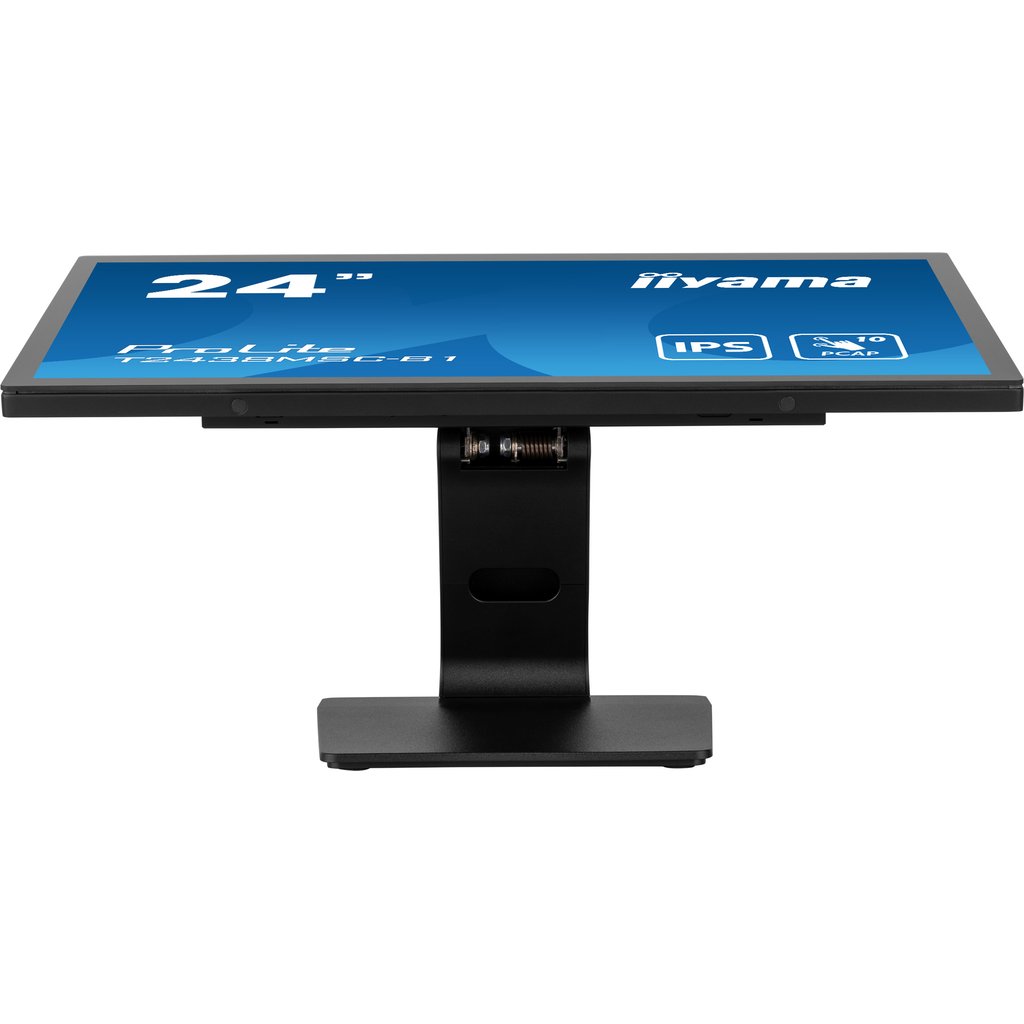

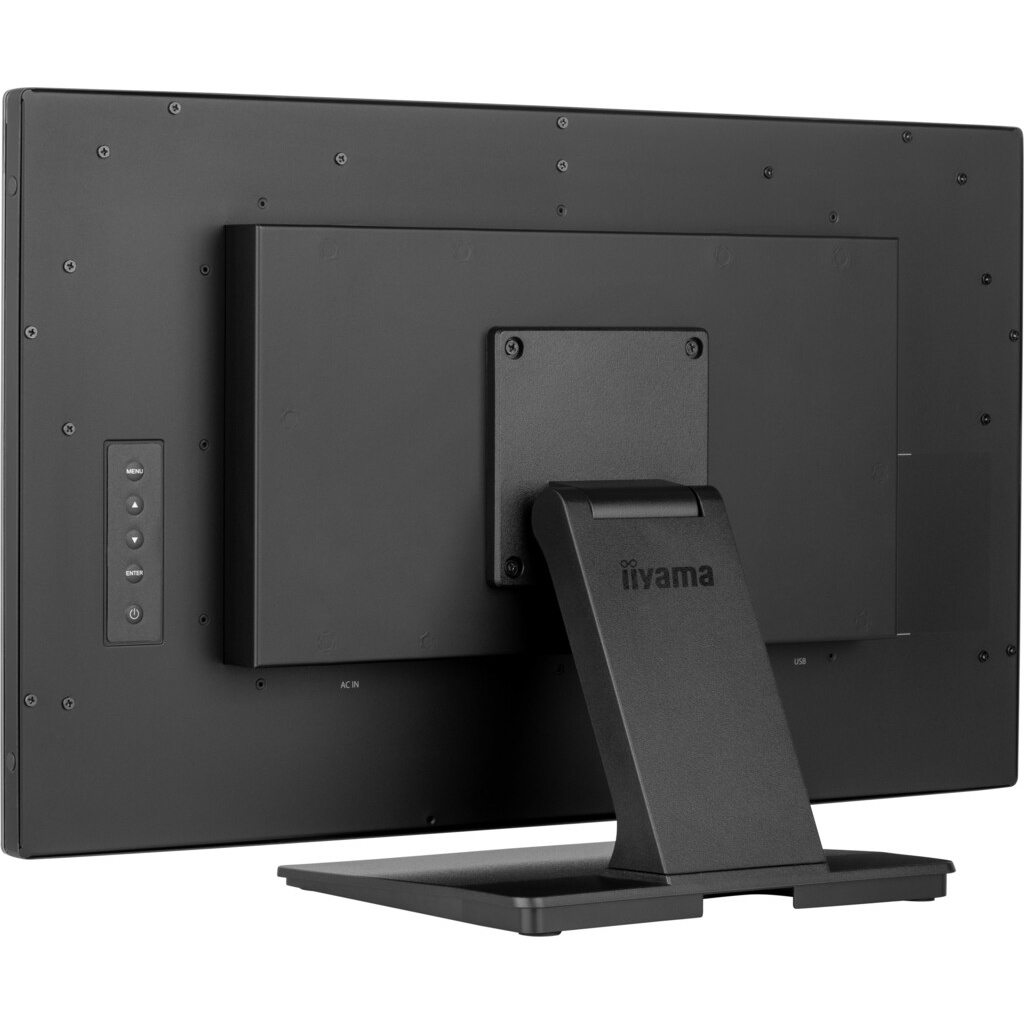

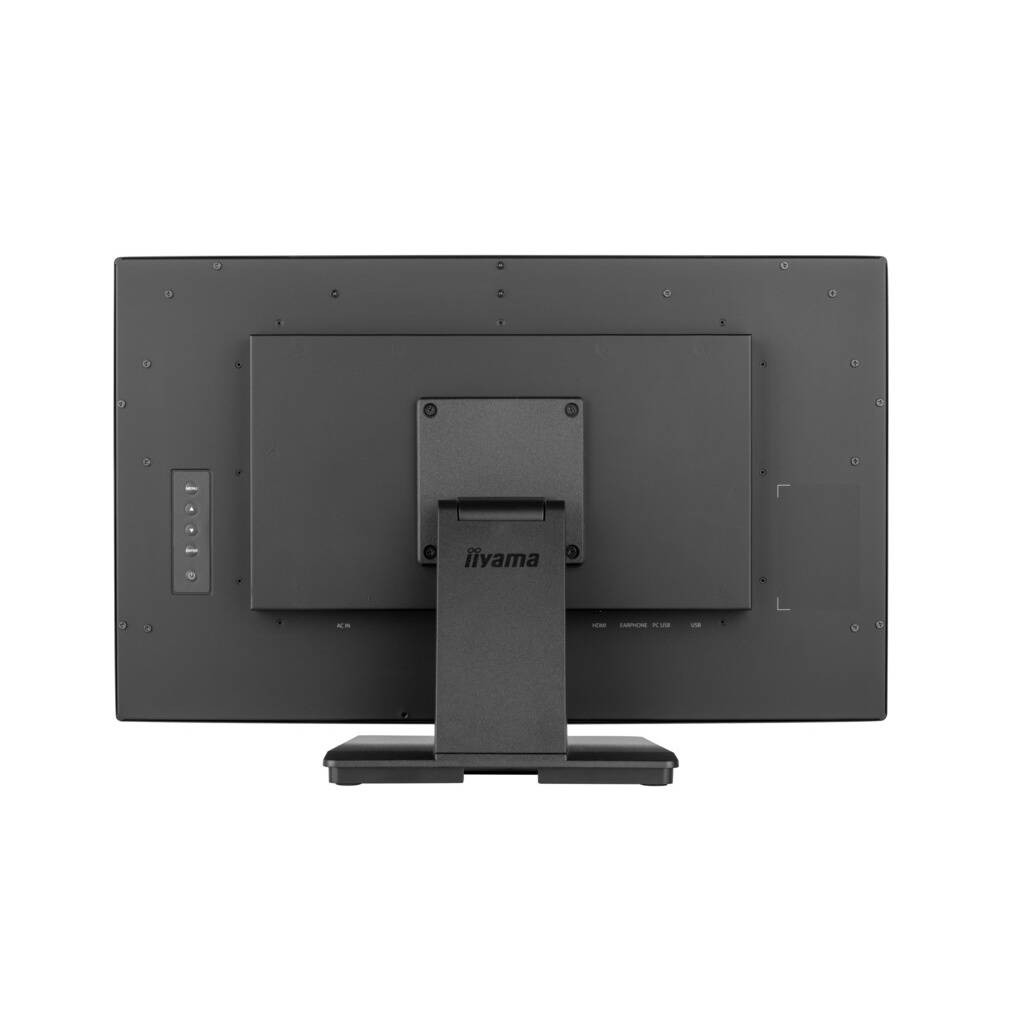

The Full HD (1920×1080) monitor ProLite T2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.
Additional information
| Weight | 10 lbs |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.7 million colours |
| Display brightness (typical) | 600 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
| Aspect ratio | 16:9 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.275 x 0.275 mm |
| Horizontal scan range | 30 – 83 kHz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Display diagonal (metric) | 60.5 cm |
| Surface hardness | 7H |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Product colour | Black |
| Built-in USB hub | Yes |

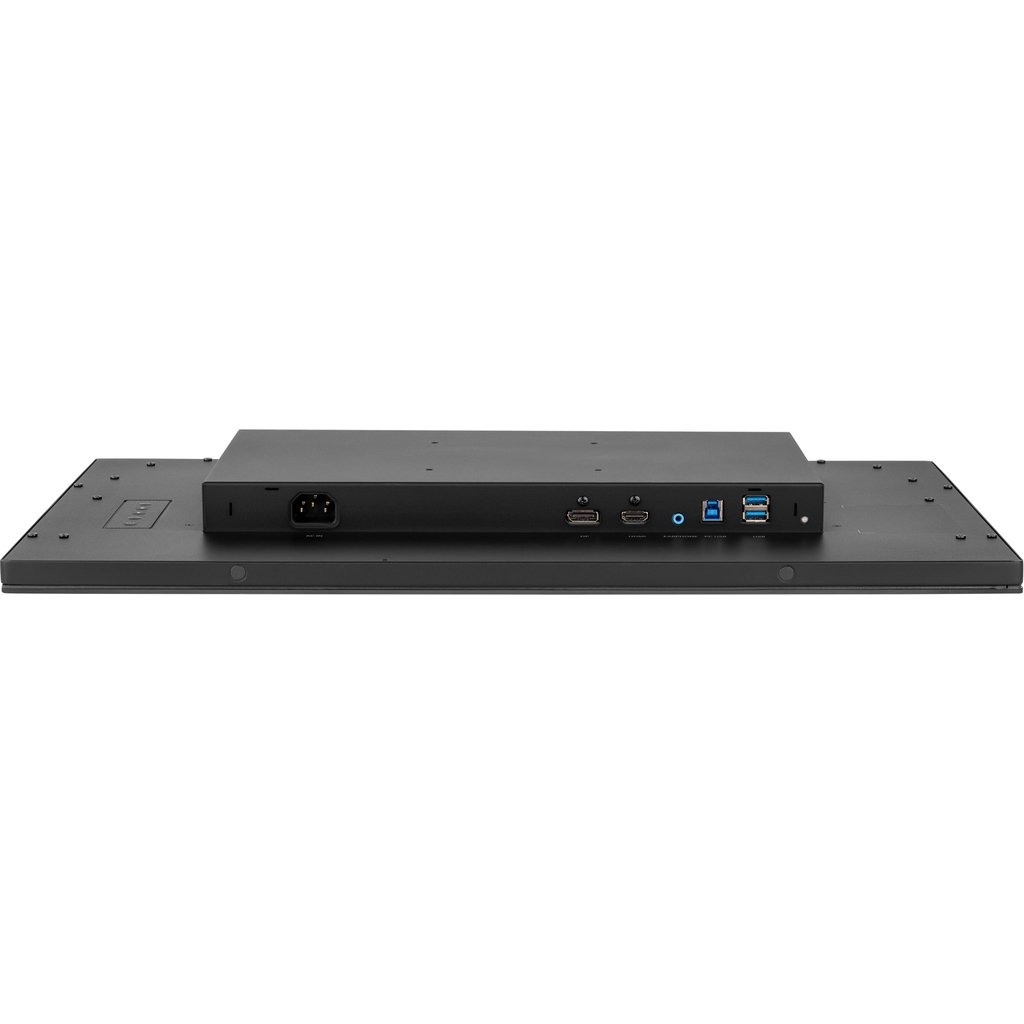

| HDMI | Yes |
| Headphone out | No |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |

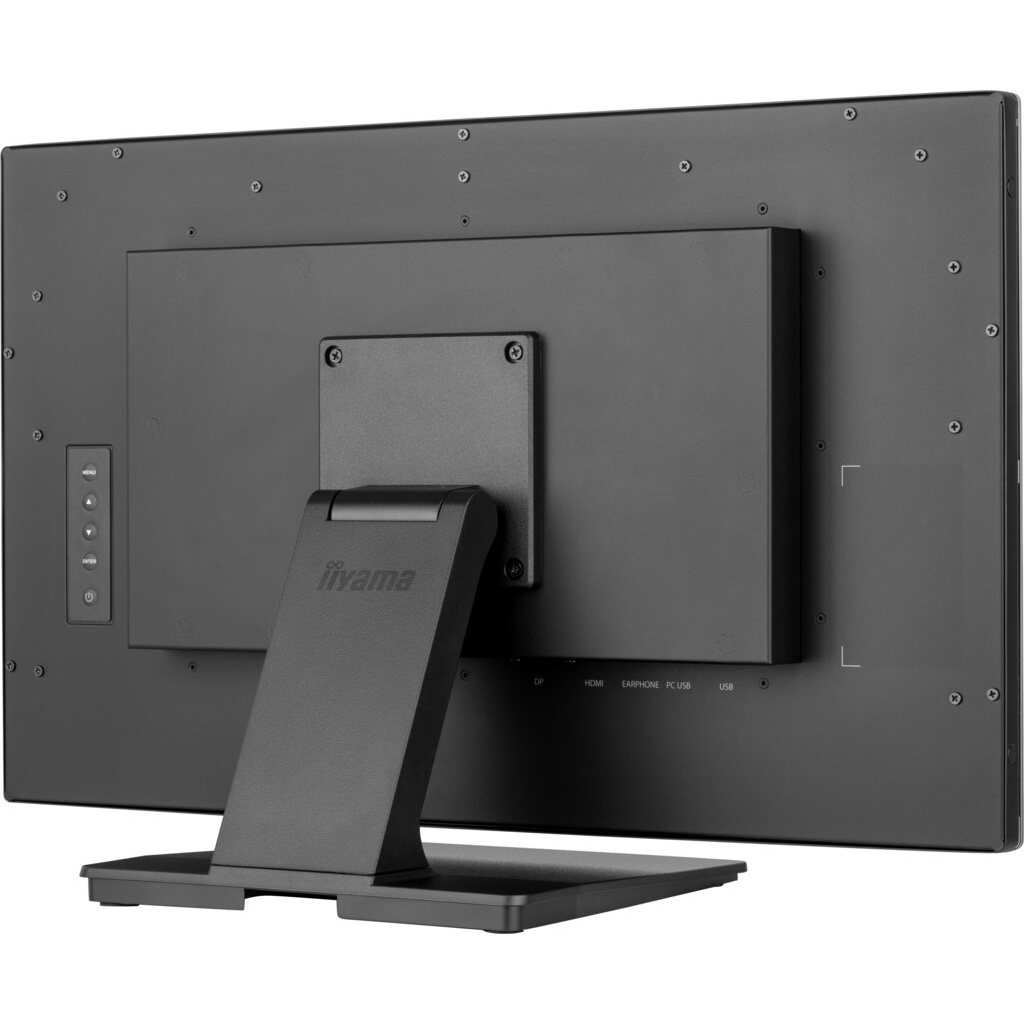

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 22 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Width (with stand) | 561.5 mm |
| Depth (with stand) | 239.5 mm |
| Height (with stand) | 366 mm |
| Weight (with stand) | 8.2 kg |
| Package width | 650 mm |
| Package depth | 650 mm |
| Package height | 430 mm |
| Package weight | 10 kg |
| Cables included | HDMI, Power, USB |
| Quick start guide | Yes |
| Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| European Product Registry for Energy Labelling (EPREL) code | 1530357 |
| On Screen Display (OSD) languages | German, English, French, Japanese, Polish, Russian |
| Front bezel colour | Black |
| Plug and Play | Yes |
| Response time (fast) | 5 ms |
| Bezel width (side) | 1.73 cm |
| Bezel width (top) | 2.03 cm |
| Bezel width (bottom) | 2.03 cm |
| Display brightness (peak) | 600 cd/m² |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| USB Touch port | Yes |
| Number of simultaneous touchpoints | 10 |
| Glass thickness | 3.6 mm |
| International Protection (IP) code | IP1X |
