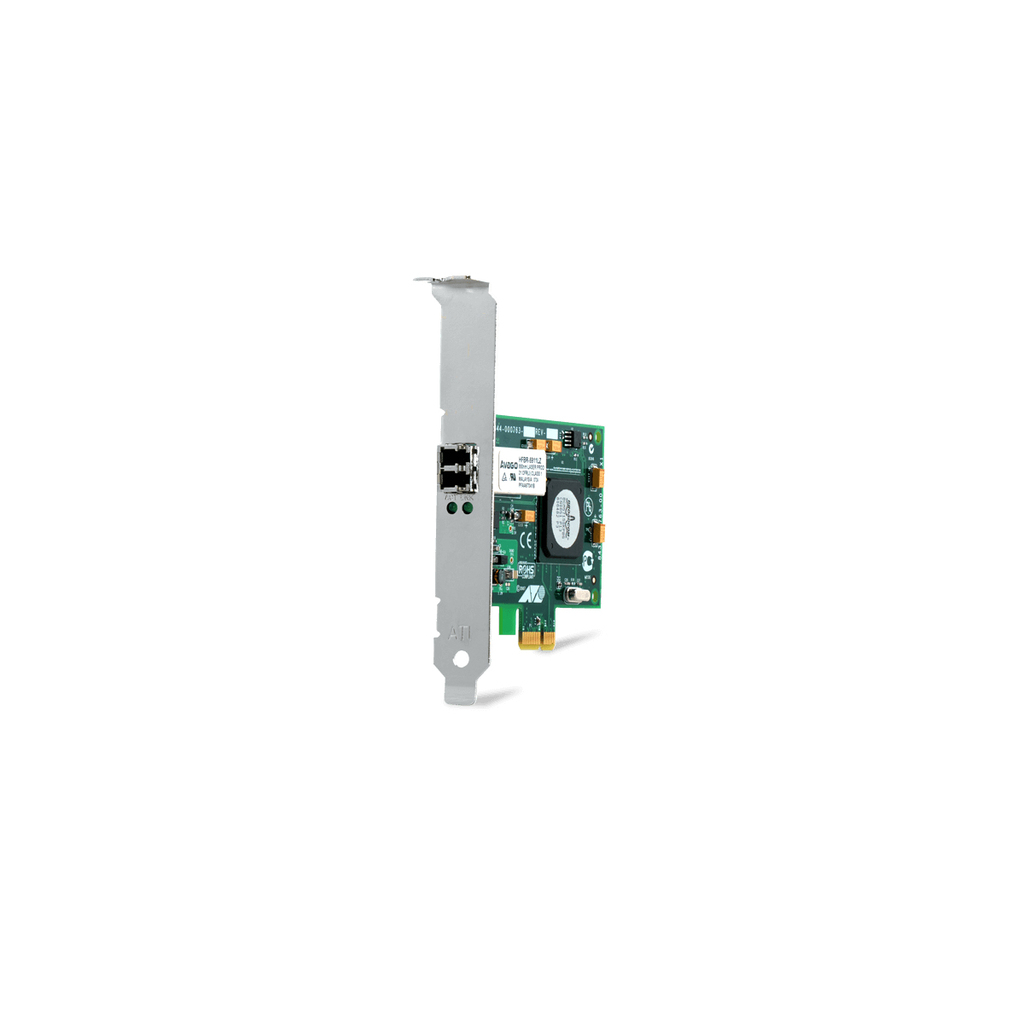

Allied Telesis 2914SP Internal Fiber 1000 Mbit/s
In Stock
PCI Express Gigabit Network Adapters with Wake-on-LAN (WoL) Support, 1x 100/1000 Mbit/s SFP
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The Allied Telesis 2914SP is a gigabit PCIe x1 network adapter with an open SFP port. This port supports both Fast Ethernet and Gigabit SFP’s. This adapter supports Wake-on-LAN without the use of an external power supply.
Additional information
| Weight | 0.1 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Internal | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista |
| Width | 88 mm |
| Height | 69 mm |
| Weight | 68 g |
| Quantity per pack | 1 pc(s) |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Jumbo frames | 9600 |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Certification | UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI |
| Quality of Service (QoS) support | Yes |
| Flow control support | Yes |
| Output voltage | 3.3 V |
| Load balancing system | Yes |
| Low-profile bracket | Yes |
| Priority queuing supported | Yes |
