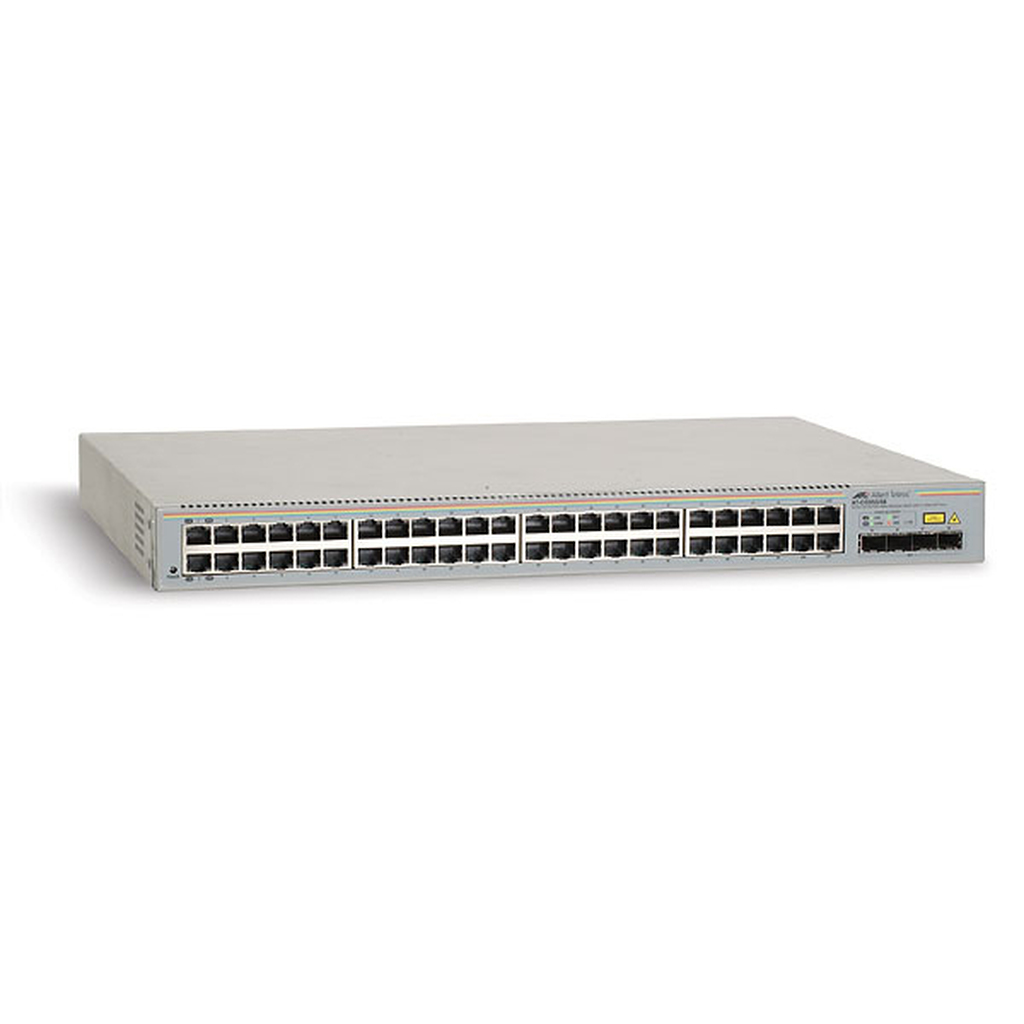

Allied Telesis AT-GS950/48 Managed
48 x 10/100/1000T + 2 Gig SFP Combo Port Web Smart Switch
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
The WebSmart AT-GS950/48 features 48 10/100/1000T ports + 4 gig SFP uplink ports. It is an ideal fit for the SMB/SOHO market. This switch provides managed features ideal for simple QoS applications, and provides basic monitoring tools to improve your network. The Web Smart functions provide QoS features suitable for multimedia applications. With the web-based interface, you can set up 802.1Q VLANs to segregate traffic, QoS to prioritize mission-critical data such as voice or video packets, and link aggregation to create traffic pipelines. The AT-GS950/48 also provides network monitoring tools such as port mirroring and basic port statistics. Remote product management enables simple monitoring from anywhere.
Additional information
| Weight | 5 lbs |
|---|---|
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.5 MB |
| Mean time between failures (MTBF) | 263000 h |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Weight | 4.05 kg |
| Maximum data transfer rate | 1 Gbit/s |
| Dimensions (WxDxH) | 444 x 322 x 43.5 mm |
| Power requirements | 100-240V AC, 50/60Hz |
| Combo SFP ports quantity | 4 |
| Flow control support | Yes |
| DHCP features | DHCP client |
| Certification | UL 1950FCC/EN55022 Class AVCCI Class AC-TickEN60950 (TUV)EN55024CECSA / CUL |
| Stackable | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Internal memory | 32 MB |
| Flash memory | 4 MB |
| Link aggregation | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| Multicast support | Yes |
| SFP/SFP+ slots quantity | 4 |
| Supported data transfer rates | 10/100/1000 Mbps |
| Connectivity technology | Wired |
| Packet transfer speed | 1488000 pps |
| Security features | 802.1X |
