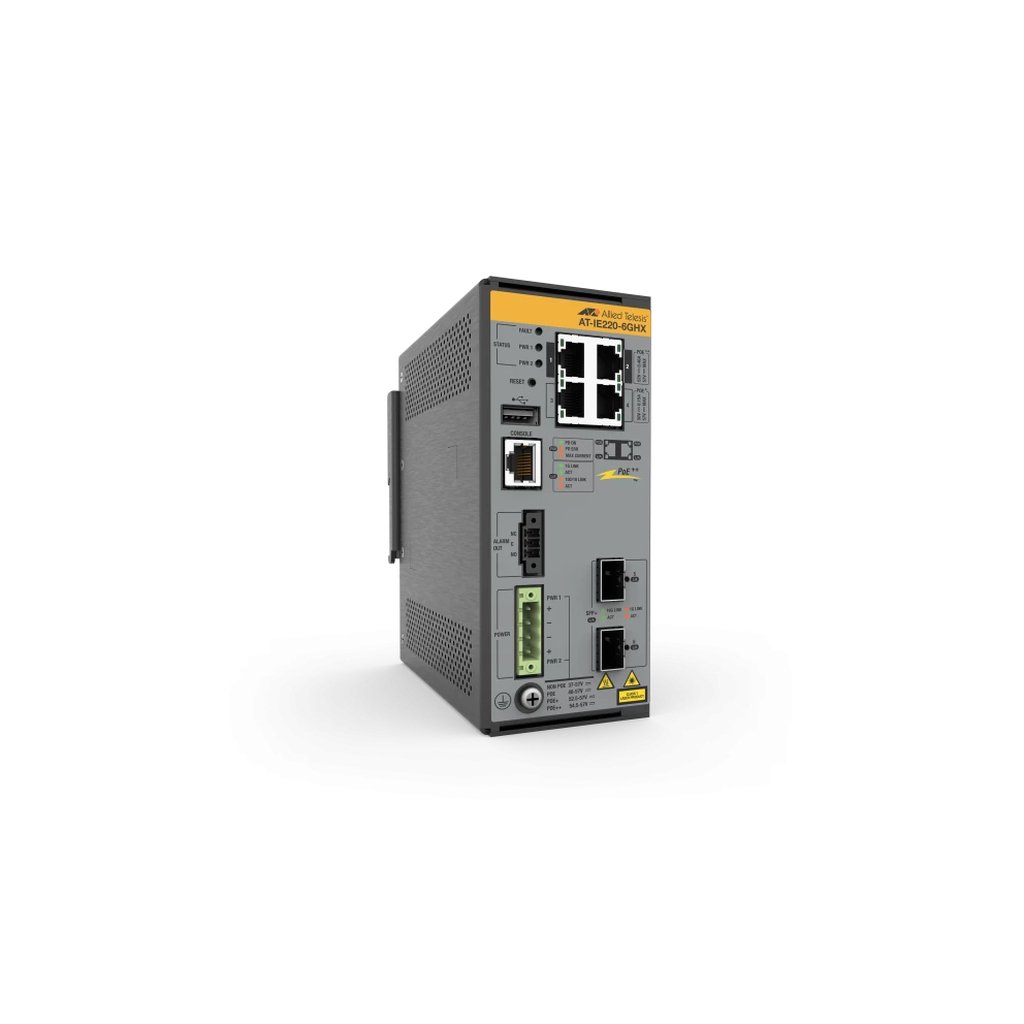

Allied Telesis AT-IE220-6GHX-80 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
4x 10/100/1000T, 2x 1G/10G SFP+, Industrial Ethernet, Layer 2+ Switch, PoE++ Support, DC
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Industrial Ethernet Layer 2+ PoE++ Switches with 10G uplinks
Ruggedized switches built for enduring performance in harsh environments. Power over Ethernet (PoE++) connects and powers environmental, system control, and other key IIoT devices for a reliable and high-performing solution and 10G fiber uplinks ensure capacity for demanding edge applications. The IE220 Series enables safety, security, and smooth operation for building automation, intelligent transportation, and smart city networks.
Additional information
| Weight | 2.02 lbs |
|---|---|
| Brand compatibility | 37.7 Mpps |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3ac, IEEE 802.3bt, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1v, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x |
| 10G support | No |
| Full duplex | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 48 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| Rack mounting | No |
| Product colour | Grey |
| Housing material | Aluminium, Metal |
| Power consumption (max) | 17.4 W |
| Power over Ethernet (PoE) | Yes |
| Width | 65 mm |
| Depth | 137 mm |
| Height | 155 mm |
| Harmonized System (HS) code | 8517.62.0050 |
| Switch layer | L2 |
| Web-based management | Yes |
| Combo SFP ports quantity | 2 |
| Flow control support | Yes |
| VLAN support | Yes |
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Power source | DC/PoE |
| System event log | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| ARP inspection | Yes |
| Number of VLANs | 4094 |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Link aggregation | Yes |
| Wall mountable | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Input voltage | 37 – 57 V |
| Gigabit Ethernet (copper) ports quantity | 6 |
| Configuring Location Settings (CLI) | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Multicast support | Yes |
| DIN rail mounting | Yes |
| Security algorithms | 802.1x RADIUS |
| Management protocols | SNMPv1/v2c/v3 |
| International Protection (IP) code | IP30 |
| USB 2.0 ports quantity | 1 |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
