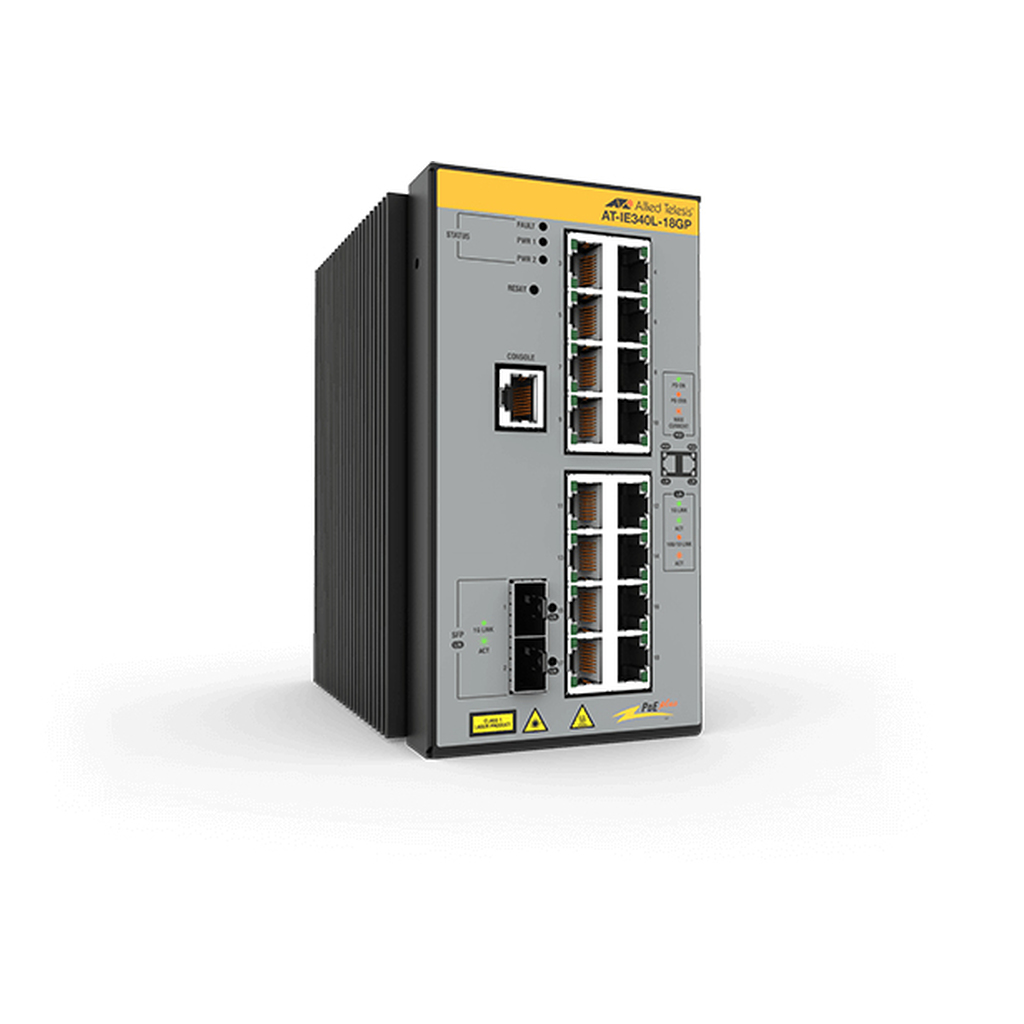

Allied Telesis AT-IE340L-18GP-80 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
L3 Industrial Ethernet Switch, 16x 10/100/1000-T PoE+, 2x SFP Ports (as only 1000M speed to be supported)
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Industrial Ethernet Layer 3 Switches
Allied Telesis ruggedized IE340 Industrial Ethernet switches provide enduring performance in harsh environments, such as those found in manufacturing, transportation and physical security. Offering high throughput, rich functionality and advanced security features, IE340 switches deliver the performance and reliability demanded by deployments in the age of the Internet of Things (IoT).
Overview
Allied Telesis IE340 Series are a high-performing and feature-rich choice for today’s networks. The IE340 is ideal for Industrial Ethernet applications, being fully qualified for manufacturing, automation, process control, railway transportation (Telco & Signaling), roadway transportation (Traffic Control) and Smart Cities.
With a fanless design and a wide operating temperature range, the IE340 tolerates the harsh and demanding environments found in industrial and outdoor deployments.
Modbus/TCP enables integration with existing factory management tools, and provides real-time automation in modular control and distributed systems.
Network management
Allied Telesis Autonomous Management Framework™ (AMF) meets the increasing management requirements of today’s modern converged networks, by automating many everyday tasks such as configuration management. AMF’s powerful features allow an entire network to be easily managed as a single virtual device.
Vista Manager™ EX is an intuitive visualization tool that complements the power of AMF. It allows users to monitor the network and quickly identify issues before they become major problems.
Securing the network edge
Ensuring data protection means controlling network access. Protocols such as IEEE 802.1X port-based authentication guarantee that only known users are connected to the network.
Unknown users who physically connect can be segregated into a pre-determined part of the network. This offers guests Internet access, while ensuring the integrity of private data.
Gigabit and Fast Ethernet
The IE340 Series SFP ports support both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs)(1). This makes the IE340 Series ideal for environments where Gigabit fiber switches will be phased in over time, and allows for connectivity to the legacy 100FX hardware until it is upgraded to Gigabit Ethernet. Support for both speeds of SFP allows organizations to stay within budget as they migrate to faster technologies.
Network resiliency
The IE340 Series supports highly stable and reliable ICT network switching, with recovery times down to 50ms. The IE340 can be customized with the most appropriate mechanism and protocol to prevent network connection failure. Choices include Allied Telesis Ethernet Protection Switched Ring (EPSRing™), and the standards-based ITU-T G.8032.
Configurable PoE power budget and dynamic power allocation
On PoE-sourcing IE340 switches, the overall power budget can be configured to establish a close relationship between the power sourcing feature and the real capabilities of the external Power Supply Unit (PSU)(2). PoE power is allocated dynamically, based on the current usage of each powered device.
Future-proof
The IE340 Series ensures a future-proof network with a comprehensive feature set, and is Software Defined Networking (SDN) ready, supporting OpenFlow v1.3.
Additional information
| Weight | 2.84 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1x |
| 10G support | No |
| MAC address table | 16000 entries |
| Switching capacity | 36 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| Rack mounting | No |
| Product colour | Grey |
| Housing material | Aluminium, Metal |
| LED indicators | Yes |
| Power consumption (max) | 271 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 – 65 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 90% |
| Width | 91 mm |
| Depth | 139 mm |
| Height | 153 mm |
| Weight | 2.34 kg |
| Harmonized System (HS) code | 8517.62.0050 |
| Switch layer | L3 |
| Web-based management | Yes |
| Console port | RJ-45 |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Electromagnetic compatibility | AS/NZS CISPR 32 A, CISPR 32 A, EN 55032 A, EN 61000-6-4 A, FCC 47 CFR 15 B A, ICES 003 6 A, VCCI A |
| Power supply included | No |
| Certification | EN 50022, EN 60715CE, FCC, ICES, RCM, TEC, UL, VCCIRoHS, China-RoHS, WEEE |
| Stackable | No |
| System event log | Yes |
| Total Power over Ethernet (PoE) budget | 240 W |
| ARP inspection | Yes |
| Number of VLANs | 4094 |
| Forwarding rate | 26.7 Mpps |
| Password protection | Yes |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Power over Ethernet (PoE) power per port | 15 W |
| Wall mountable | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Latency (1 Gbps) | 3.4 µs |
| Operating altitude | 0 – 3000 m |
| Heat dissipation | 105.8 BTU/h |
| Latency (10-100 Mbps) | 7.8 µs |
| Configuring Location Settings (CLI) | Yes |
| MAC address filtering | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN |
| Multicast support | Yes |
| DIN rail mounting | Yes |
| Number of queues | 8 |
| SFP module slots quantity | 2 |
| International Protection (IP) code | IP30 |
| USB 2.0 ports quantity | 1 |
| Export Control Classification Number (ECCN) | 5A992C |
| Routing protocols | BGP, OSPF, RIP |
