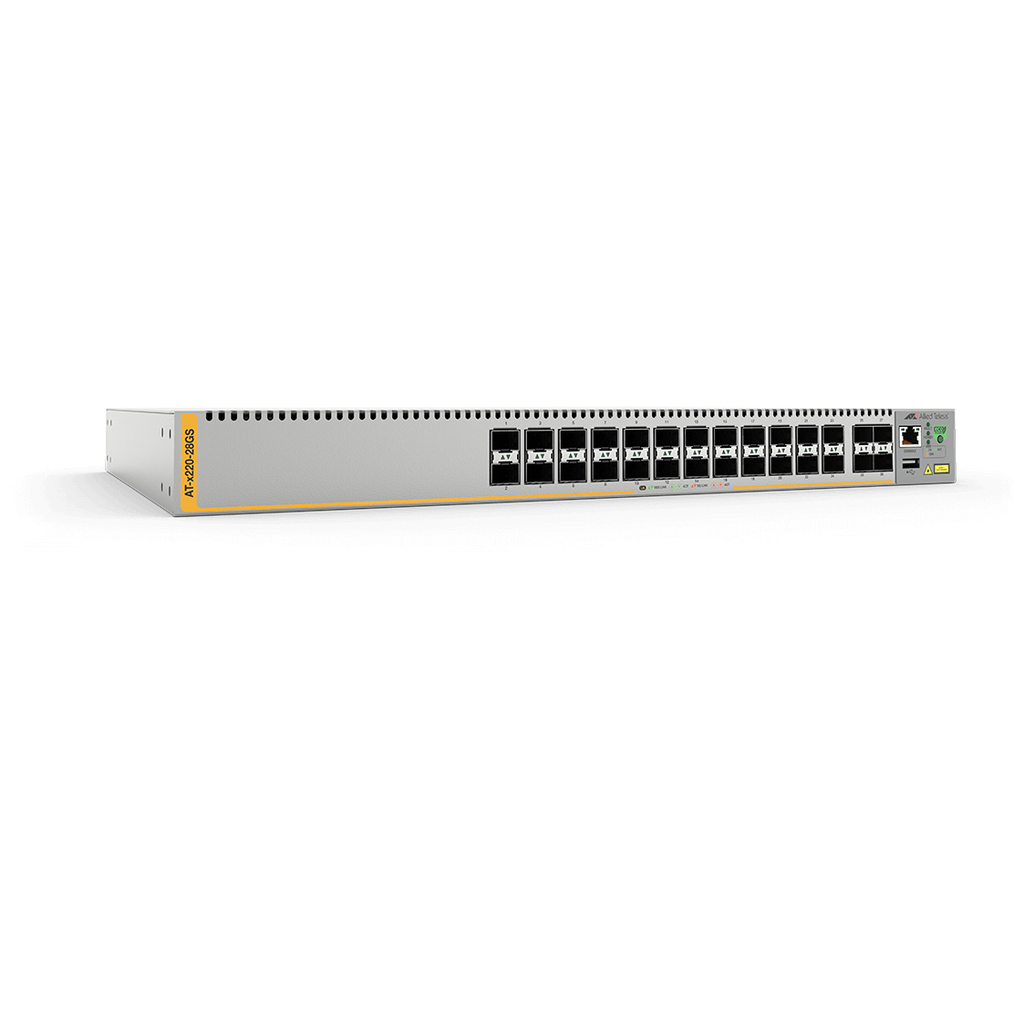

Allied Telesis x220-28GS Managed L3 1U Grey
28-port 100/1000X SFP switch, UK power cord
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Gigabit Fiber Edge Switch
The Allied Telesis x220-28GS is a fully managed high-performing Gigabit Layer 3 switch. The combination of 24 x 100/1000X SFP slots, and 4 x 100/1000X SFP uplinks make it ideal for sensitive data transfer and long-distance fiber connectivity at the edge of the network.
Additional information
| Weight | 6.14 lbs |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Installed SFP modules quantity | 28 |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Full duplex | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Input current | 0.6 A |
| Power consumption (max) | 75 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 440 mm |
| Depth | 324 mm |
| Height | 44 mm |
| Weight | 4.3 kg |
| Switch layer | L3 |
| Web-based management | Yes |
| Console port | RJ-45 |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN, Private VLAN, Voice VLAN, Policy-based VLAN, Port-based VLAN |
| DHCP features | DHCP snooping, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Package weight | 6.3 kg |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Static route | Yes |
| Loop protection | Yes |
| MIB support | Y |
| Power connector | DC-in jack |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 4094 |
| Forwarding rate | 41.7 Mpps |
| Password protection | Yes |
| Authentication type | IEEE 802.1x |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Link aggregation | Yes |
| Latency (1 Gbps) | 3.7 µs |
| Noise level | 45 dB |
| Operating altitude | 0 – 3048 m |
| Heat dissipation | 256 BTU/h |
| Package width | 570 mm |
| Package depth | 430 mm |
| Package height | 150 mm |
| Latency (10-100 Mbps) | 6.9 µs |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Multicast support | Yes |
| IPv4 & IPv6 features | IPv6 Telnet |
| IP routing | Yes |
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-256, SNMP, SSH, SSH-2, SSL/TLS |
| Management protocols | SNMP |
| USB 2.0 ports quantity | 1 |
| Rack mount kit | Yes |
| Root protection | Yes |
| Routing protocols | IP, RIP |
| Telnet | Yes |
| DoS attack prevention | Yes |
| Plug and Play | Yes |
| sFlow | Yes |
