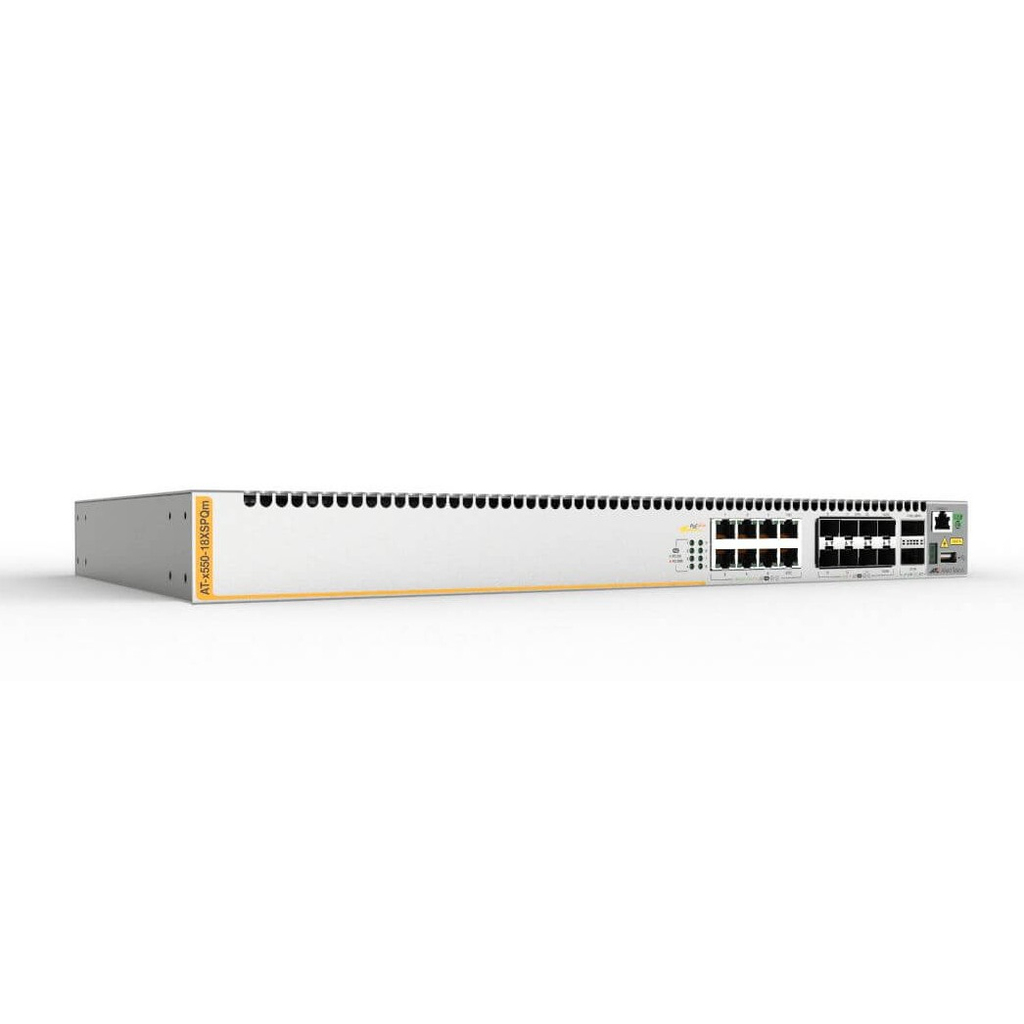

Allied Telesis X550-18XSPQM Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Silver
X550-18XSPQM – 8x 1G/2.5G/5G/10G (RJ-45) COPPER, 8x 1G/10G SFP+, 2x 40G QSFP, 480Gbps, 357.1Mpps, 8x POE+
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Stackable 10 Gigabit Intelligent Switches
The x550-18XSPQm stackable 10 Gigabit Layer 3 switch is a high-performing and feature-rich solution, with 8 x 1G/10G SFP+ slots, 8 x 1G/10G Ethernet ports, and 2 x 40G uplinks.
Additional information
| Weight | 5.82 lbs |
|---|---|
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP+ modules quantity | 8 |
| Networking standards | IEEE 1588, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IE |
| 10G support | Yes |
| MAC address table | 16000 entries |
| Switching capacity | 480 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 4 MB |
| Product colour | Silver |
| Power consumption (max) | 391 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 440 mm |
| Depth | 260 mm |
| Height | 44 mm |
| Weight | 4.2 kg |
| Safety | UL, cUL, TUV |
| Power consumption (typical) | 99 W |
| VLAN support | Yes |
| DHCP features | DHCP client |
| Stackable | Yes |
| Total Power over Ethernet (PoE) budget | 240 W |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Forwarding rate | 357.1 Mpps |
| Memory type | DDR-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 1024 MB |
| Power over Ethernet (PoE) power per port | 30 W |
| Link aggregation | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Latency (1 Gbps) | 3.8 µs |
| Noise level | 47 dB |
| Operating altitude | 0 – 3048 m |
| Heat dissipation | 1334 BTU/h |
| Latency (10-100 Mbps) | 2.3 µs |
| BPDU filtering/protection | Yes |
| Number of queues | 8 |
| IP routing | Yes |
| Latency (10 Gbps) | 3 µs |
| Switching optical modules type | 40 Gigabit Ethernet |
