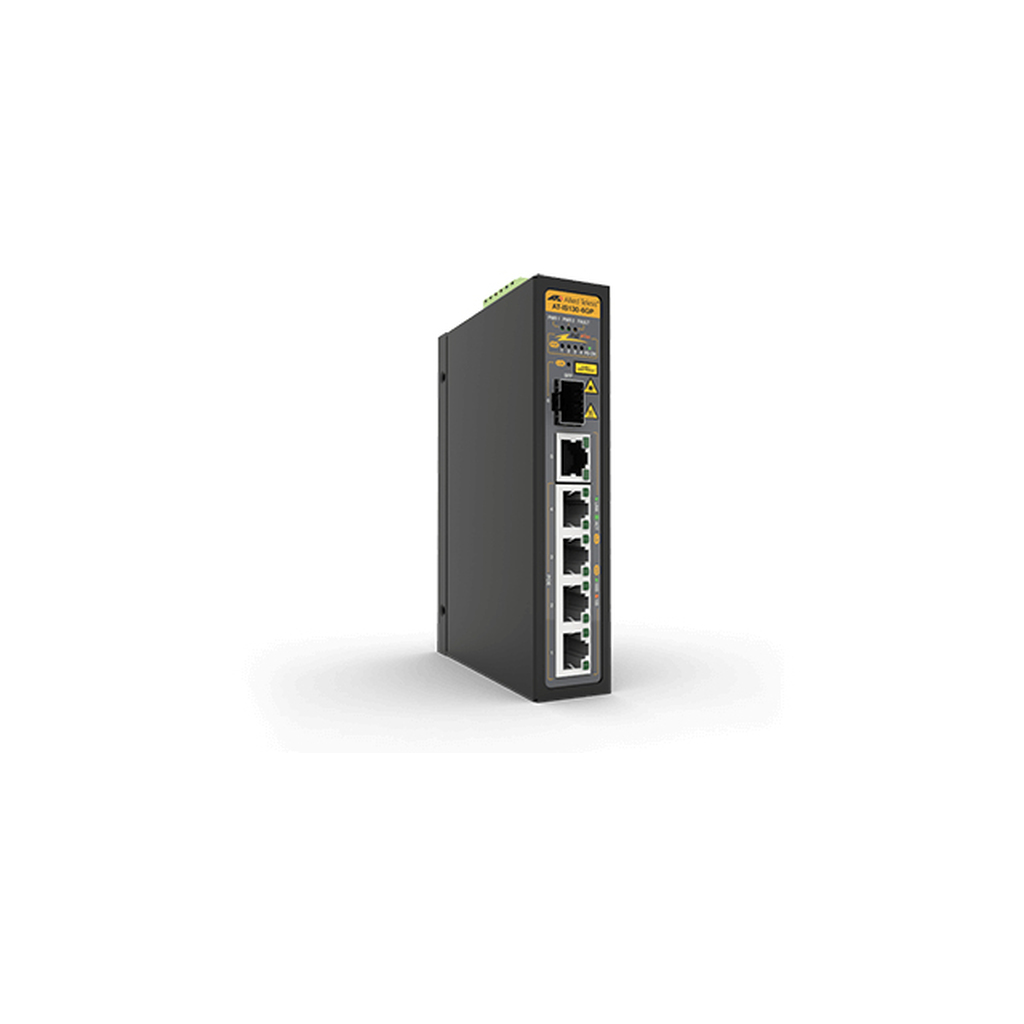

Allied Telesis IS130-6GP Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
IS130-6GP, L2, PoE+, 5x RJ-45, 1x SFP, 12 Gbps, 8.93 Mpps, 30x95x140 mm
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Intended for use in outdoor IoT, city-wide surveillance, transportation and general industrial applications, the IS130-6GP unmanaged Layer 2 switch is engineered for simple operation, easy deployment, and reliable operation in harsh environments.
– Ruggedized design that meets industrial standards for temperature, vibration and electrical noise
– Flexible deployment with a compact design, and wide operating temperature, supporting external building and other outdoor and public-space environments
– Connect and power surveillance cameras, and other IoT devices with a single Ethernet connection
– Simple plug-and-play deployment for easy network edge expansion
– Highly affordable industrial PoE solution
Additional information
| Weight | 0.68 lbs |
|---|---|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| MAC address table | 2000 entries |
| Switching capacity | 12 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| Power consumption (max) | 109.6 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 – 75 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage relative humidity (H-H) | 10 – 95% |
| Width | 30 mm |
| Depth | 95 mm |
| Height | 140 mm |
| Weight | 500 g |
| Harmonized System (HS) code | 85176990 |
| Safety | AS/NZS 62368.1 CAN/CSA C22.2 No.62368-1 EN/IEC/UL62368-1 |
| Switch layer | L2 |
| Electromagnetic compatibility | AS/NZS CISPR 32, A CAN/CSA-CISPR 22 CISPR 22; CISPR 32 EN55024; EN55032, A EN61000-6-2, IEC61000-6-4, A FCC 15B, A ICES-003, 6 A VCCI,A |
| Package weight | 700 g |
| Certification | WEEE, RoHS |
| Total Power over Ethernet (PoE) budget | 90 W |
| Forwarding rate | 8.93 Mpps |
| Wall mountable | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Operating altitude | 0 – 2000 m |
| Heat dissipation | 374 BTU/h |
| Package width | 216 mm |
| Package depth | 165 mm |
| Package height | 68 mm |
| DIN rail mounting | Yes |
| SFP module slots quantity | 1 |
| International Protection (IP) code | IP30 |
| Buffer size | 128 KB |
| DC voltage range | 48 – 54 V |
