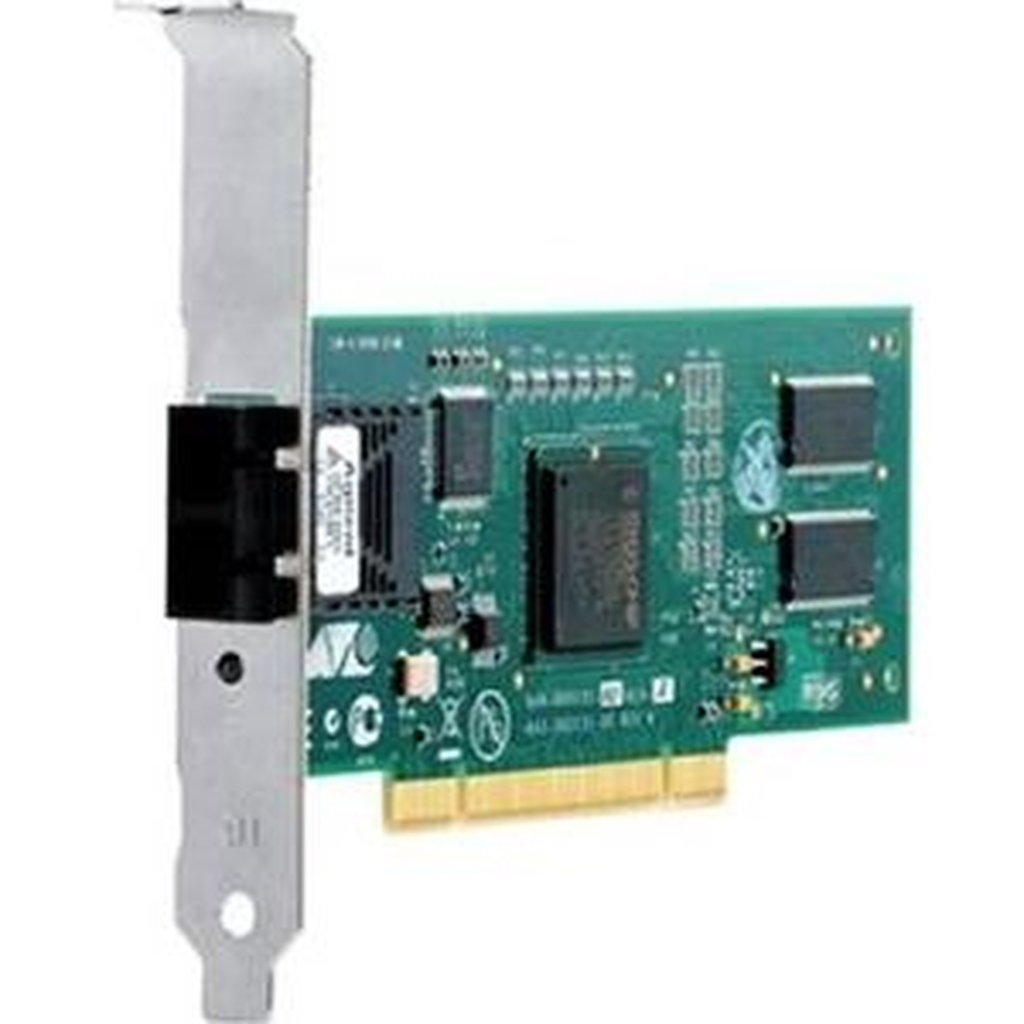

Allied Telesis AT-2911SX/SC-901 network card Internal Fiber 1000 Mbit/s
1000BASE-SX Single-port Fiber NIC for PCIe x1 bus, SC connector, Federal/Government
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Allied Telesis AT-2911 Series Network Interface Cards feature a PCI Express (PCIe x1) design, providing the maximum possible bandwidth and bus efficiency while providing the benefits of low power consumption.
High Reliability
The AT-2911 Series Gigabit interface comes with a comprehensive Microsoft Windows utility which performs detailed tests, diagnostics and analysis.
Advanced Manageability
The priority queuing offered by the AT-2911 Series can help users set up the network based on their own needs. The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a profound tool to analyze the interface card and check specific data.
Additional information
| Weight | 0.1 lbs |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Internal | Yes |
| Windows operating systems supported | Yes |
| Width | 87 mm |
| Height | 56 mm |
| Weight | 700 g |
| Maximum data transfer rate | 1000 Mbit/s |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Linux operating systems supported | Yes |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Certification | ULFCC/EN55022 ATUVEN55024CEC-TICKVCCI |
| Quality of Service (QoS) support | Yes |
| Power consumption (typical) | 9.2 W |
| Flow control support | Yes |
| Output voltage | 3.3 V |
| Fiber ethernet cabling technology | 1000BASE‑ZX |
| Management protocols | SNMP |
| Link/Act LED | Yes |
