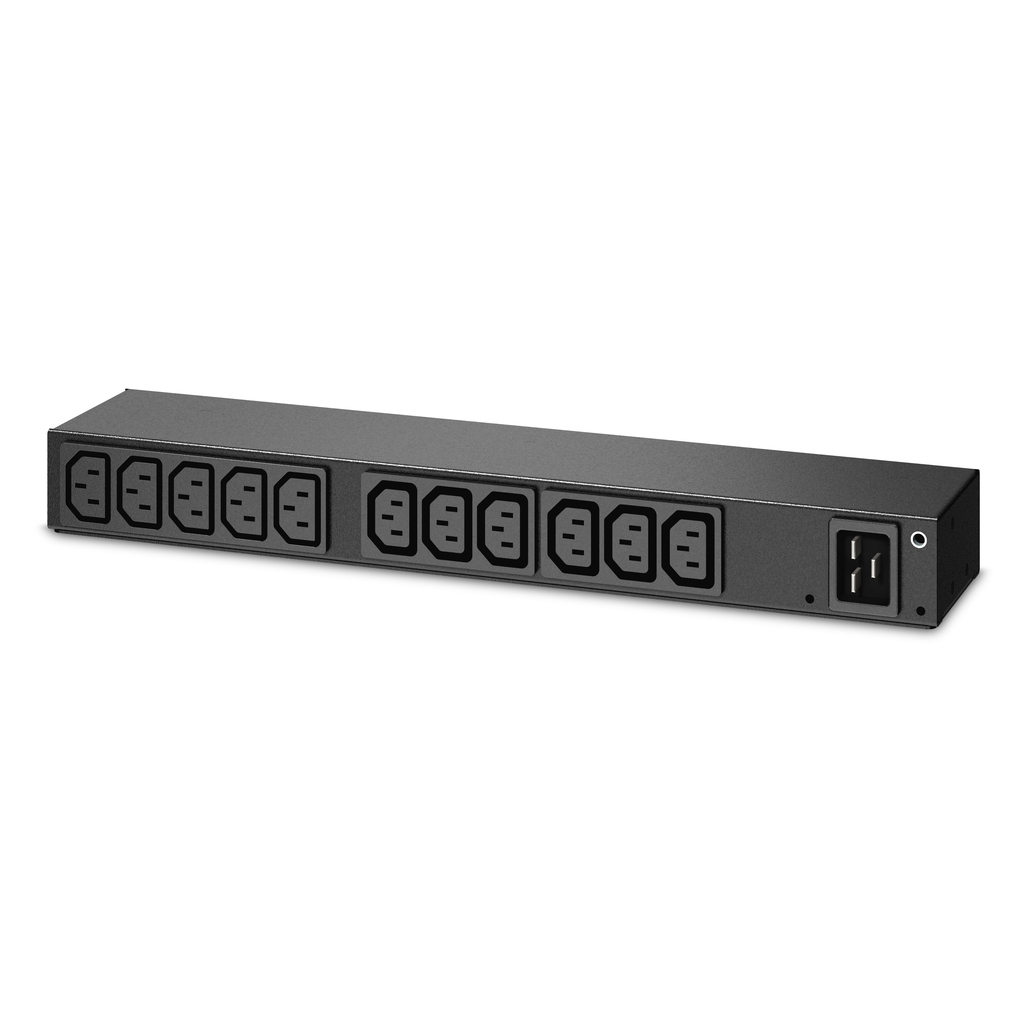

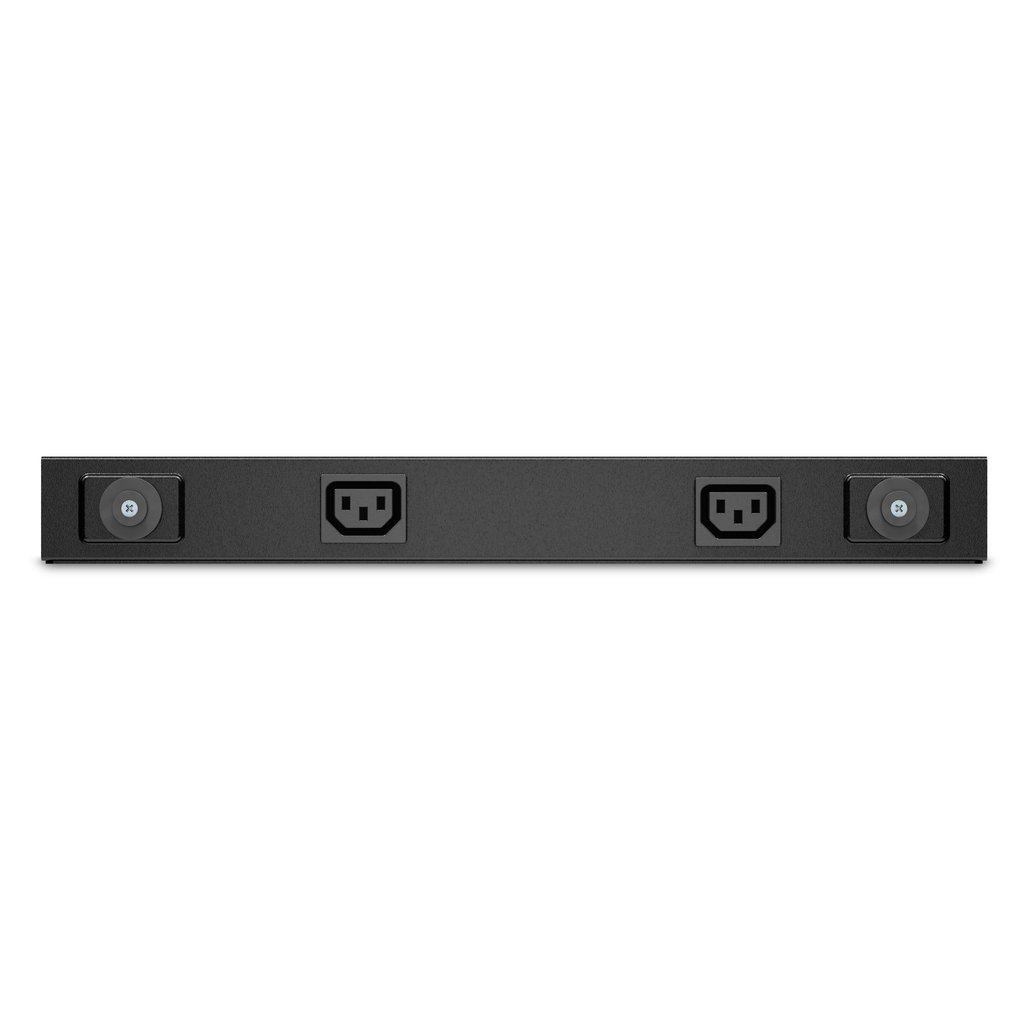

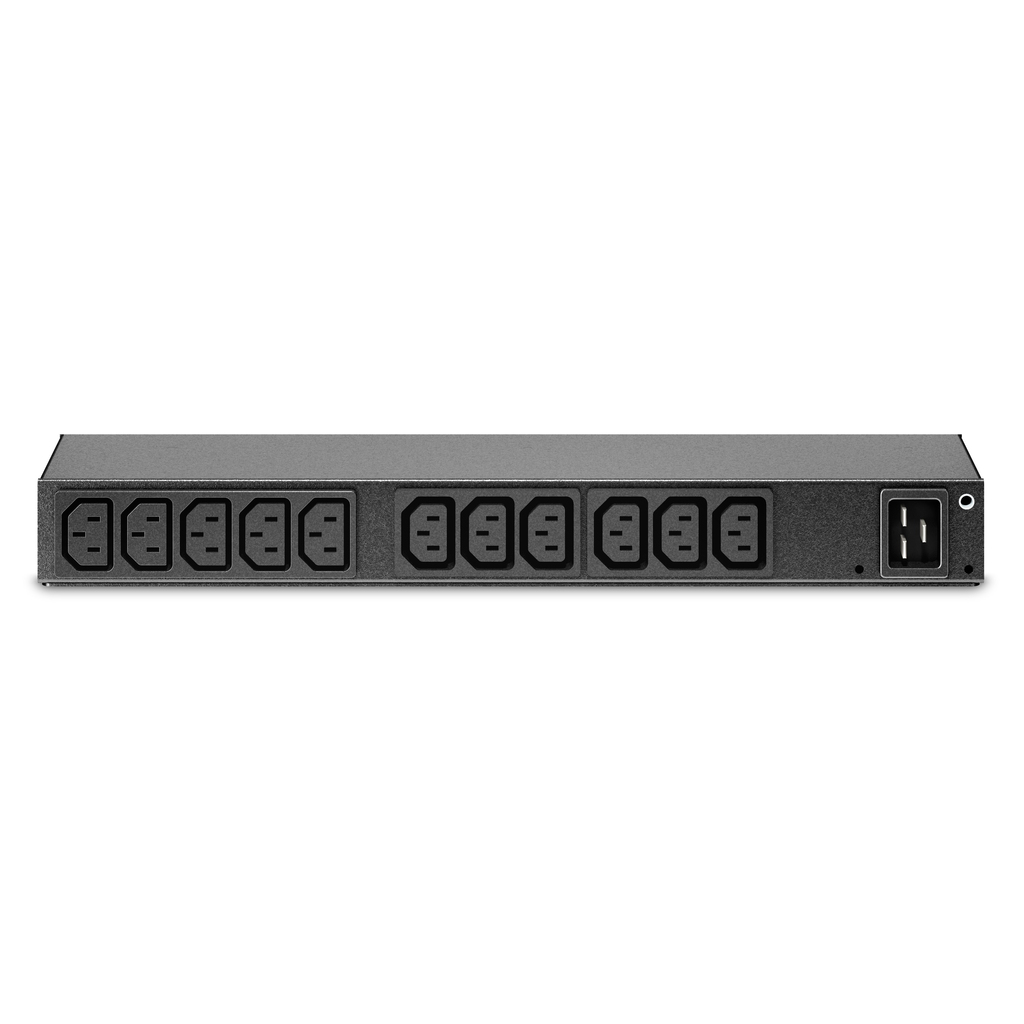

APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black
In Stock
NetShelter Basic Rack PDU, 0U, 1PH, 3.3kW, 100-240V 20A or 200-240V 16A, 13 C13 outlets, C20 inlet
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Additional information
| Weight | 1.82 lbs |
|---|---|
| PDU types | Basic |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| AC outlets quantity | 13 AC outlet(s) |
| AC outlet types | C13 coupler |
| Output connections | IEC 320 C13 |
| Nominal input voltage | 100-240 V |
| AC input frequency | 50 – 60 Hz |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 3680 W |
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -15 – 60 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 44 mm |
| Depth | 93 mm |
| Height | 388 mm |
| Weight | 1.5 kg |
| Package weight | 2.02 kg |
| Package width | 210 mm |
| Package depth | 76 mm |
| Package height | 436 mm |
| Total carbon footprint (kg of CO2e) | 38.04 |
| Maximum current | 20 A |
| Type | Single-phase |
| Power plug | C20 coupler |
| Compliance certificates | RoHS |
| Operating altitude | 0 – 3048 m |
