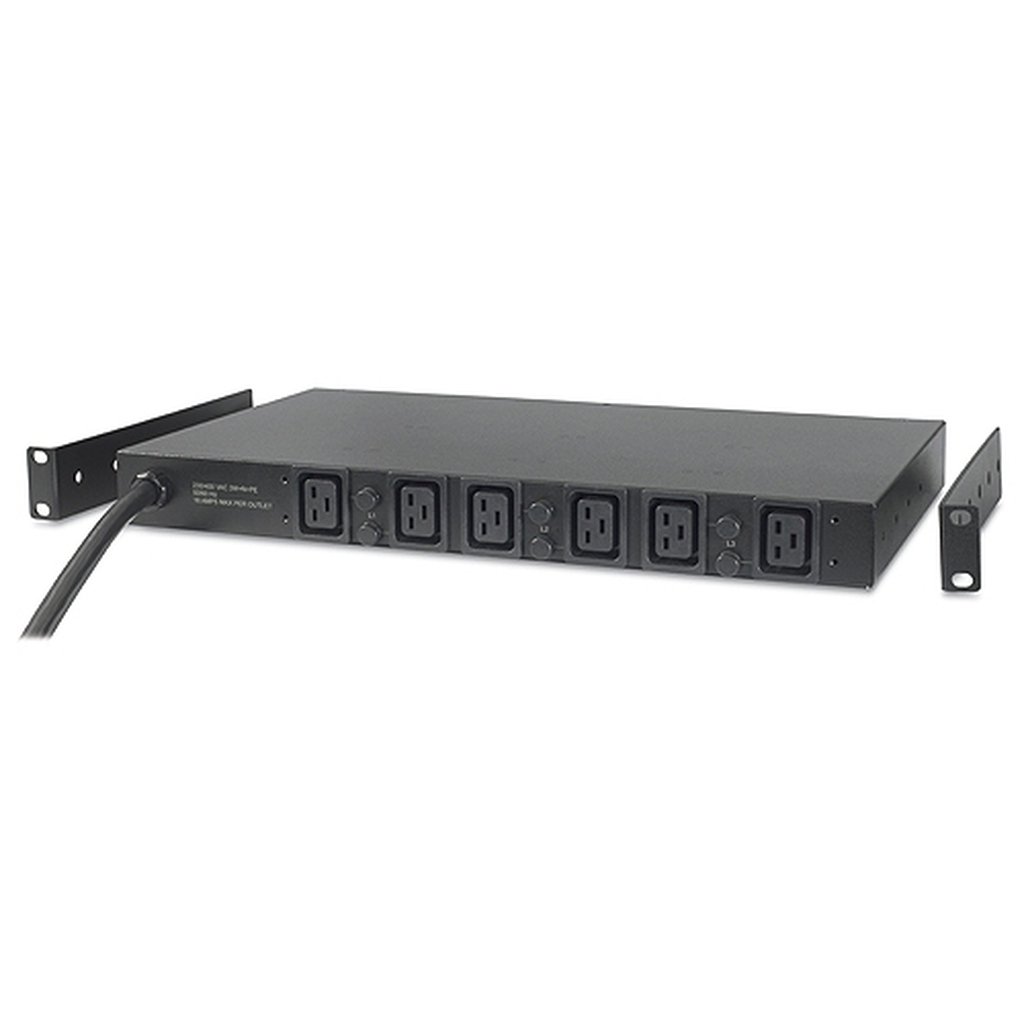

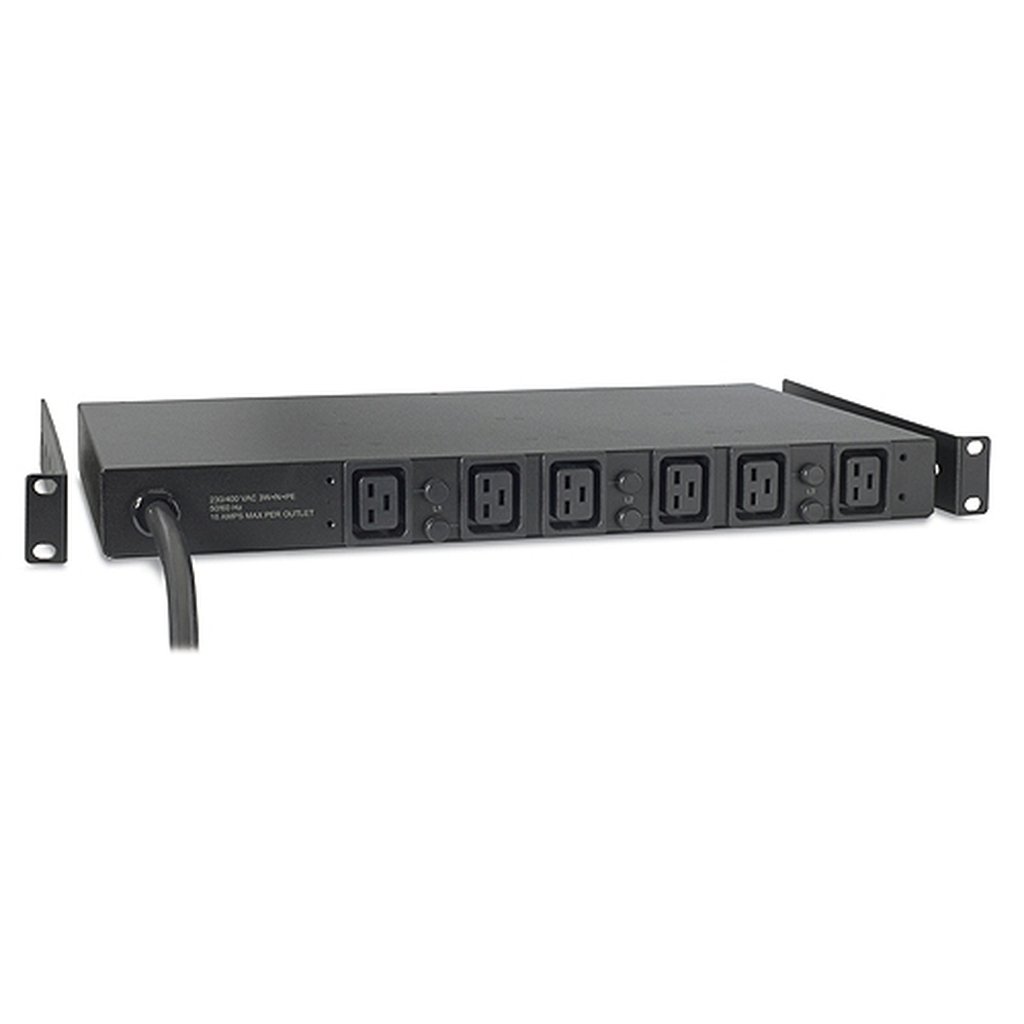

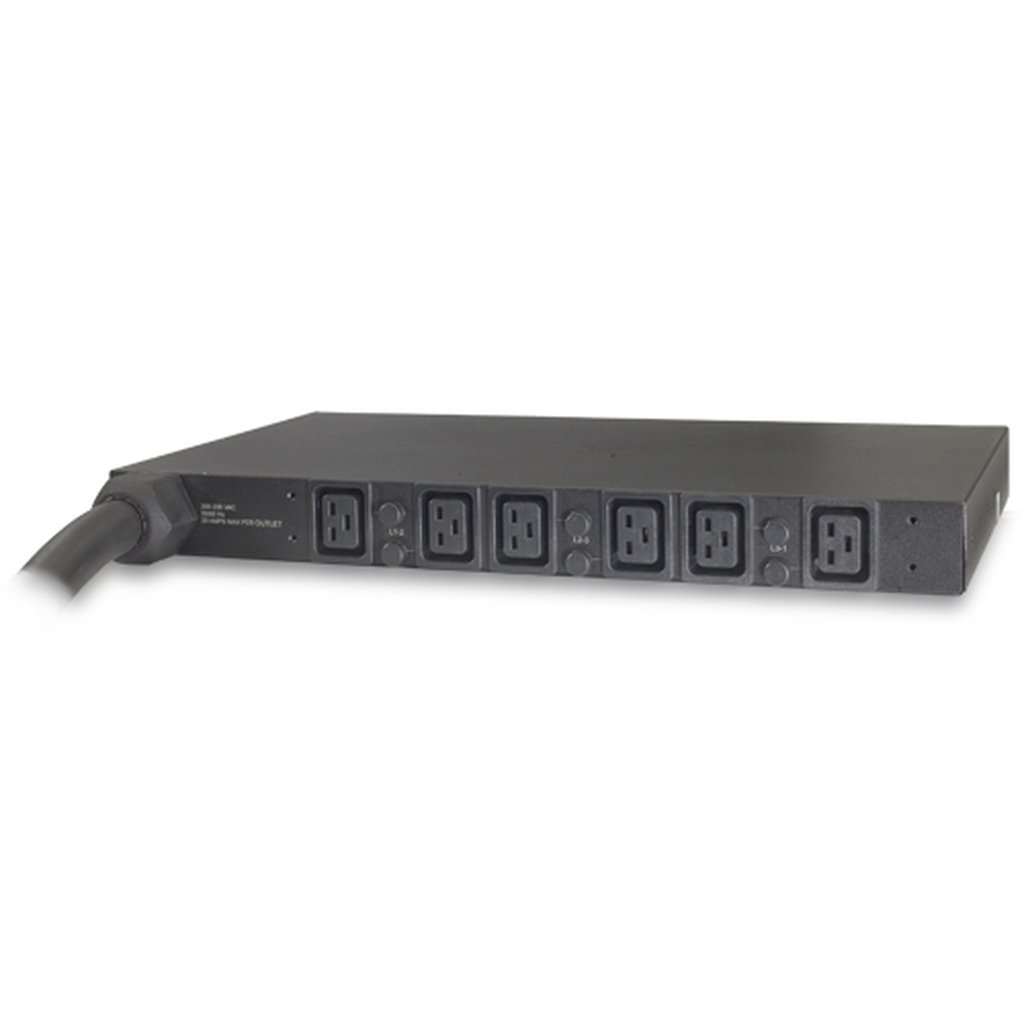

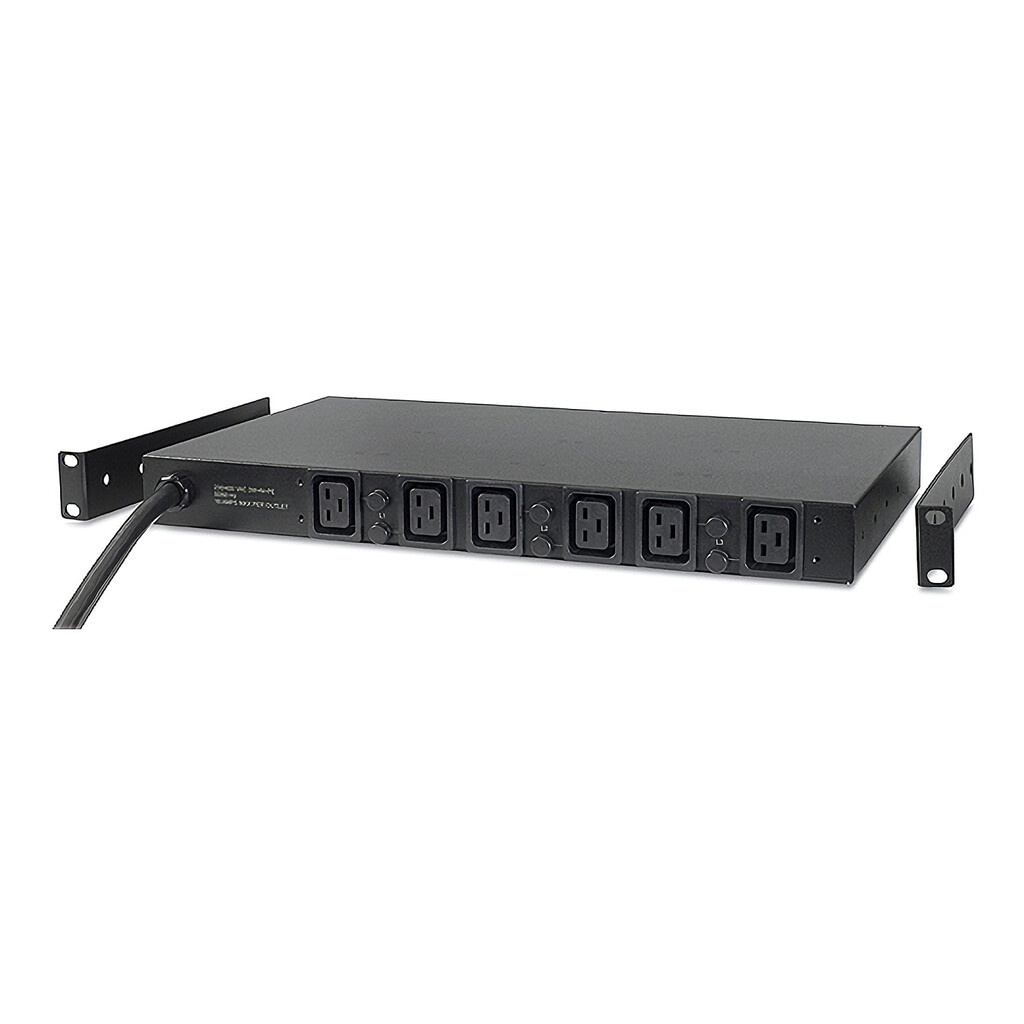

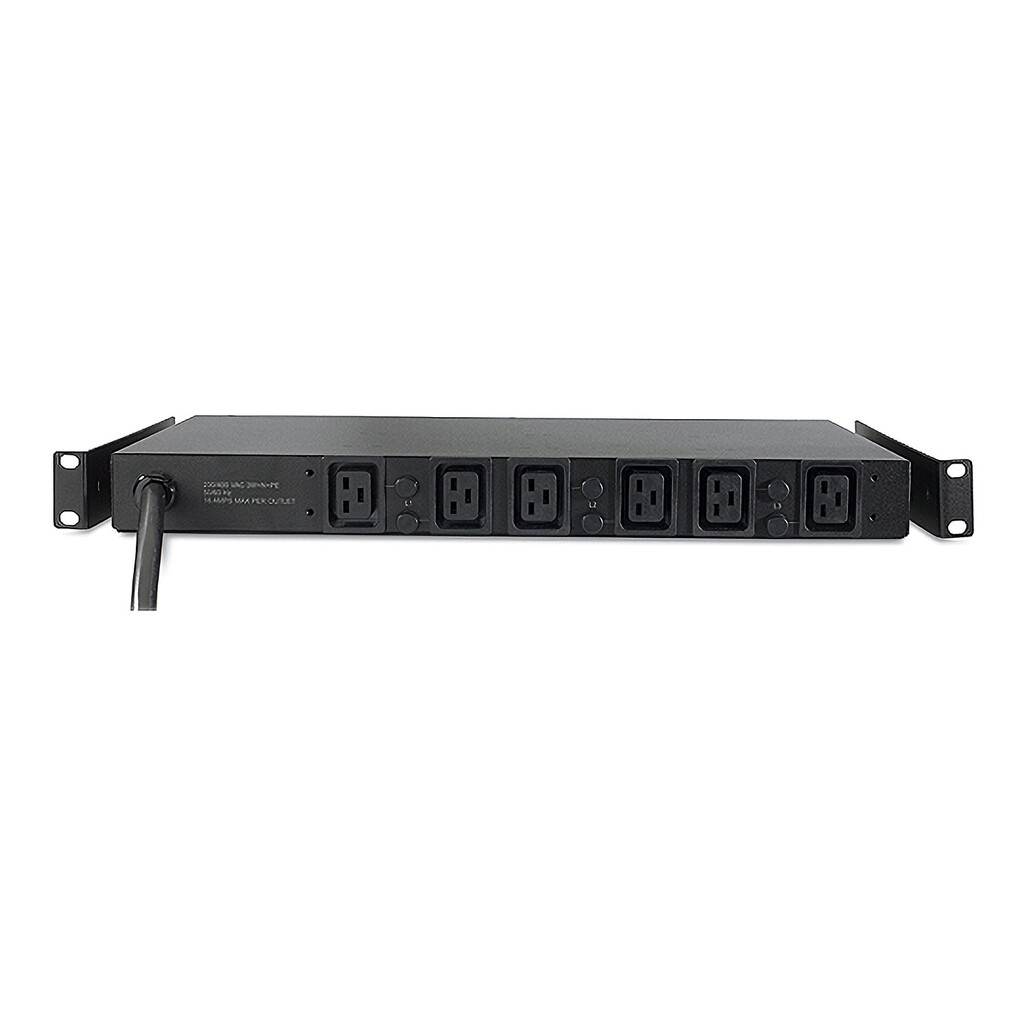

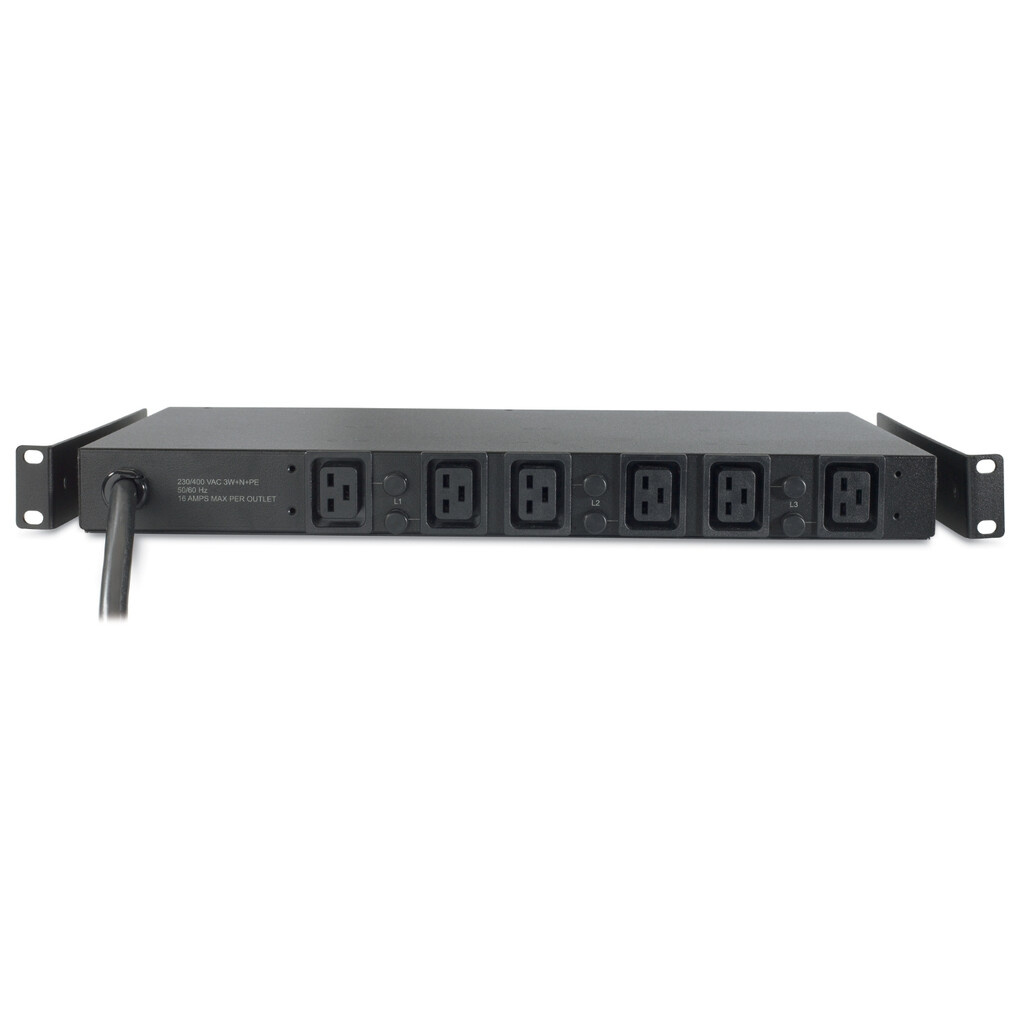

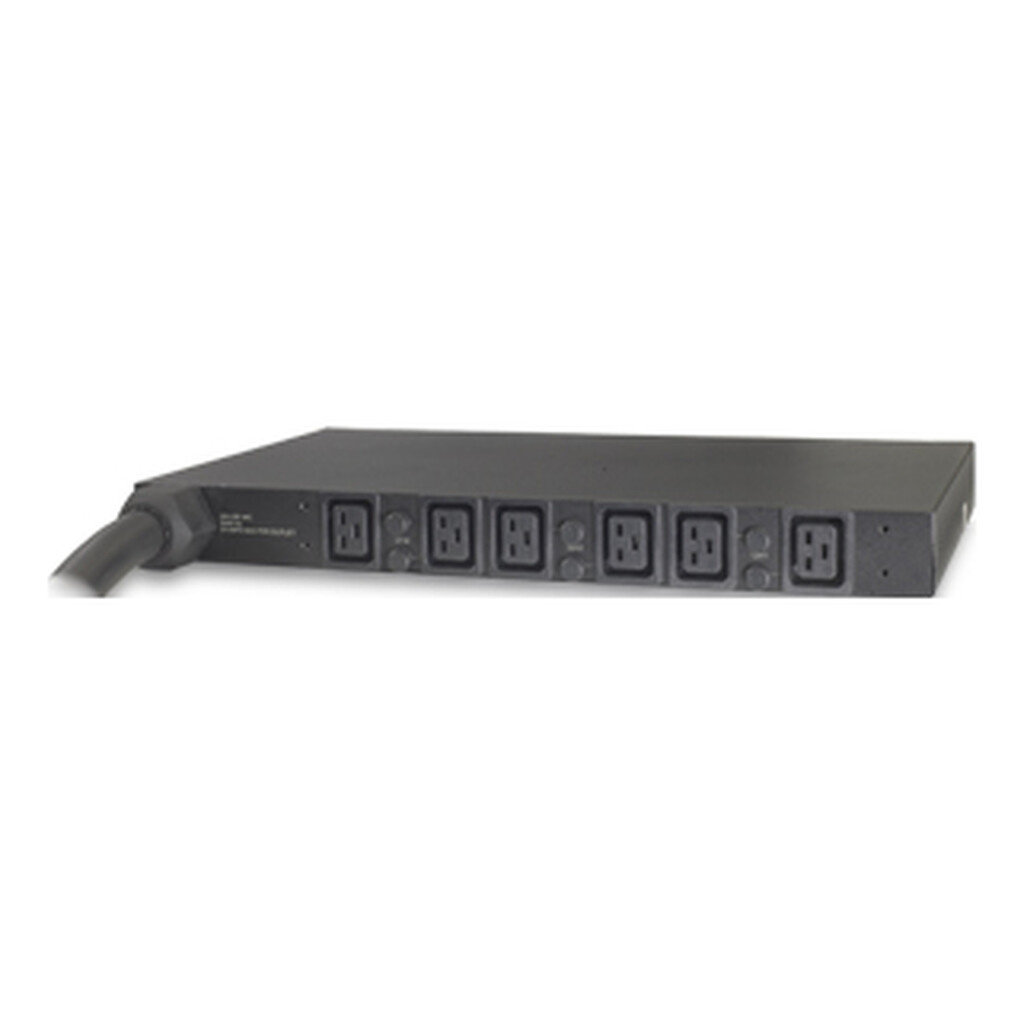

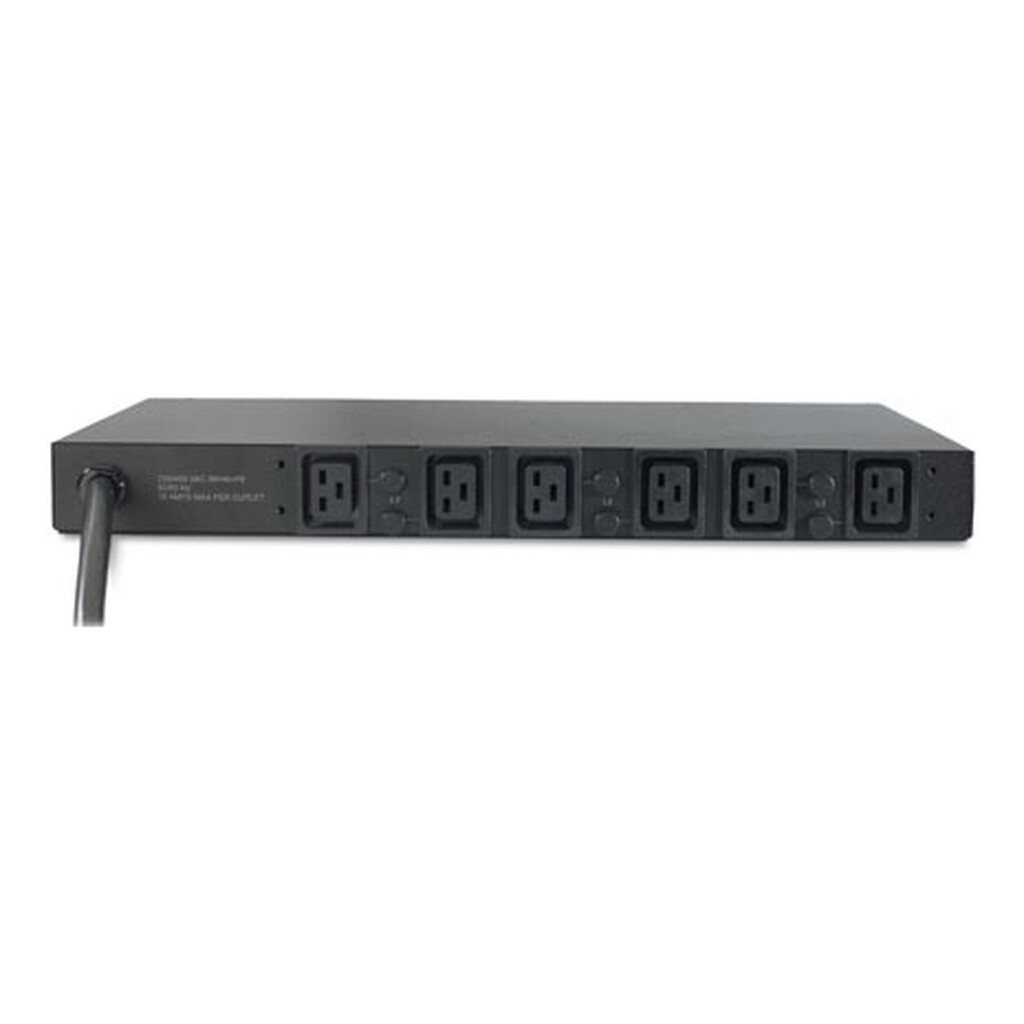

APC Basic Rack 14.4kW power distribution unit (PDU) Black
Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
-High Power Density.
-Horizontal mounting capability.

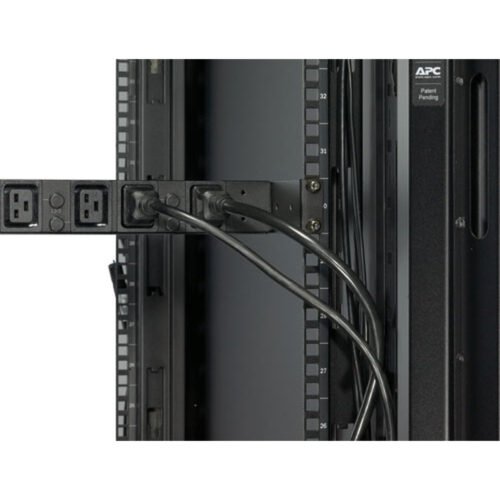

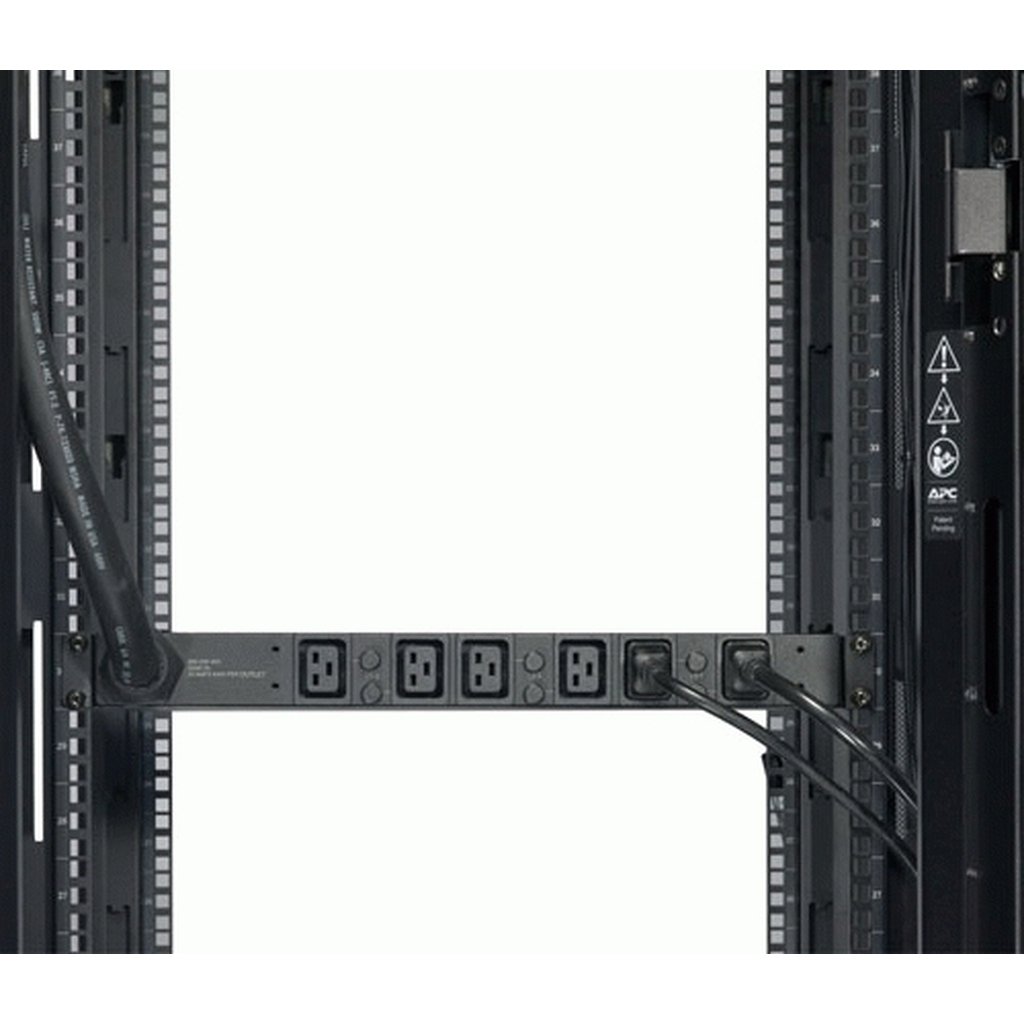

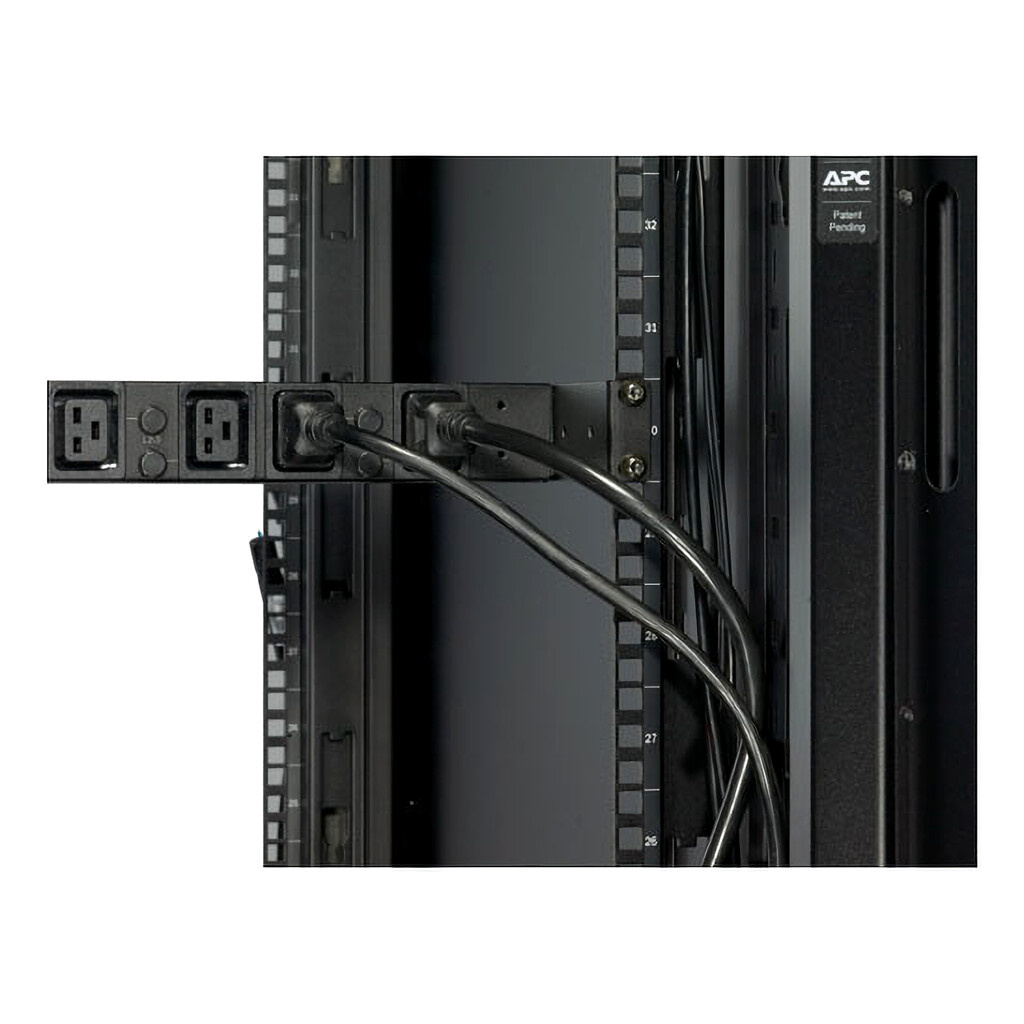

-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Additional information
| Weight | 10.72 lbs |
|---|---|
| Product colour | Black |
| Input connection type | Hubbell CS8365C |
| Output connections | (6) IEC 320 C19 |
| Nominal input voltage | 208 V |
| AC input frequency | 50 – 60 Hz |
| Maximum input current per phase | 50 A |
| Maximum total current draw per phase | 40 A |
| Operating temperature (T-T) | -5 – 45 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 437 mm |
| Depth | 254 mm |
| Height | 44 mm |
| Weight | 7.98 kg |
| Cable length | 2.44 m |
