APC Easy UPS On-Line, 1000VA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 outlets, Intelligent Card Slot, Extended runtime, W/
Easy UPS On-Line, 1000VA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 outlets, Intelligent Card Slot, Extended runtime, W/ rail kit
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 1000VA Extendeded runtime model with rail kit Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 90% efficiency in on-line double conversion mode and up to 95% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 616mm (depth) x 172mm (height) 4U in total which includes 2U Power module and 2U external battery pack. The net weighs is 36.3kg. Up to 3 external lithium-ion battery packs support at maximum. It’s ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. CB, CE, UKCA, EAC, RCM, TISI, KC, UN38.3, IEC 62040-1, IEC 62040-2 / EN IEC 62040-2, IEC 62619, IEC 60730-1 External Battery Pack, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.
Additional information
| Weight | 79 lbs |
|---|---|
| Output power capacity | 1 kVA |
| Output power | 900 W |
| Input frequency | 40 – 70 Hz |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| Battery recharge time | 8.5 h |
| Product colour | Black |
| Storage temperature (T-T) | -20 – 50 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Non-operating altitude | 0 – 15000 m |
| Certification | CB , CE, EAC, IEC 60204-2, IEC 60730-1, IEC 62040-1 safety, IEC 62619, KC, RCM, TISI, UKCA, UN 38.3, RoHS |
| Weight | 36.3 kg |
| Package weight | 48.8 kg |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Form factor | Rackmount/Tower |
| Compliance certificates | CE, RoHS, UKCA |
| Width | 438 mm |
| Depth | 616 mm |
| Height | 172 mm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output operation voltage (max) | 230 V |
| Efficiency | 90% |
| Crest factor | 3:1 |
| Noise level | 50 dB |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery technology | Lithium-Ion (Li-Ion) |

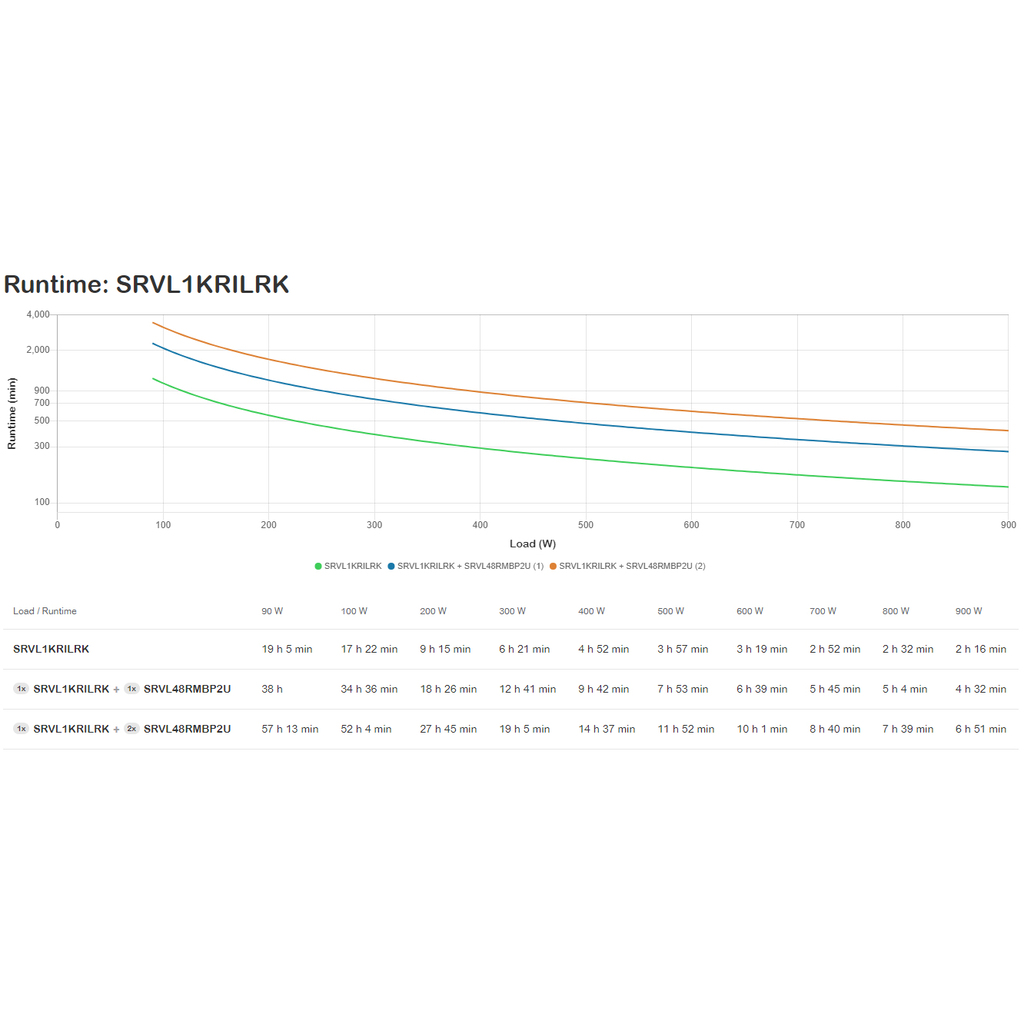

| Typical backup time at full load | 136 min |
| Typical backup time at half load | 261 min |
| Battery life (max) | 10 year(s) |
| Rack capacity | 4U |
| Display type | LCD |
| LED indicators | Yes |
| Rack mount kit | Yes |
| Cables included | Output power cable, Phone (RJ-11), RJ-45, RS-232, USB cable |
| Package width | 800 mm |
| Package depth | 600 mm |
| Package height | 480 mm |
| Surge energy rating | 945 J |
| Output frequency | 50/60 Hz |
| ECO mode | Yes |
| Battery voltage | 48 V |
| International Protection (IP) code | IP20 |
| USB port | Yes |
| USB port type | USB Type-B |
| Cooling type | Active |
| Built-in fan | Yes |
| Control type | Buttons |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Detachable power cord | Yes |
| Power source type | AC |
| Emergency Power Off (EPO) connector | Yes |
| RS-232 ports | 1 |
| Modem (RJ-11) ports | 1 |
