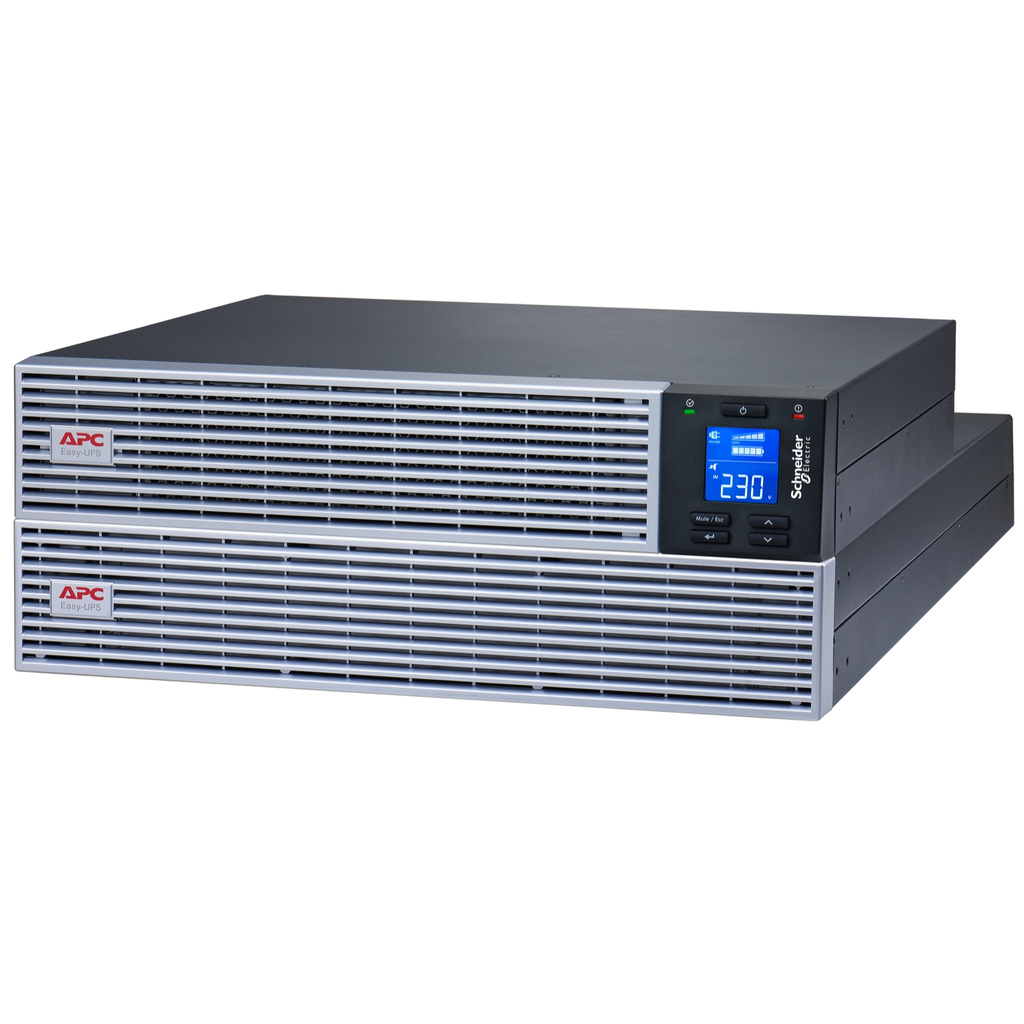

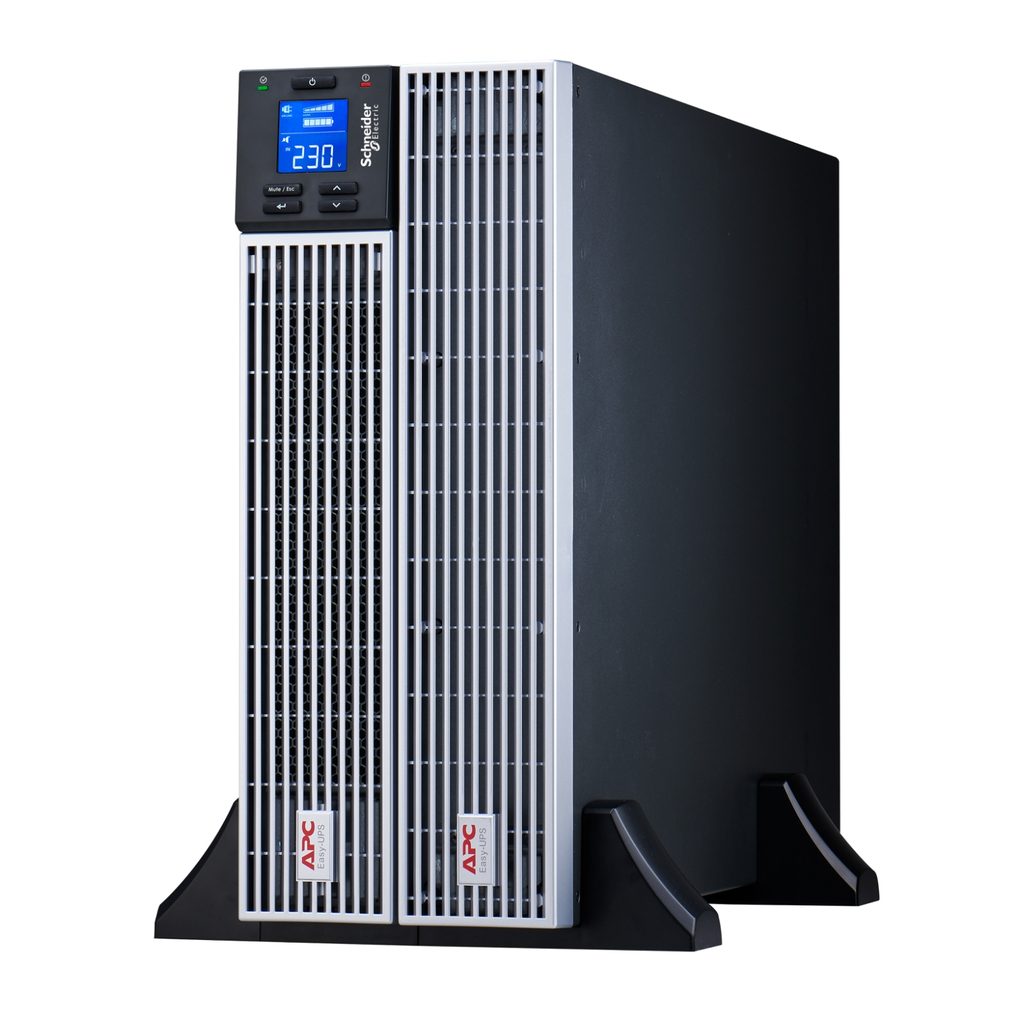

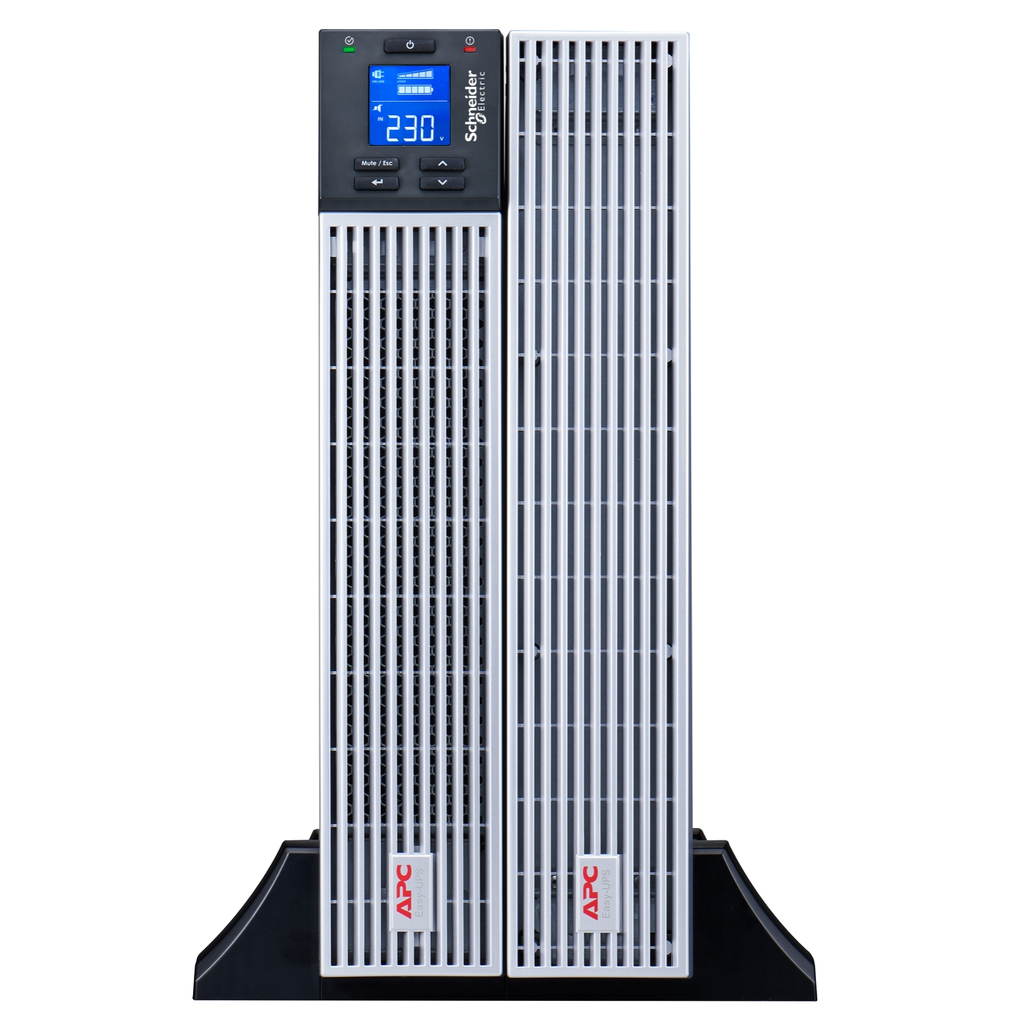

APC Easy UPS On-Line, 3kVA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 + 1 IEC C19 outlets, Intelligent Card Slot, Extended ru
Easy UPS On-Line, 3kVA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 + 1 IEC C19 outlets, Intelligent Card Slot, Extended runtime, W/ rail kit
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

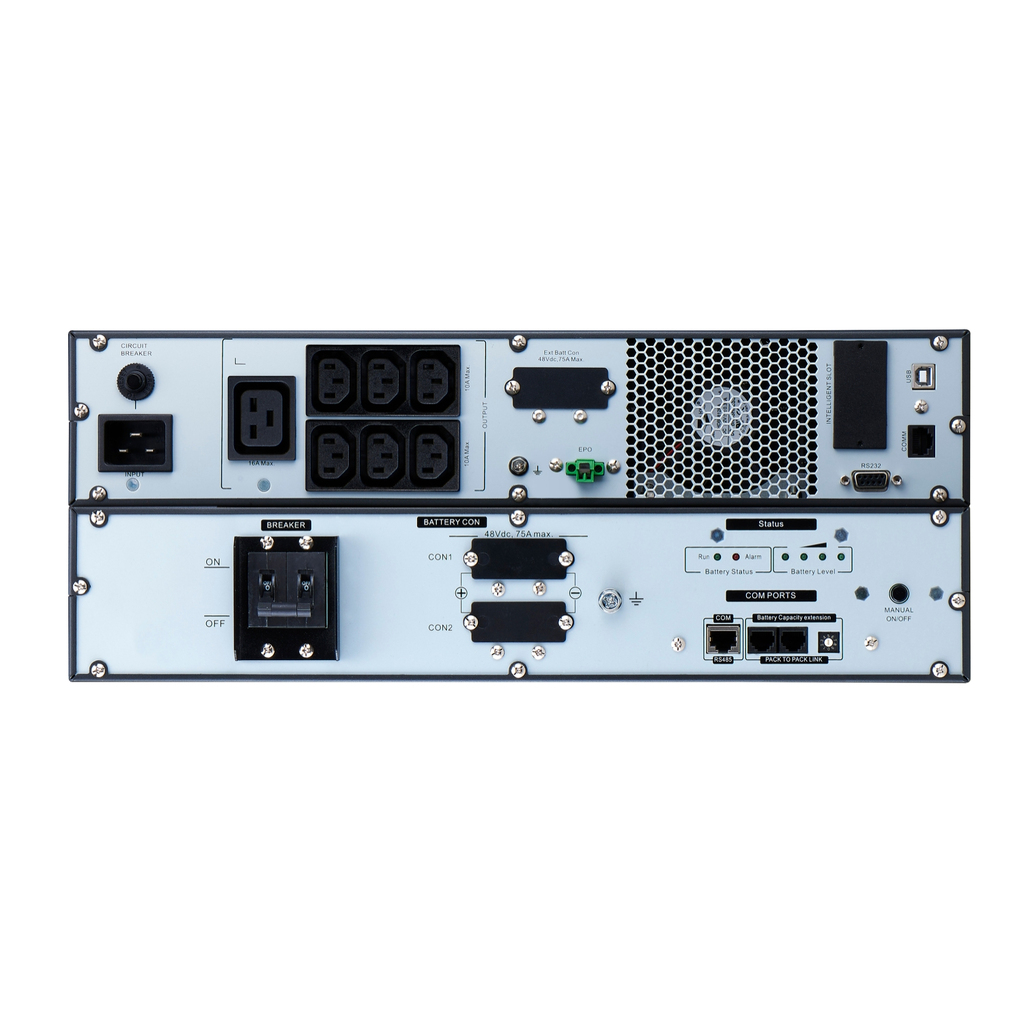

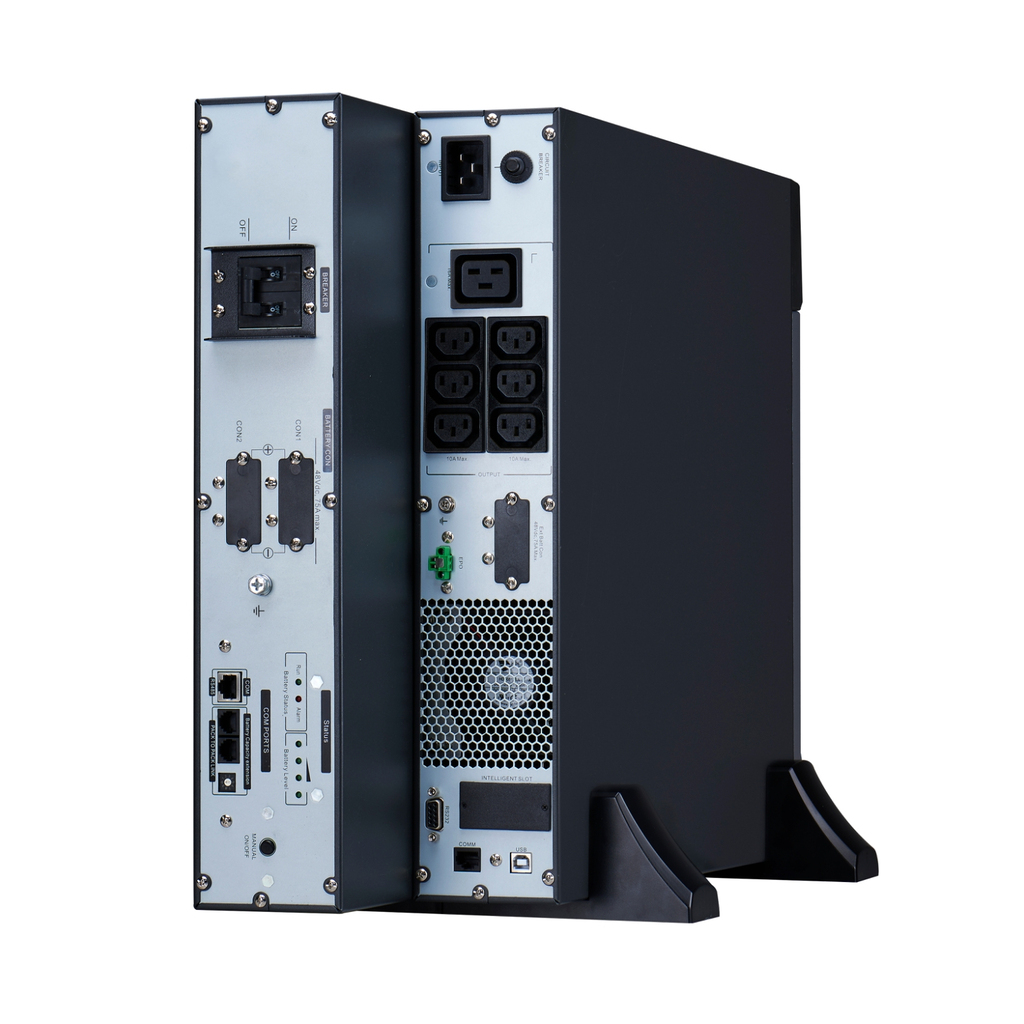

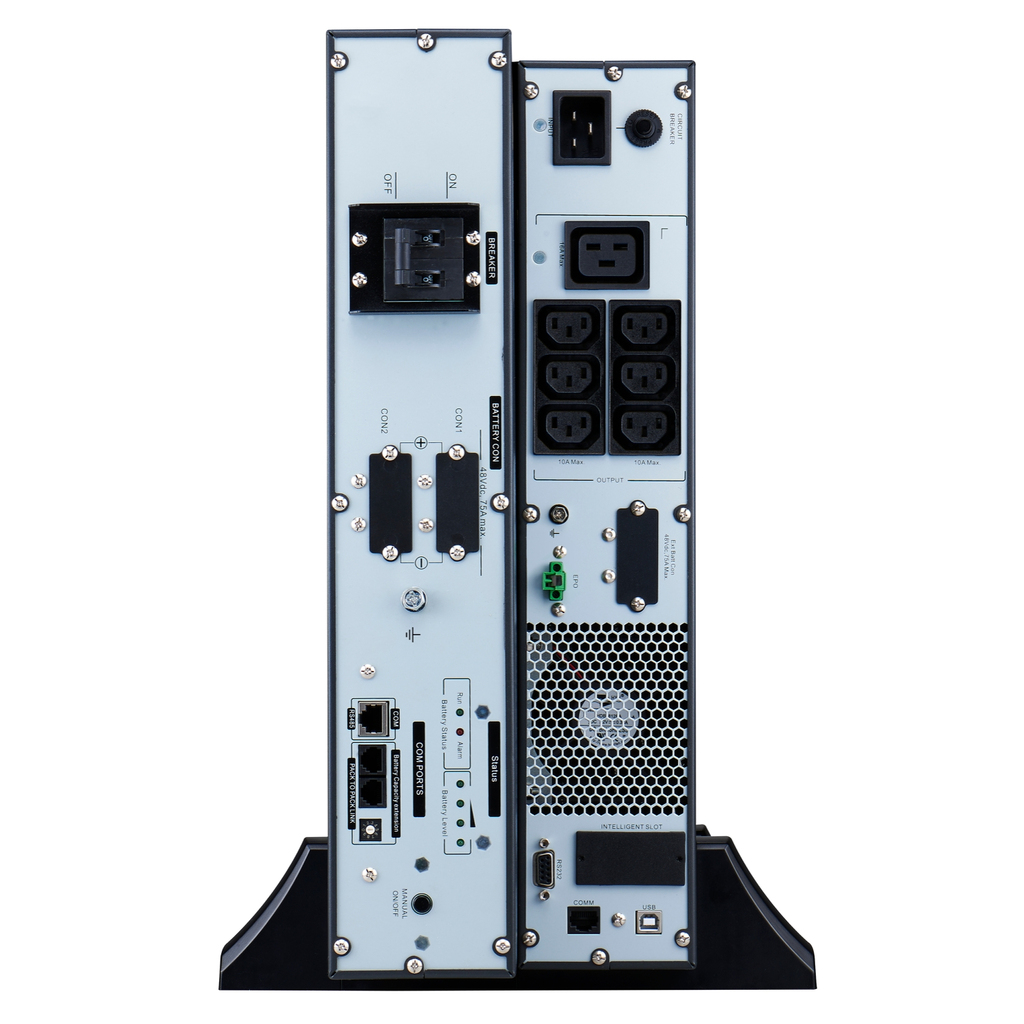

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 4U rackmount lithium-ion UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRVL comes with IEC320 C20 input, 6x IEC320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It’s ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. The UPS has a 3-year warranty and Lithium-Ion battery has a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Micro data centers, Surveillance, Server rooms, POS, and Healthcare IT. Rack/ Tower convertible design with default accessory kit.
Additional information
| Weight | 74 lbs |
|---|---|
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Input frequency | 40/70 Hz |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| Battery recharge time | 4.8 h |
| Product colour | Black |
| Storage temperature (T-T) | -20 – 50 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Non-operating altitude | 0 – 15000 m |
| Certification | CB , CE, EAC, IEC 62619, KC, RCM, TISI, UKCA, UN 38.3, RoHS |
| Weight | 38.3 kg |
| Package weight | 50.6 kg |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Form factor | Rackmount/Tower |
| Compliance certificates | CE, RoHS, UKCA |
| Width | 438 mm |
| Depth | 616 mm |
| Height | 172 mm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output operation voltage (max) | 230 V |
| Efficiency | 90% |
| Crest factor | 3:1 |
| Noise level | 50 dB |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 7 AC outlet(s) |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery technology | Lithium-Ion (Li-Ion) |

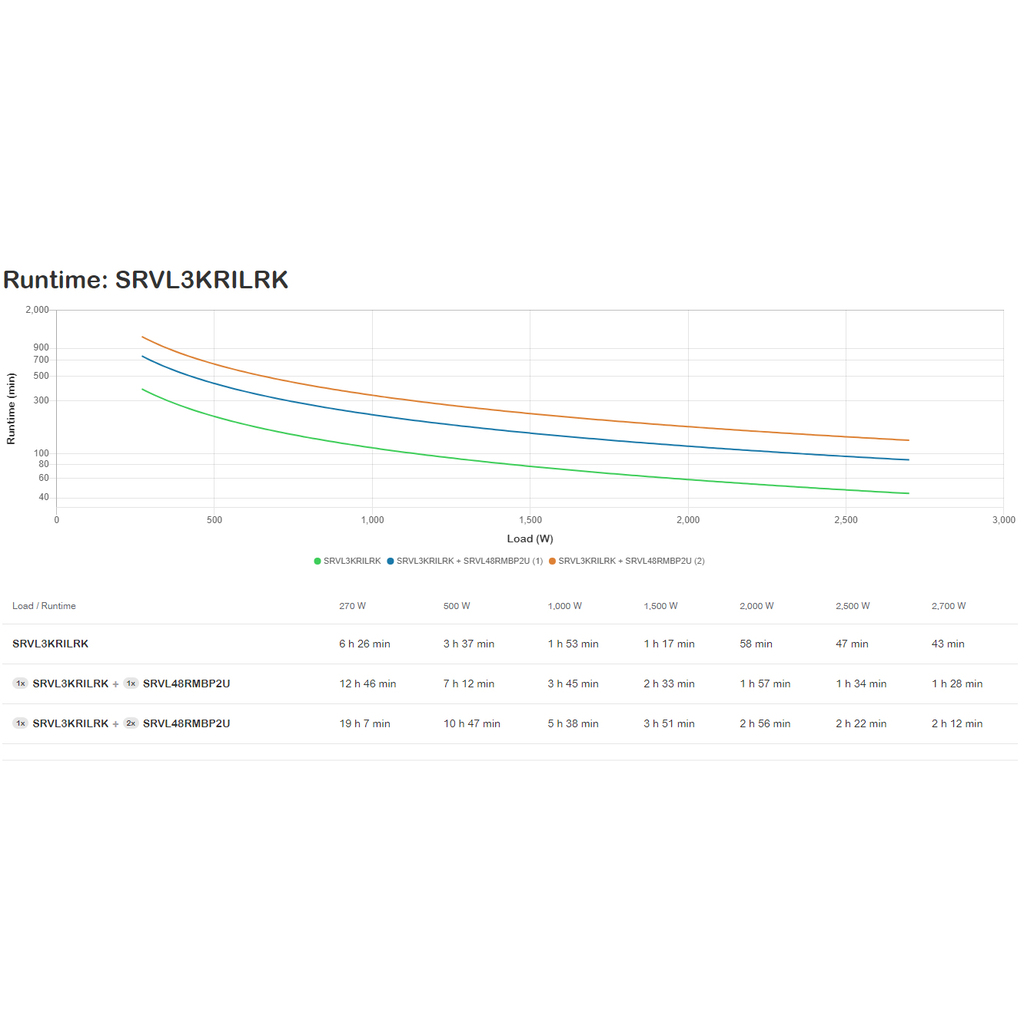

| Typical backup time at full load | 45 min |
| Typical backup time at half load | 88 min |
| Battery life (max) | 10 year(s) |
| Rack capacity | 4U |
| Display type | LCD |
| Rack mount kit | Yes |
| Cables included | Phone (RJ-11), Power load cable, RJ-45, RS-232, USB cable |
| Manual | Yes |
| Package width | 800 mm |
| Package depth | 600 mm |
| Package height | 480 mm |
| Surge energy rating | 945 J |
| Output frequency | 50/60 Hz |
| ECO mode | Yes |
| Battery voltage | 48 V |
| International Protection (IP) code | IP20 |
| USB port | Yes |
| Cooling type | Active |
| Built-in fan | Yes |
| Control type | Buttons |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Detachable power cord | Yes |
| Power source type | AC |
| RS-232 ports | 1 |
| Modem (RJ-11) ports | 1 |
