APC SRV3KI uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2400 W 6 AC outlet(s)
SRV 2000VA, 230 Vac, 40 – 70 Hz, 2000 VA / 1600 W, 220 Vac, 240 Vac, 88% max, 48 V
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

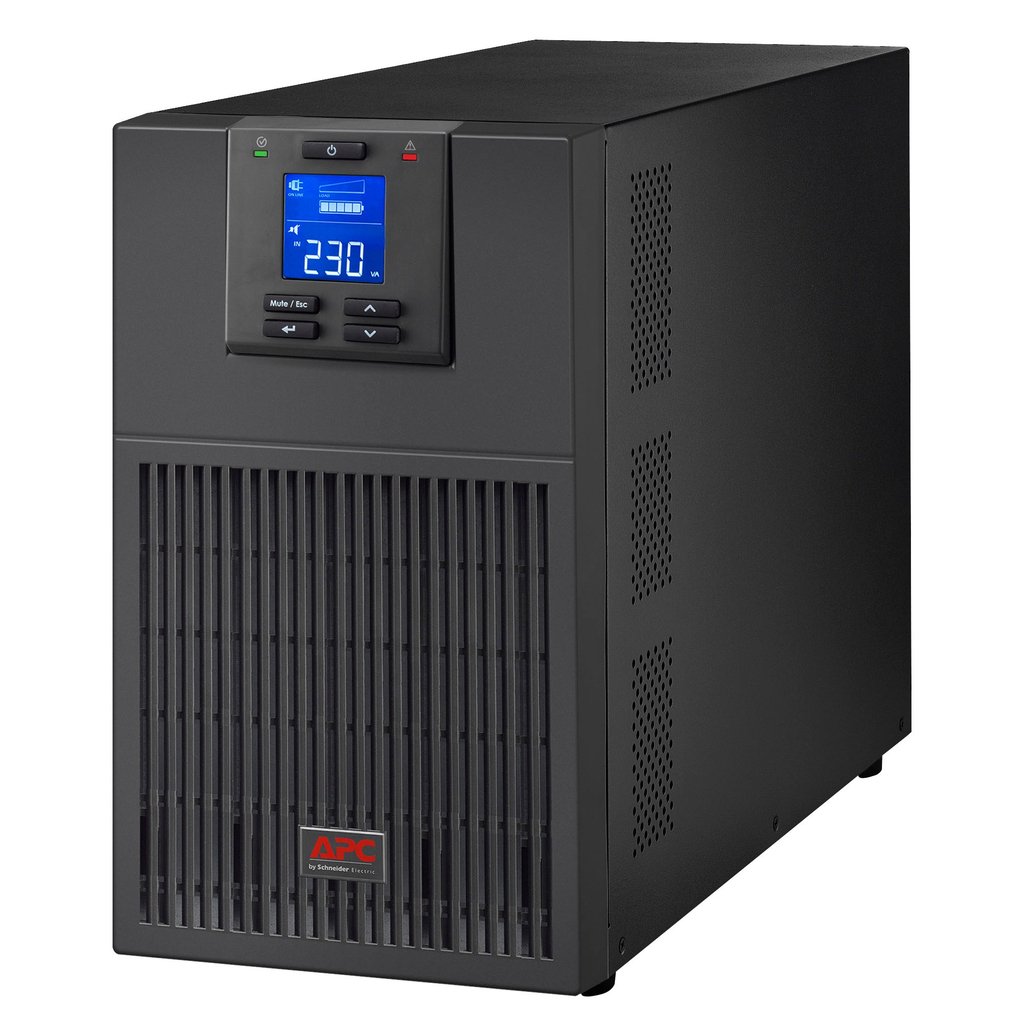

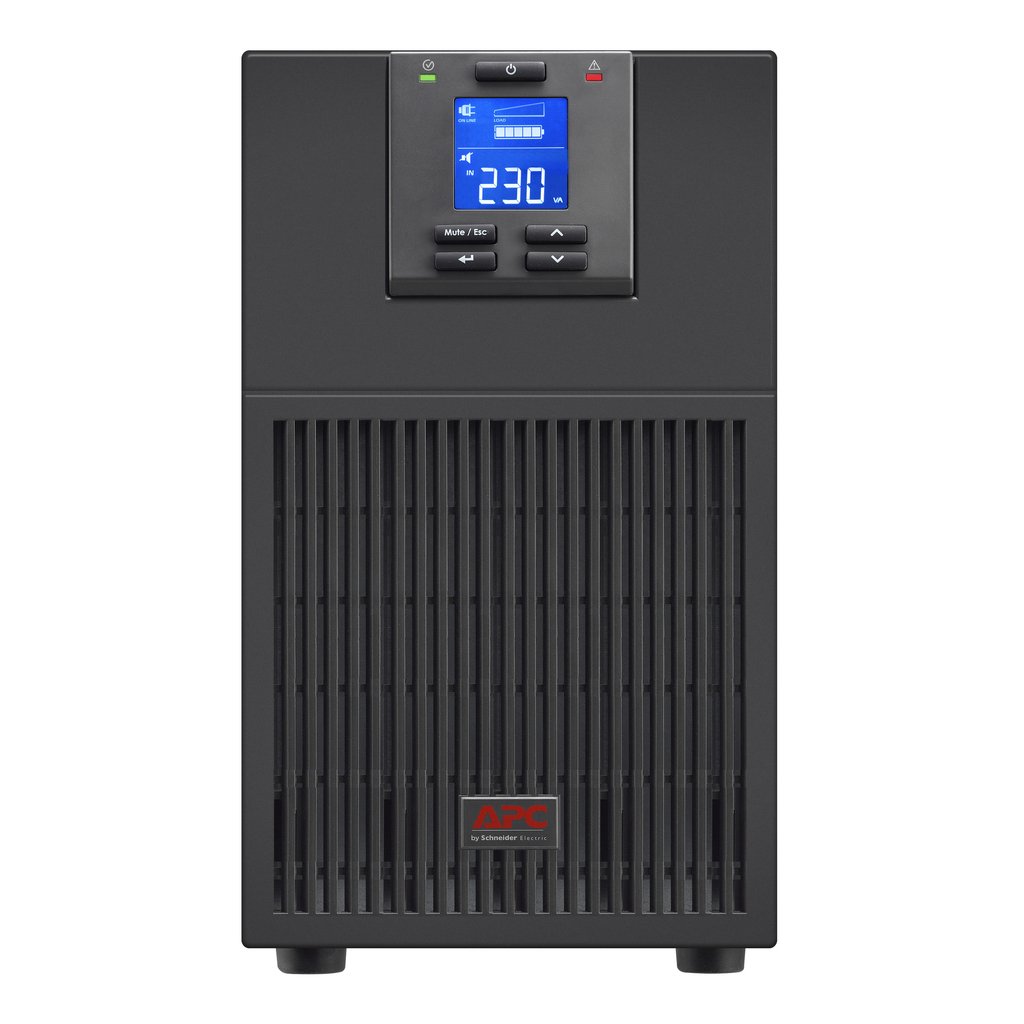

APC Easy UPS SRV 3000VA 230V
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Additional information
| Weight | 29 lbs |
|---|---|
| Operating relative humidity (H-H) | 0 – 95% |
| Output power capacity | 3 kVA |
| Output power | 2400 W |
| Input frequency | 40 – 70 Hz |
| Emergency Power Off (EPO) | No |
| Battery recharge time | 4 h |
| Product colour | Black |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 50 °C |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Weight | 26.8 kg |
| Harmonized System (HS) code | 85078000 |
| Package weight | 29 kg |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 285 V |
| Form factor | Mini Tower |
| Width | 190 mm |
| Depth | 425 mm |
| Height | 336 mm |
| UPS topology | Double-conversion (Online) |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 88% |
| Crest factor | 3:1 |

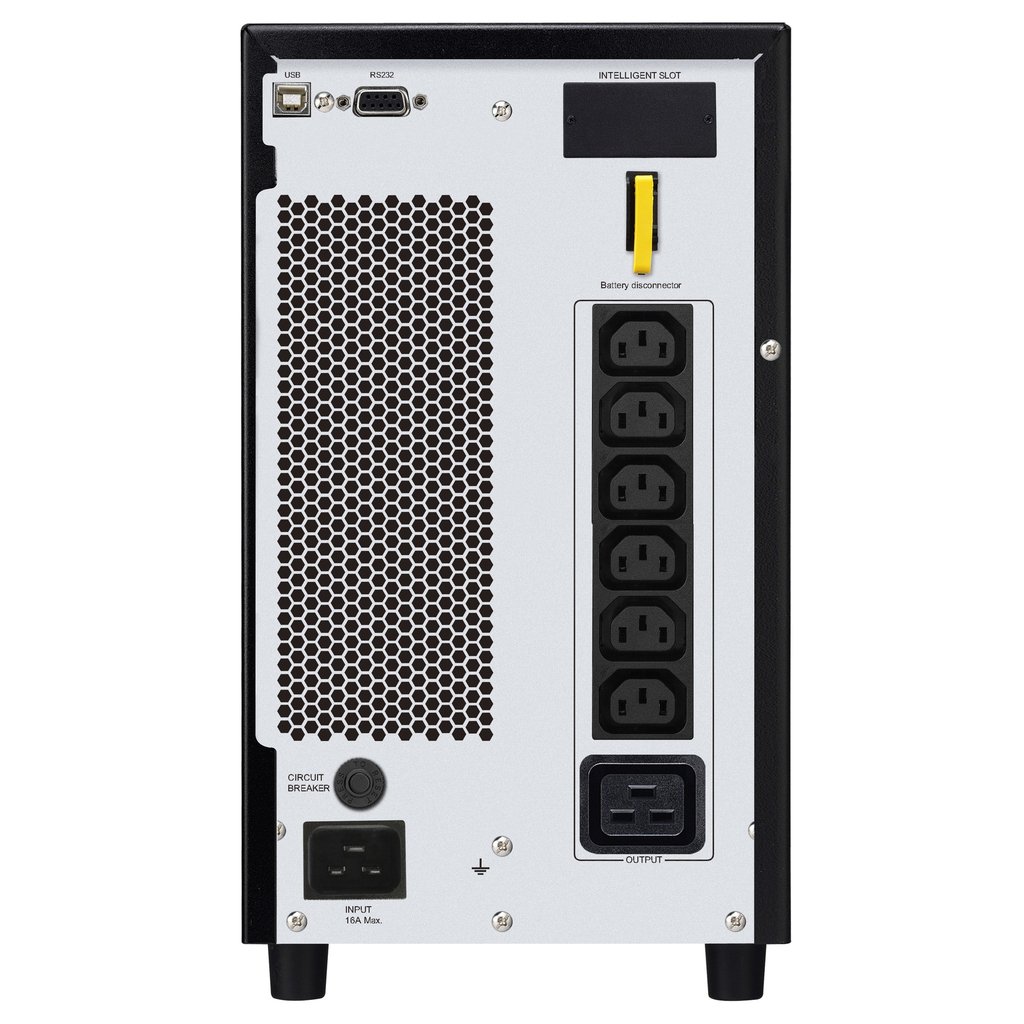

| AC outlet types | C13 coupler |
| Power plug | C19 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Battery capacity | 48 VAh |
| Display type | LCD |
| Cables included | Input power cable, Output power cable, RS-232, USB cable |
| Manual | Yes |
| Software CD | Yes |
| Package width | 325 mm |
| Package depth | 565 mm |
| Package height | 465 mm |
| Surge energy rating | 600 J |
| Battery voltage | 12 V |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Number of batteries supported | 1 |
| RS-232 ports | 1 |
| Socket circuit breaker | Yes |
| Warranty card | Yes |
