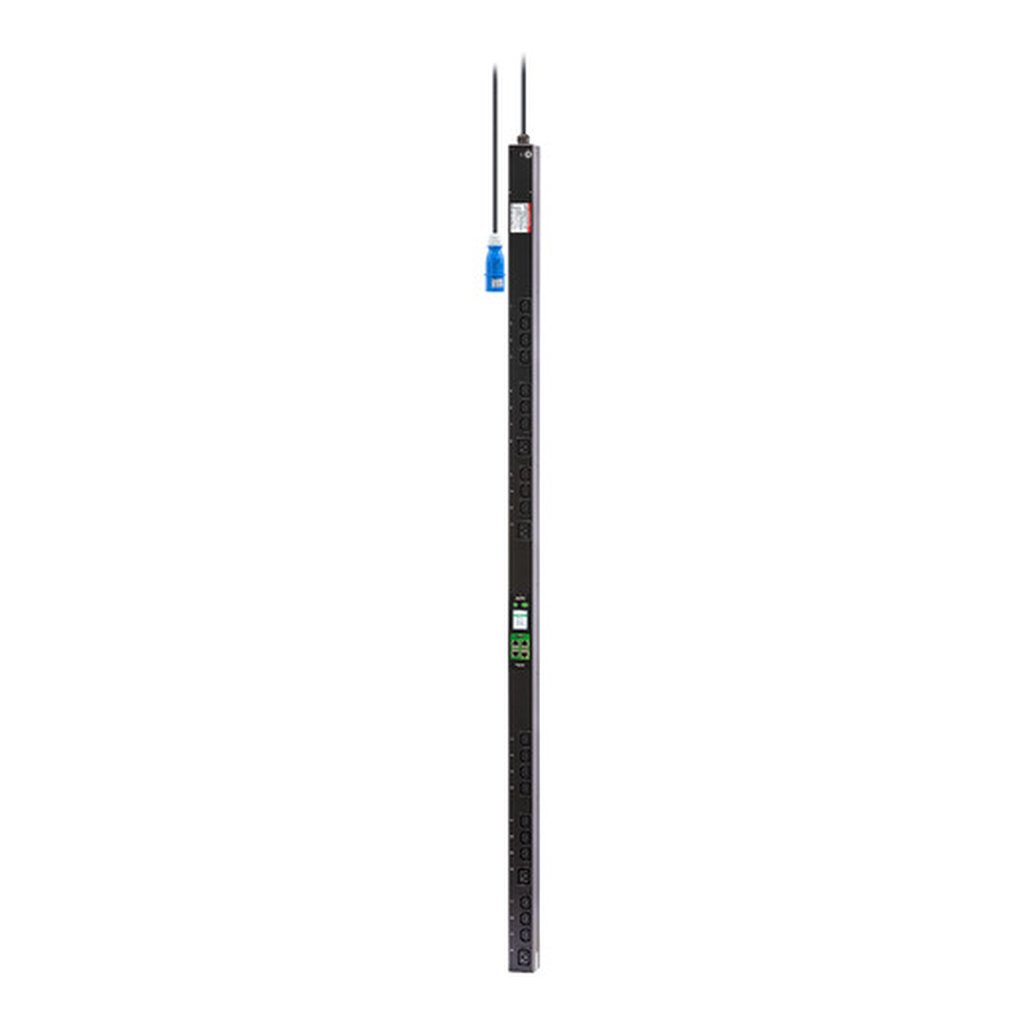

APC Easy Rack PDU, Metered Outlet, 0U, 1 Phase, 3.7kW, 230V, 16A, (20) C13 and (4) C19 outlets, IEC60309 2P+E inlet
Easy Rack PDU, Metered Outlet, 0U, 1 Phase, 3.7kW, 230V, 16A, (20) C13 and (4) C19 outlets, IEC60309 2P+E inlet
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Easy Metered-by-outlet rack PDU EPDU2116MBO provides detailed energy analysis for individual outlets, enabling better capacity planning and resource allocation. The APC Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2116MBO is designed for single phase applications of upto 3.7kw and industry standards of 1% metering accuracy. This comes with IEC 60309 16A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost. Environmental monitoring ports for external temperature/humidity monitoring is available (sensor sold separately).
Additional information
| Weight | 7.54 lbs |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Nominal input voltage | 230 V |
| AC input frequency | 50/60 Hz |
| Operating temperature (T-T) | -5 – 50 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 55 mm |
| Depth | 56 mm |
| Height | 1800 mm |
| Weight | 6.37 kg |
| Package weight | 7.54 kg |
| Package width | 195 mm |
| Package depth | 130 mm |
| Package height | 2030 mm |
| Maximum current | 16 A |
| Type | Single-phase |
| Power plug | IEC 60309 |
| Operating altitude | 0 – 15000 m |
| Housing material | Metal |
| Display | LCD |
| Output voltage | 200-240 V |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
