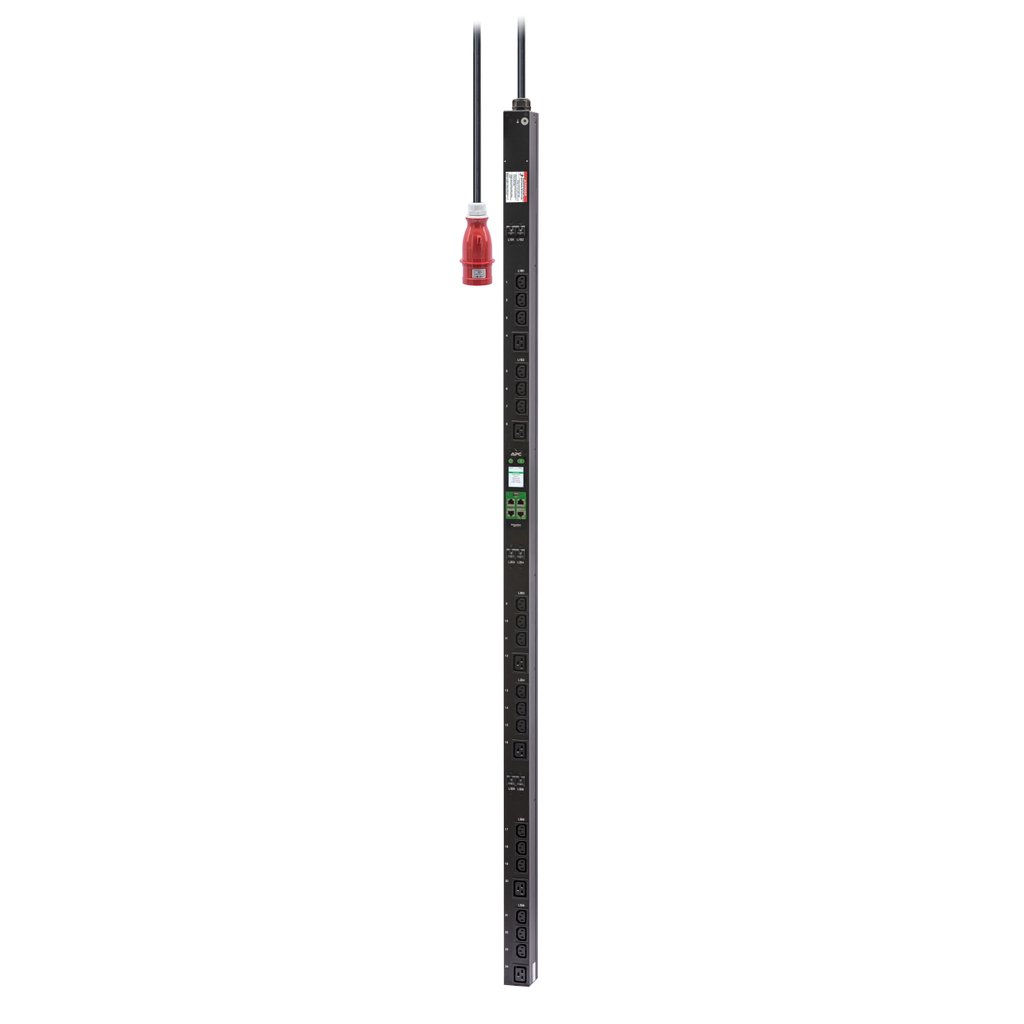

APC Easy Rack PDU, Metered Outlet, 0U, 3 Phase, 22kW, 230V, 32A, (18) C13 and (6) C19 outlets, IEC60309 3P+N+PE inlet
Easy Rack PDU, Metered Outlet, 0U, 3 Phase, 22kW, 230V, 32A, (18) C13 and (6) C19 outlets, IEC60309 3P+N+PE inlet
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Easy Metered-by-outlet rack PDU EPDU2232MB provides detailed energy analysis for individual outlets, enabling better capacity planning and resource allocation. The Network Management Card NMC3 provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through a Network Management Card (NMC3) and can be accessed and configured via Web, SNMP, and Command Line Interface. EPDU2232MBO is designed for three phase applications of upto 22kw and industry standards of 1% metering accuracy. This comes with IEC 603093 32A 3P+N+PE type inlet, eighteen IEC C13 and six IEC C19 type outlet sockets. It features an ultra-lightweight aluminum housing, offering up to 50% weight reduction, along with environmental monitoring and an all-new improved display module. Vertical mounting capabilities allow users to mount the units in a rack or enclosure in zero U space without expending valuable rack space This is designed to operate within a temperature range of -5°C to +50°C and is backed by a standard 2-year warranty. The rack PDU supports daisy-chain of up to 4 PDUs on a single IP address, thereby reducing networking cost. Environmental monitoring ports for external temperature/humidity monitoring is available (sensor sold separately).
Additional information
| Weight | 9.8 lbs |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 32 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Monitoring | Current, Power, Voltage |
| Nominal input voltage | 400 V |
| AC input frequency | 50/60 Hz |
| Load capacity | 22000 VA |
| Maximum power | 22000 W |
| Certification | CE, TUV, EN 62368-1, RCM, UKCA |
| Operating temperature (T-T) | -5 – 50 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 55 mm |
| Depth | 56 mm |
| Height | 1800 mm |
| Weight | 8.38 kg |
| Package weight | 9.55 kg |
| Package width | 195 mm |
| Package depth | 130 mm |
| Package height | 2030 mm |
| Maximum current | 32 A |
| Type | Three-phase |
| Power plug | C13 coupler |
| Cable length | 3 m |
| Nominal output voltage | 230 V |
| LED indicators | Yes |
| Compliance certificates | CE, RCM, REACH, RoHS, cTUVus, UKCA |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Housing material | Aluminium |
| Display | LCD |
| Output voltage | 230 V |
| Number of phases | 3 |
| On/off switch | No |
| Daisy chain | No |
| Reset button | Yes |
