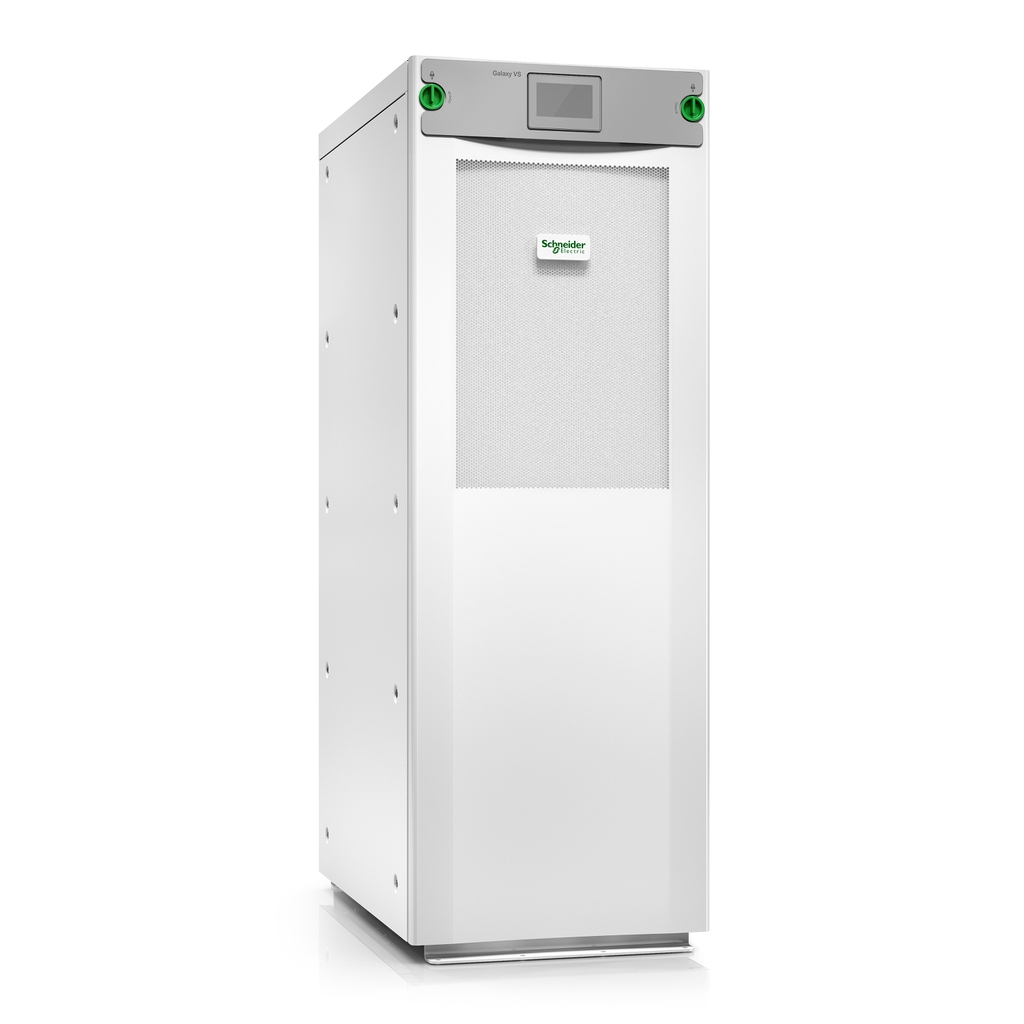

APC GVSUPS40KB4HS uninterruptible power supply (UPS) Double-conversion (Online) 40 kVA 40000 W
40 kVA, 40 kW, 40/70Hz, 61 dB, 521x847x1485mm, 460kg
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
GVSUPS40KB4HS Features
– Galaxy VS UPS 40kW 400V, 2 internal 9Ah smart modular battery strings, expandable to 4, Start-up 5×8
– Highly efficient, easy-to-deploy 40kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5×8 start-up service and 2 smart high-capacity modular battery strings, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.
– Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
Additional information
| Weight | 488 lbs |
|---|---|
| Output power capacity | 40 kVA |
| Output power | 40000 W |
| Input frequency | 40/70 Hz |
| Audible alarm(s) | Yes |
| Product colour | White |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 40 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 1000 m |
| Non-operating altitude | 0 – 3000 m |
| Certification | CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Weight | 460 kg |
| Harmonized System (HS) code | 85078000 |
| Package weight | 490 kg |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Maximum current | 54 A |
| Form factor | Tower |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Number of output phases | 3 |
| Crest factor | 2.5:1 |
| Noise level | 61 dB |
| AC outlet types | Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G) |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Display type | LCD |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Output frequency | 50/60 Hz |
| ECO mode | Yes |
| Input current Total Harmonic Distortion (THD) | 3% |
| Battery voltage | 480 V |
| International Protection (IP) code | IP20 |
| Quick installation guide | Yes |
| Number of input phases | 3 |
| Warranty period | 1 year(s) |
| Heat dissipation | 4658 BTU/h |
| Power protection features | Overload, Short circuit |
