APC In-Line Current Meter, 32A, 230V, IEC309-32A 3-PH, 3P+N+G
In-Line Current Meter, 32A, 230V, IEC309-32A 3-PH, 3P+N+G
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

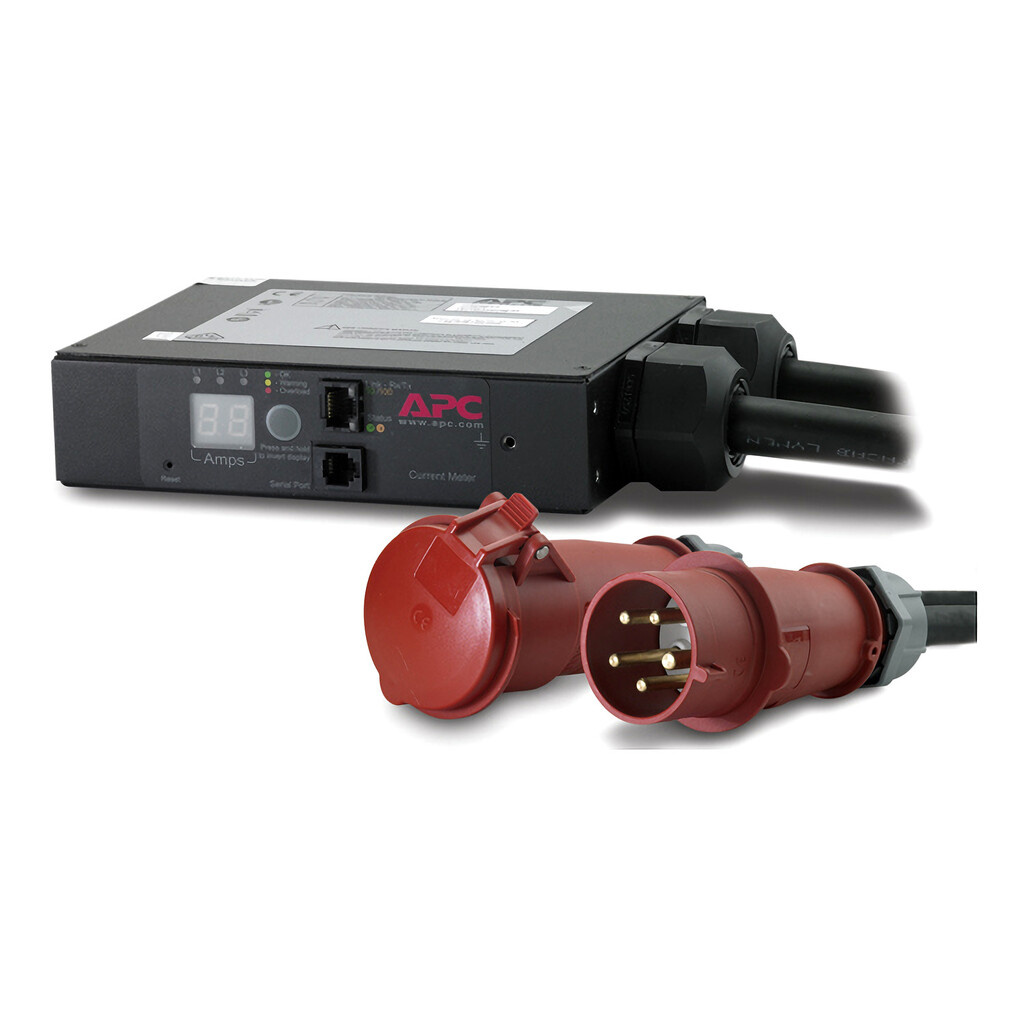

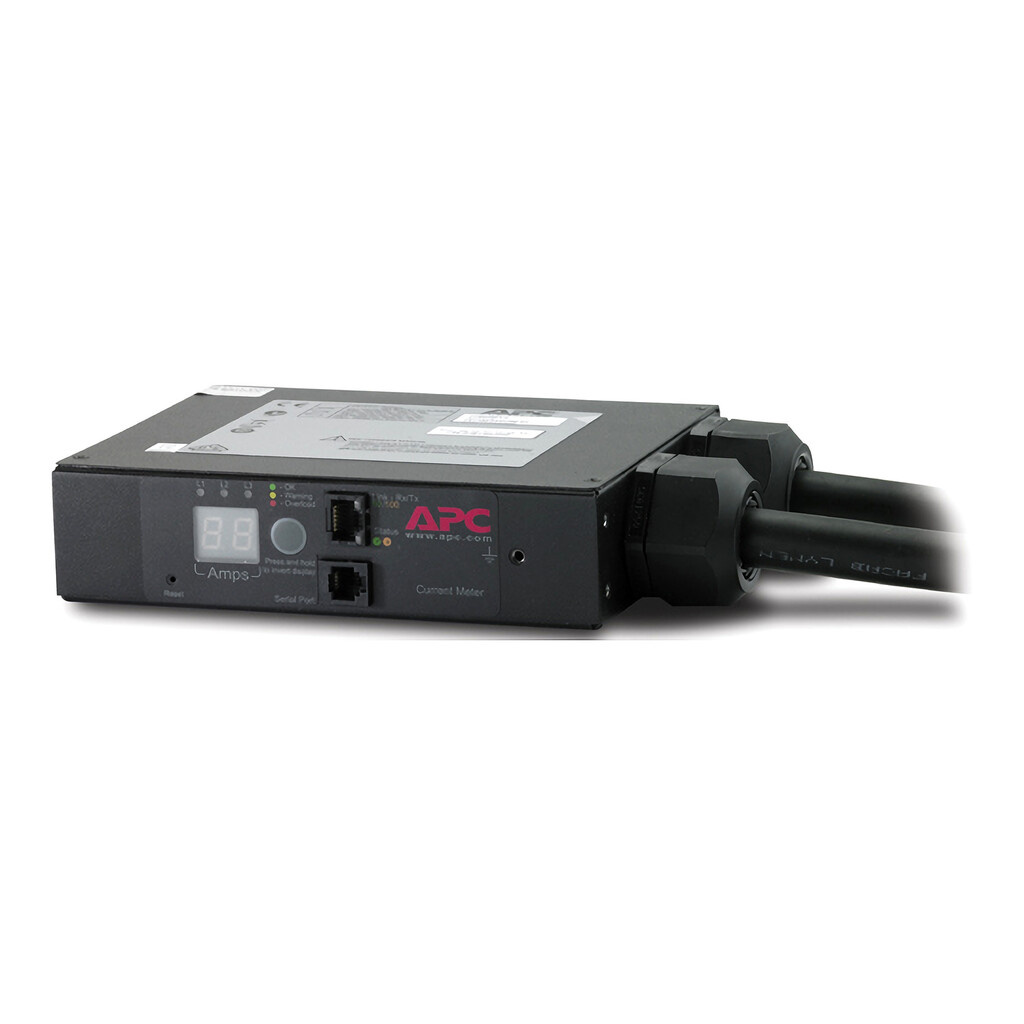

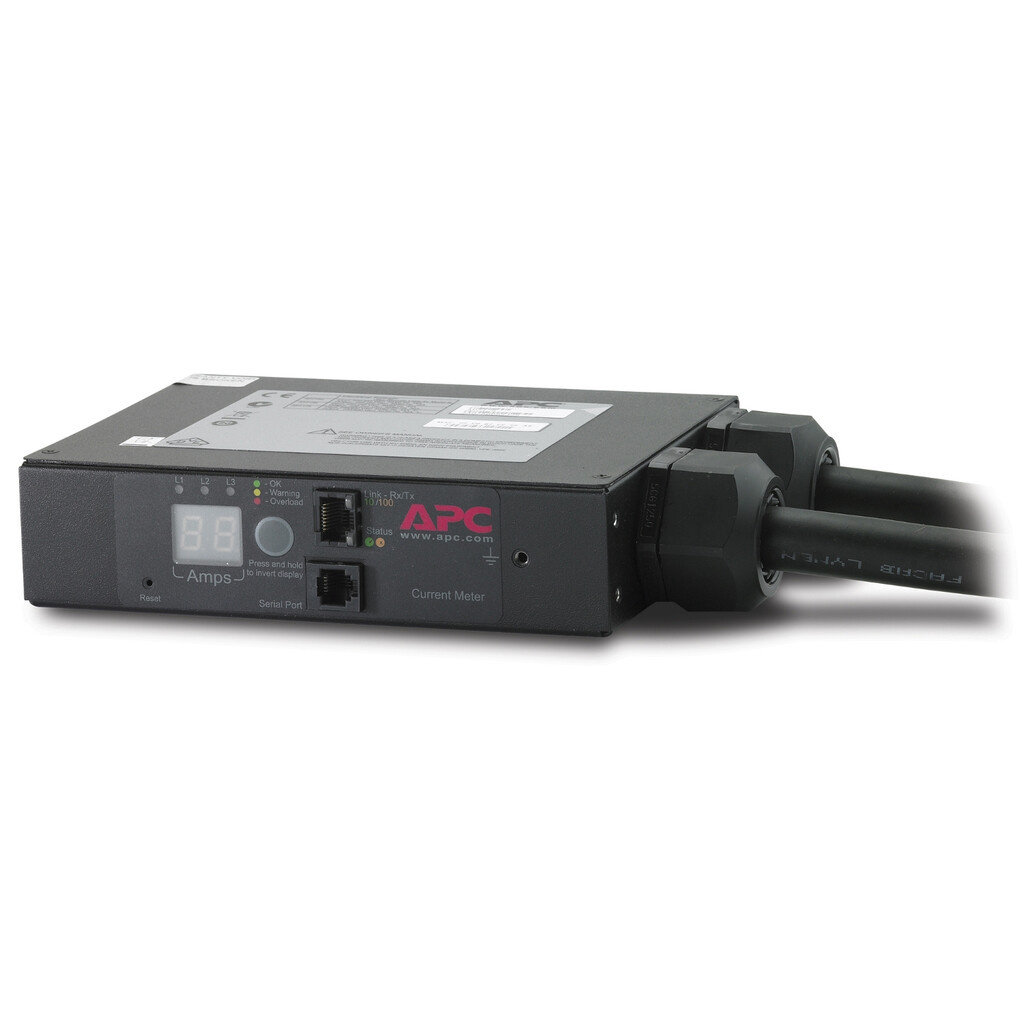

It is an in-line current meter designed to measure and display the current being drawn by connected equipment. It supports a maximum current of 32A and operates at 400V. The meter features a digital display for real-time monitoring and includes an installation guide.
Additional information
| Weight | 3.73 lbs |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U |
| Product colour | Black |
| AC outlets quantity | 1 AC outlet(s) |

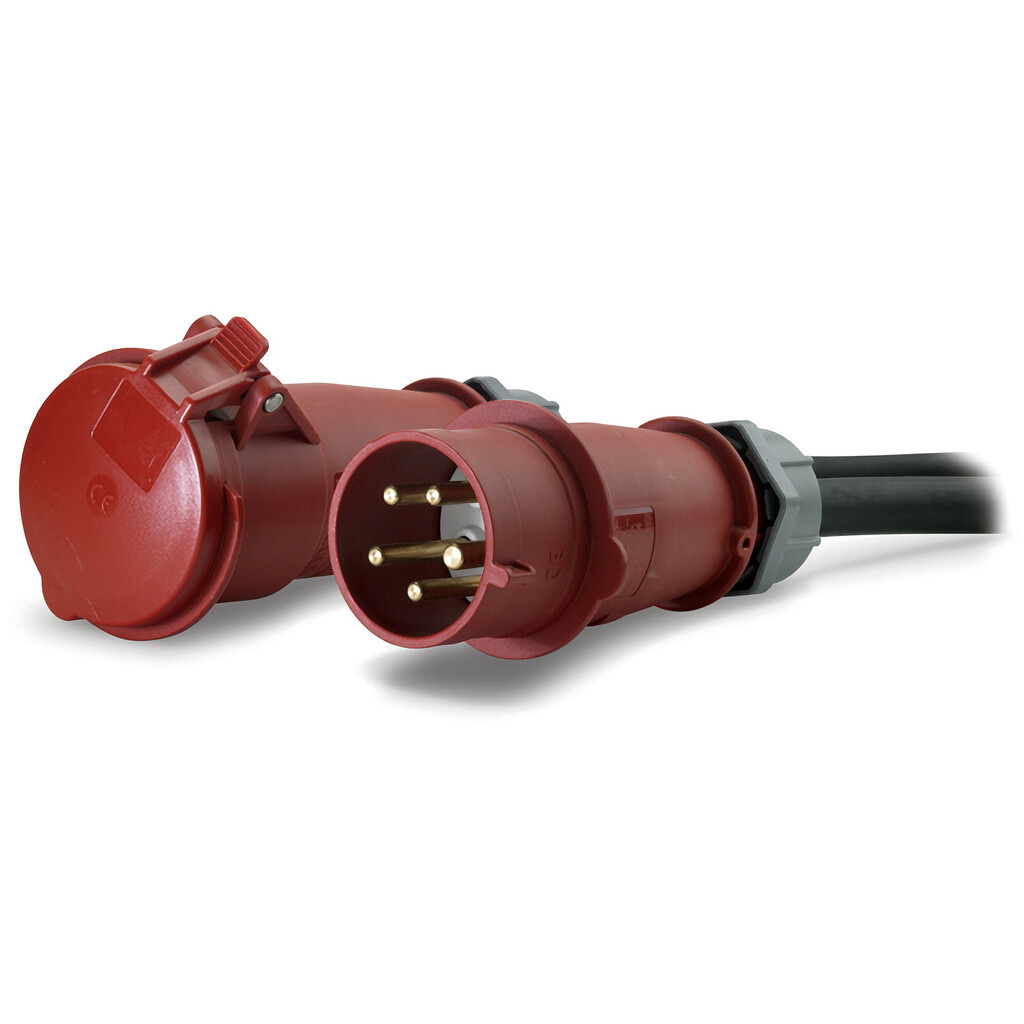

| Input connection type | IEC 60309 32 A 3P + N + E |
| Output connections | IEC 309 32A 3P+N+E |
| Monitoring | Current |
| Nominal input voltage | 400 3 phases |
| AC input frequency | 50 – 60 Hz |
| Load capacity | 22080 VA |
| Certification | AS/NZS 3548 (C-Tick) class A; C-Tick; CE; GOST; VDE |
| Operating temperature (T-T) | -5 – 45 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 178 mm |
| Depth | 140 mm |
| Height | 44 mm |
| Weight | 2.89 kg |
| Package weight | 3.52 kg |
| Package width | 330 mm |
| Package depth | 185 mm |
| Package height | 246 mm |
| Total carbon footprint (kg of CO2e) | 2909.2623272707 |
| Maximum current | 32 A |
| Type | Three-phase |
| Cable length | 0.9 m |
| Nominal output voltage | 230 V |
| Compliance certificates | RoHS, REACH, WEEE |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Display | LED |
| Output voltage | 230 V |
| Number of phases | 3 |
| Manual | Yes |
| Cables included | RS-232 |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Packaging recycled materials | Recycled cardboard |
| Removable battery | Yes |
| Sustainable packaging | No |
| SCIP number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
| Country of origin | India |
| Customs product code (TARIC) | 9030337000 |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
