APC AP8865 power distribution unit (PDU) 44 AC outlet(s) 0U Black
Rack PDU 2G, Metered, ZeroU, 8.6kW, 208V, (36) C13 & (6) C19 & (2) 5-20
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
Description
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8865 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a NEMA L21-30P input plug with 1 83m (6ft) cord, (2) NEMA 5-20R, (36) IEC 60320 C13 and (6) IEC 60320 C19 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU’s locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
Additional information
| Weight | 8.96 lbs |
|---|---|
| PDU types | Metered, Monitored |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 44 AC outlet(s) |
| AC outlet types | NEMA 5-20R, C13 coupler, C19 coupler |
| Output connections | 36x IEC 320 C13<br />6x IEC 320 C19<br />2x NEMA 5-20R |
| Monitoring | Power, Voltage, Energy |
| Nominal input voltage | 208 V |
| AC input frequency | 50 – 60 Hz |
| Load capacity | 8600 VA |
| Maximum input current per phase | 30 A |
| Maximum total current draw per phase | 30 A |
| Certification | CSA C22.2 No. 60950,UL 60950-1 |
| Operating temperature (T-T) | 5 – 60 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 56 mm |
| Depth | 46 mm |
| Height | 1791 mm |
| Weight | 7.56 kg |
| Package weight | 9.2 kg |
| Package width | 107 mm |
| Package depth | 162 mm |
| Package height | 200 mm |
| Total carbon footprint (kg of CO2e) | 6416 |
| Maximum current | 30 A |

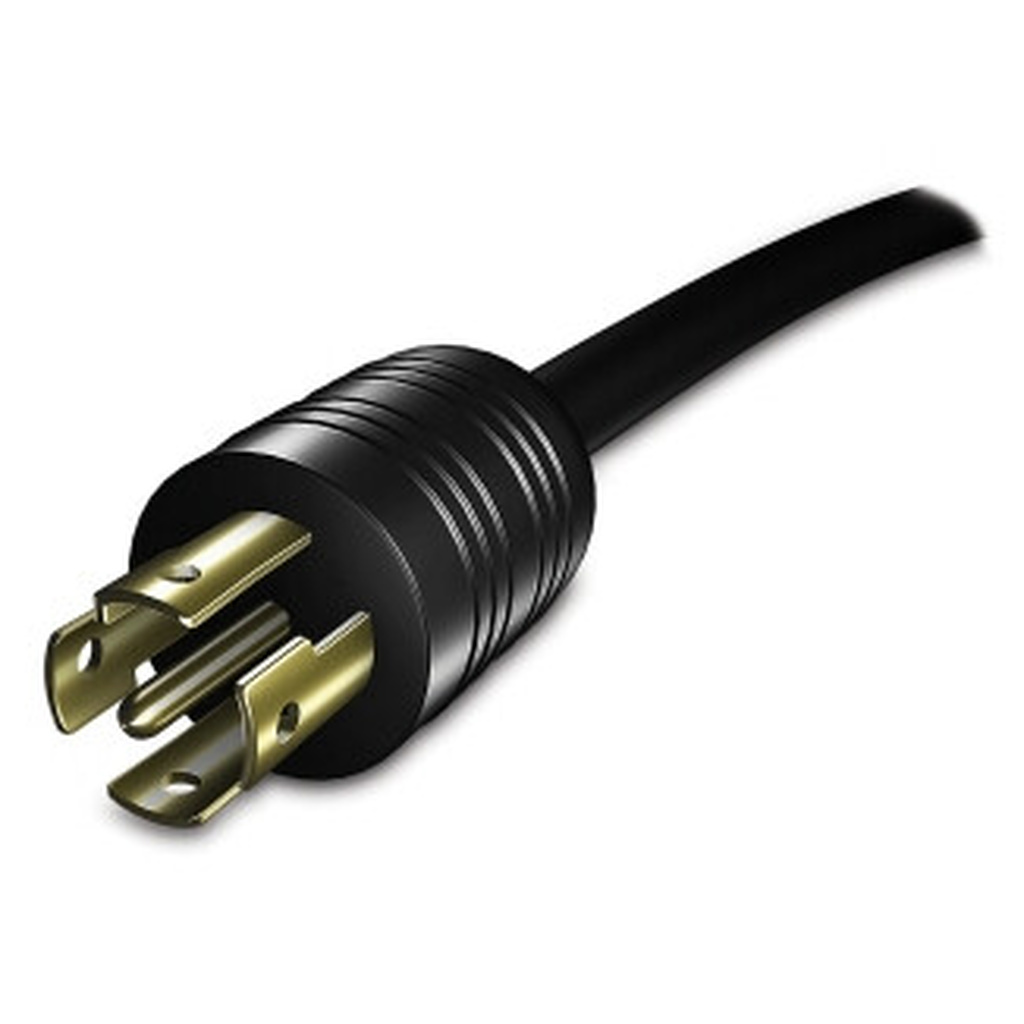

| Power plug | NEMA L21-30P |
| Cable length | 1.82 m |
| Nominal output voltage | 208 V |
| Non-operating altitude | 0 – 15240 m |
| Display | LCD |
| Security algorithms | SNMP |
| Manual | Yes |
