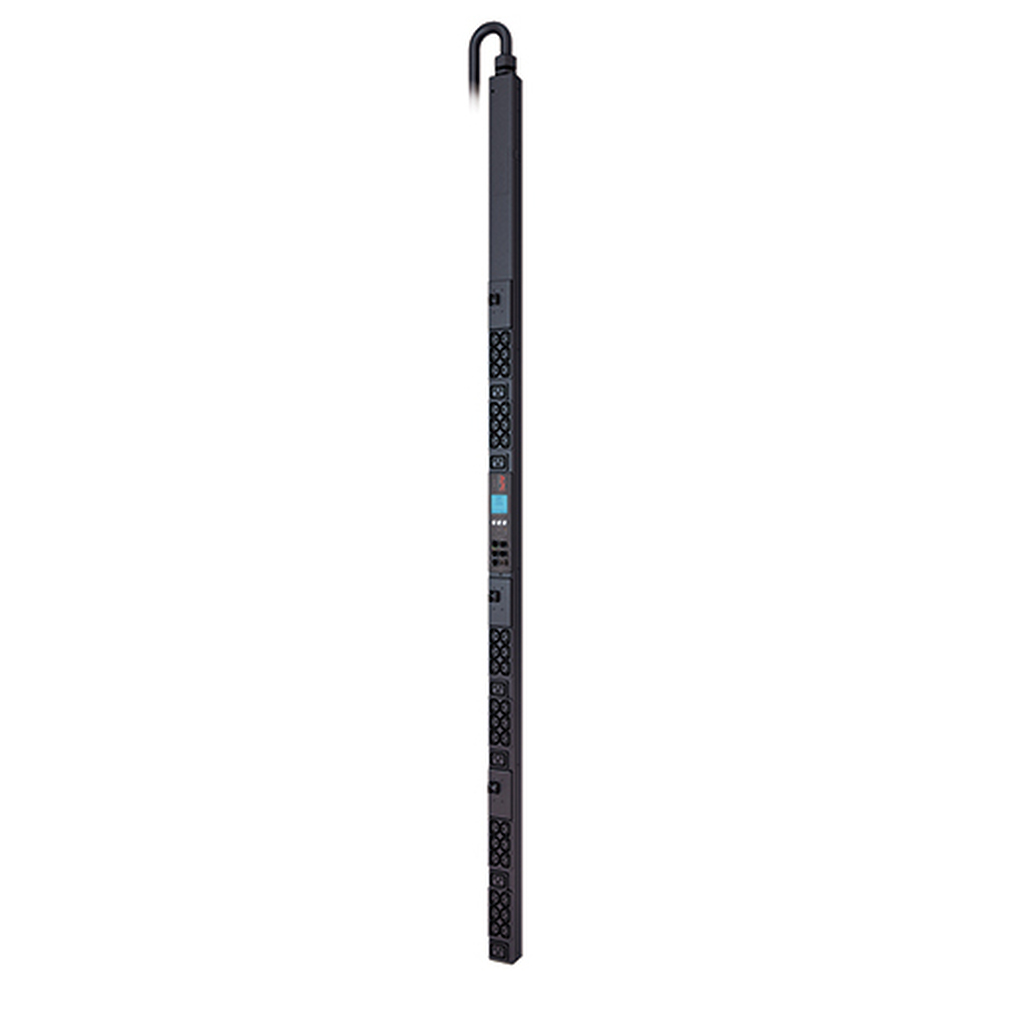

APC AP8868 power distribution unit (PDU) 42 AC outlet(s) 0U Black
36 x C13 & 6 x C19, Metered, ZeroU, 10 kVA, 208V, Black
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Additional information
| Weight | 25.05 lbs |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 42 AC outlet(s) |

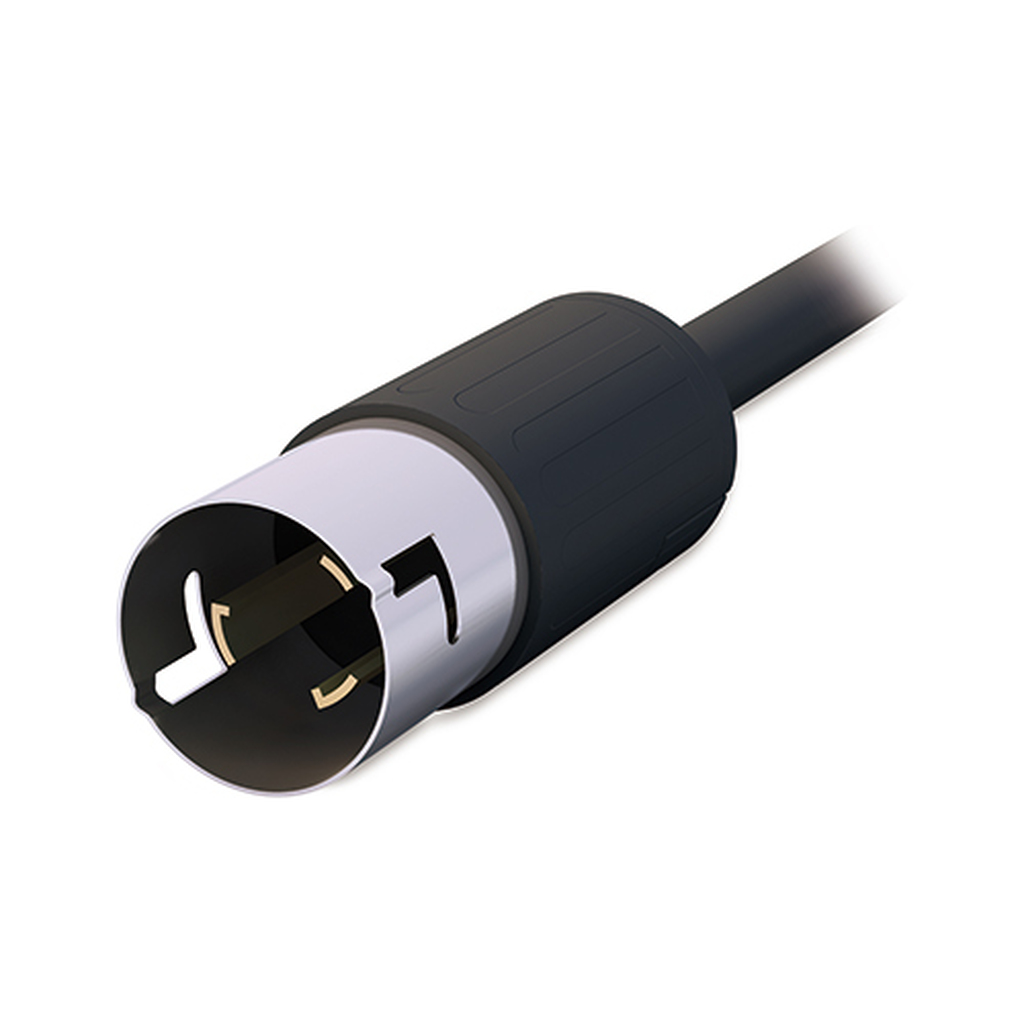

| Input connection type | CS8365 |
| Output connections | 36 x IEC 320 C13<br />6 x IEC 320 C19 |
| Nominal input voltage | 208 V |
| AC input frequency | 50 – 60 Hz |
| Load capacity | 10000 VA |
| Maximum input current per phase | 35 A |
| Maximum total current draw per phase | 35 A |
| Certification | cUL, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC, ICES-003, UL, VCCI |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 56 mm |
| Depth | 51 mm |
| Height | 1829 mm |
| Weight | 8.52 kg |
| Package weight | 11.4 kg |
| Package width | 170 mm |
| Package depth | 112 mm |
| Package height | 2050 mm |
| Total carbon footprint (kg of CO2e) | 51678.25 |
| Cable length | 1.83 m |
| Nominal output voltage | 208 V |
| Compliance certificates | RoHS |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Power protection features | Overload |
