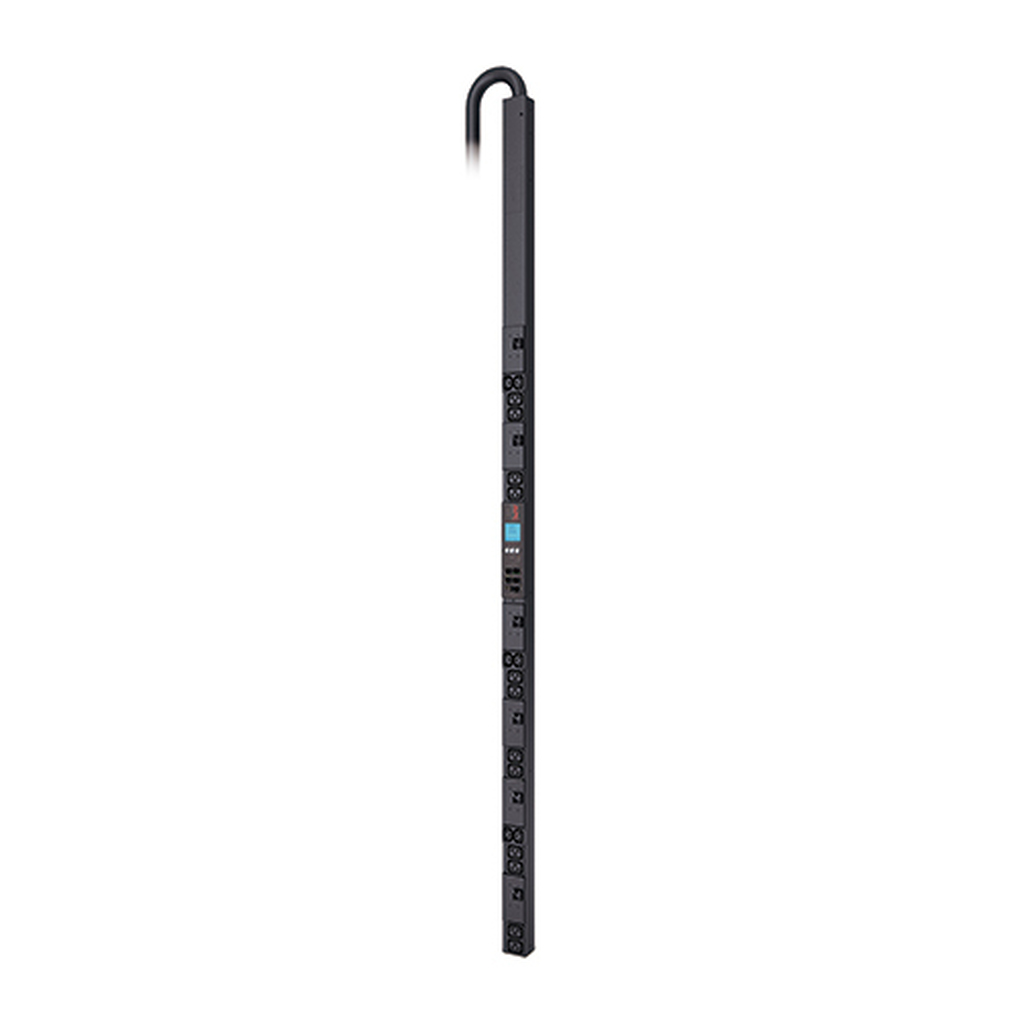

APC AP8866 power distribution unit (PDU) 18 AC outlet(s) 2U Black
Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

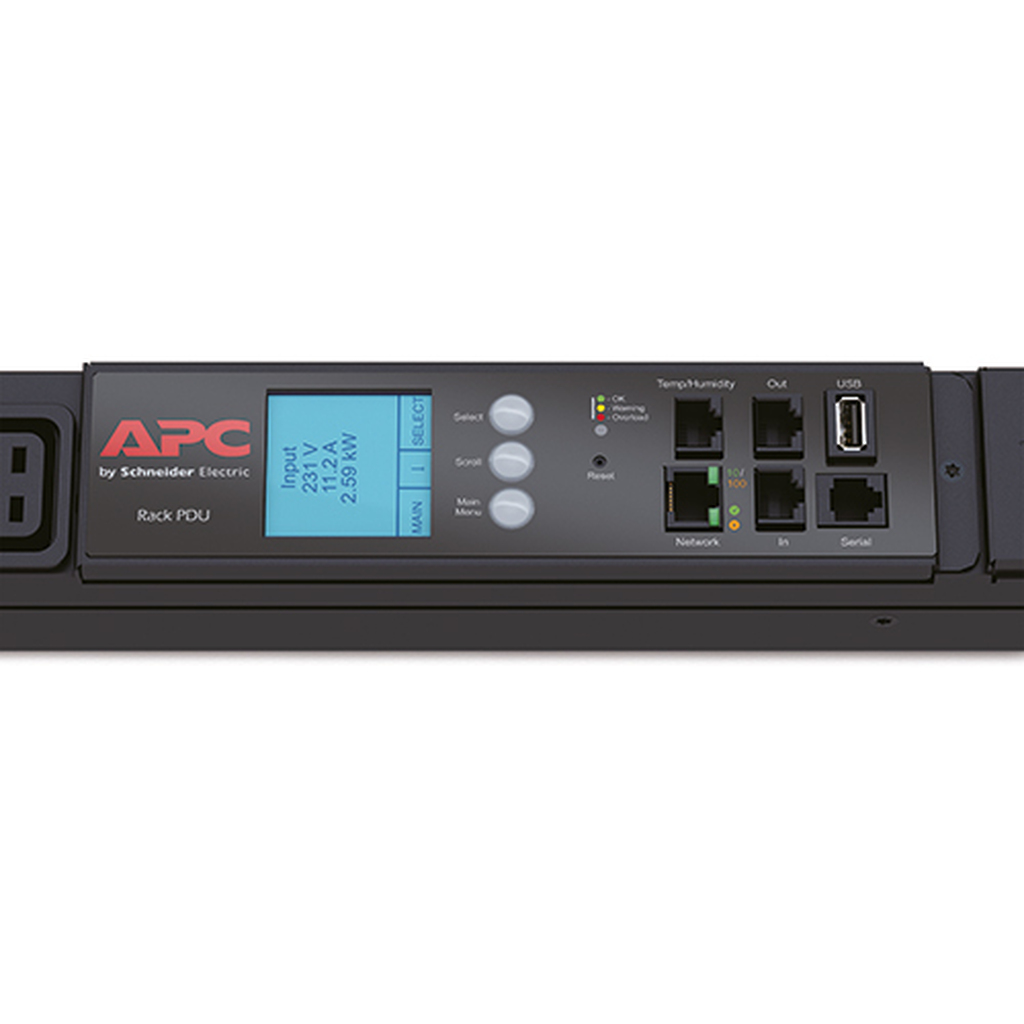

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Additional information
| Weight | 13.58 lbs |
|---|---|
| Width | 56 mm |
| PDU types | Metered |
| Rack capacity | 2U |
| Product colour | Black |
| AC outlets quantity | 18 AC outlet(s) |
| Nominal input voltage | 208 V |
| AC input frequency | 50 – 60 Hz |
| Maximum input current per phase | 48 A |
| Maximum total current draw per phase | 48 A |
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VCCI A |
| Operating temperature (T-T) | 0 – 55 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Depth | 51 mm |
| Height | 1829 mm |
| Weight | 9.5 kg |
| Total carbon footprint (kg of CO2e) | 54038.36 |
| Cable length | 1.83 m |
| Nominal output voltage | 208 V |
| Compliance certificates | RoHS |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Power protection features | Overload |
