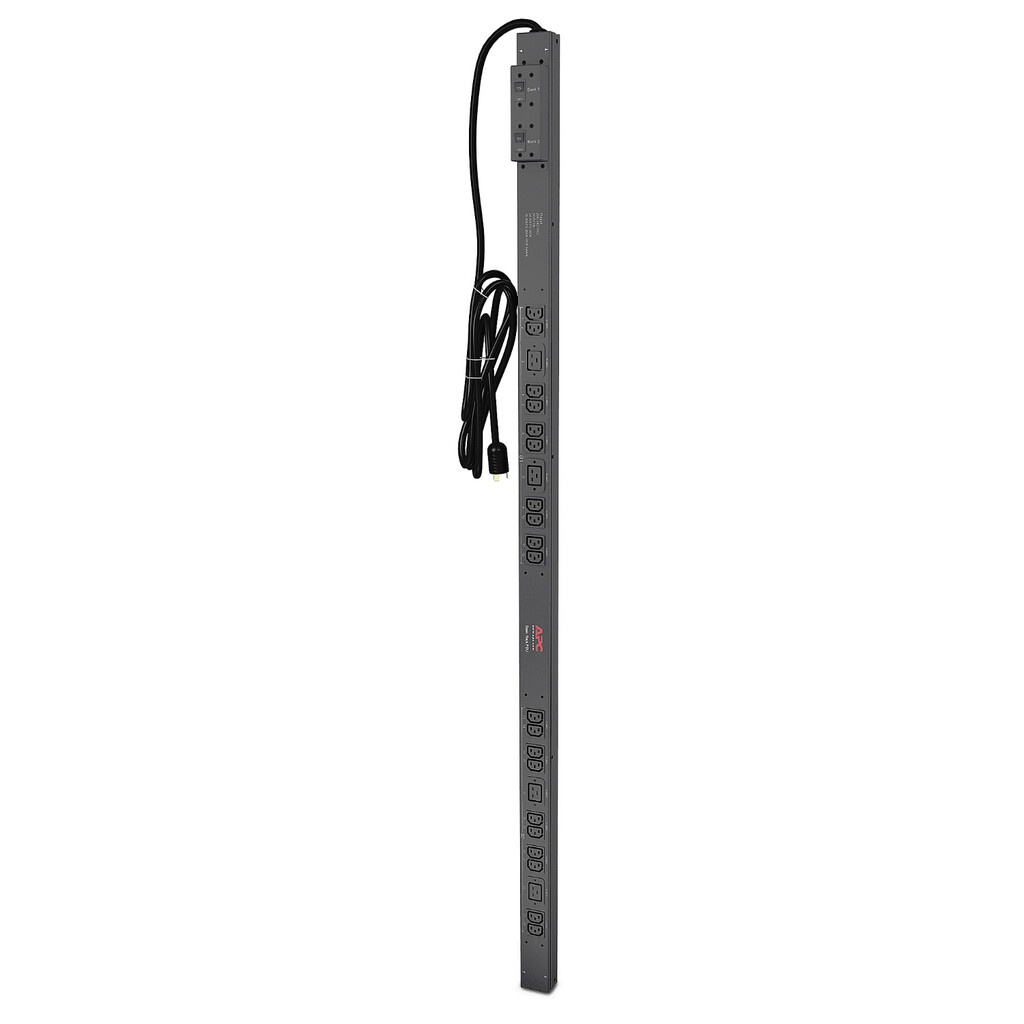

APC Rack PDU, Basic, Zero U, 30A, 200/208V, (20)C13 & (4)C19
Rack PDU, Basic, Zero U, 30A, 200/208V, (20)C13 & (4)C19
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit
Additional information
| Weight | 9.2 lbs |
|---|---|
| Product colour | Black |
| Input connection type | NEMA L6-30P |
| Output connections | (20) IEC 320 C13 (4) IEC 320 C19 |
| Nominal input voltage | 208 V |
| AC input frequency | 50 – 60 Hz |
| Load capacity | 4992 VA |
| Maximum input current per phase | 30 A |
| Maximum total current draw per phase | 24 A |
| Certification | cUL,CSA C22.2 No. 60950-1-03,METI Denan,UL 60950-1,UL |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 5.57 kg |
| Total carbon footprint (kg of CO2e) | 137.47 |
| Cable length | 3.05 m |
