APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output
In Stock
Service Bypass Panel 200/208/230/240V 125A HW Input/Output
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

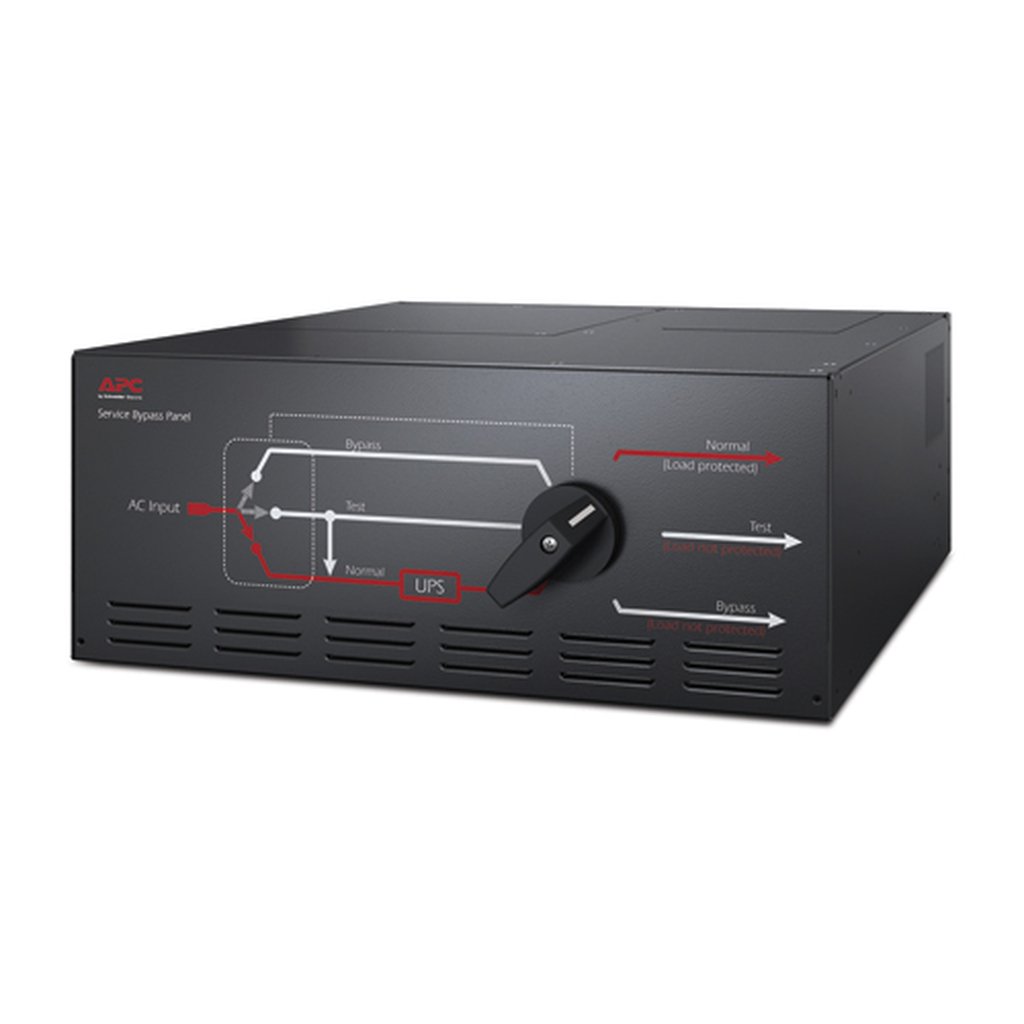

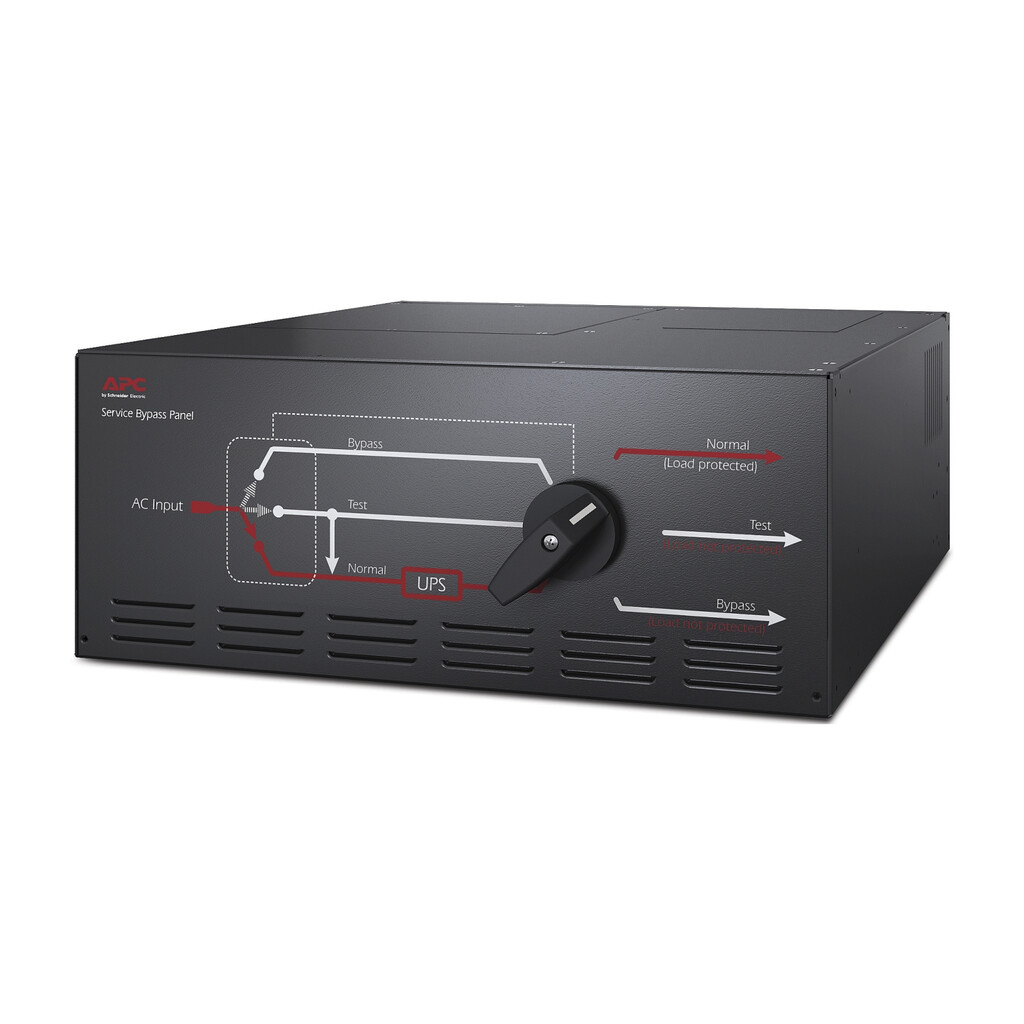

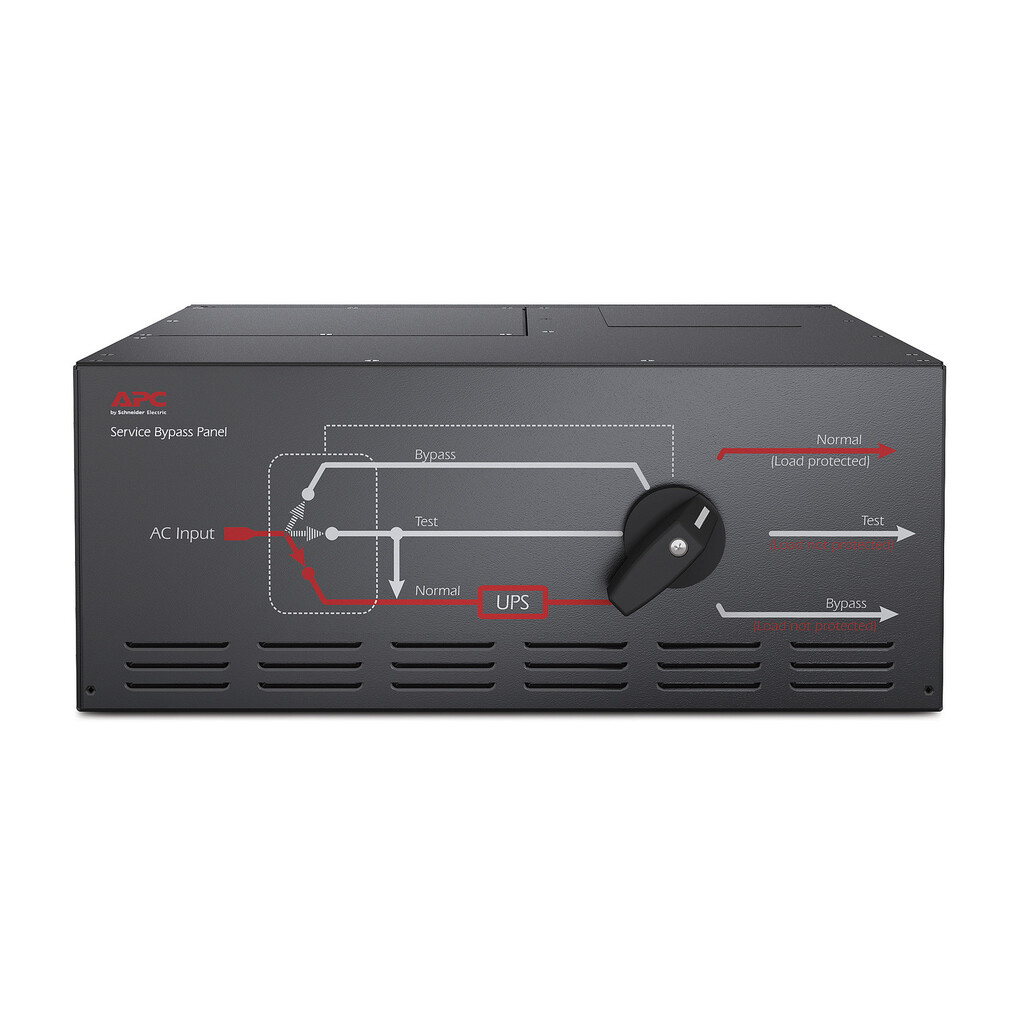

The APC Service Bypass Panel supports output voltage of 200V, 208V, 220V, 230V, and 240V. It features a 4U form factor and provides a manual bypass switch for maintenance and service operations. It includes an installation guide, rack mounting brackets, and a user manual.
Additional information
| Weight | 36.4 lbs |
|---|---|
| Output power capacity | 20 kVA |
| Input frequency | 50/60 Hz |
| Product colour | Black |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 4500 m |
| Non-operating altitude | 0 – 15000 m |
| Certification | CSA; GOST |
| Weight | 19.3 kg |
| Harmonized System (HS) code | 85078000 |

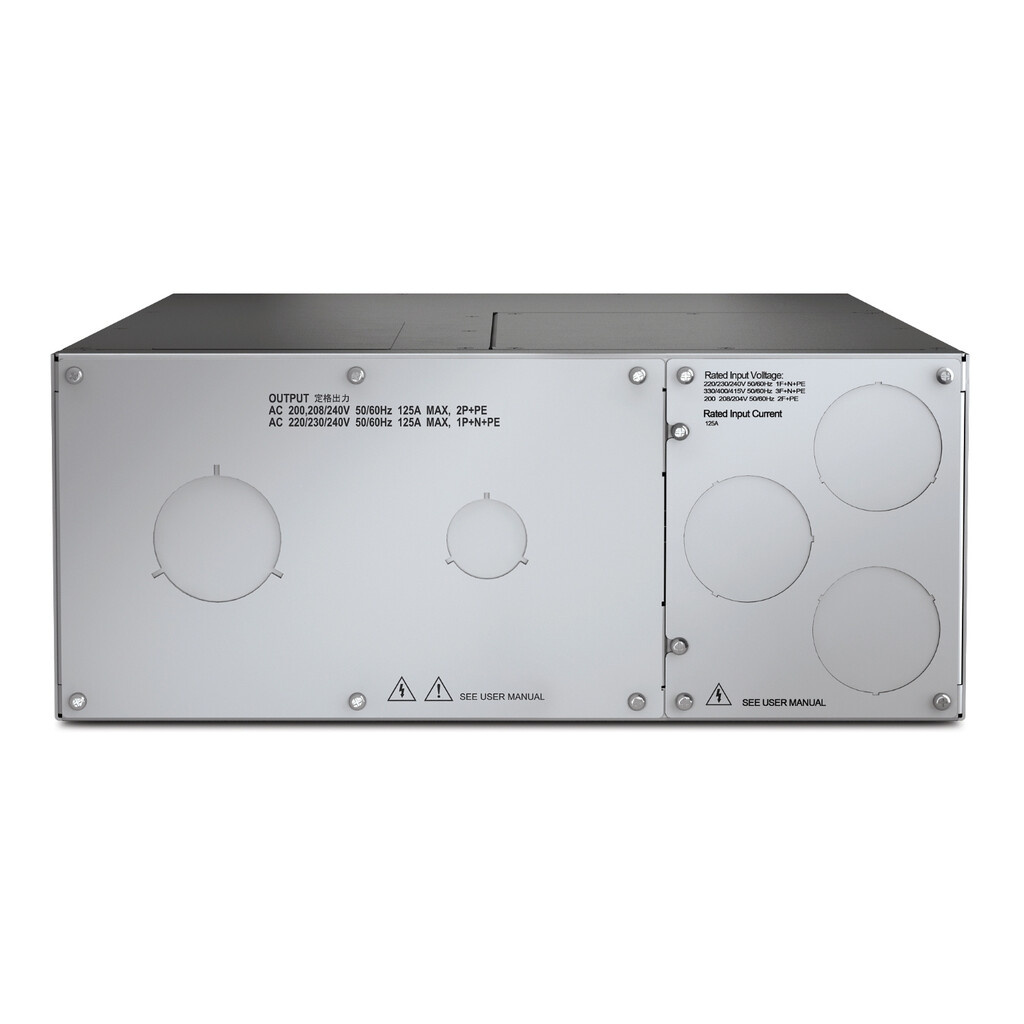

| Output connections | hard wire 3-wire (H N + E) for 1 zone(s); hard wire 3-wire (2P + E) for 1 zone(s) |
| Package dimensions (WxDxH) | 610 x 845 x 305 mm |
| Package weight | 31.4 kg |
| Input operation voltage (min) | 200 V |
| Input operation voltage (max) | 240 V |
| Maximum current | 125 A |
| Form factor | Tower |
| Compliance certificates | RoHS, REACH, WEEE |
| Width | 432 mm |
| Depth | 554 mm |
| Height | 178 mm |
| Operating temperature (T-T) | -4 – 122 °F |
| Overload protection | Yes |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| Rack capacity | 4U |
| Country of origin | China |
| Sustainable packaging | No |
| Customs product code (TARIC) | 8536508000 |
| Mounting | front |
| Preferred mounting position | lower |
| Take-back system | No |
| Packaging without single use plastic | No |
