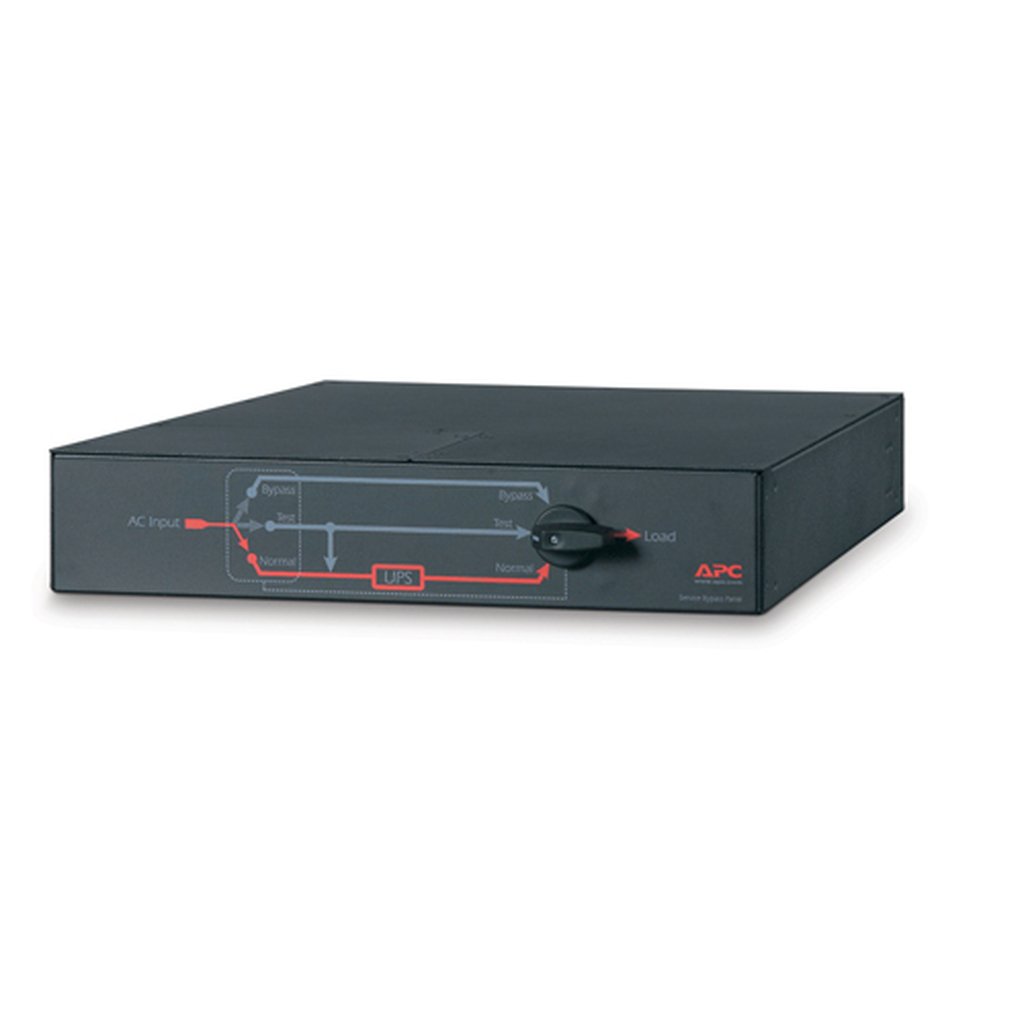

APC Service Bypass Panel – 200/208/240V power distribution unit (PDU) Black

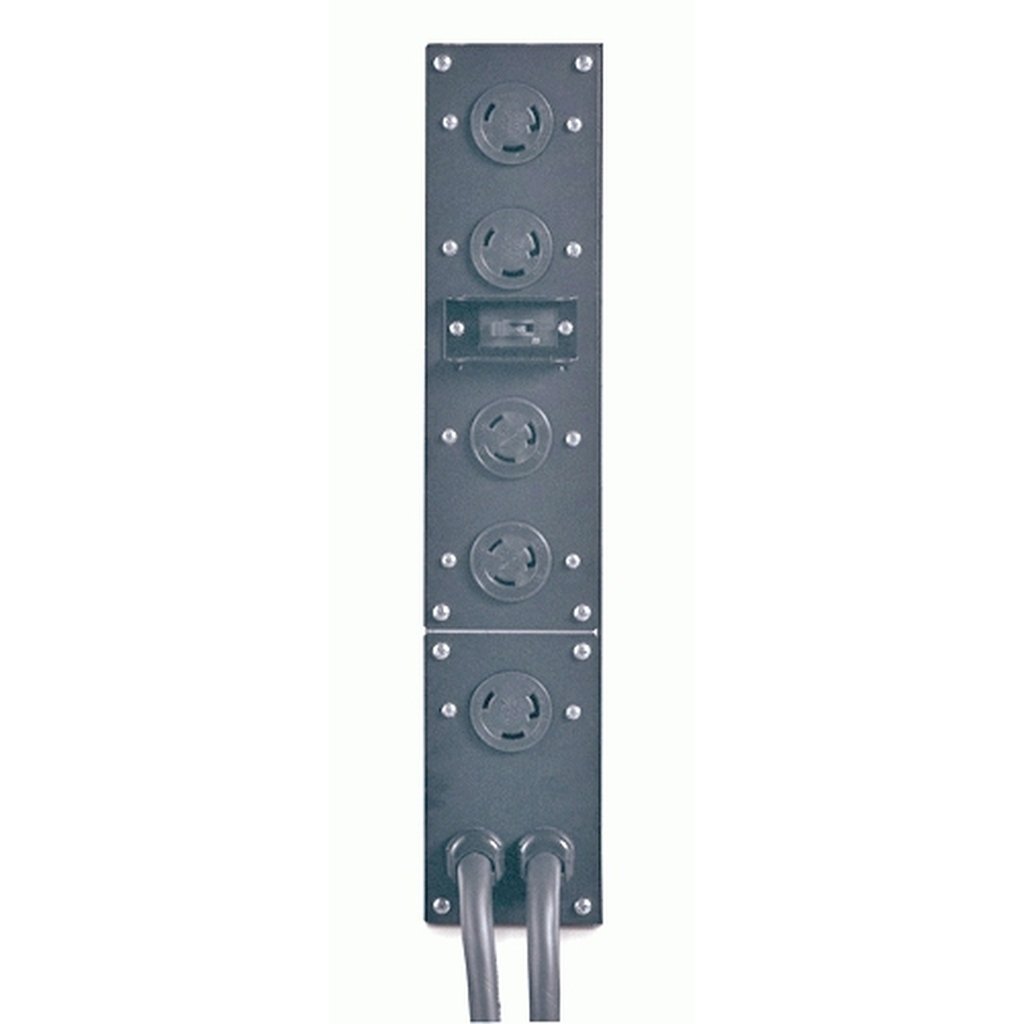

Service Bypass Panel – 200/208/240V; 30A; BBM; L6-30P input; (2) L6-30R (2) L6-20R output
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Meets UL Requirements
Additional information
| Weight | 23 lbs |
|---|---|
| Product colour | Black |
| Input connection type | NEMA L6-30P |
| Output connections | 2x NEMA L6-20R2x NEMA L6-30R |
| AC input frequency | 50 – 60 Hz |
| Load capacity | 5000 VA |
| Maximum input current per phase | 24 A |
| Maximum total current draw per phase | 24 A |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Operating temperature (T-T) | -20 – 50 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Width | 432 mm |
| Depth | 660 mm |
| Height | 89 mm |
| Weight | 13.6 kg |
| Package weight | 24.5 kg |
| Package width | 610 mm |
| Package depth | 991 mm |
| Package height | 203 mm |
| Cable length | 3.05 m |
