APC Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V…415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rai
Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V…415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

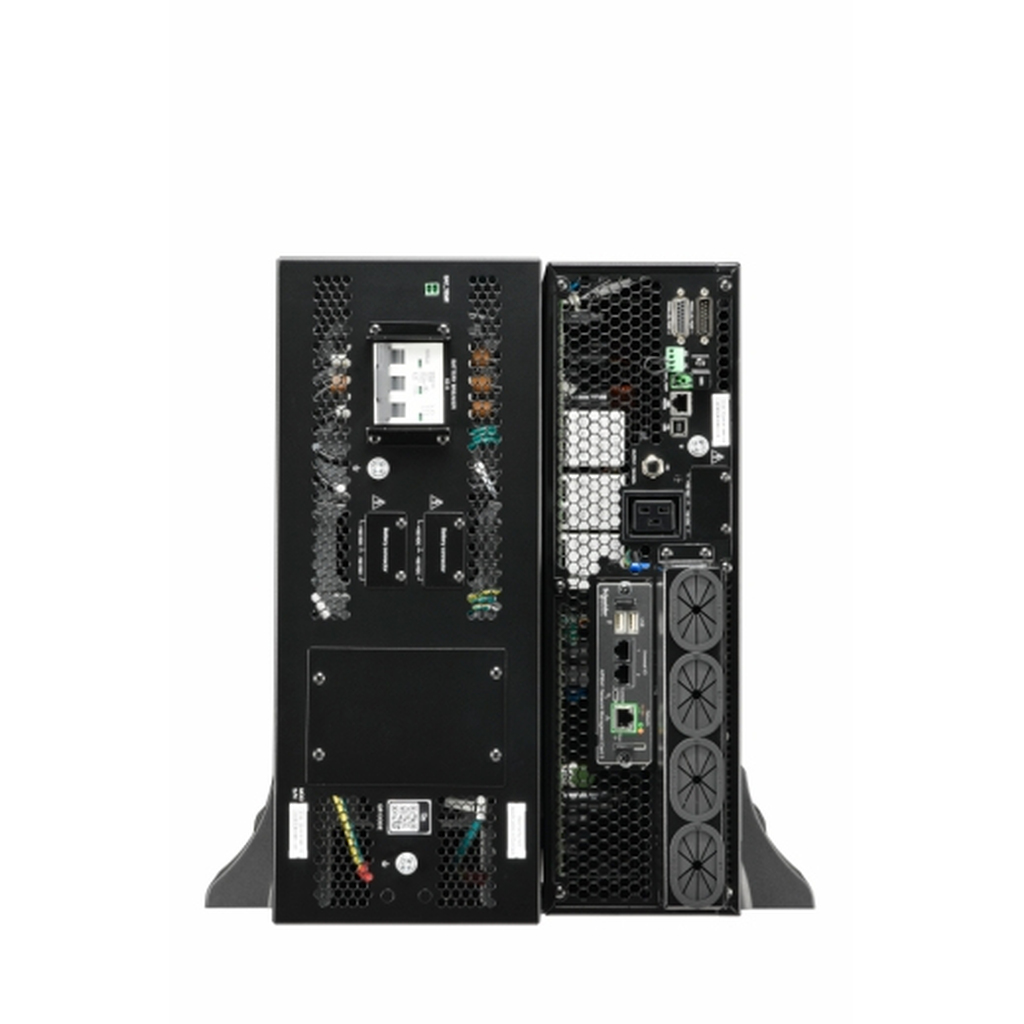

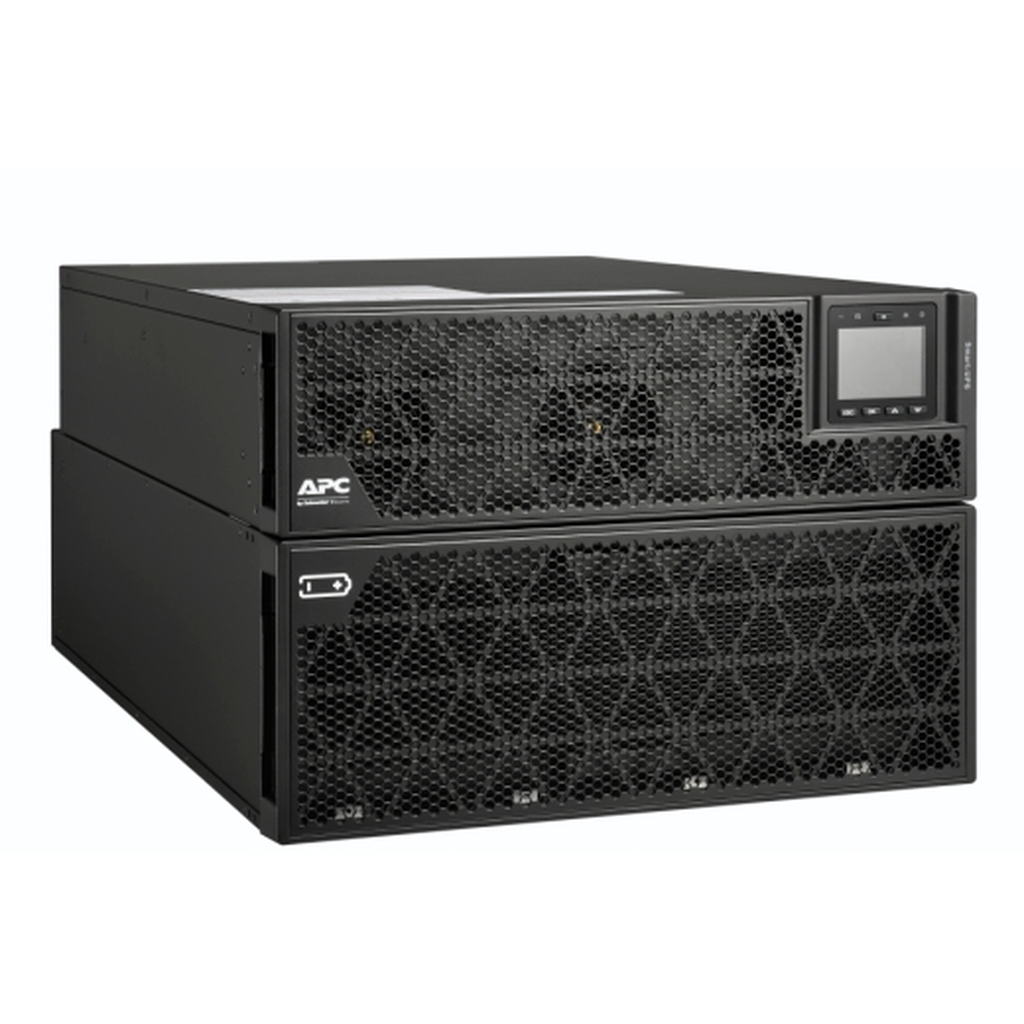

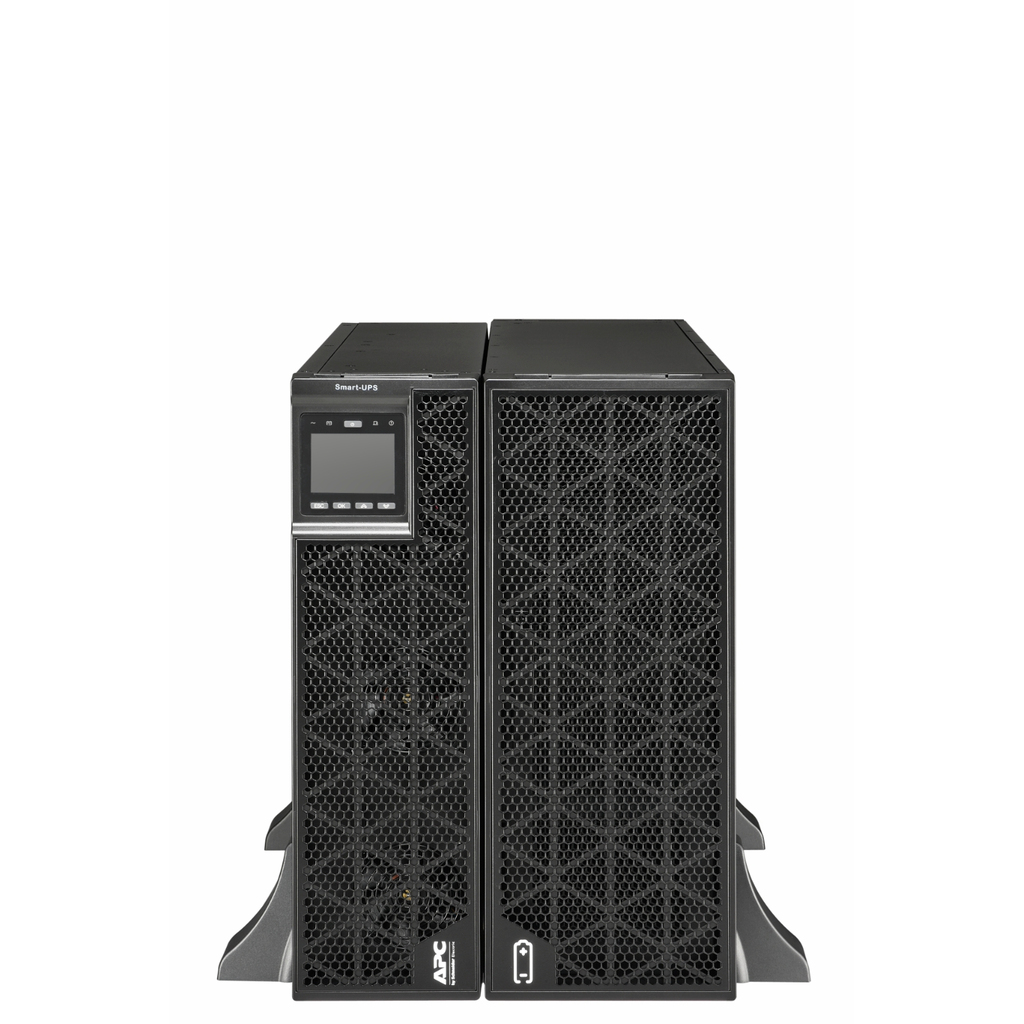

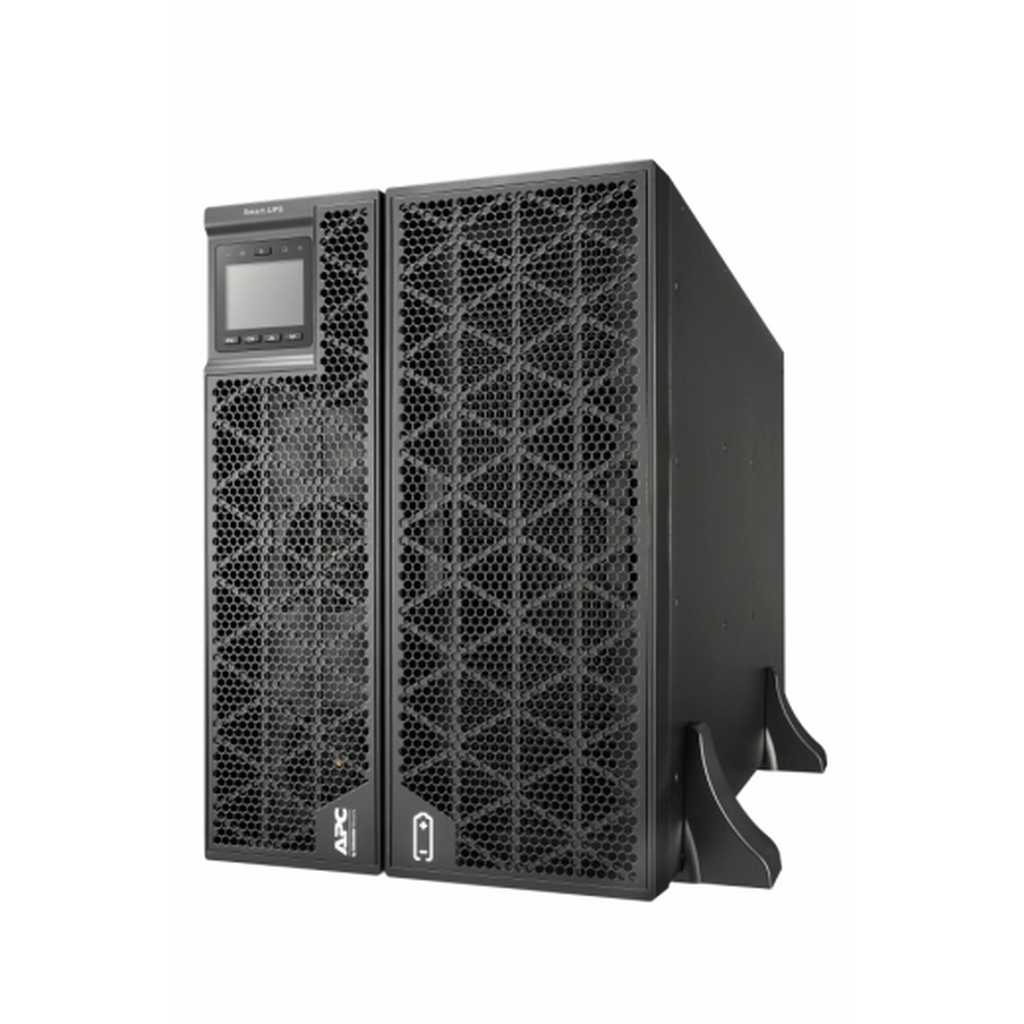

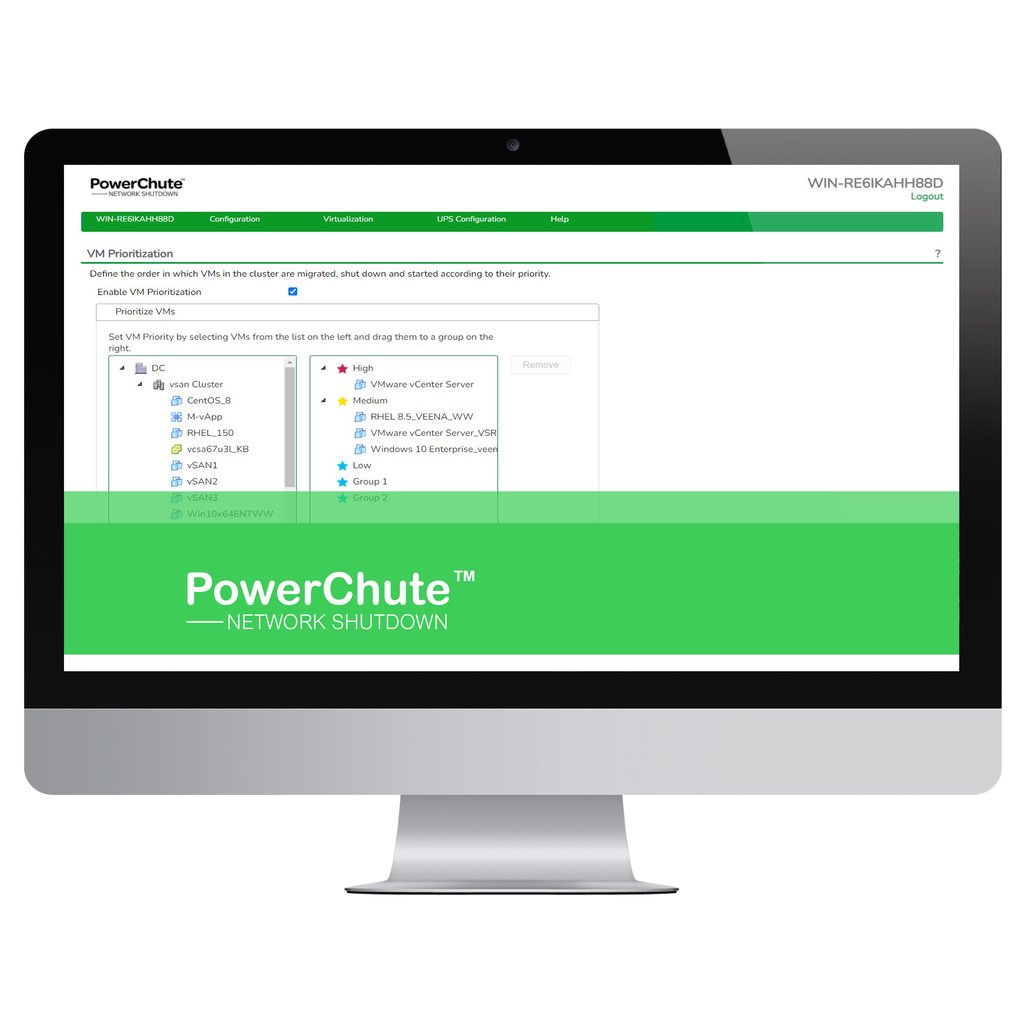

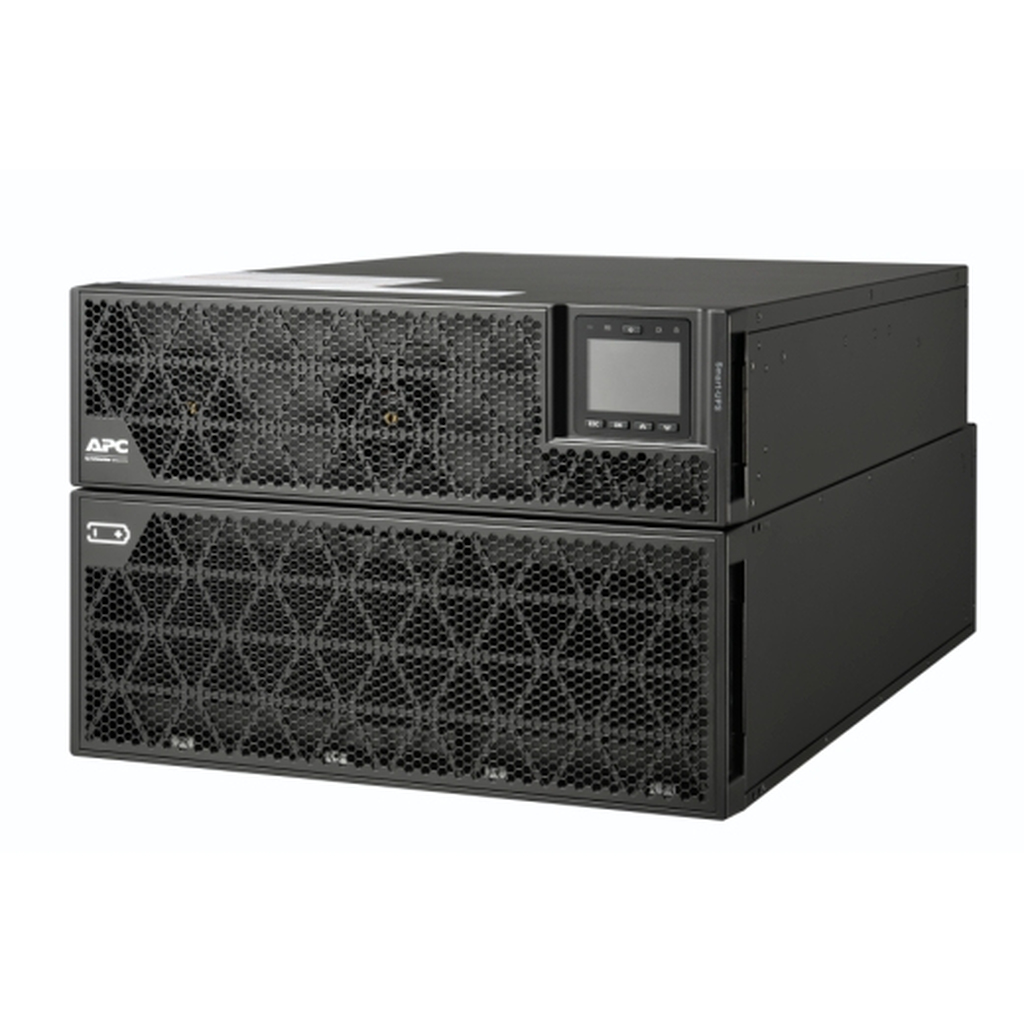

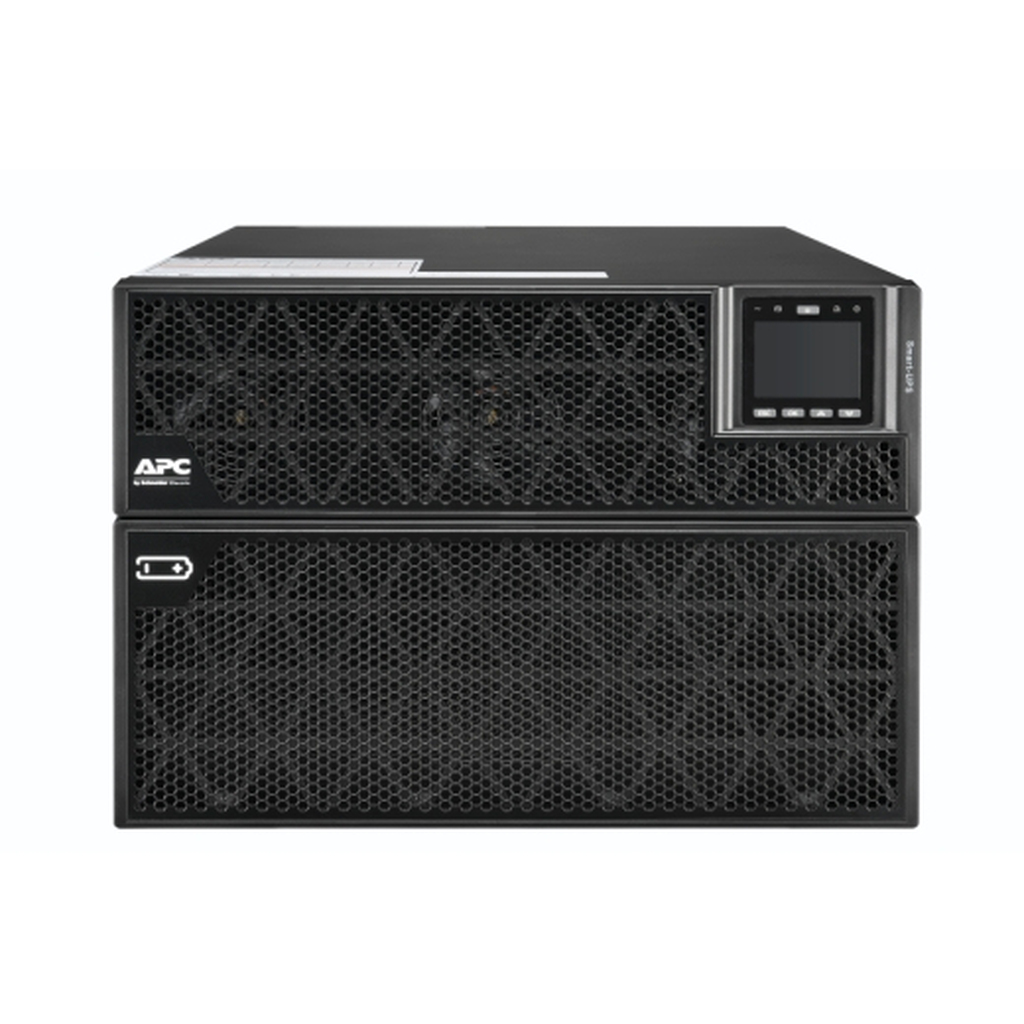

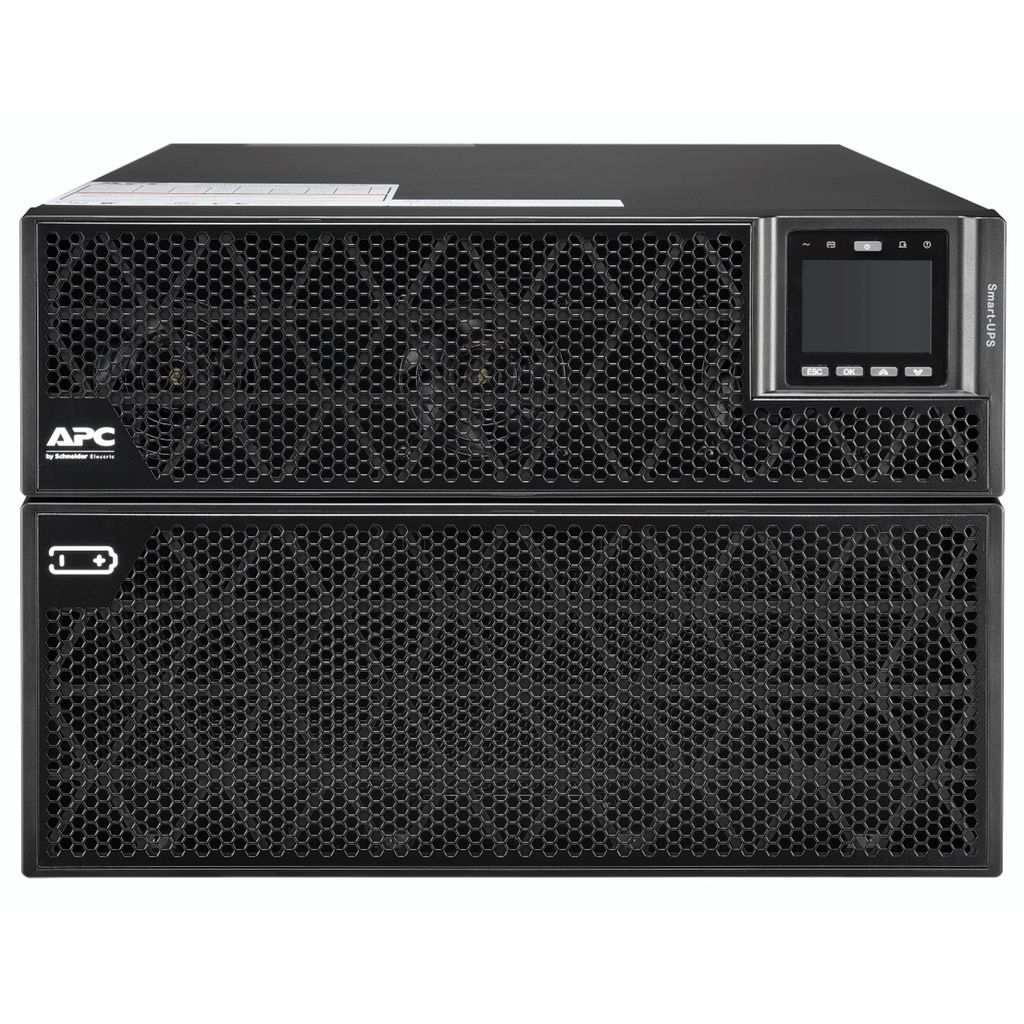

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 20kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, 3-wire(1P+N+E) and 5-wire(3P+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
Additional information
| Weight | 175 lbs |
|---|---|
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Input frequency | 40/70 Hz |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| Battery recharge time | 4 h |
| Product colour | Black |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 2011.68 m |
| Non-operating altitude | 0 – 15240 m |
| Weight | 142.5 kg |
| Harmonized System (HS) code | 85078000 |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 415 V |
| Maximum current | 87 A |
| Form factor | Rackmount/Tower |
| Width | 440 mm |
| Depth | 700 mm |
| Height | 306 mm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output operation voltage (max) | 230 V |
| Output frequency regulation | 0.1 Hz |
| Number of output phases | 3 |
| Efficiency | 93% |
| Crest factor | 3:1 |
| Noise level | 58 dB |
| Surge protection | Yes |
| Auto-restart | Yes |

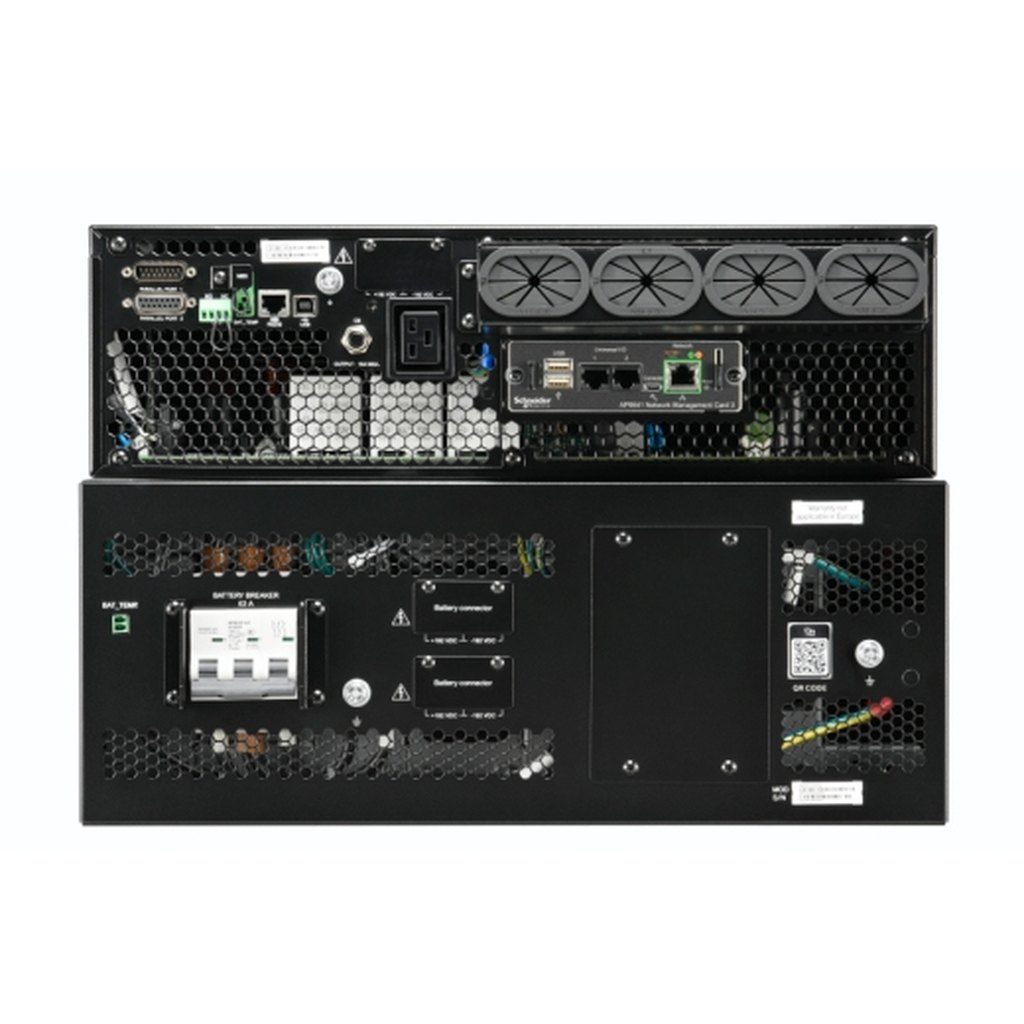

| AC outlet types | Hard Wire 3-wire (1P + N + E), Hard Wire 5-wire (3P + N + E) |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery life (max) | 5 year(s) |
| Cold start | Yes |

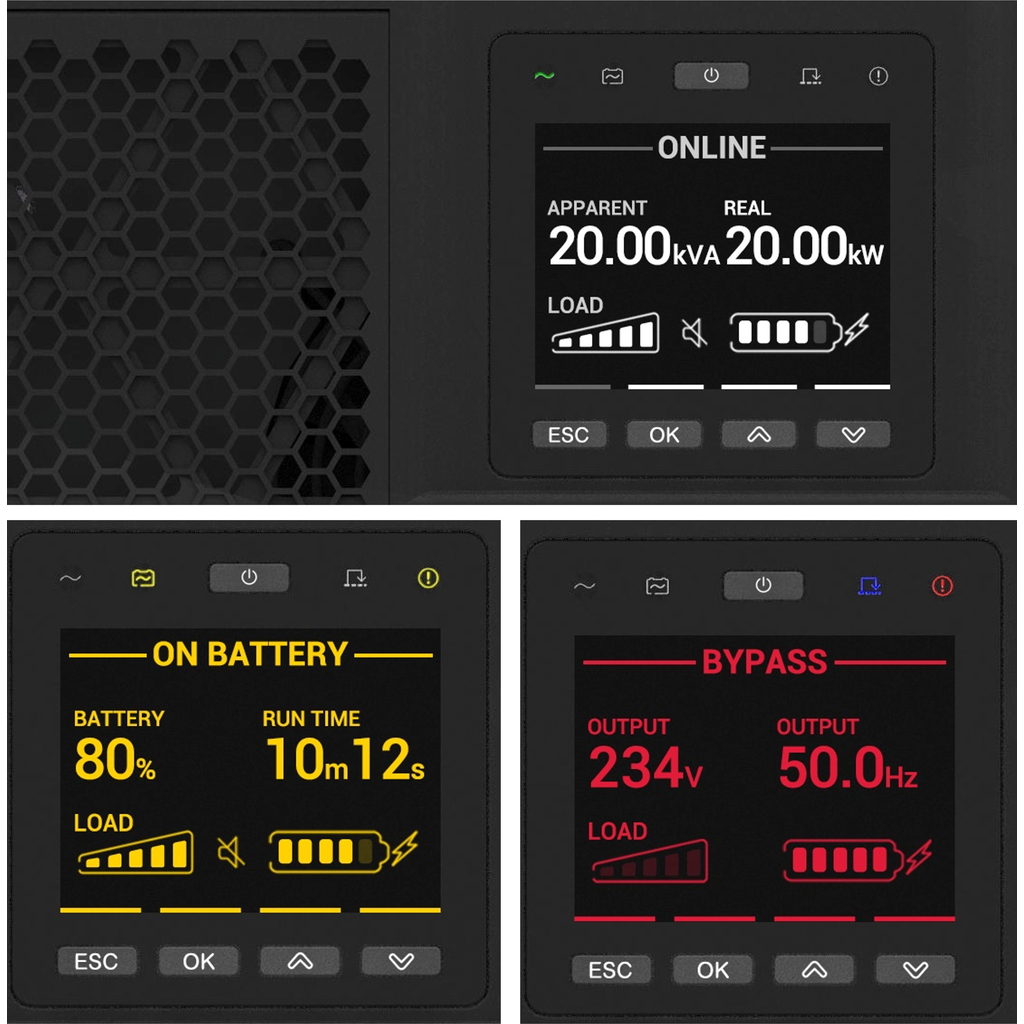

| Display type | LCD |
| LED indicators | Yes |
| Cables included | RS-232 |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 535 mm |
| Output frequency | 50/60 Hz |
| Input current Total Harmonic Distortion (THD) | 5% |
| Battery voltage | 192 V |
| International Protection (IP) code | IP20 |
| USB port | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
