APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O r
Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description

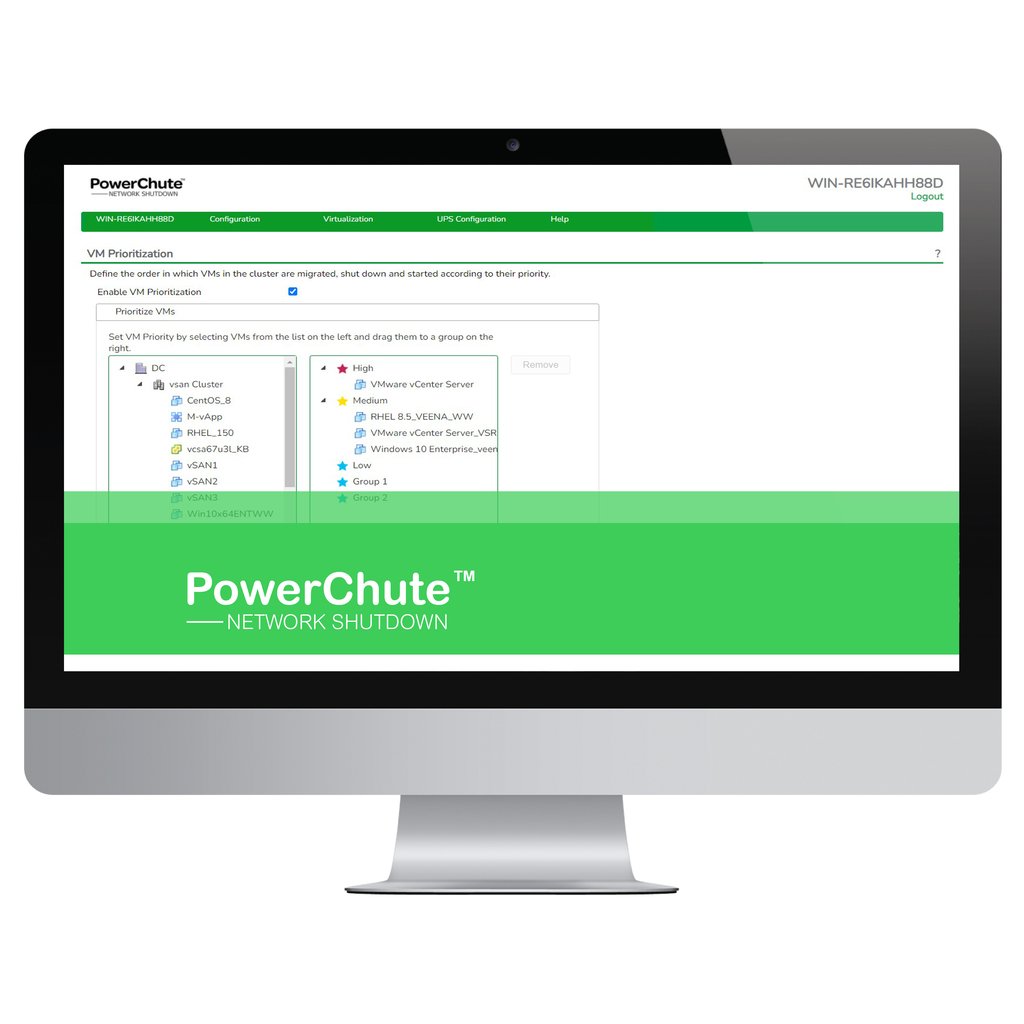

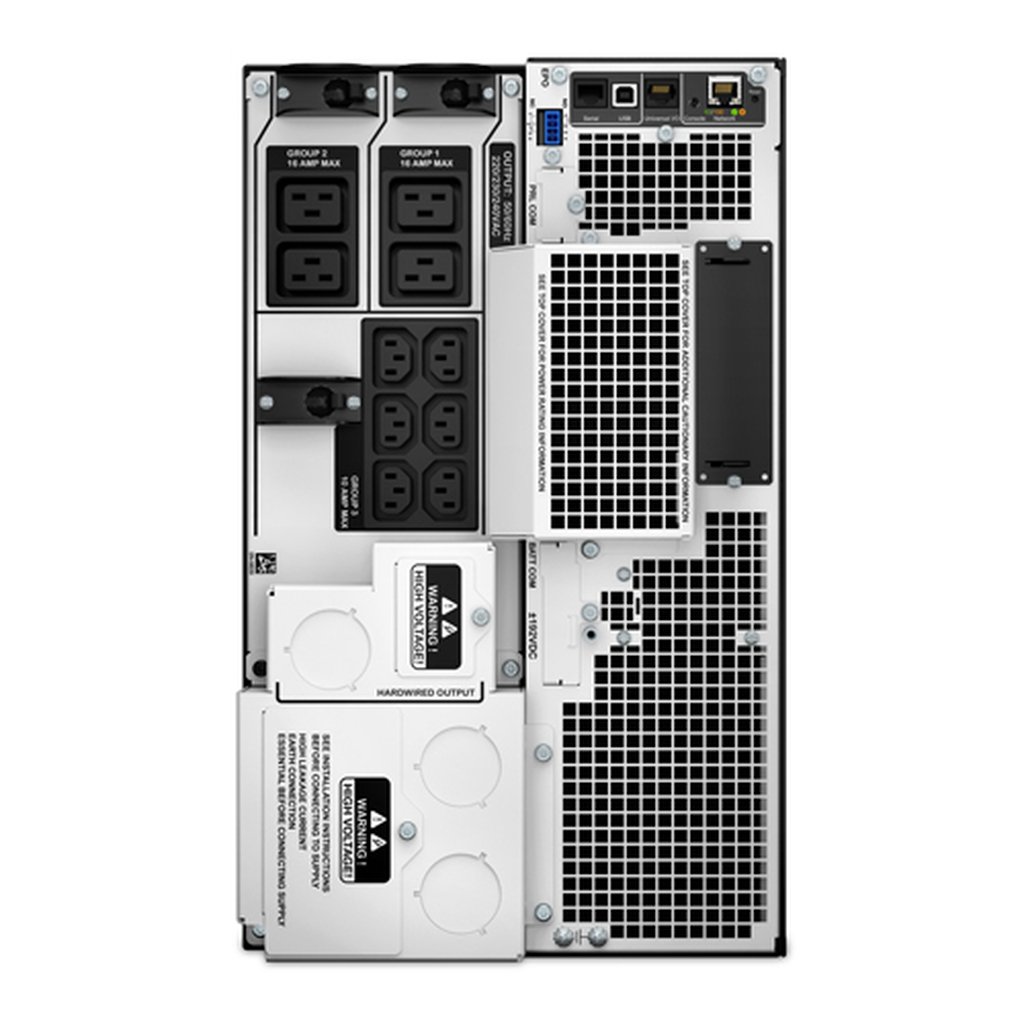

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Additional information
| Weight | 131.75 lbs |
|---|---|
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Input frequency | 40/70 Hz |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| Battery recharge time | 1.5 h |
| Product colour | Black |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH |
| Weight | 111.8 kg |
| Harmonized System (HS) code | 85078000 |
| Interface | RJ-45 10/100 Base-T |
| Nominal input voltage | 230 V |
| Package weight | 126.8 kg |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 476 V |
| Form factor | Rackmount/Tower |
| Compliance certificates | RoHS |
| Width | 263 mm |
| Depth | 715 mm |
| Height | 432 mm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 50/60 Hz |
| Number of output phases | 1 |
| Efficiency | 94.6% |
| Crest factor | 3:1 |
| Noise level | 55 dB |
| Auto-restart | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | Hardwire |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 3 |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 1805 VAh |

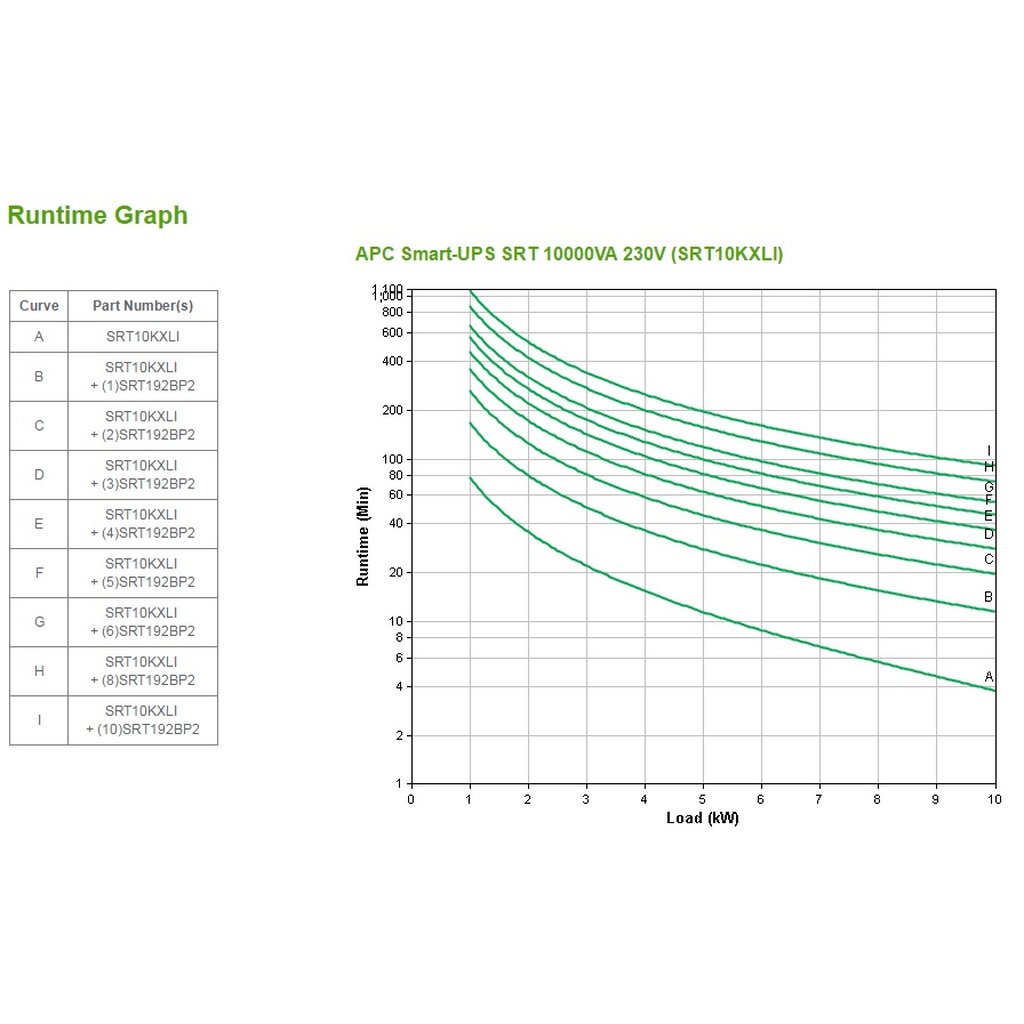

| Typical backup time at full load | 3.8 min |
| Typical backup time at half load | 11.5 min |
| Battery life (max) | 5 year(s) |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| LED indicators | Yes |
| Cables included | USB cable |
| Software CD | Yes |
| Package width | 600 mm |
| Package depth | 1000 mm |
| Package height | 461 mm |
| Total carbon footprint (kg of CO2e) | 22851.99 |
| Nominal output voltage | 230 V |
| Packaging content | Web/SNMP Management Card |
| Surge energy rating | 480 J |
| International Protection (IP) code | IP20 |
| Quick installation guide | Yes |
| USB port | Yes |
| Sustainability certificates | ENERGY STAR |
| Warranty card | Yes |
| Temperature sensor | Yes |
