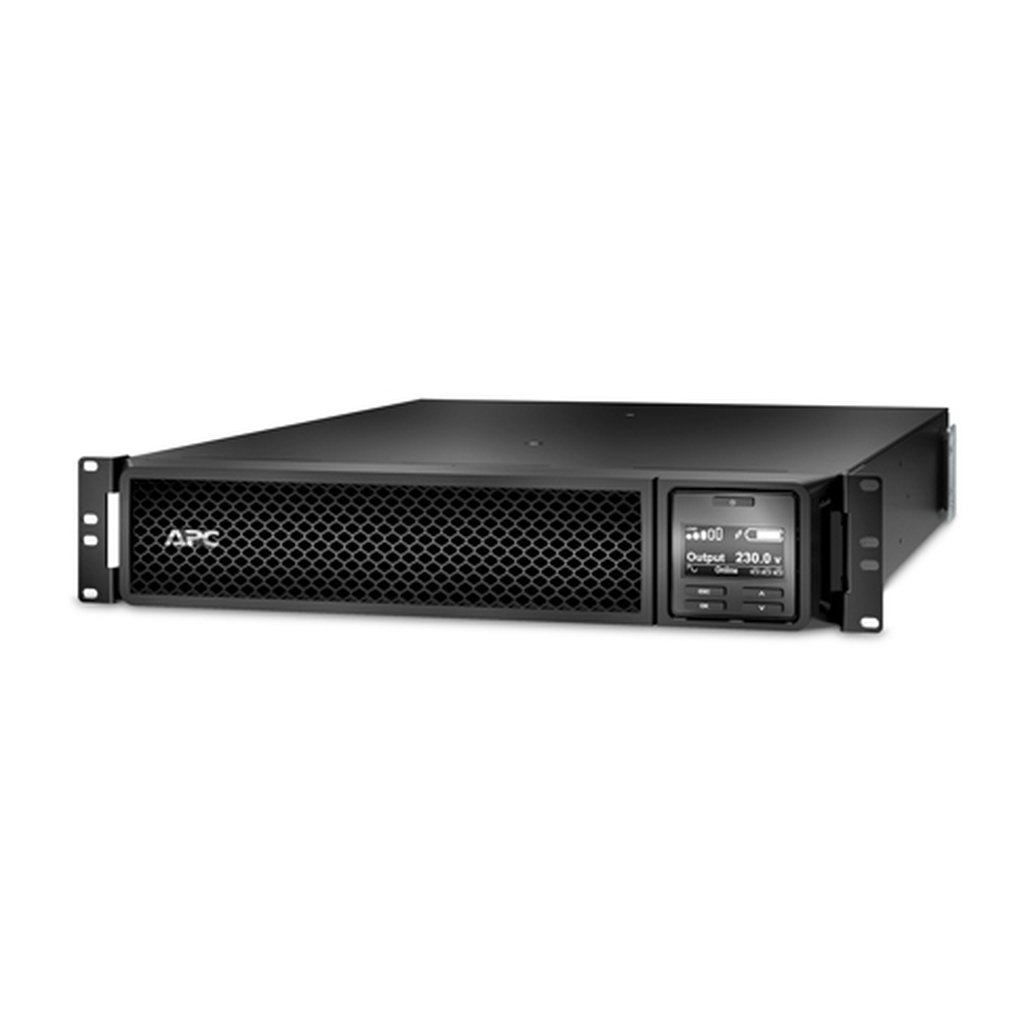

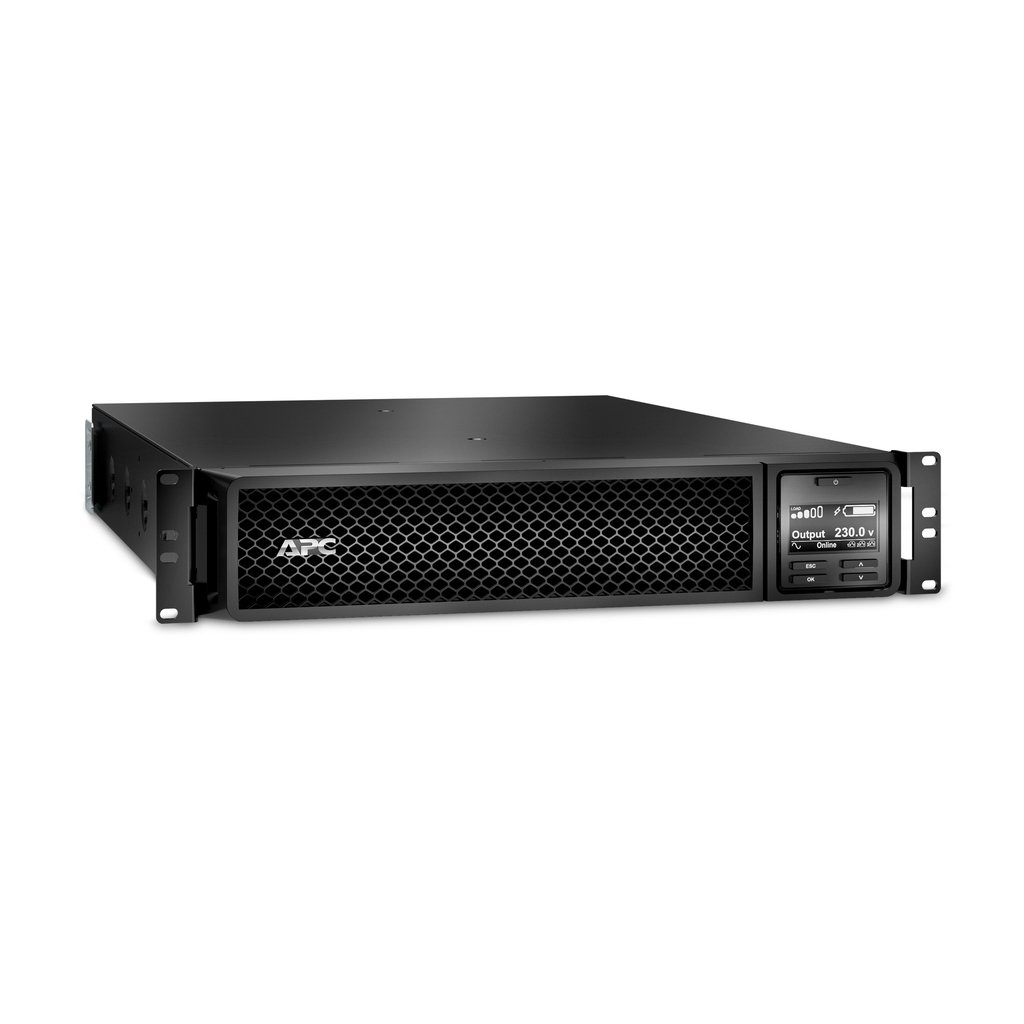

APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/ rail kit

In Stock

Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/ rail kit

  • We give you a dedicated account manager with every order.
  • We welcome single and bulk orders. Get fast delivery each time.
  • We can offer installation and configuration on orders.
  • We care, get great pricing and great customer service.
  • Any further questions, get in touch on 01933 837600.
SKU: SRT3000RMXLW-IEC
Categories: ,
Brand:

Description

Stay always online and prevent data loss
An APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power failures do not affect this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This prevents unwanted failure of, for example, a PC, server, storage or switch. With the included Powershute software, you can even have critical IT hardware shut down automatically and in a controlled manner. This prevents data loss, downtime and physical damage to hardware.

Extend the runtime

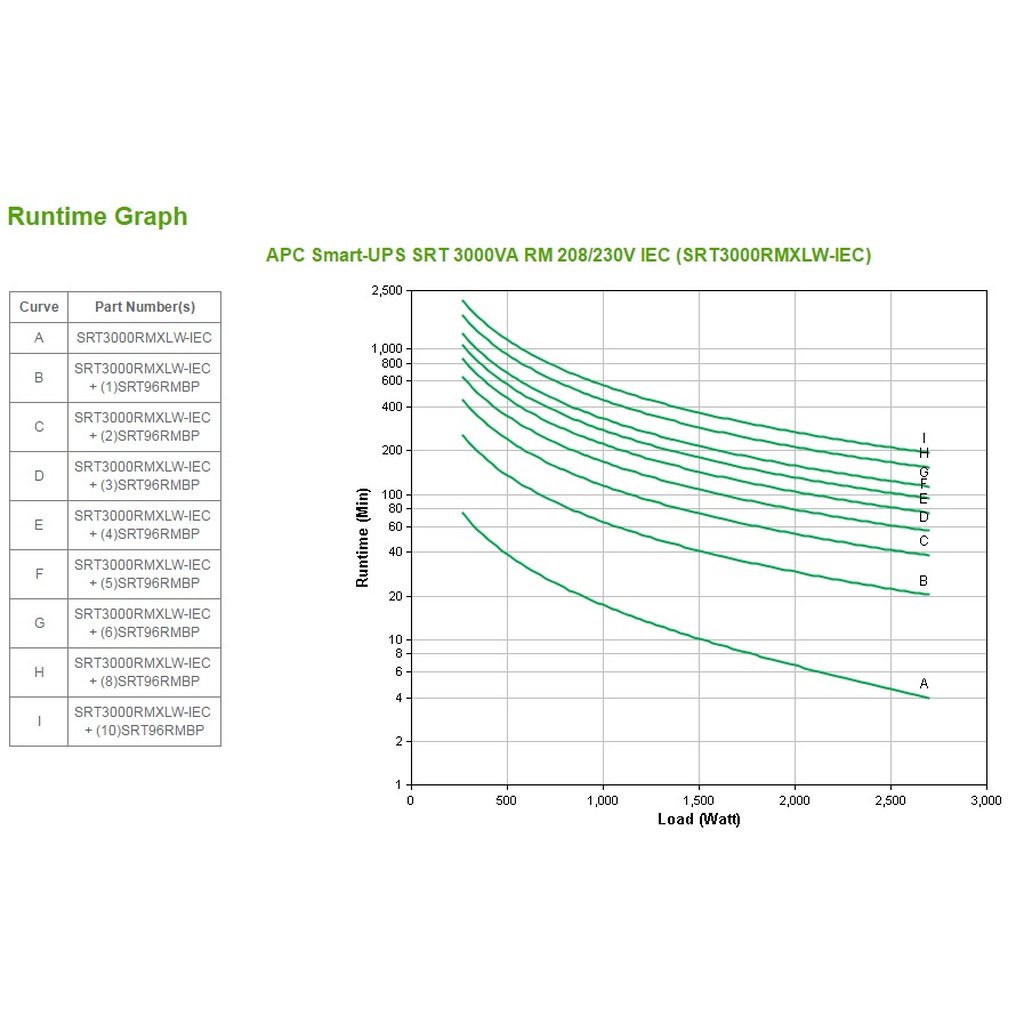

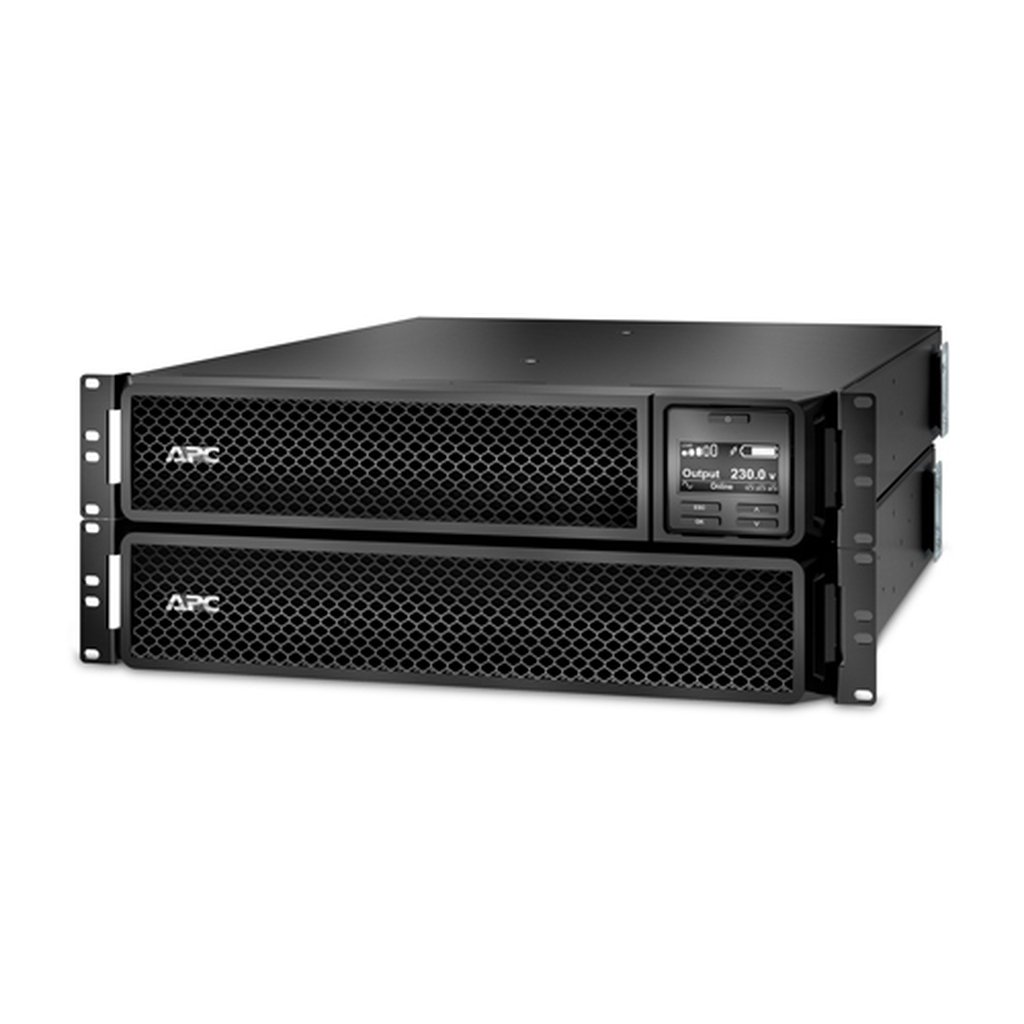

You can easily increase the number of minutes that the APC SRT3000RMXLW-IEC can supply emergency power independently by connecting external battery packs (SRT96RMBP). A runtime of several hours is even possible.

Availability
The Smart-UPS On-Line has an internal bypass and uses double conversion, which maximizes the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency generator. The On-Line double conversion technology ensures clean, uninterrupted power to protected equipment even when generator power is used.

Safety
In addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for business use.

Easy to use

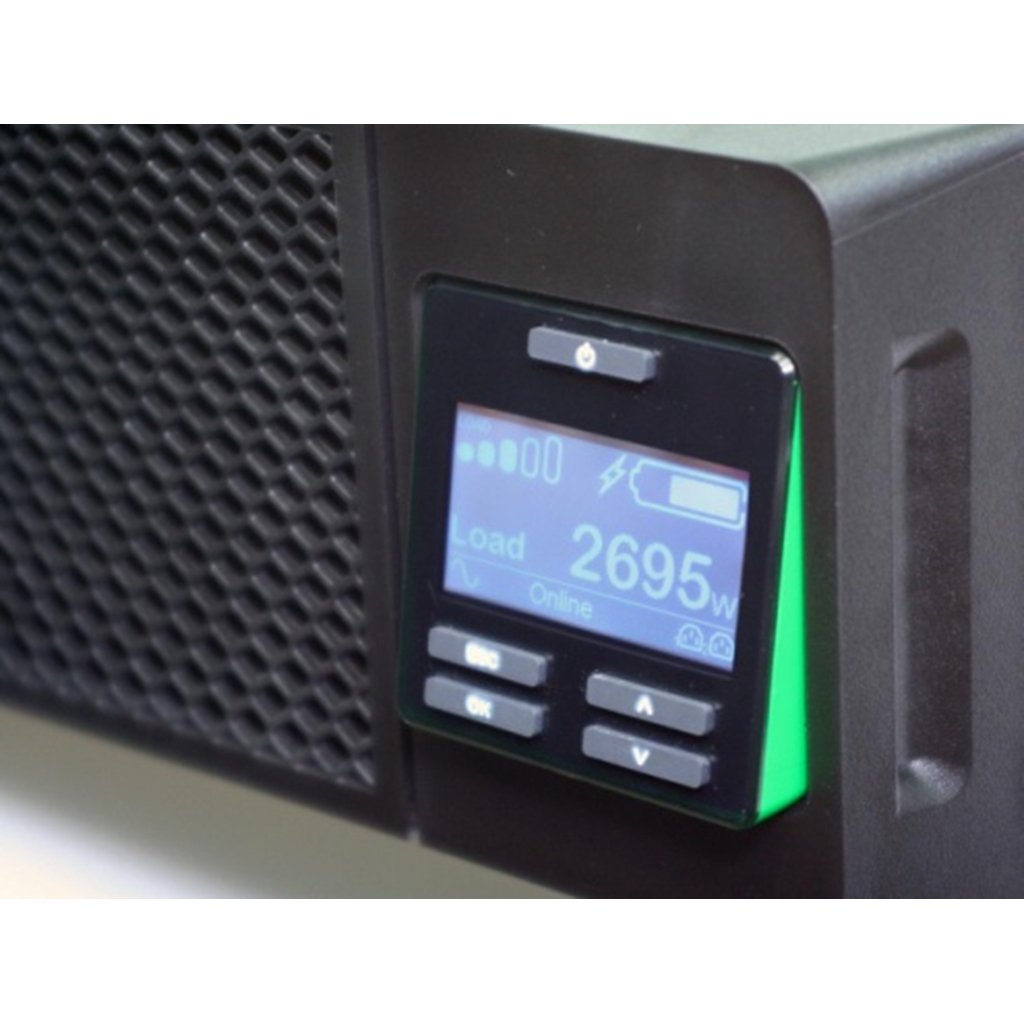

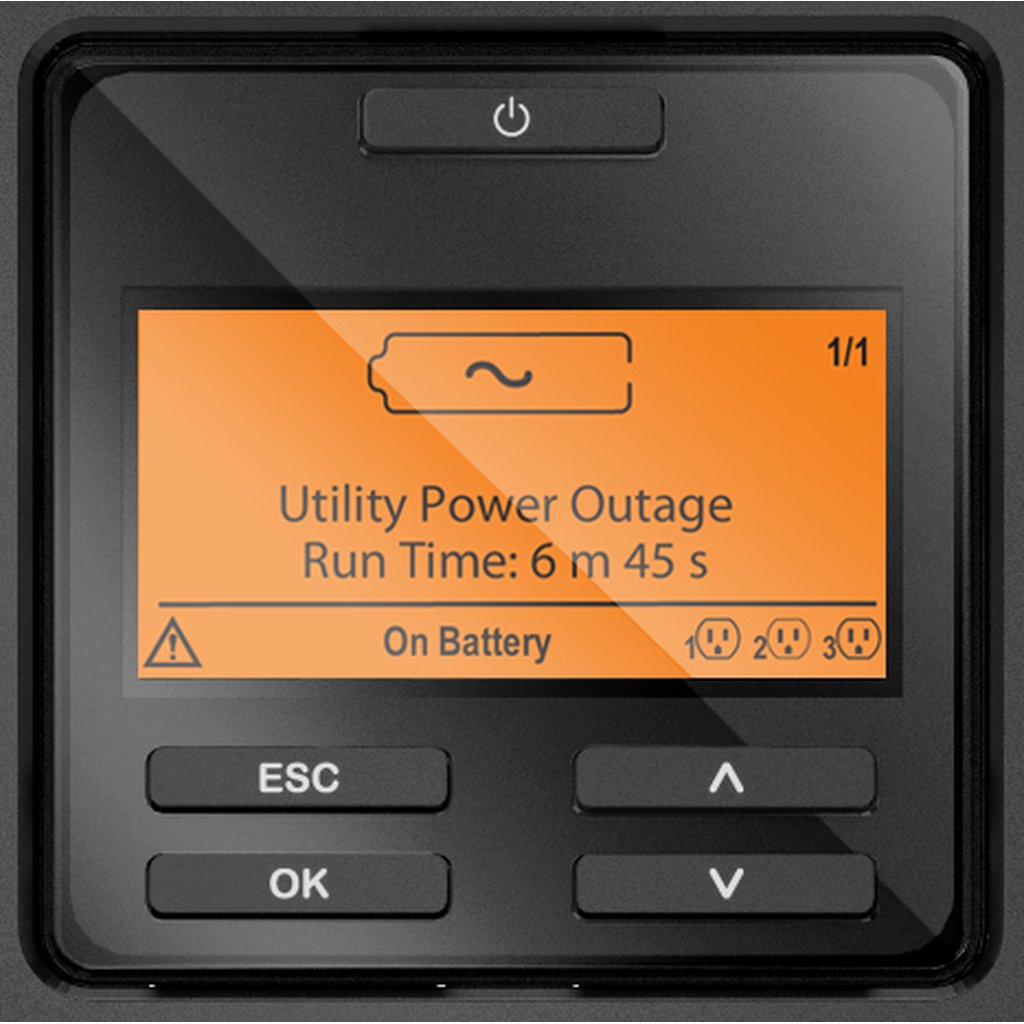

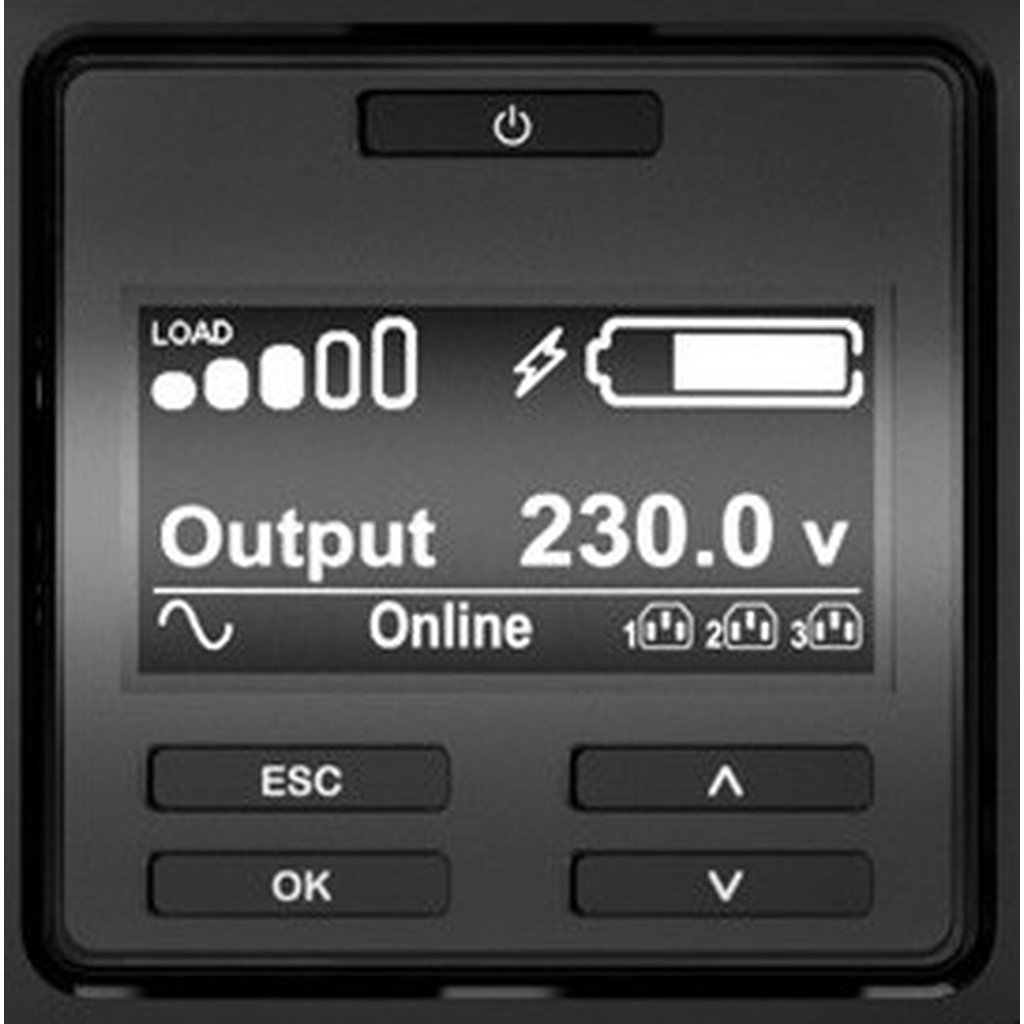

The APC Smart-UPS SRT is easy to operate thanks to a tiltable graphic LCD screen. You can also connect this UPS directly to your network with the optional APC Network Management Card (ap9640 or ap9641). This makes the APC UPS easy to manage remotely and it can send a shutdown signal to multiple physical and/or virtual servers via the network.

Extend the lifespan
The internal battery cartridge (APCRBC152) can be easily, safely and independently replaced by the user. This without having to switch off the APC SRT3000RMXLW-IEC or connected equipment. This way you can easily and cheaply extend the life of the APC Smart-UPS and your equipment will always remain online.

Worldwide
Because this UPS can handle 208 or 230 volts on both the incoming and outgoing side, this UPS can be used worldwide.

Warranty extension
The factory warranty of the SRT3000RMXWI-IEC is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-05).

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 60320 C13, 2x IEC 60320 C19 outlets, and 2x IEC jumpers. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 60320 C13, 2x IEC 60320 C19 outlets, and 2x IEC jumpers. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, CSA C22.2 No 107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR V2.0 (USA), FCC part 15 class A, OSHPD, RCM, UL 1778, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Additional information

Weight 42.65 lbs
Output power capacity

3 kVA

Output power

2700 W

Input frequency

40/70 Hz

Emergency Power Off (EPO)

Yes

Audible alarm(s)

Yes

Battery recharge time

3 h

Product colour

Black

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-15 – 45 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Operating altitude

0 – 3000 m

Non-operating altitude

0 – 15000 m

Certification

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH

Weight

31.3 kg

Harmonized System (HS) code

85078000

Nominal input voltage

230 V

Package weight

39.9 kg

Products per pallet

6 pc(s)

Input operation voltage (min)

100 V

Input operation voltage (max)

275 V

Form factor

Rackmount/Tower

Compliance certificates

RoHS

Width

432 mm

Depth

635 mm

Height

85 mm

UPS topology

Double-conversion (Online)

Waveform

Sine

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Output frequency regulation

50/60 Hz

Efficiency

93.5%

Crest factor

3:1

Noise level

55 dB

Surge protection

Yes

Auto-restart

Yes

AC outlet types

C13 coupler, C19 coupler

Power plug

C20 coupler

AC outlets quantity

8 AC outlet(s)

Number of output IEC jumpers

2

Serial interface

Yes

Serial interface type

RJ-45

SmartSlot

Yes

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

505 VAh

Typical backup time at full load

4 min

Typical backup time at half load

11.8 min

Battery life (max)

5 year(s)

Hot-swap battery

Yes

Automatic battery test

Yes

Cold start

Yes

Rack capacity

2U

Display type

LCD

LED indicators

Yes

Rack mount kit

Yes

Cables included

USB cable

Software CD

Yes

Package width

599 mm

Package depth

871 mm

Package height

246 mm

Total carbon footprint (kg of CO2e)

4983.65

Nominal output voltage

230 V

Surge energy rating

340 J

Output frequency

50/60 Hz

International Protection (IP) code

IP20

Quick installation guide

Yes

USB port

Yes

Number of batteries supported

1

Cable length

2.44 m

Sustainability certificates

ENERGY STAR

Web-based management

Yes

Warranty card

Yes

Bracket

Yes
