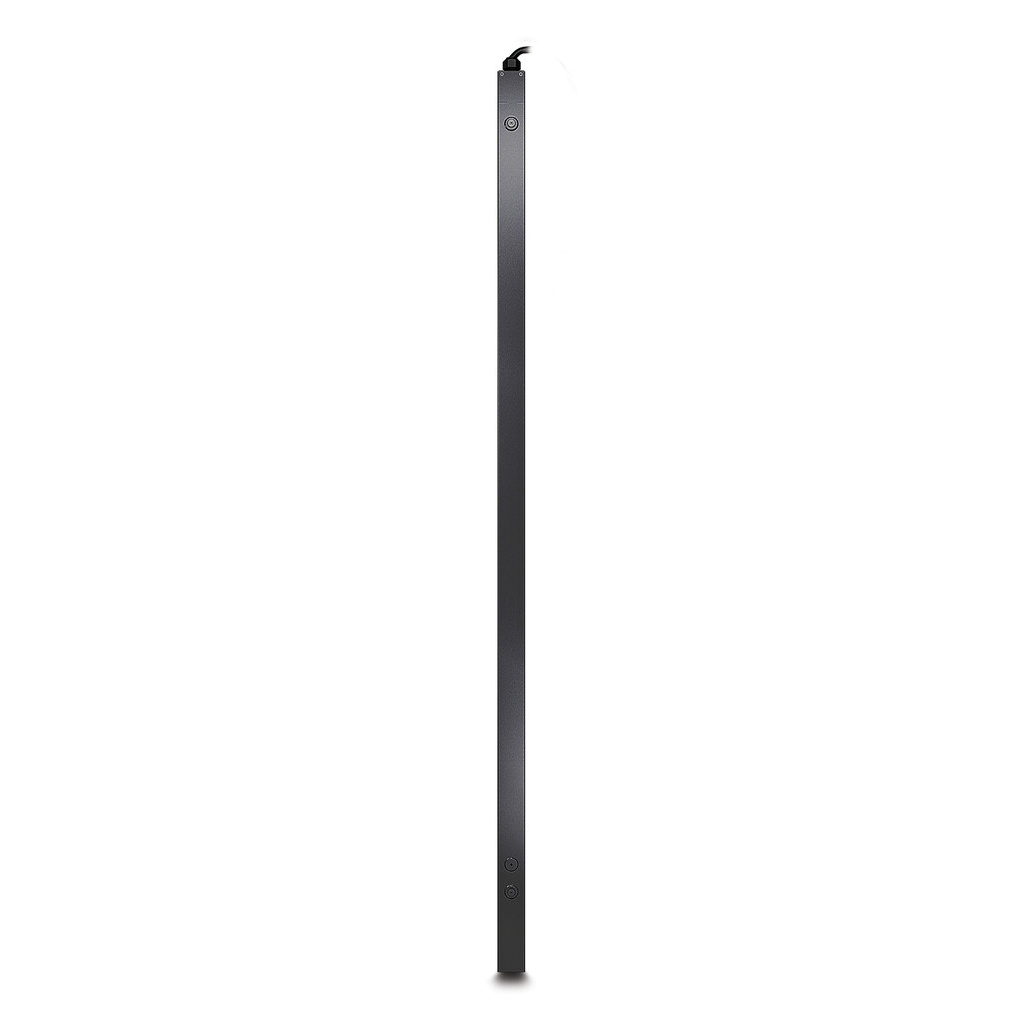

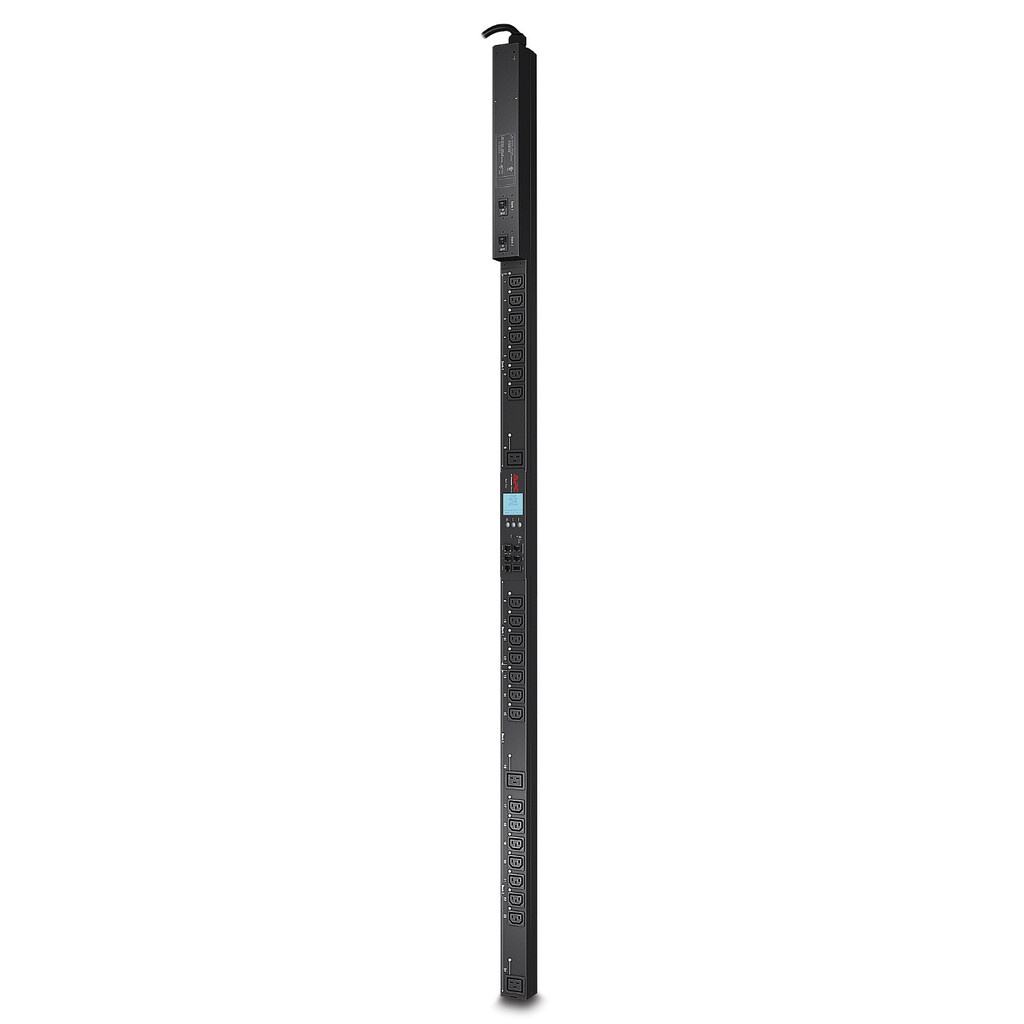

APC Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets
Rack PDU, 2G, metered by outlet, with switching, 0U, 30A, 200V and 208V, 21 C13 and 3 C19 sockets
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Additional information
| Weight | 10.81 lbs |
|---|---|
| PDU types | Switched |
| Rack capacity | 0U |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |

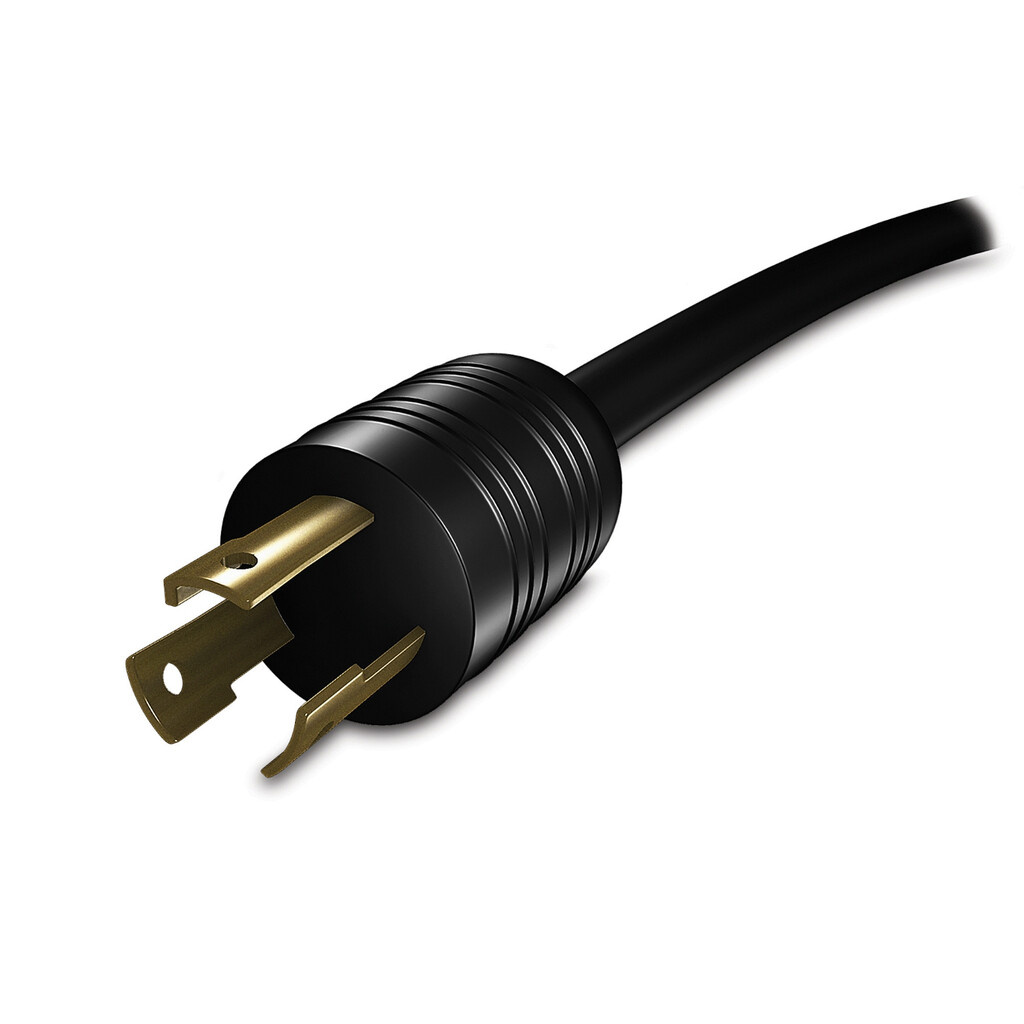

| Input connection type | NEMA L6-30P |
| Nominal input voltage | 200; 208; 230 V |
| AC input frequency | 50 – 60 Hz |
| Maximum total current draw per phase | 30 A |
| Certification | cUL listed; PSE; UL listed; VCCI class A |
| Operating temperature (T-T) | -5 – 45 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Width | 56 mm |
| Depth | 51 mm |
| Height | 1829 mm |
| Weight | 8.23 kg |
| Package weight | 10.5 kg |
| Package width | 162 mm |
| Package depth | 118 mm |
| Package height | 2038 mm |
| Total carbon footprint (kg of CO2e) | 3177.7753173235 |
| Maximum current | 30 A |
| Power plug | NEMA L6-30P |
| Cable length | 2.9 m |
| Nominal output voltage | 208 V |
| Compliance certificates | RoHS, REACH, WEEE |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Power protection features | Overload |
| Output voltage | 200 V; 208 V |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Packaging recycled materials | Recycled cardboard |
| Removable battery | Yes |
| Sustainable packaging | No |
| Country of origin | India |
| Customs product code (TARIC) | 8537109899 |
| Halogen free | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
