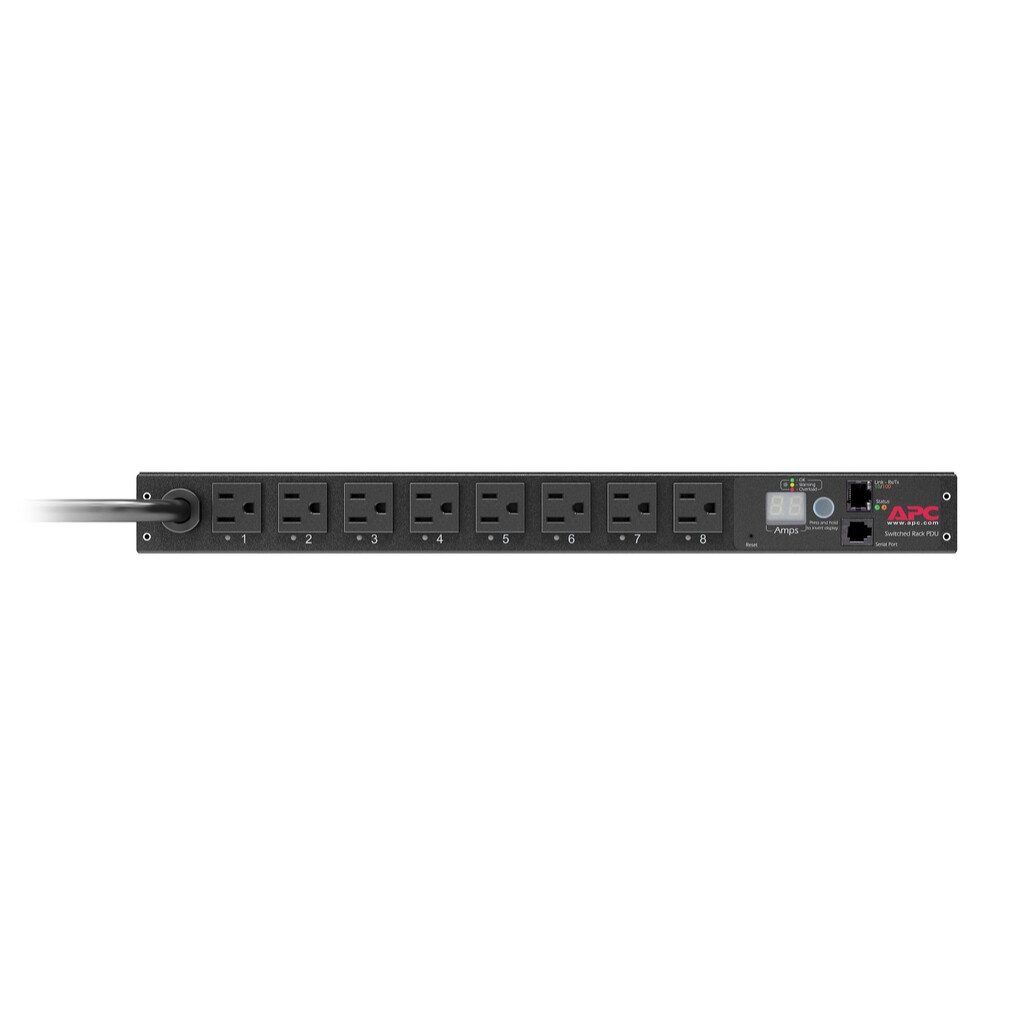

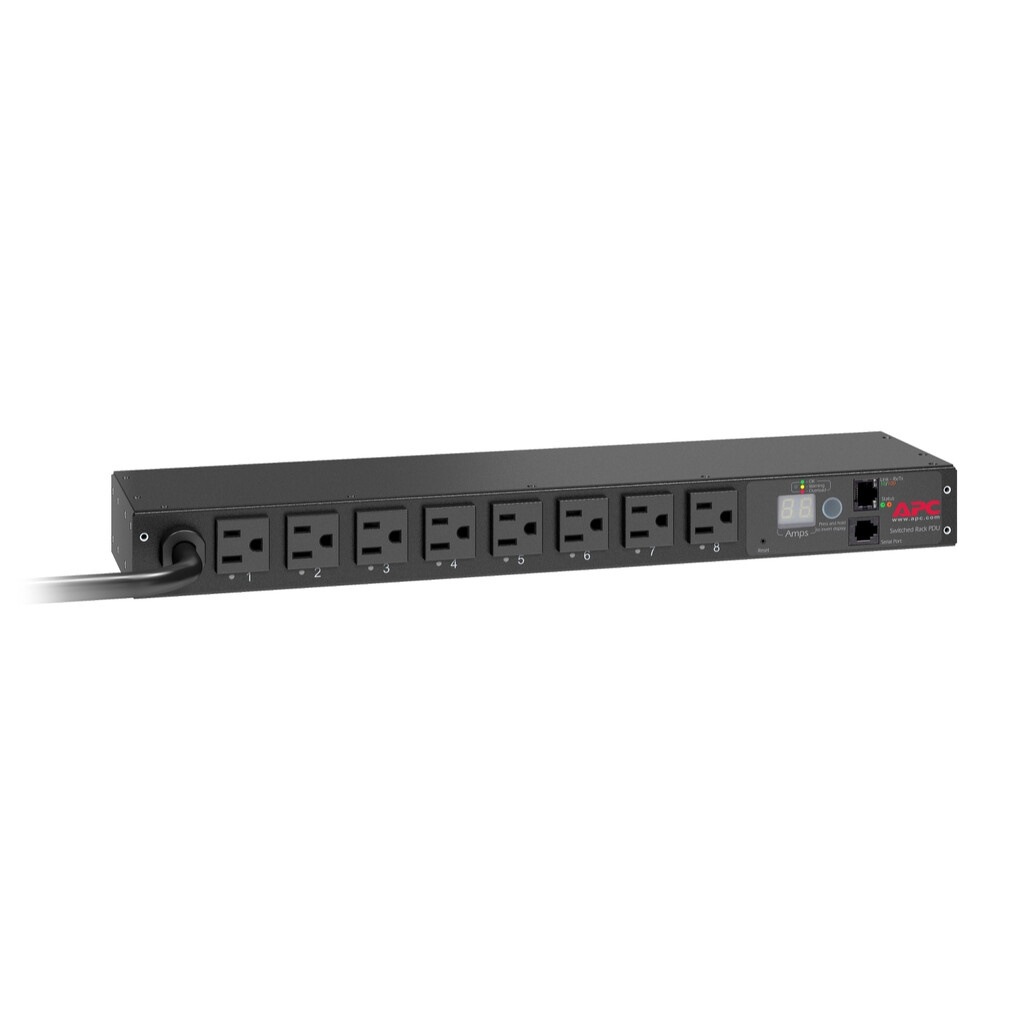

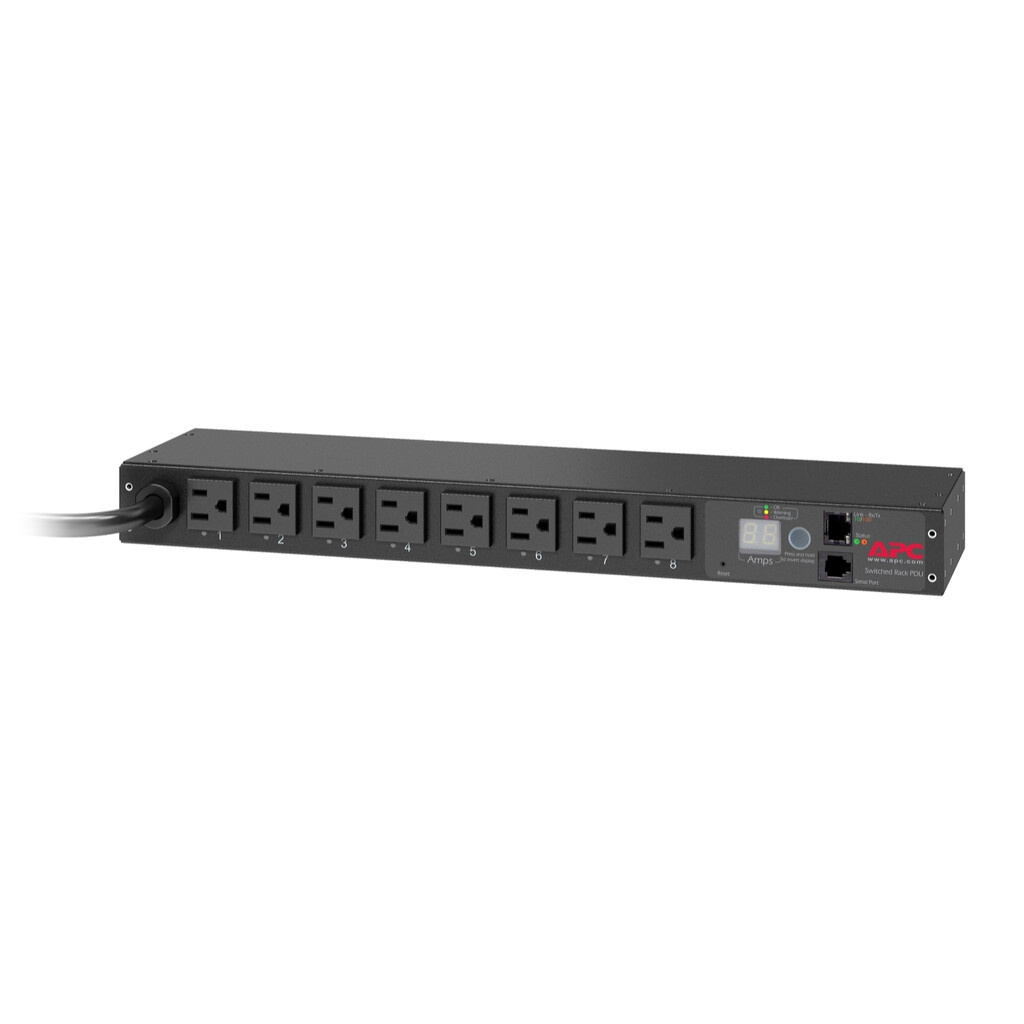

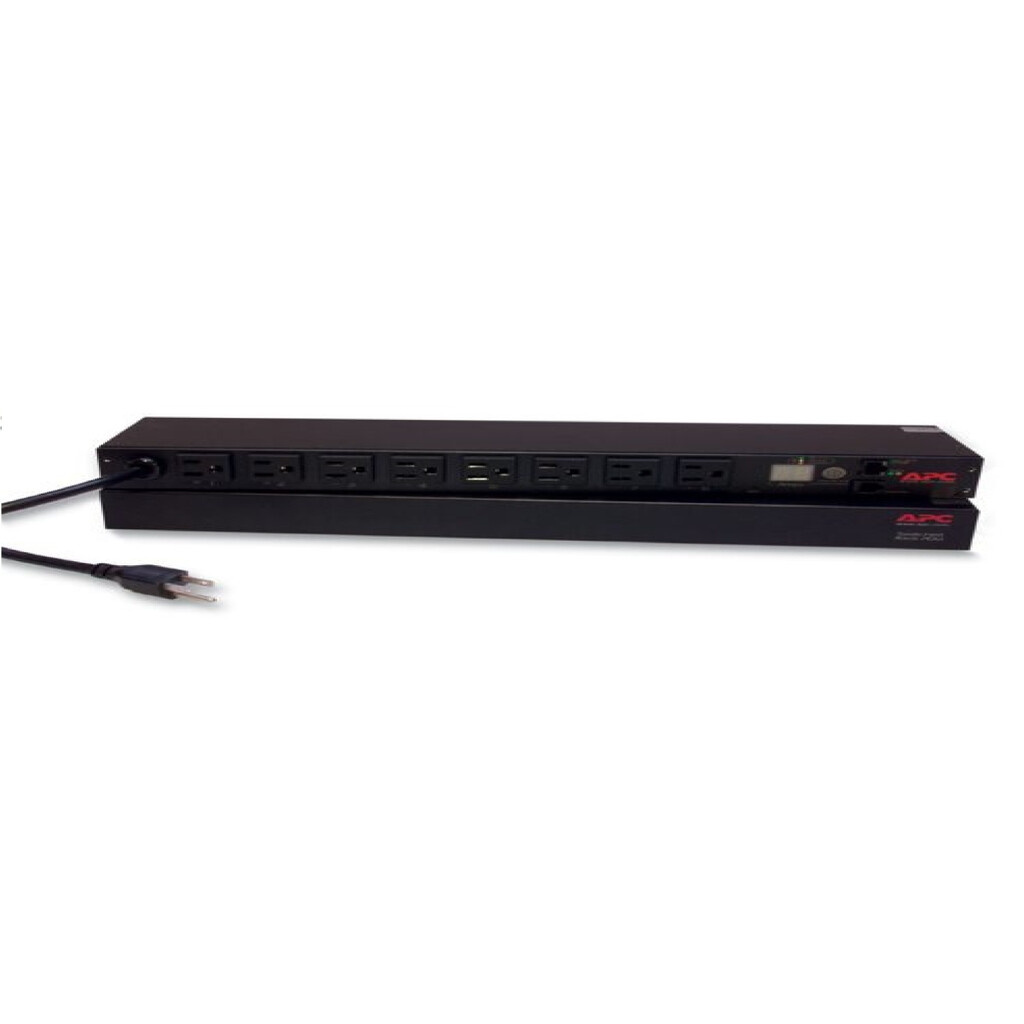

APC NetShelter Switched Rack PDU, 1U, 1.4kW, 120V, 15A, 8 NEMA 5-15R outlet
APC NetShelter Switched Rack PDU, 1U, 1.4kW, 120V, 15A, 8 NEMA 5-15R outlet
- We give you a dedicated account manager with every order.
- We welcome single and bulk orders. Get fast delivery each time.
- We can offer installation and configuration on orders.
- We care, get great pricing and great customer service.
- Any further questions, get in touch on 01933 837600.
Description
This APC Switched Rack PDU AP7900B power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)5-15. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Additional information
| Weight | 3.72 lbs |
|---|---|
| Width | 444.5 mm |
| PDU types | Switched |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5–15P |
| Nominal input voltage | 100 – 120 V |
| AC input frequency | 50 – 60 Hz |
| Maximum total current draw per phase | 15 A |
| Certification | UL/cUL, PSE, FCC Part 15 Class A, IC<br />ES-003 Class A, VCCI Class A |
| Operating temperature (T-T) | -5 – 45 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Depth | 108 mm |
| Height | 44.5 mm |
| Weight | 2.26 kg |
| Package weight | 3.4 kg |
| Total carbon footprint (kg of CO2e) | 915.89 |
| Maximum current | 15 A |
| Power plug | NEMA 5–15P |
| Cable length | 3.65 m |
| Nominal output voltage | 120 V |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
